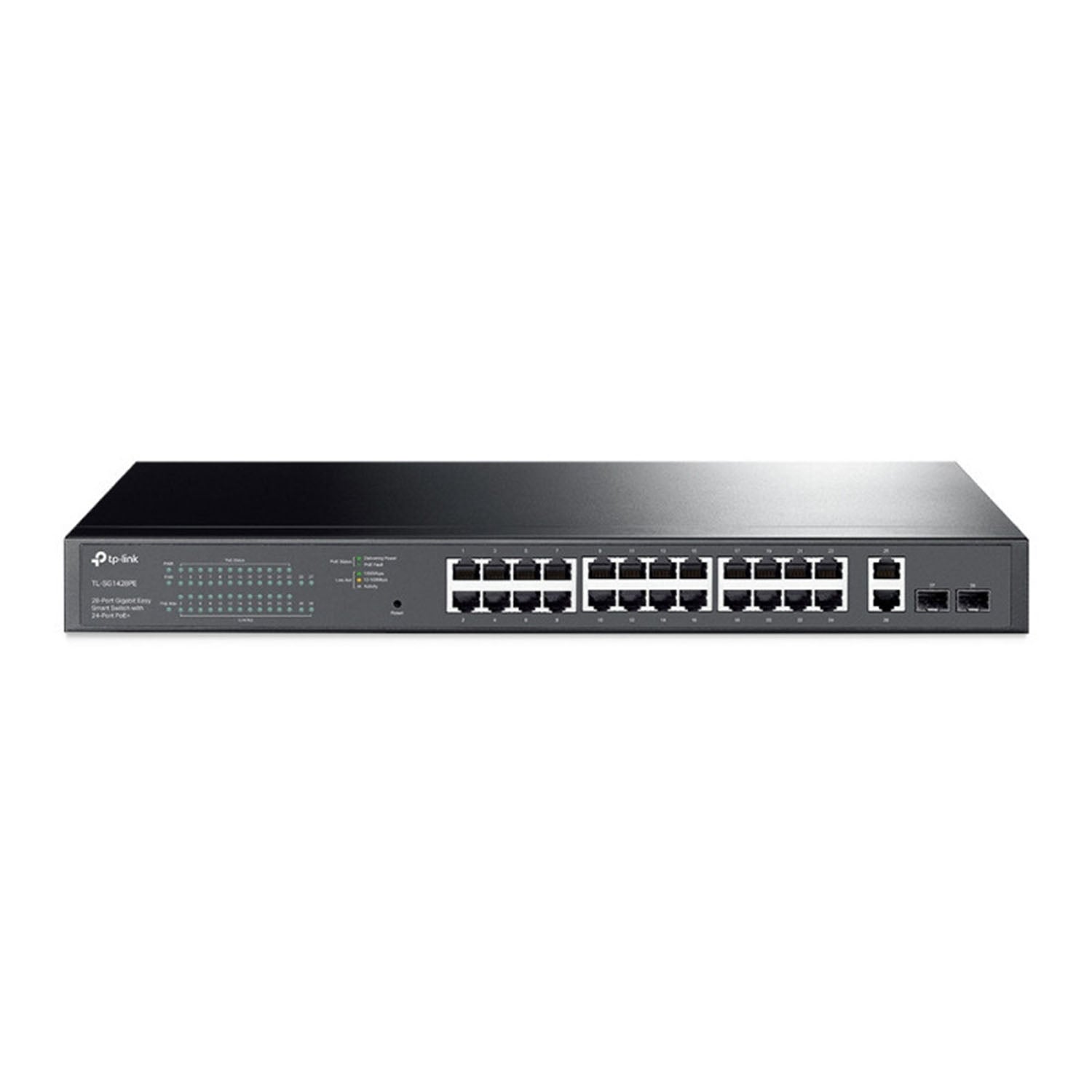

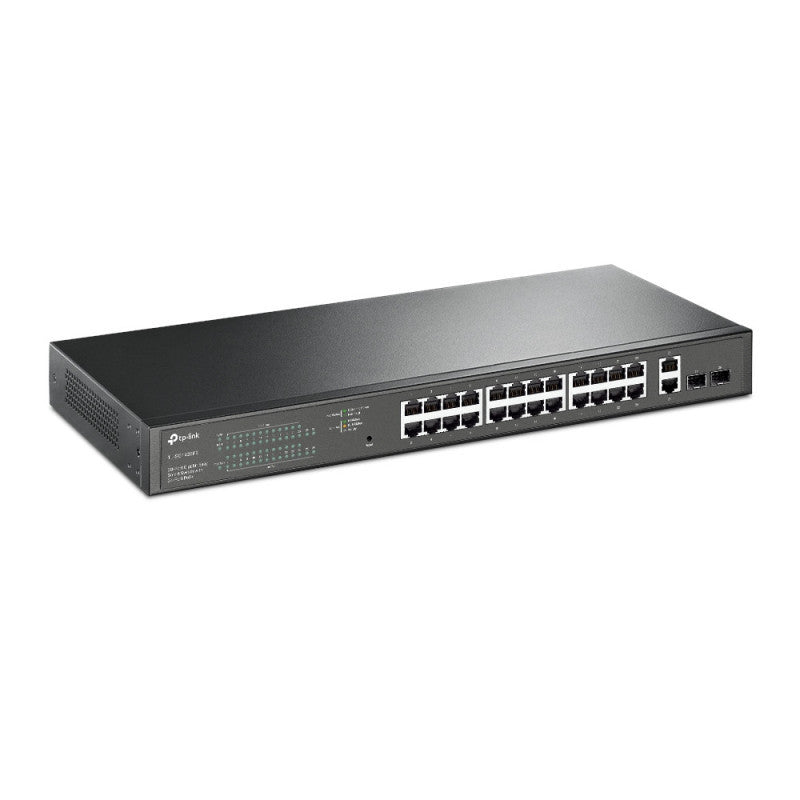

TP‑Link TL‑SG1428PE – 28‑Port Gigabit Easy Smart Switch with 24‑Port PoE+

TP‑Link 28‑Port Gigabit Easy Smart Switch with 24‑Port PoE+

The TP‑Link TL‑SG1428PE is a high‑density 28‑port Gigabit Easy Smart Switch designed for CCTV, office networks, retail, hospitality, and PoE device deployment. With 24 PoE+ ports, 2 Gigabit uplinks, 2 SFP fibre slots, and full smart‑managed features, it delivers stable, secure, and scalable network performance for demanding environments.

Specifications

Ports: 28× Gigabit RJ45 (24× PoE+, 2× Uplink, 2× SFP)
PoE Standard: IEEE 802.3af/at
PoE Budget: 250W total
Max PoE per Port: 30W
Switching Capacity: 56 Gbps
Forwarding Rate: 41.7 Mpps
MAC Address Table: 8000 entries
Buffer Memory: 4.1 MB
VLAN Support: Port‑based VLAN, Tagged VLAN, 32 VLANs
QoS: Yes
IGMP Snooping: Yes
Link Aggregation: Yes
Port Mirroring: Yes
Flow Control: Yes
Auto MDI/MDI‑X: Yes
Auto‑Negotiation: Yes
Jumbo Frame: 10000 bytes
Security: SNMP / SNMPv2 / SNMPv3
Dimensions: 440 × 220 × 44 mm
Case: Metal, rack‑mountable
Cooling: Dual fans
Mounting: 1U rack‑mount
Power Input: 100–240V AC, 50/60Hz
Power Consumption: Max 1039.03 W
Operating Temperature: 0–50°C
Operating Humidity: 10–90%
Warranty: Manufacturer standard

Key Features:

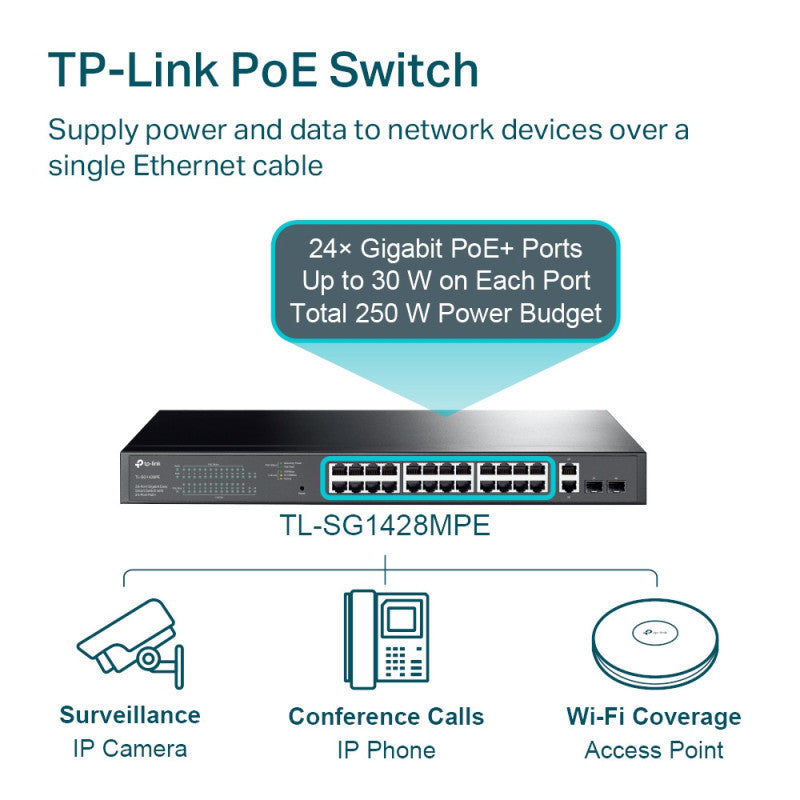

24 PoE+ ports for powering cameras, APs, VoIP phones
250W PoE budget for multi‑device deployment
2 SFP uplink slots for fibre backbone expansion
Smart‑managed features including VLAN, QoS, IGMP Snooping
56Gbps switching capacity for stable Gigabit performance

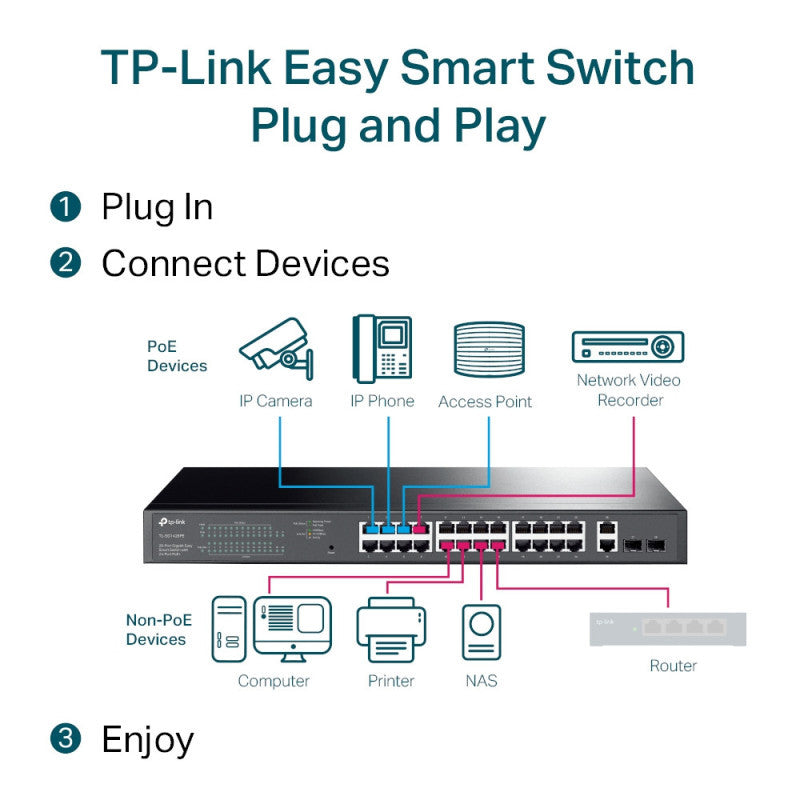

Auto MDI/MDI‑X and plug‑and‑play setup

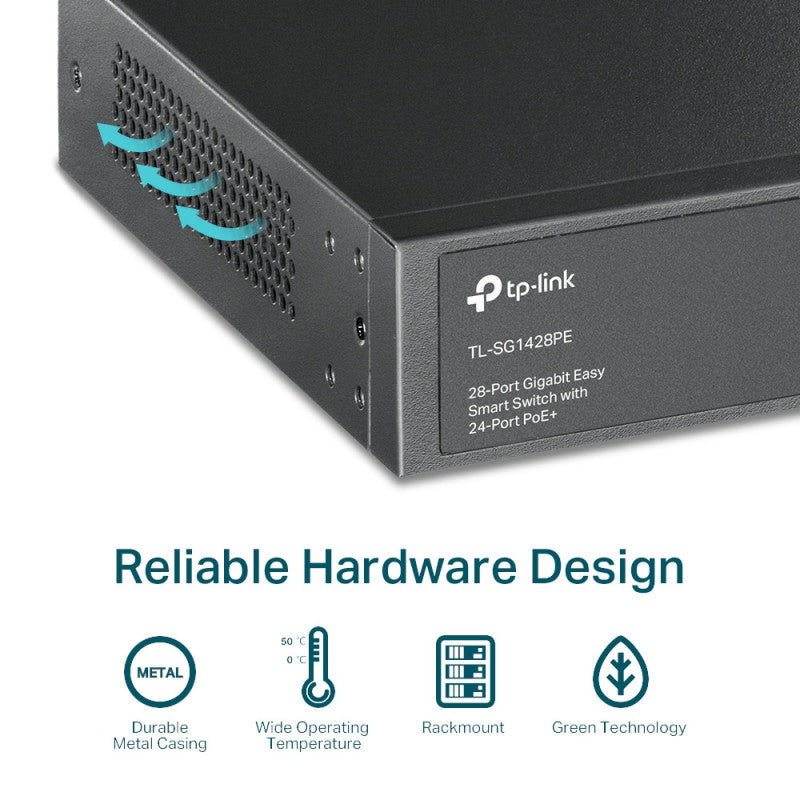

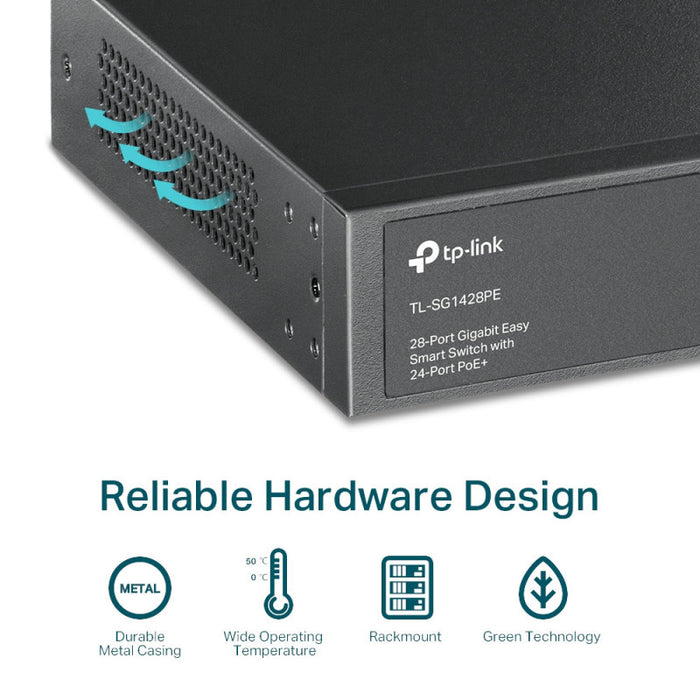

Metal rack‑mount chassis with active cooling
Ideal for surveillance, office networks, and retail environments

Perfect For
CCTV/IP camera networks
Small to medium business offices
Retail shops
Hospitality venues
Warehouse networks
Home labs
Shared workspaces

Package Contents
TP‑Link TL‑SG1428PE Switch
Rack‑mount kit
Power cable
Documentation
