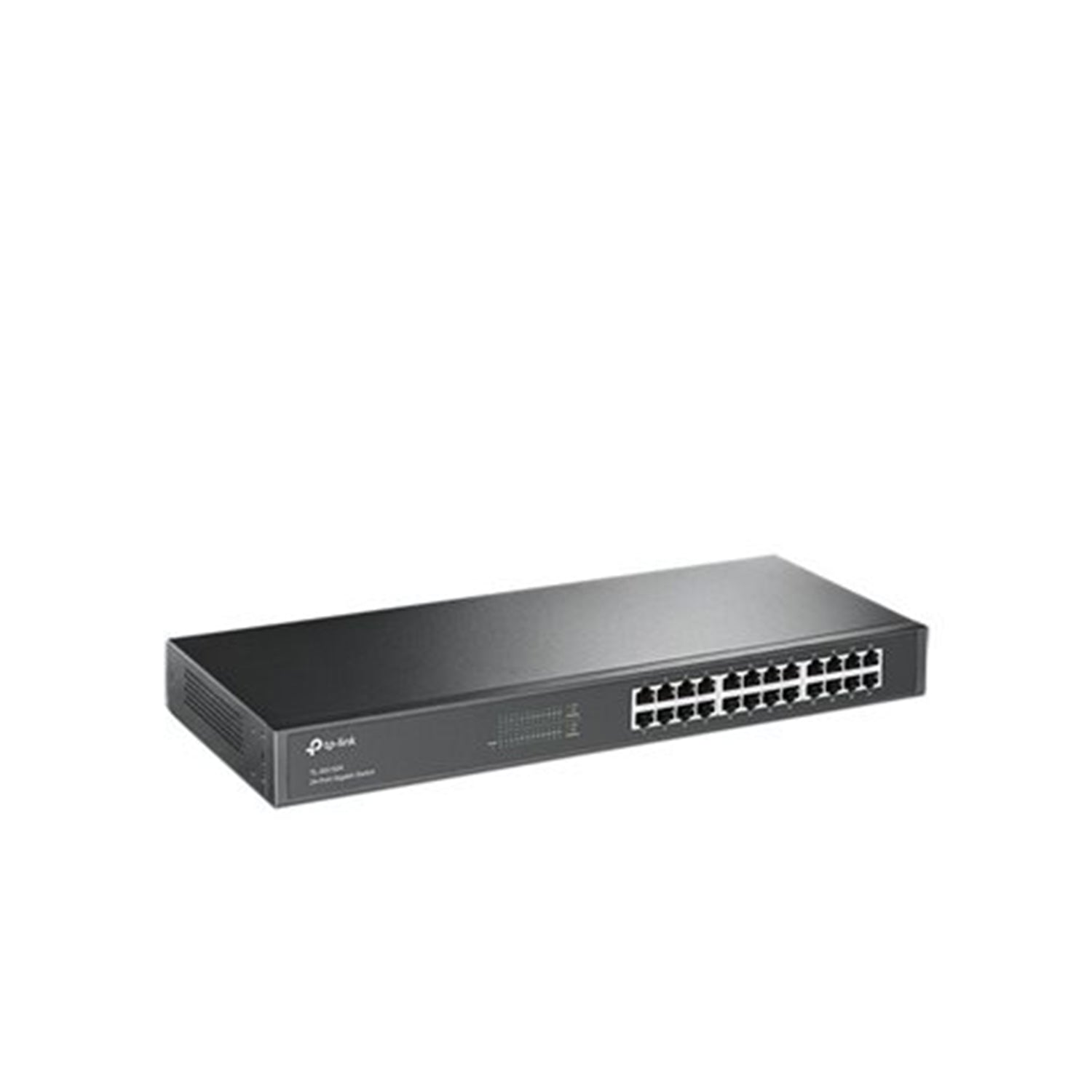

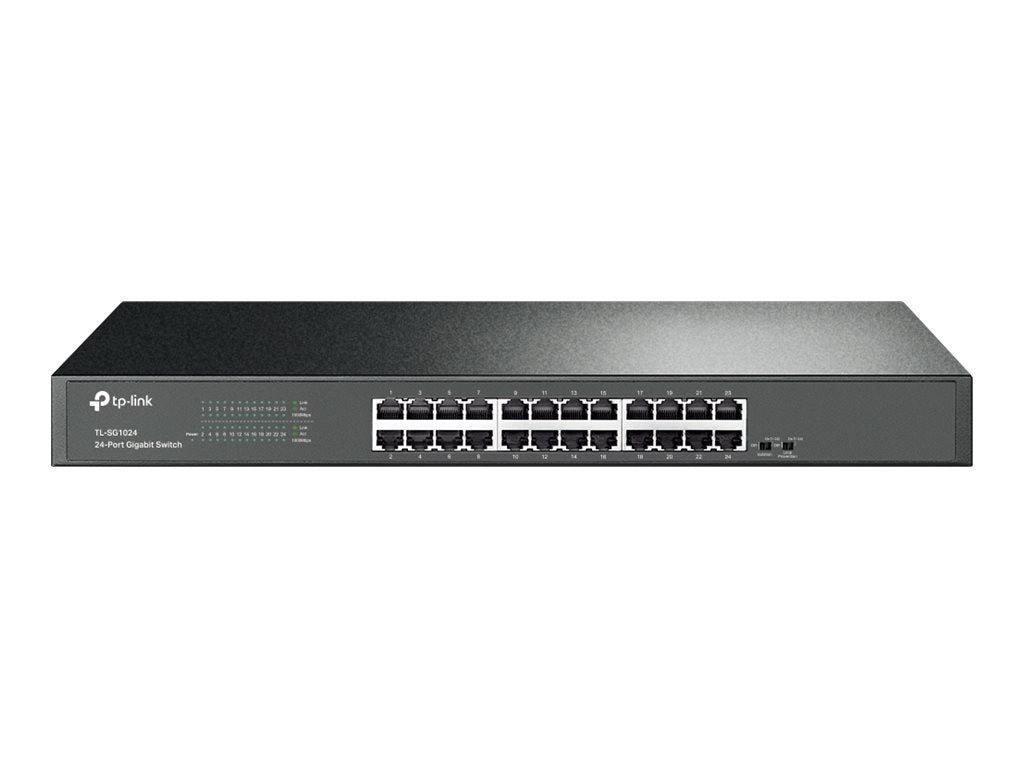

TP‑Link TL‑SG1024 – 24‑Port Gigabit Unmanaged Rackmount Switch

TP‑Link TL‑SG1024 – 24-Port Gigabit Switch

The TP‑Link TL‑SG1024 is a 24‑port Gigabit Ethernet switch designed for offices, workgroups, and expanding business networks. With full 10/100/1000 Mbps auto‑negotiation on every port, this unmanaged rackmount switch offers seamless plug‑and‑play deployment with no configuration required. Each port supports up to 2000Mbps full‑duplex throughput, ensuring smooth data transfer for high‑bandwidth applications.

Its durable metal chassis and rack‑mountable 1U design make it ideal for network cabinets and structured installations. With features such as Auto‑MDI/MDIX, IEEE 802.3X flow control, and store‑and‑forward switching, the TL‑SG1024 delivers reliable, consistent performance with minimal maintenance — perfect for growing networks that need stability and simplicity.

Specifications

Rackmountable: Yes
Managed: No (Unmanaged)
Number of Ports: 24
Max RJ45 Transfer Rate: 10/100/1000 Mbps

Interface(s): 24 × 10/100/1000Mbps RJ45 Ports AUTO Negotiation / AUTO MDI/MDIX
Switching Capacity: 48Gbps
Power Supply: AC 120/230V (50/60Hz)
Dimensions: 44 × 14 × 4.4 cm (Rack‑mountable 1U)
Transfer Method: Store and Forward
MAC Address Table: 8K

Additional Features
IEEE 802.3X flow control
Full/half duplex support
Auto‑negotiation
Auto‑uplink (Auto MDI/MDI‑X)
Store‑and‑forward switching
Environment
Operating Temperature: 0°C ~ 40°C
Operating Humidity: 10% ~ 90%
non‑condensing

Package Contents
TP‑Link TL‑SG1024 Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
