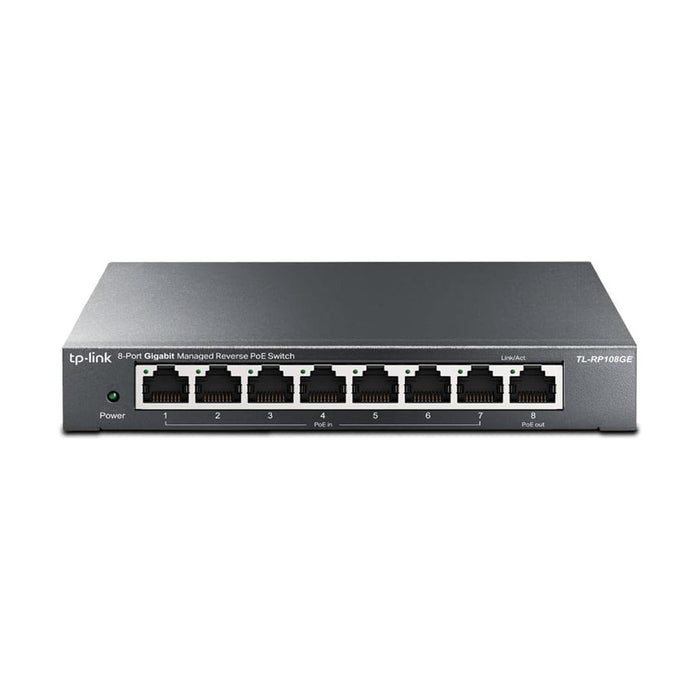

TP-Link RP108GE 8-Port Gigabit Managed Reverse PoE Switch, 7 PoE Input & 1 PoE Output, DC Output, Metal Casing

TP-Link 8-Port Gigabit PoE Switch

The TP-Link RP108GE 8-Port Gigabit Managed Reverse PoE Switch is a powerful tool for managing your network. With 7 PoE input ports and 1 PoE output port, this switch allows you to easily connect and power multiple devices. Its 1000 Mbps speed ensures fast and efficient data transfer. Plus, its metal casing provides durability and protection.

Specifications

Rackmountable: No

Managed: Yes

Number of Ports: 8

Max RJ45 Transfer Rate: 10/100/1000 Mbps

Interface(s)
7 Passive PoE-in RJ45 Ports:
10/100/1000Mbps Auto-Negotiation
Voltage: 24/48 V (mixture is not supported)
Power pin of Ethernet cable: 4/5+ 7/8-

1 Passive PoE-out RJ45 Port:
10/100/1000Mbps Auto-Negotiation
Voltage: depending on the input voltage of PoE-in ports
Power pin of Ethernet cable: 4/5+ 7/8-

1 DC Output Port:
Voltage: 5/12 V

Standards and Protocols
CSMA/CD

IEEE802.3ab, IEEE802.3i, IEEE802.3p
IEEE802.3q, IEEE802.3x, IEEE802.3u

Switching Capacity: 16 Gbps

LED: Power, Link/Act LED

Dimensions: 158 x 99.1 x 25 mm

Transfer Method: Store-And-Forward

Mac Address Table: 4 K

Packet Forwarding Rate: 11.9 Mbps

Jumbo Frame: 16 KB

Quality of Service
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

Layer Features
L2:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management: Intelligent management via a web user interface and downloadable utility

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents
TL-RP108GE
Power Cord
Installation Guide
Rubber Feet
