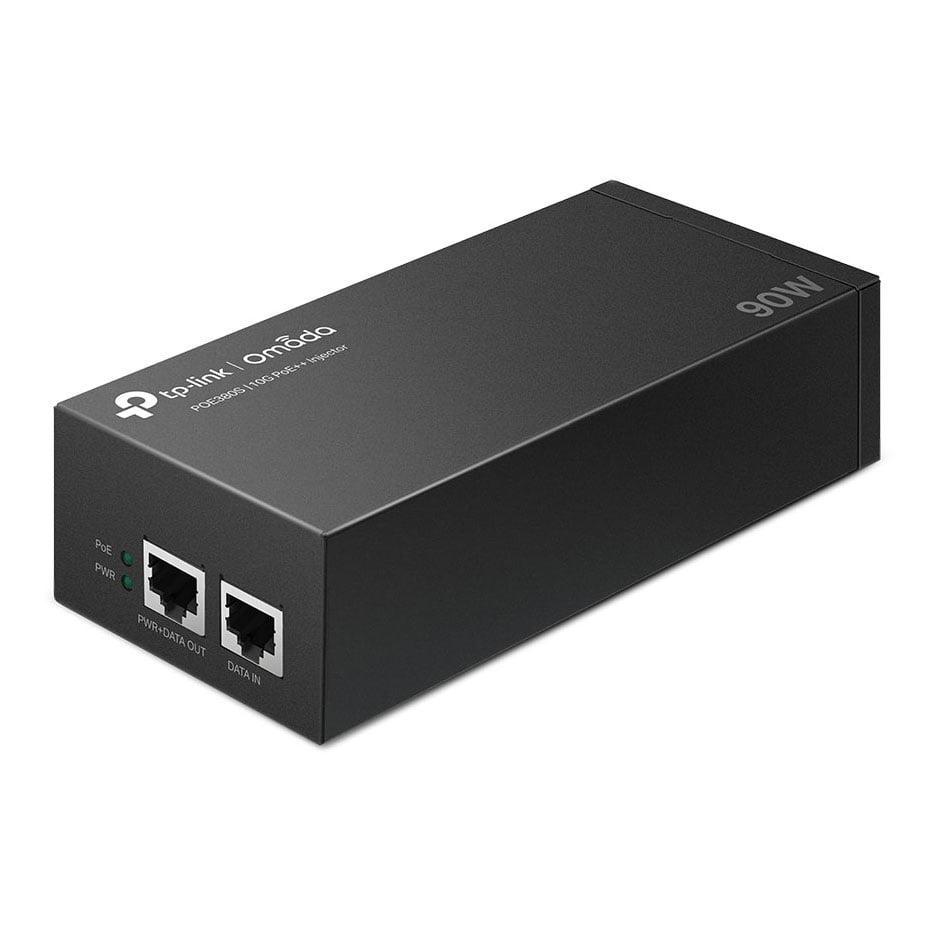

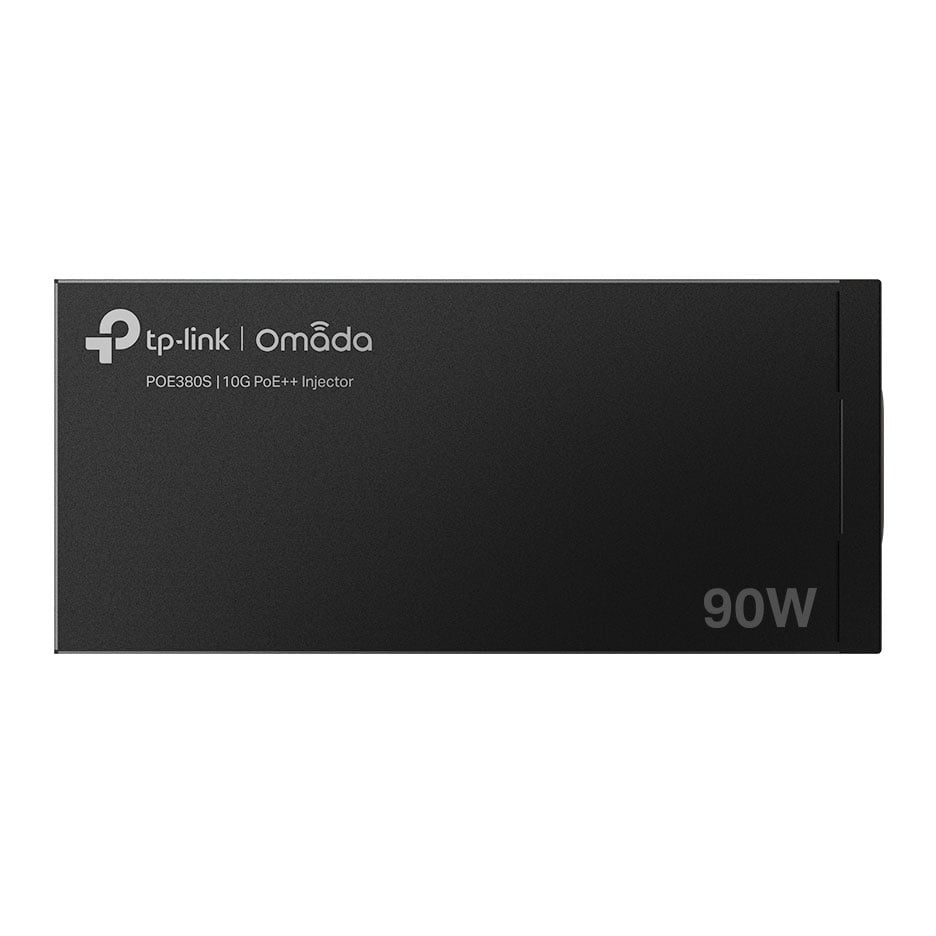

TP-Link Omada 90W 10G PoE++ Injector, 2x 10Gbps Ports,Wall-Mounting/Desktop, POE380S
TP-Link 90W 10G POE++ Injector, 2x 10Gbps
The TP-Link Omada POE380S delivers reliable power over Ethernet with its 90W capacity and two 10Gbps ports. Easily mount it on a wall or place it on your desktop for convenient use. Expand your network capabilities with this versatile, high-speed injector.
Specifications
Interface(s)
1 x 10 Gbps RJ45 data-in port
1 x 10 Gbps RJ45 power+data-out port (Max. 90 W)
1 x AC socket
Dimensions: 155 x 70 x 42 mm
LED Indicator: Power / PoE
Power Supply
Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 90 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation
Plug-and-Play
Environment
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

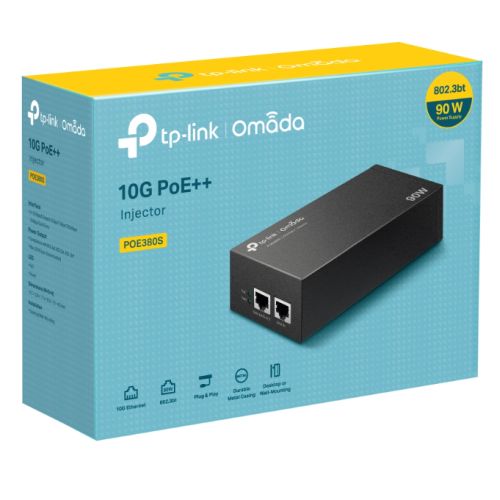

Package Contents
POE380S
Power Cord
Installation Guide
