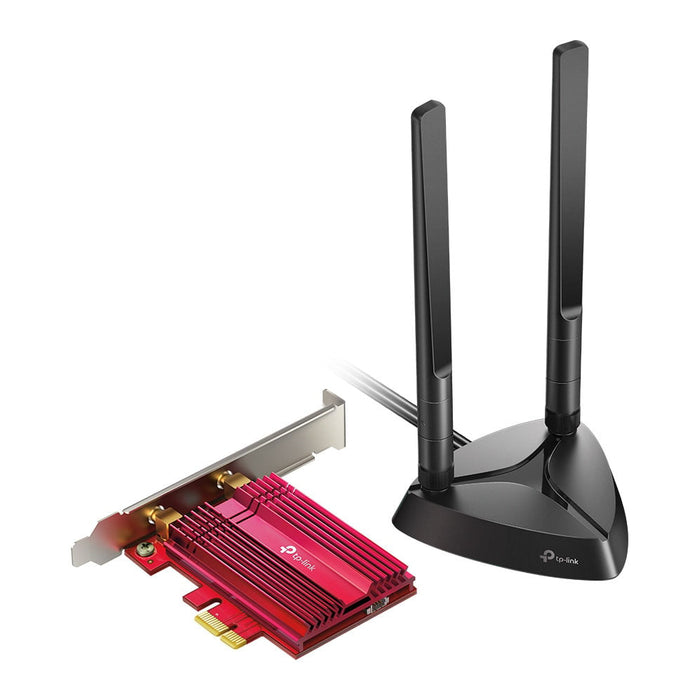

TP-Link (Archer TX3000E) AX3000 (574+2402) Wireless Dual Band PCI Express Wi-Fi 6 Adapter, Bluetooth 5.0, WPA3, Magnetized Base

TP-Link Wireless PCIe WiFi Adapter

The TP-Link Archer TX3000E AX3000 is a high-performance PCIe Express Wi-Fi 6 adapter designed for advanced wireless connectivity. Supporting dual-band speeds up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, it ensures fast, stable connections ideal for gaming and streaming. Equipped with Bluetooth 5.0 and WPA3 security, it offers enhanced device compatibility and robust protection. The magnetized base simplifies antenna placement for optimal signal reception, making it a reliable upgrade for expert users seeking cutting-edge wireless performance.

Specifications

Adapter Type: PCI Express Adapter

Transmission Method: Wireless

Bands: Dual Band

Max Data Transfer Rate: 2402 MHz

Standards and Protocols
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz

Antenna: 2 x 5 dBi High Gain Antennas

EIRP
5 GHz: 27dBm(FCC) / 23dBm(CE)
2.4 GHZ: 26dBm(FCC) / 20dBm(CE)Frequency5 GHz: 2402Mbps
2.4 GHZ: 574Mbps

Wireless Modes: Infrastructure mode

Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAMDimensions95.2 x 120.8 x 21.5 mm

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents
Archer TX3000E

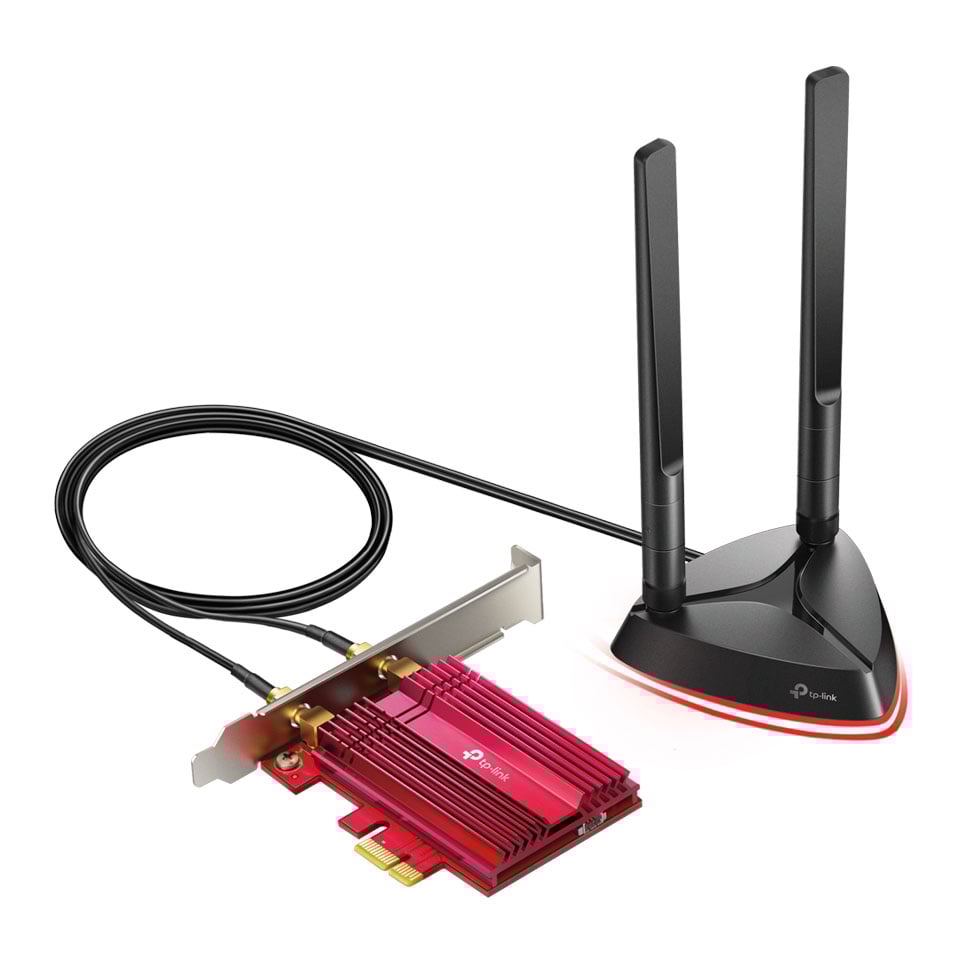

Magnetized Antenna Base with 1m RF Cable
Two 5 dBi High Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
