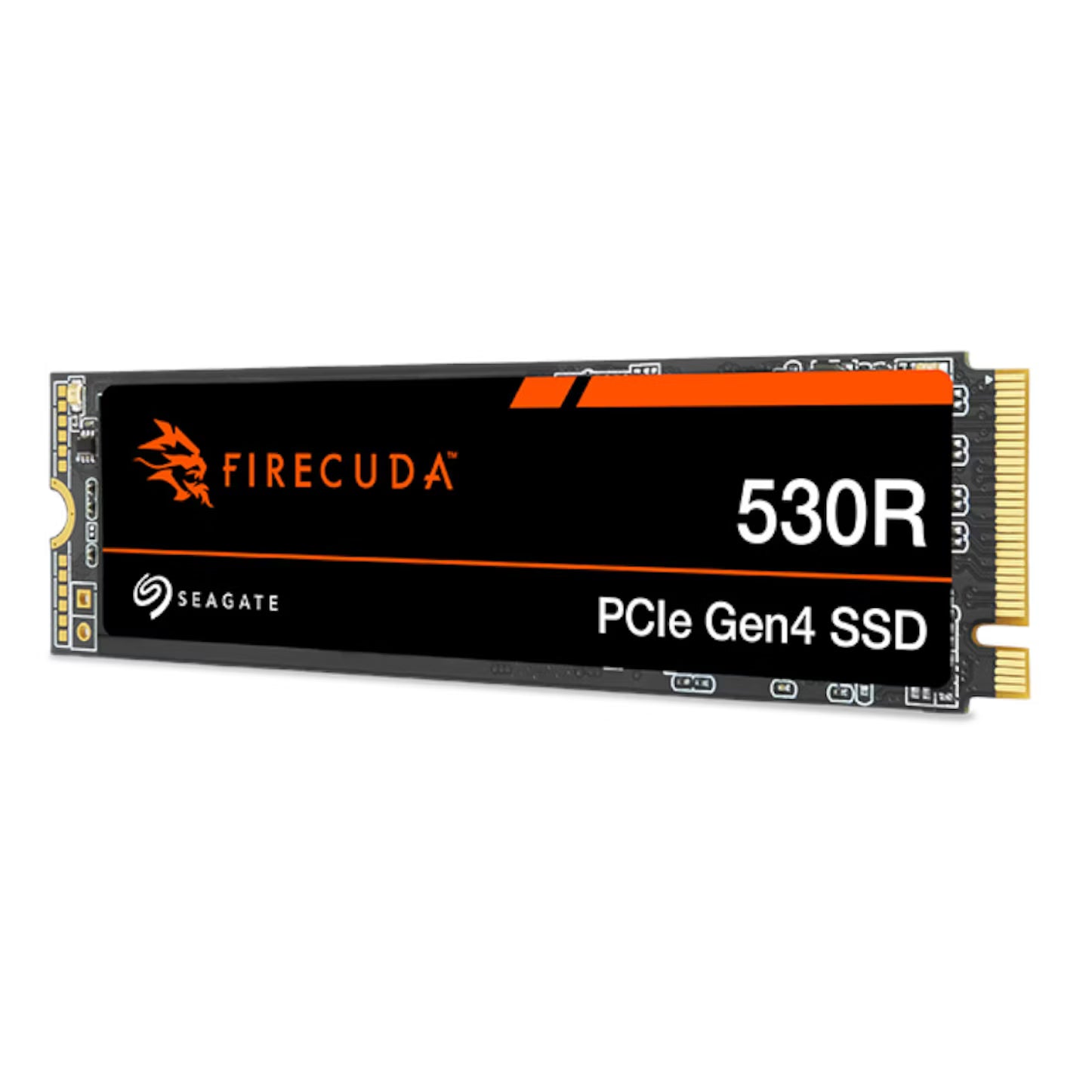

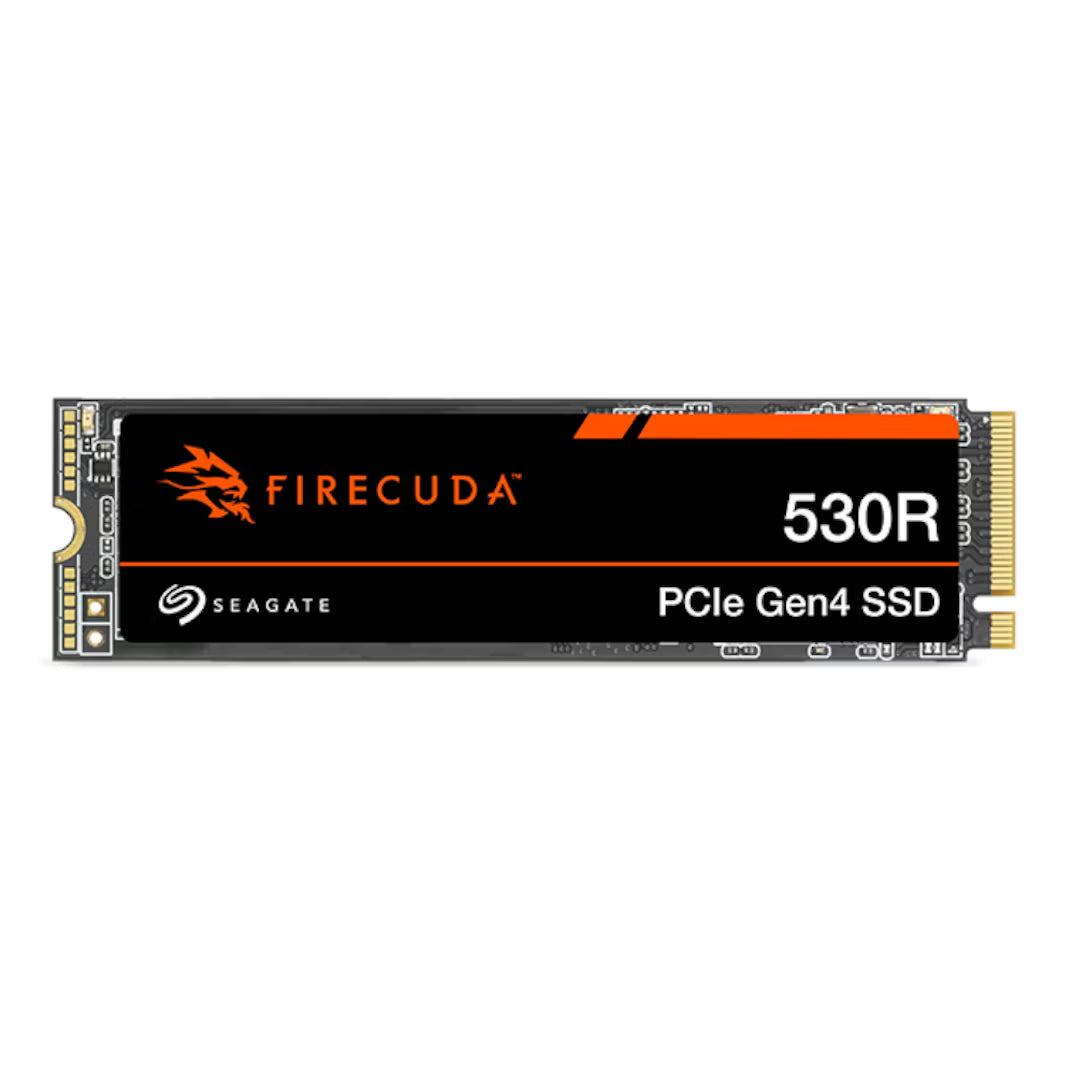

Seagate FireCuda 530R 1TB SSD PCIe 4.0 NVMe M.2 Solid State Drive
Seagate FireCuda 530R 1TB PCIe 4.0 NVMe M.2 Solid State Drive (ZP1000GM3A063)
The Seagate FireCuda 530R 1TB delivers extreme PCIe Gen4 NVMe performance designed for high‑intensity gaming, professional workloads, and heavy data operations. With blistering read speeds up to 7,400 MB/s and write speeds up to 7,000 MB/s, it offers ultra‑fast load times, rapid file transfers, and exceptional responsiveness. Built with premium 3D TLC NAND and the Seagate‑validated Phison E18 controller, the FireCuda 530R ensures long‑term durability, high endurance, and reliable thermal performance in a compact M.2 2280 form factor.
Specifications
(Verified from the official Seagate data shown in your tab)
Capacity: 1TB
Edition: FireCuda 530R
Form Factor: M.2 (2280‑D2)
Height: 2.23 mm
Interface: PCIe 4.0 x4
Host Controller Interface: NVMe 1.4
Flash Memory Type: 3D TLC NAND
Controller: Seagate‑validated Phison E18
Performance
Max. Read: 7,400 MB/s
Max. Write: 7,000 MB/s
DRAM Cache Memory: Yes (model‑specific DRAM)
Latency: Not specified
Max. Random Read 4K: 1,300,000 IOPS
Max. Random Write 4K: 1,300,000 IOPS
Special Features
• Microsoft DirectStorage support
• PS5 compatible
• High‑endurance 3D TLC NAND
• S.M.A.R.T & TRIM support
• Advanced thermal management
• Seagate SeaTools 5 support
• 3‑Year Rescue Data Recovery
• 5‑Year Seagate Warranty
Endurance & Reliability
Max. Endurance Rating: 1100 TBW
MTBF: 1.8 Million Hours
Max. Operating Shock: 1,500 G (0.5 ms)
Connectivity
Connectivity: 1 × M.2 (PCIe 4.0 x4)
OS Support: Windows 10, Windows 11, Linux
Bracket: N/A
Dimensions & Weight
Dimensions: 80.8 × 22.1 × 2.23 mm
Weight: 7.3 g
