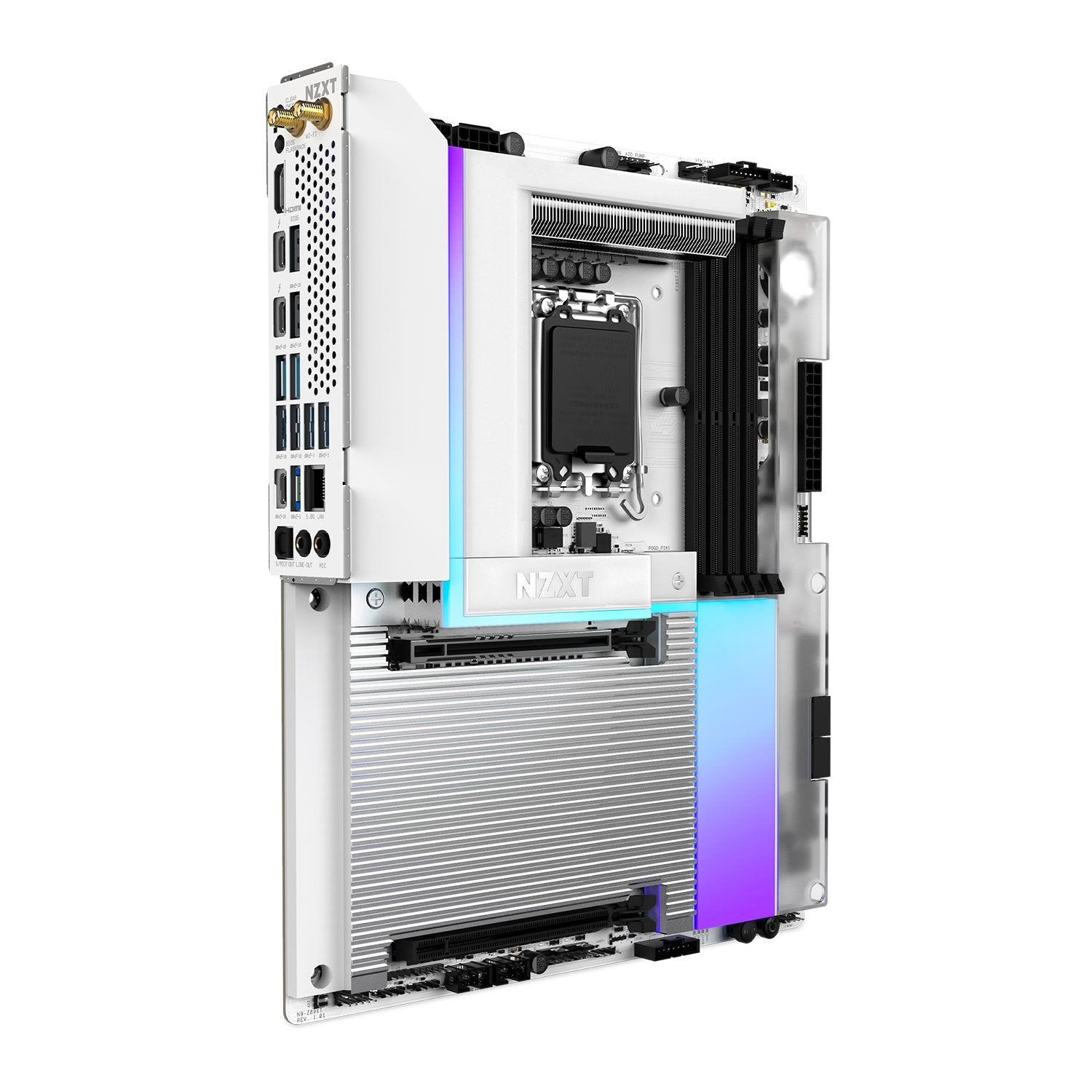

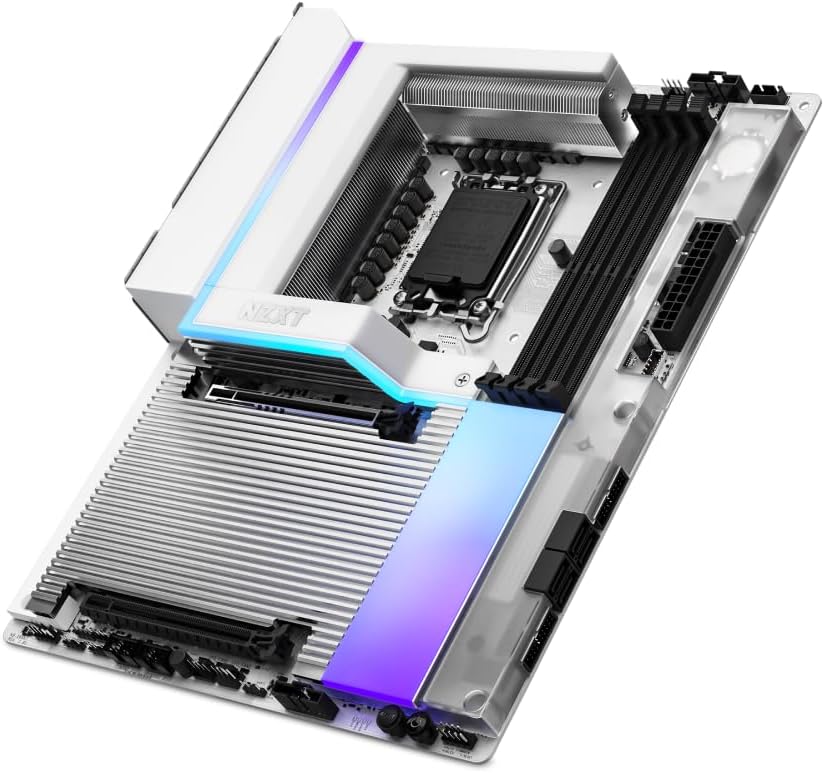

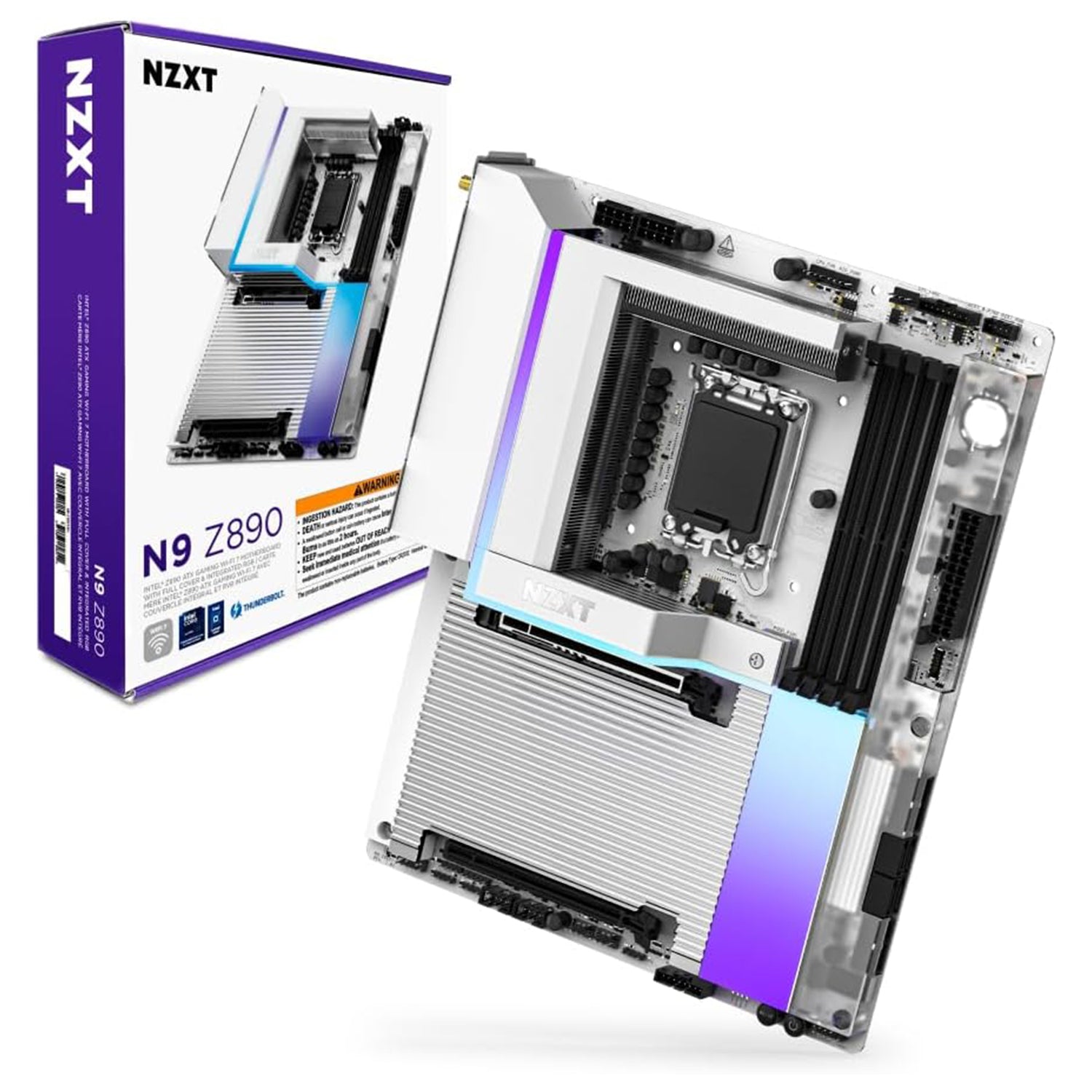

NZXT N9 Z890 Gaming WiFi ATX Motherboard White, DDR5, PCIe5, Intel 1851, WiFi 7
NZXT N9 Z890 ATX Motheboard WiFi7
The NZXT N9 Z890 is a high-performance ATX gaming motherboard designed for Intel 1851 processors. Featuring DDR5 memory support and PCIe 5.0, it delivers exceptional speed and responsiveness for demanding gaming setups. Integrated WiFi 7 ensures ultra-fast, reliable wireless connectivity. Its sleek white design combines aesthetics with advanced functionality, making it an ideal choice for enthusiasts seeking cutting-edge technology and robust performance.
Specifications
Edition: NZXT Intel Z890 ATX Gaming Wi-Fi 7
Form Factor: ATX
CPU Socket: 1851
Chipset: Intel Z890
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz): DDR5 - 8000(OC)
Audio: Realtek ALC4082 5.1 HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: N/A
AMD CrossFire Support: N/A
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: HDMI, Thunderbolt 4
Expansion Slots
1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
4 x M.2, 22-80, PCIe Gen4x4
1 x M.2, 22-80, PCIe Gen5x4
1 x PCIe 4.0 x16 (x2 Bandwidth)
1 x PCIe 5.0 x16
4 x SATA 6GB/s
SATA Support: SATA3
Internal I/O
1 x 24-pin (Power)
1 x 4-pin AIO_PUMP Connector
1 x 4-pin CPU Fan Connector
3 x 4-pin System Fan Connector
2 x 8-pin (Power)
2 x 8-pin PWM Connector
2 x Addressable RGB LED 5V Connector
1 x Debug Code LED
1 x Front Panel Audio Header
1 x POST LED(s)
1 x Power button
1 x Reset Button
1 x RGB LED connector
2 x USB 2.0
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2x2
Network Interface Type: 802.11be Wi-Fi 7 LAN, Wired 5 Gigabit LAN (5000)
Network Chip/Modules: 1 x 802.11be WiFi 7 + BT5.4
Rear I/O Connectors
2 x Antenna Ports
2 x Audio I/O
1 x Clear CMOS Button
1 x HDMI
1 x RJ-45
1 x S/PDIF-Out (Optical)
2 x Thunderbolt 4
3 x USB 3.2 Gen1 Type-A
6 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2x2 Type-C
Cooling: PCH Fan & Passive Heatsinks
Board Dimensions: 305 x 244 mm
