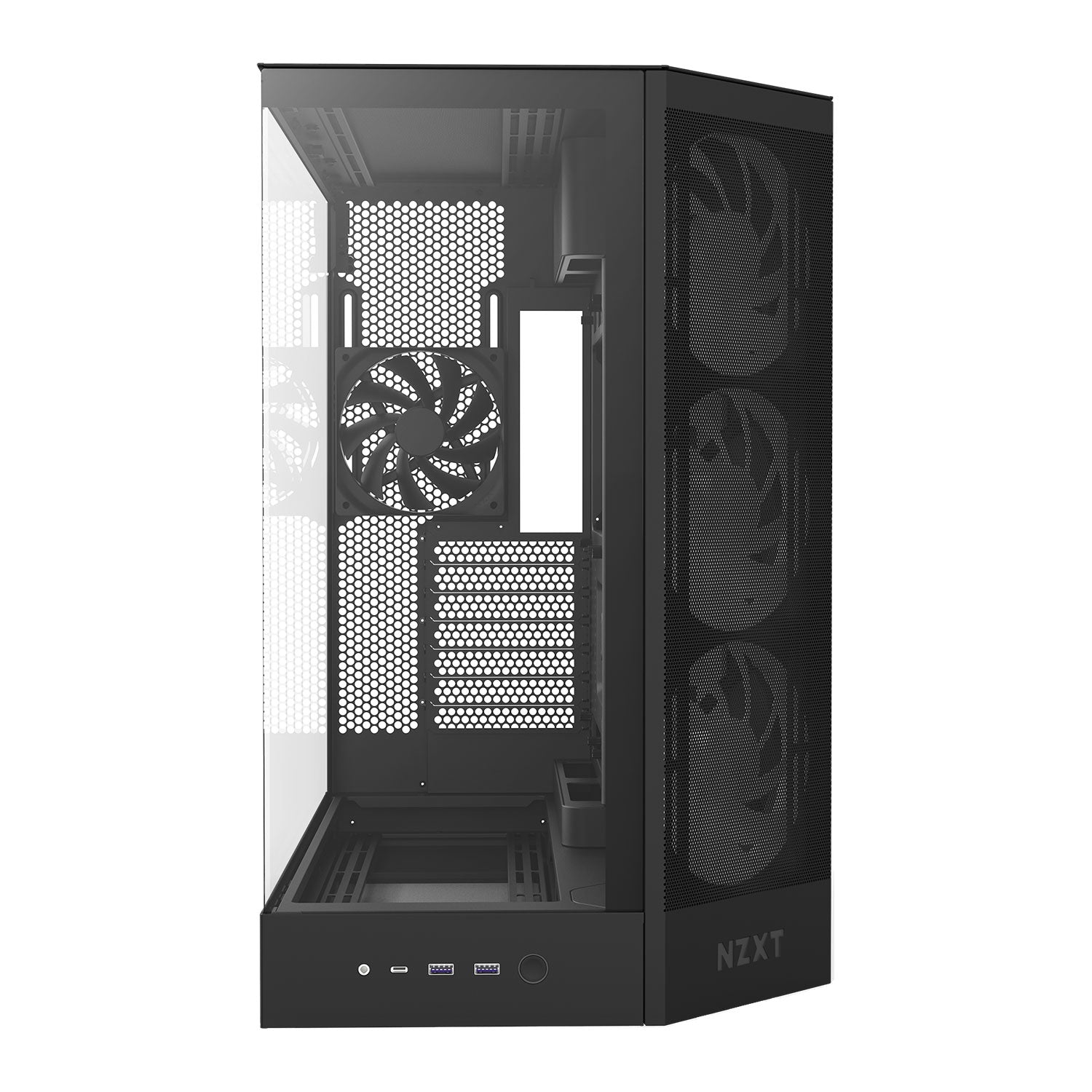

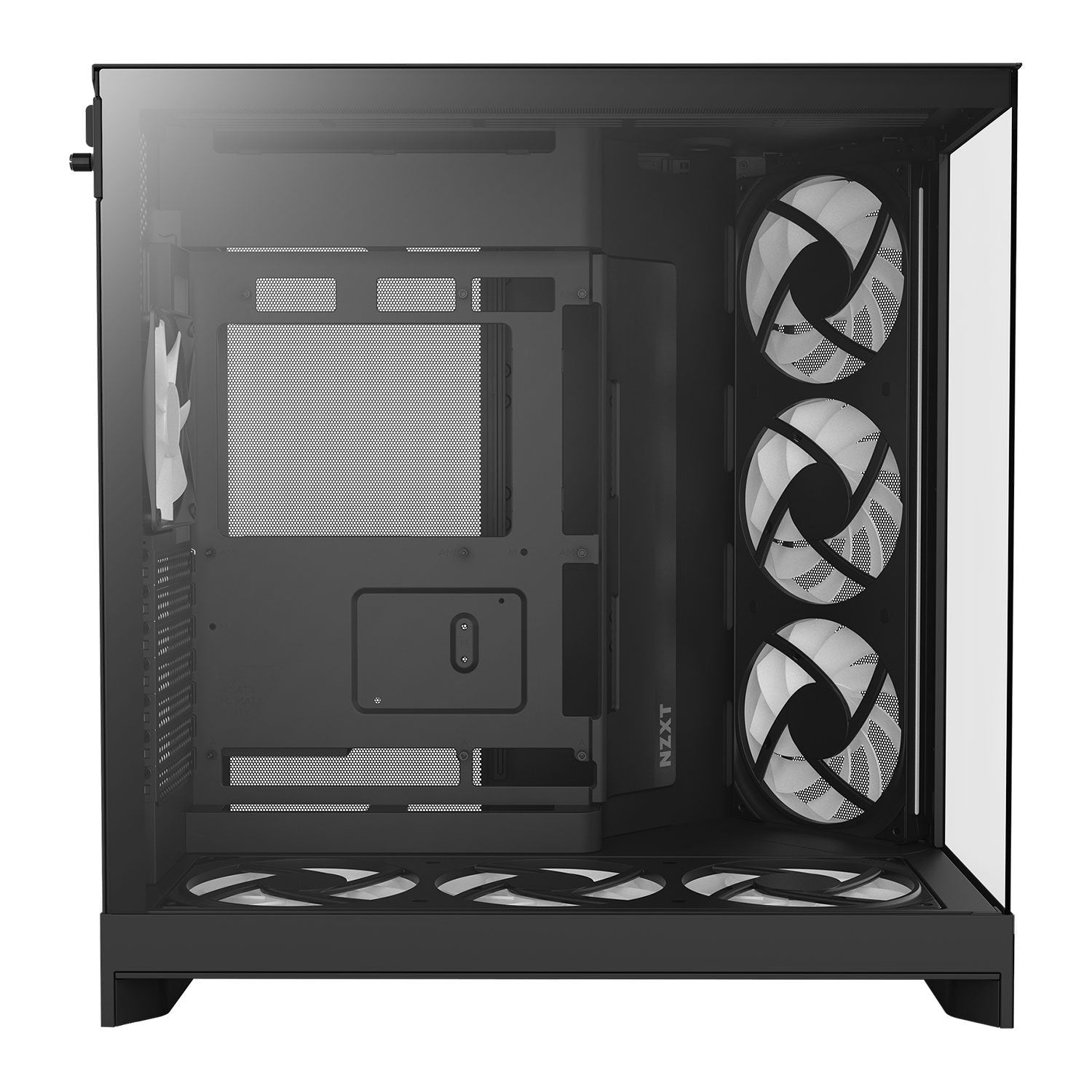

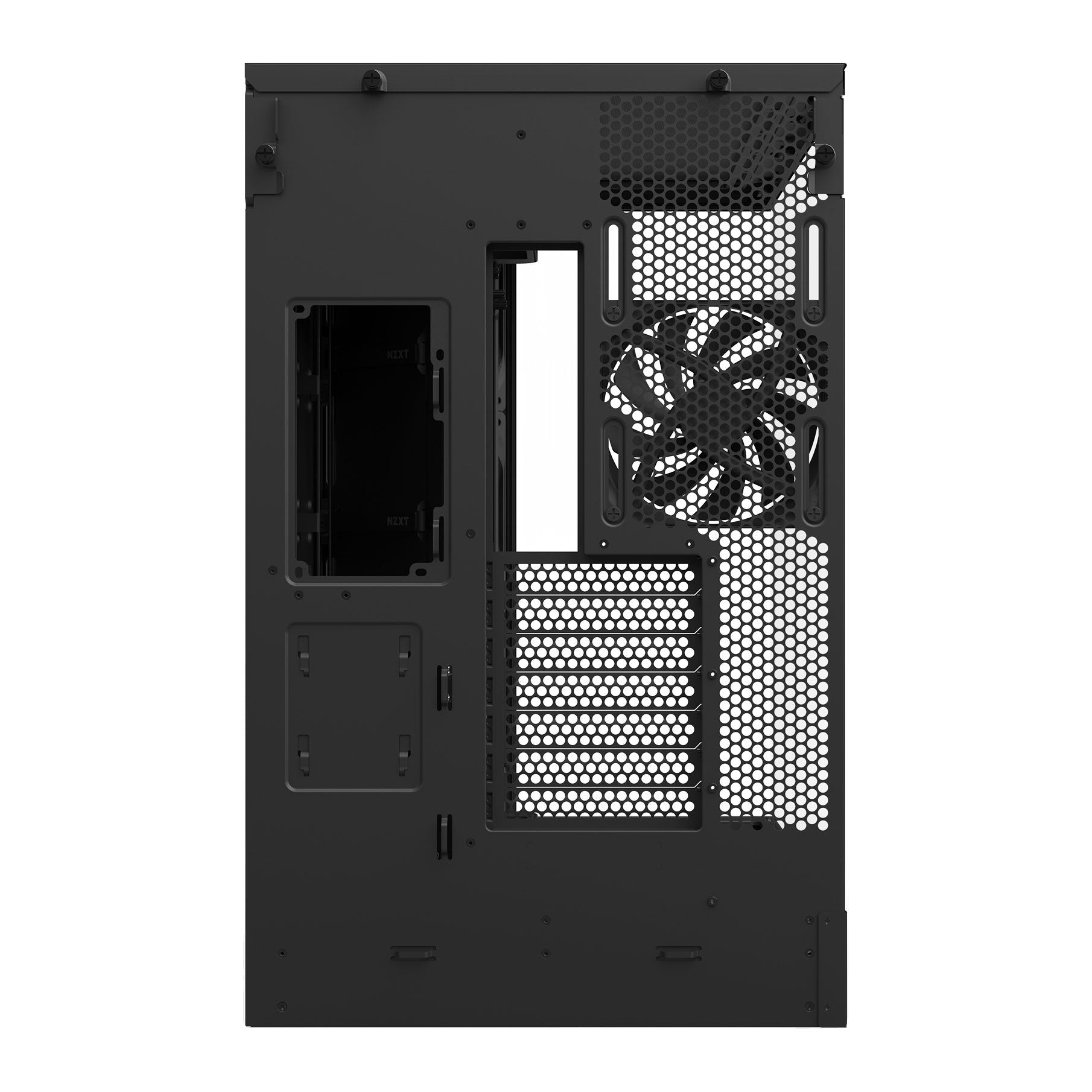

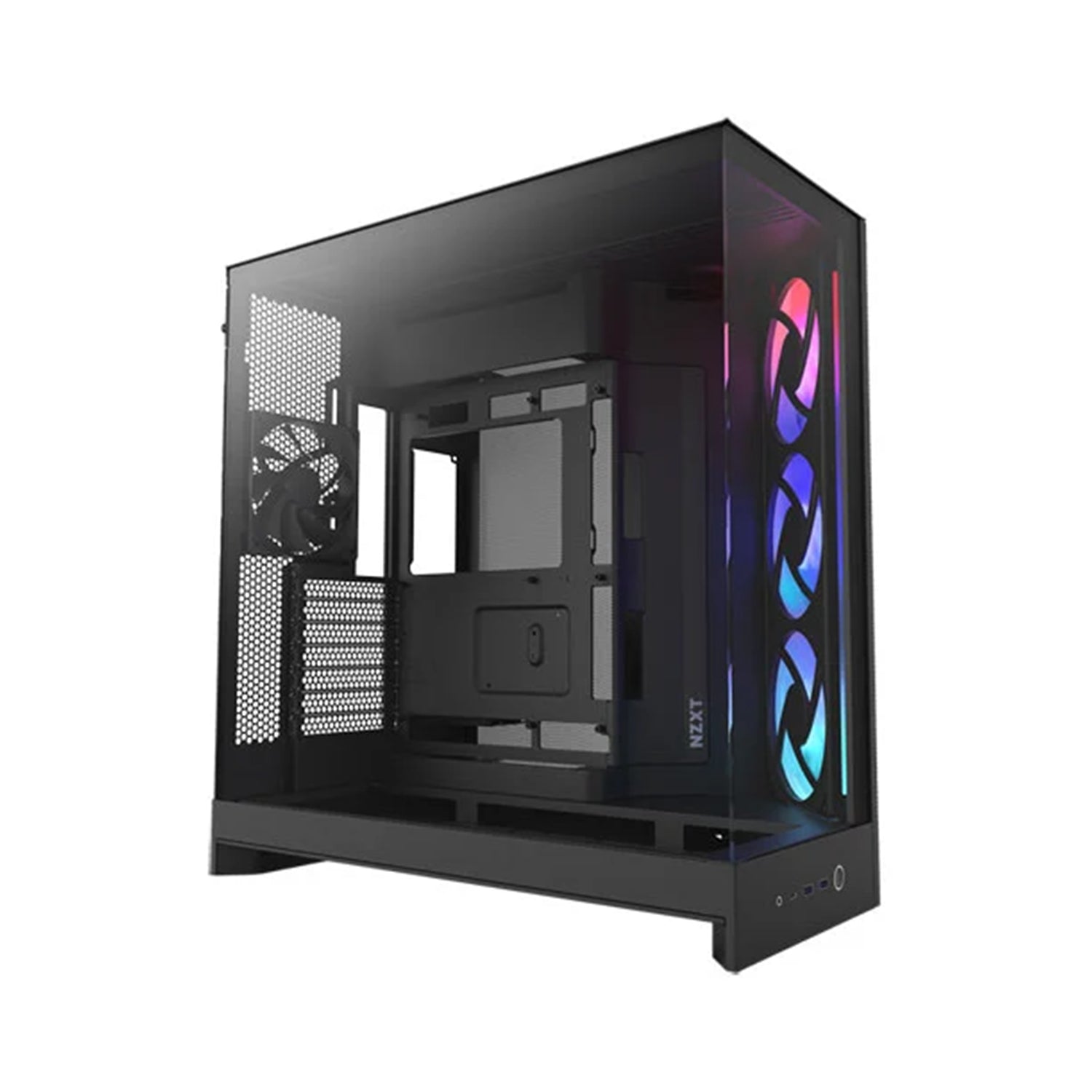

NZXT H9 Flow RGB (2025) E-ATX Desktop PC Case Mid Tower RGB Core Black

NZXT H9 Air Flow PC Case 2025 Edition

The NZXT H9 Flow RGB (2025) combines dual-chamber design with premium airflow engineering for serious builders. Tempered glass panels showcase your components while the optimized internal layout separates power delivery from the main chamber, reducing thermal interference. The integrated F420 RGB core delivers synchronized lighting across your build. Supports extensive cooling options and cable management, making it ideal for high-performance systems requiring both aesthetics and thermal efficiency.

Specifications

Model: CM-H92FB-R1
Case Edition: H9 Flow RGB (2025)
Case Form Factor: Dual Chamber Mid Tower
Motherboard Form Factor: ATX, E-ATX, MicroATX, Mini-ITX
Back Connect Compatible: Yes

Front/Side/Top Panel I/O
1 x Headphone/Mic Combo
1 x Power Button
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2x2 Type-C

Drive Bays
4 x 2.5" Internal
2 x 2.5"/ 3.5" Internal

Standard Expansion Slots: 7

Fan Bays
1 x 120mm
9 x 120mm / 9x 140mm

Fans Included
1 x 120mm
3 x 140mm w/ Addressable RGB LEDs

Dust Filters: Bottom, Side, Top
Top Radiator Compatibility: 1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility: 1 x 120/140/240/280/360mm
Rear Radiator Compatibility: 1 x 120mm
Side Radiator Compatibility: 1 x 120/140/240/280/360/420mm
Max CPU Cooler Height: 165 mm
Max GPU Card Length: (<56 mm fans) 459 / (56 mm thick 420 AIO+fans) 410 mm
Window/s: Yes
Window Configuration: 1 x Front, 1 x Main Side
Window Construction: Tempered Glass
LED Lighting: No
LED Lighting Emitters: Included Addressable LED Fan/s
LED Lighting Colour: RGB
LED Lighting Support & Control: Control via Compatible Motherboard RGB Header
PSU Included: No
PSU Support: ATX
PSU Mounting Location: Top Mount, Rear
Max PSU Length: 200 mm
Colour: Black
Chassis Construction Materials: SGCC
Dimensions: 315 x 506 x 481 (WxHxD mm)
Weight: 12.6 kg (Approx)
