Noctua NF-A14 iPPC-3000 PWM, Heavy Duty Cooling Fan, 4-Pin, 3000 RPM (140mm, Black)

by Noctua
£39.99

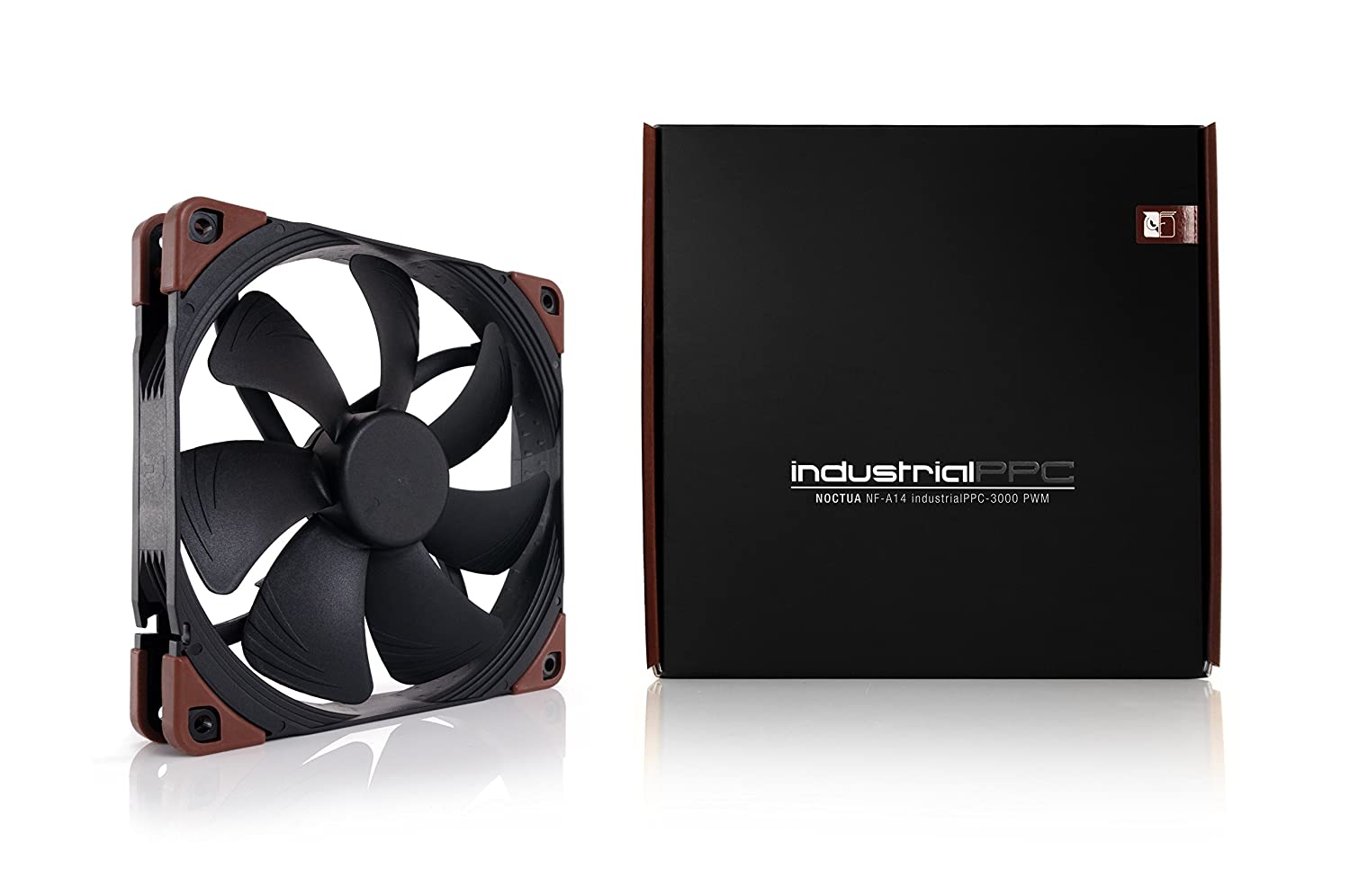

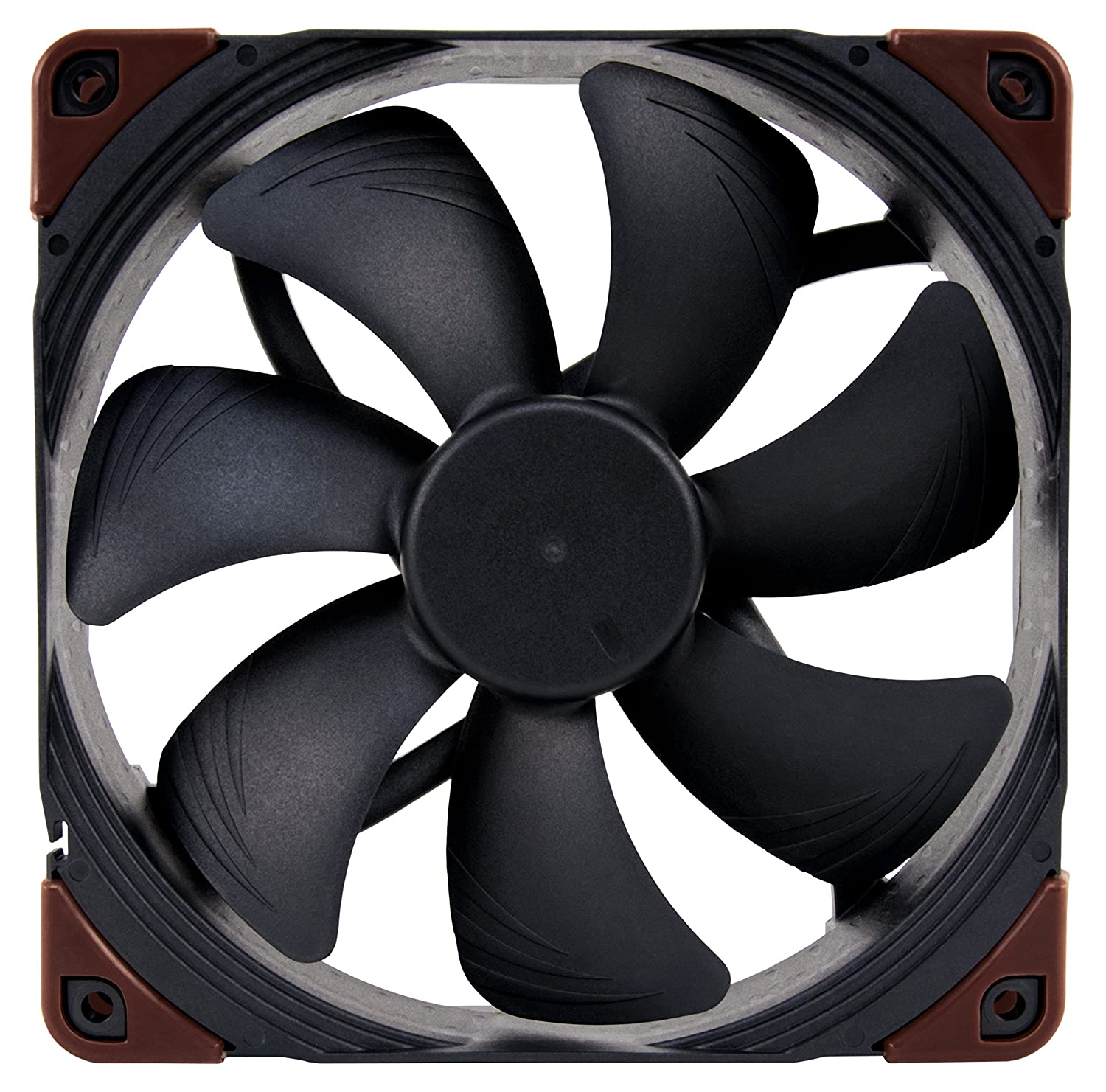

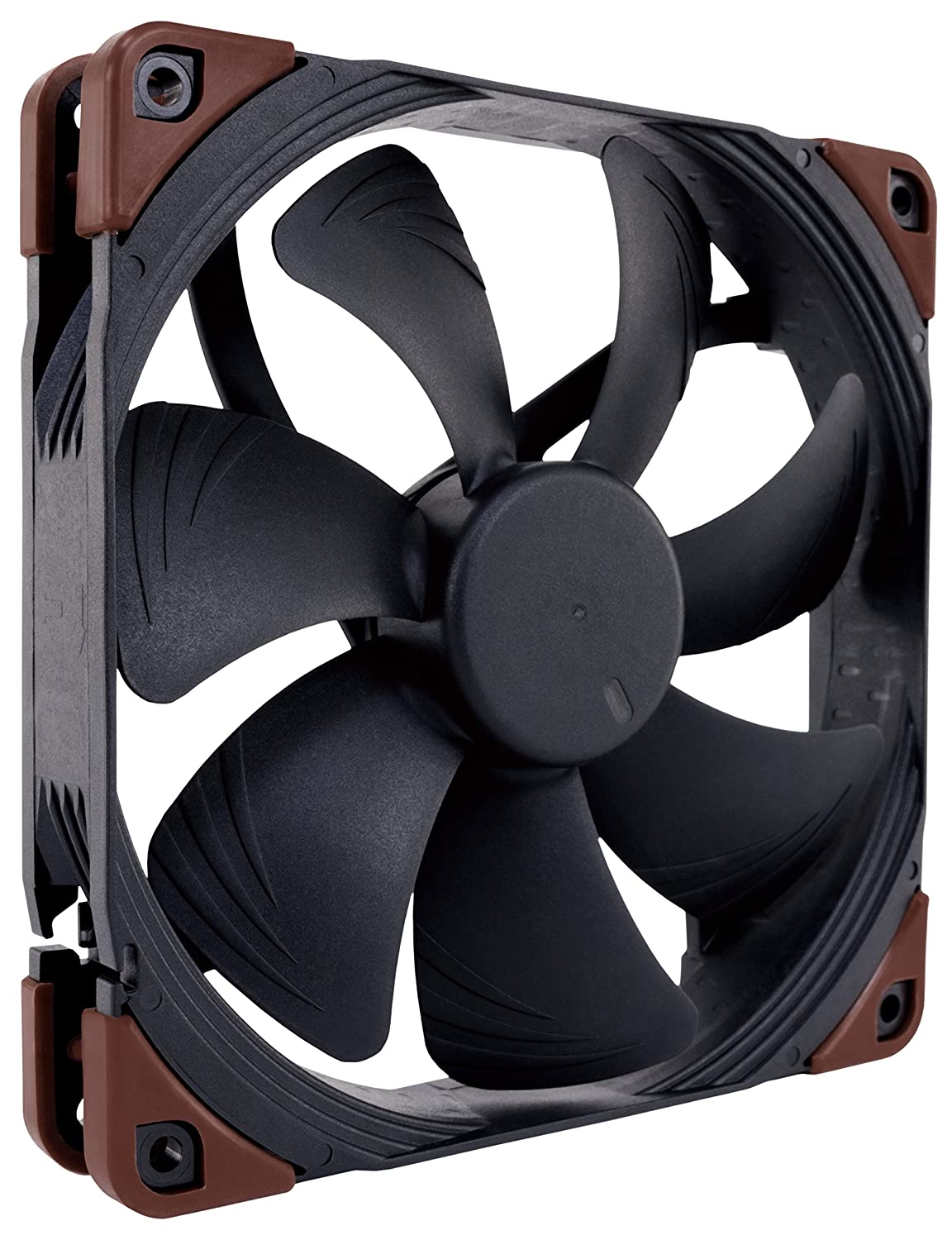

Noctua NF-A14 industrial PPC-3000 PWM 140 mm PC case fan

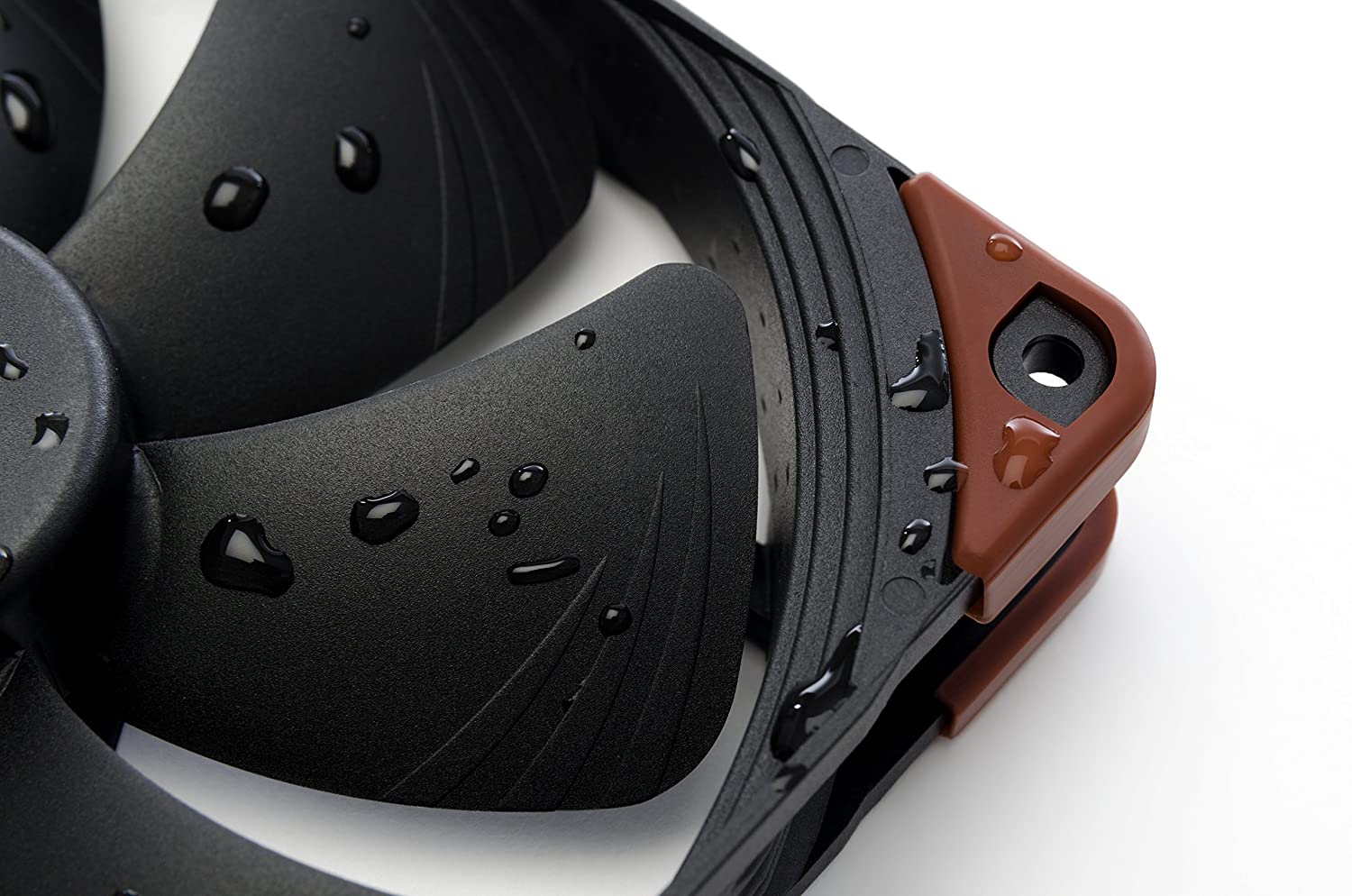

Designed for industrial applications, the NF-A14 IndustrialPPC (PPC stands for Protected Performance Cooling) is a more robust, fast rotating version of the award-winning retail model. Thanks to the excellent aerodynamic efficiency of the NF-A14 design as well as a new three-phase motor, the IndustrialPPC versions with their higher speed offer real high-performance cooling, but has a moderate noise development and power consumption compared to similarly fast rotating fans. With its fiberglass-reinforced polyamide construction as well as extended water and dust protection, the NF-A14 industrial PPC is also suitable for use in demanding environments. At the same time, the high-quality SSO2 warehouse guarantees an MTTF of over 150,000 hours. Complemented by the reliability familiar from Noctua, the NF-A14 IndustrialPPC is a perfect choice for particularly challenging applications requiring superior cooling performance and maximum operational reliability.

Award-winning NF-A14 design
With more than 100 recommendations and awards from the international trade press, the NF-A14 has become a reference in the field of high-quality 140mm fans. Its outstanding efficiency has already convinced tens of thousands of customers around the world.

3000rpm IndustrialPPC version
The NF-A14 IndustrialPPC-3000 offers extremely high output and static pressure with the maximum speed doubled compared to the 1500rpm Retail version. Together with the robust polyamide construction as well as the extended protection features of the industralPPC line, this makes the fan a perfect choice for demanding industrial applications.

Three-phase motor design
While most axial fans use single-phase motors with four anchors, Noctua's industrial PPC models use a three-phase design with six anchors that provides smoother transitions between the anchors, enabling even greater smoothness, even lower vibrations and even better energy efficiency.

Leading energy efficiency
The standard version of the NF-A14 is already one of the most energy-efficient 1500rpm 140mm fans on the market. Nevertheless, the industrial PPC version with its three-phase motor at 2000rpm comparison speed offers a further 10% lower power consumption.

Specifications

Fan size: 140 mm
Noise emission (max.): 41.3 dBa
Rotational speed (min.): 800 U/min
Air discharge: 269.3 m³/h
Rotational speed (max.): 3000 U/min

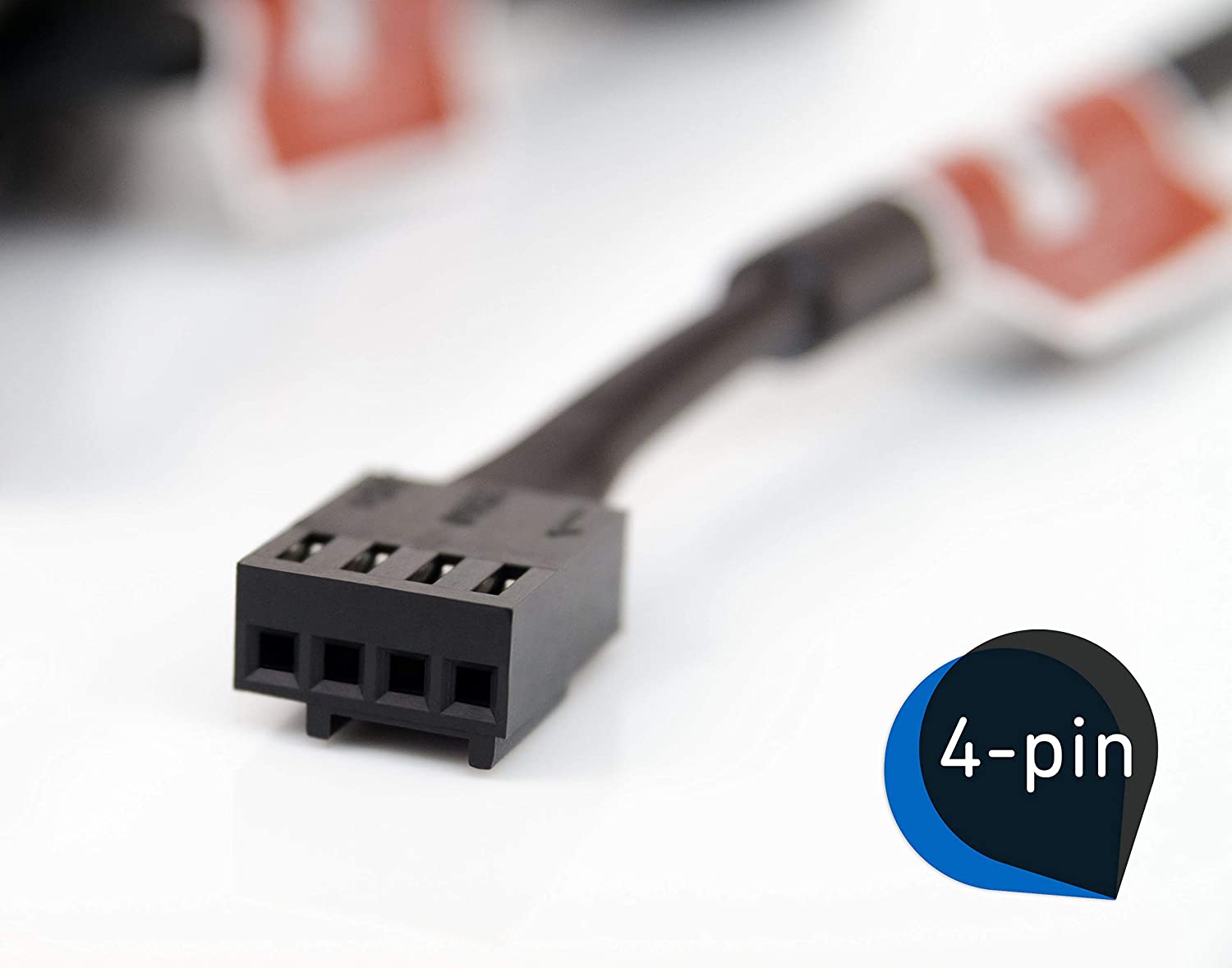

Connection: 4-pin PWM
Colour: Black, White
Width: 140 mm
Height: 140 mm
Depth: 25 mm
Dim (W x H x D): 140 x 140 x 25 mm
Content: 1 pc(s)
Product type: PC fan
