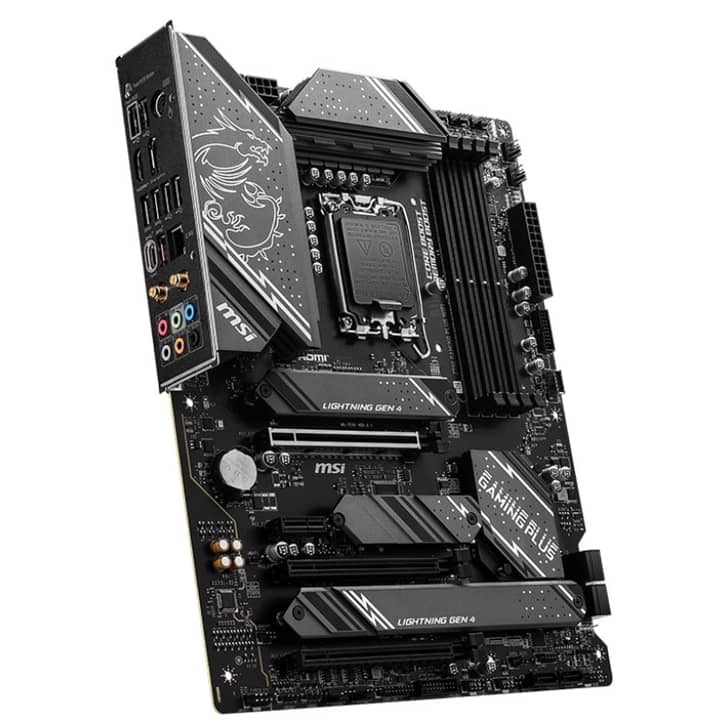

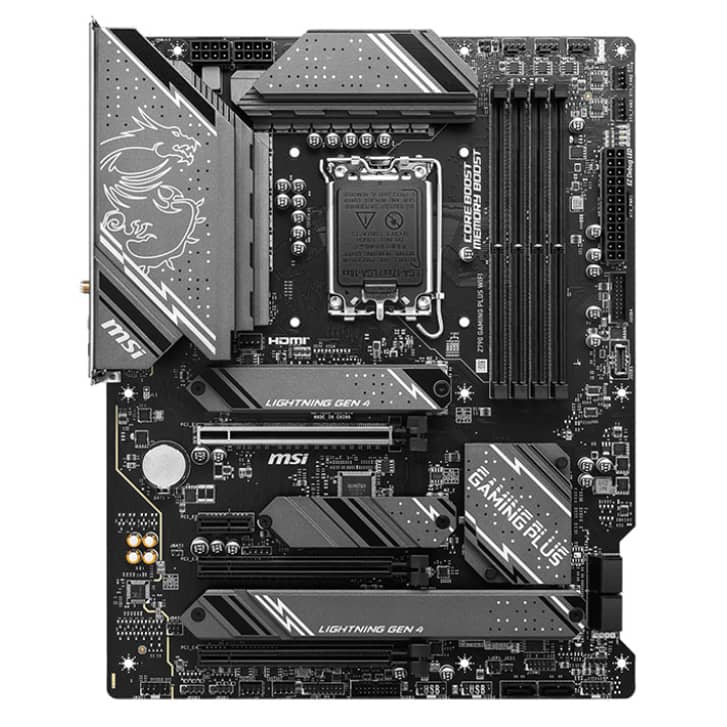

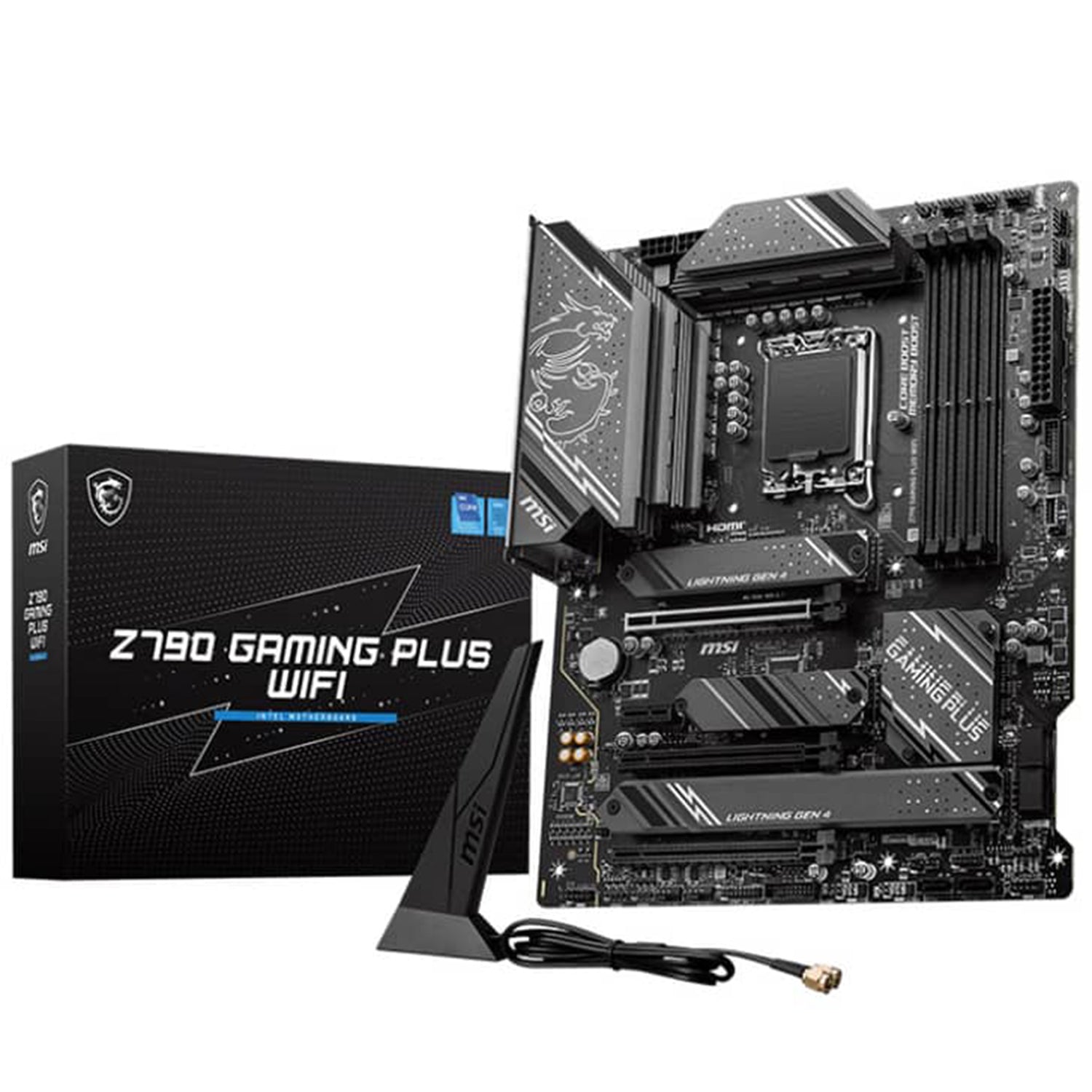

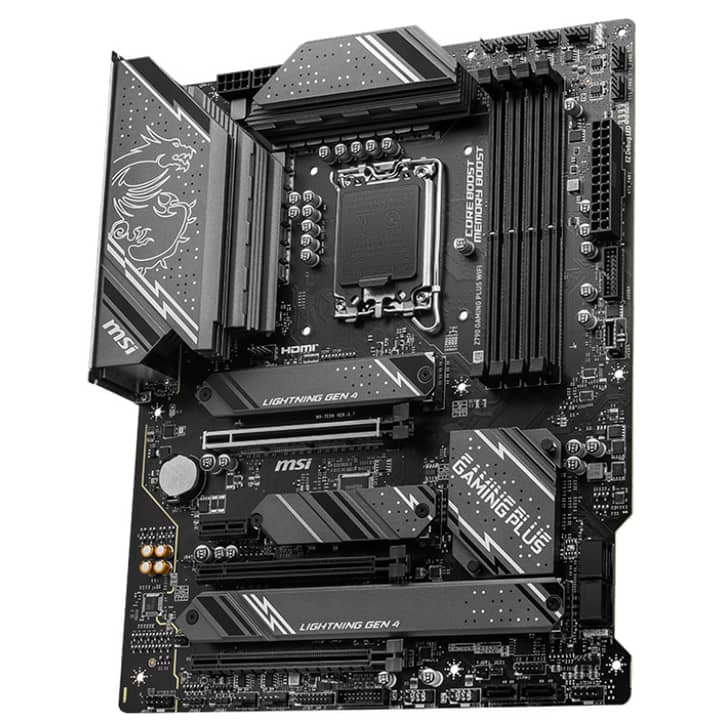

MSI Z790 GAMING PLUS WIFI LGA 1700 ATX Motherboard – DDR5 192GB, PCIe 5.0, Wi‑Fi 6
MSI Z790 GAMING PLUS WIFI DDR5 ATX Board
Build a powerful Intel LGA 1700 system with the MSI Z790 GAMING PLUS WIFI, an ATX motherboard designed for high‑end gaming, productivity, and professional workloads. Powered by the Intel Z790 chipset, it supports Intel® Celeron®, Intel® Pentium® Gold, and 12th / 13th / 14th Gen Intel Core processors, delivering cutting‑edge DDR5 performance with PCIe expansion, Wi‑Fi 6, 2.5GbE LAN, and multiple ultra‑fast M.2 slots. Engineered with a robust VRM design, extended heatsinks, EZ‑Debug LEDs, and MSI’s Core Boost power architecture, the Z790 GAMING PLUS WIFI ensures stability, efficiency, and long‑term reliability for demanding Intel builds.
MSI’s optimized cooling, Flash BIOS Button, reinforced PCIe slots, and creator‑focused connectivity make this board ideal for builders who want dependable performance and modern features. With DDR5 support up to 192GB, PCIe 5.0 GPU compatibility, and workstation‑grade networking, it provides a strong foundation for next‑generation LGA 1700 systems.
Specifications
Type: ATX Motherboard
Brand: MSI
Model: Z790 GAMING PLUS WIFI
Chipset: Intel Z790
CPU Socket: LGA 1700
Supported CPUs: Intel® Celeron®, Intel® Pentium® Gold, Intel Core (12th / 13th / 14th Gen)
RAM Type: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: High‑frequency DDR5 OC
Max Memory: 192GB
PCIe Slots: 1 × PCIe 5.0 x16 (GPU slot) Additional PCIe 4.0 expansion slots
M.2 Slots: Multiple M.2 (PCIe 4.0 NVMe SSD support)
LAN: 2.5GbE Ethernet
Wireless: Wi‑Fi 6
Bluetooth: Integrated (chipset‑based)
SATA Ports: SATA III 6Gb/s
RAID Support: RAID 0/1/5/10
Audio Codec: High‑Definition Audio
Channels: 7.1‑Channel HD Audio
Video Outputs: HDMI, DisplayPort (Requires CPU with integrated Intel UHD Graphics)

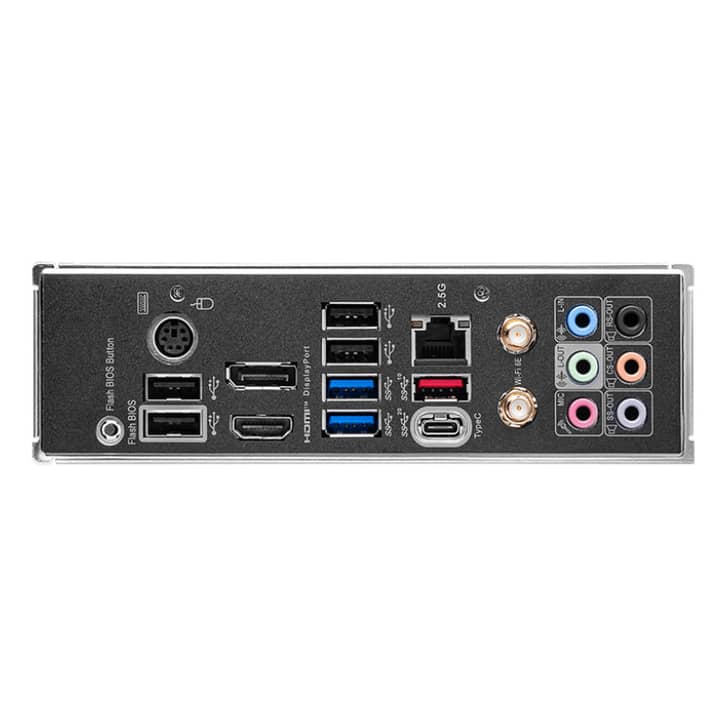

USB Connectivity Rear I/O:
USB‑C (USB 3.2 Gen2)
USB‑A (USB 3.2 Gen2)
USB‑A (USB 3.2 Gen1)
USB‑A (USB 2.0), HDMI
2.5GbE LAN
Wi‑Fi antenna connectors
Audio jacks
Internal Headers:
USB 3.2 Gen1headers
USB 2.0 headers
RGB & ARGB headers
Front panel connectors
TPM header
Multiple fan headers
Flash BIOS Button
Power Connectors: 24‑pin ATX, 8‑pin CPU power + 8‑pin CPU power
Form Factor: ATX (305 × standard width)
