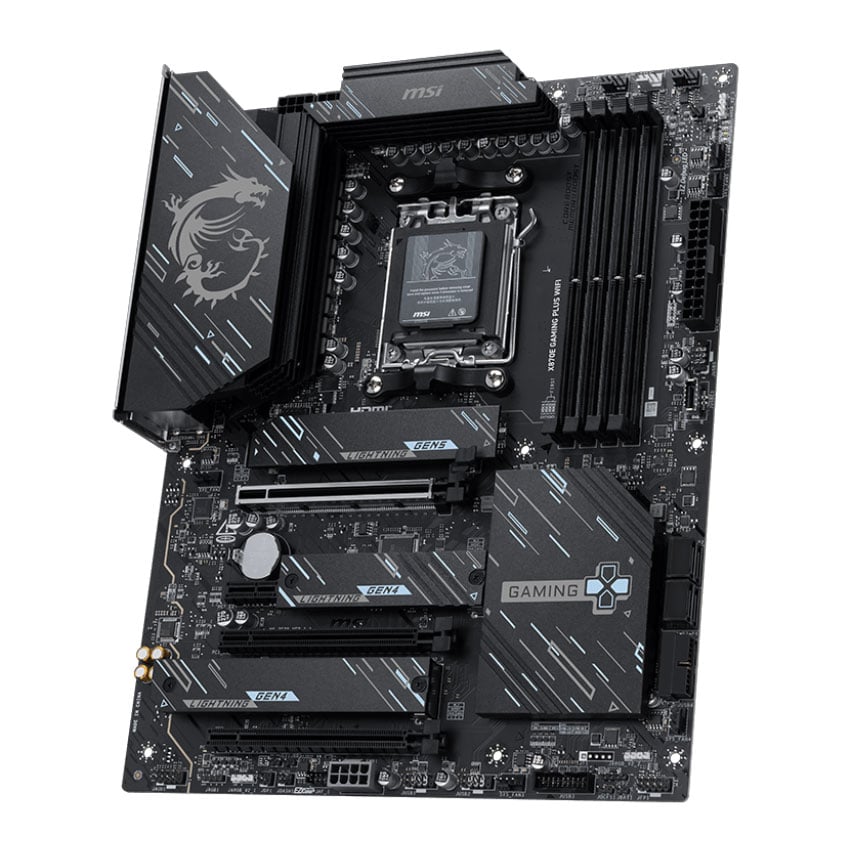

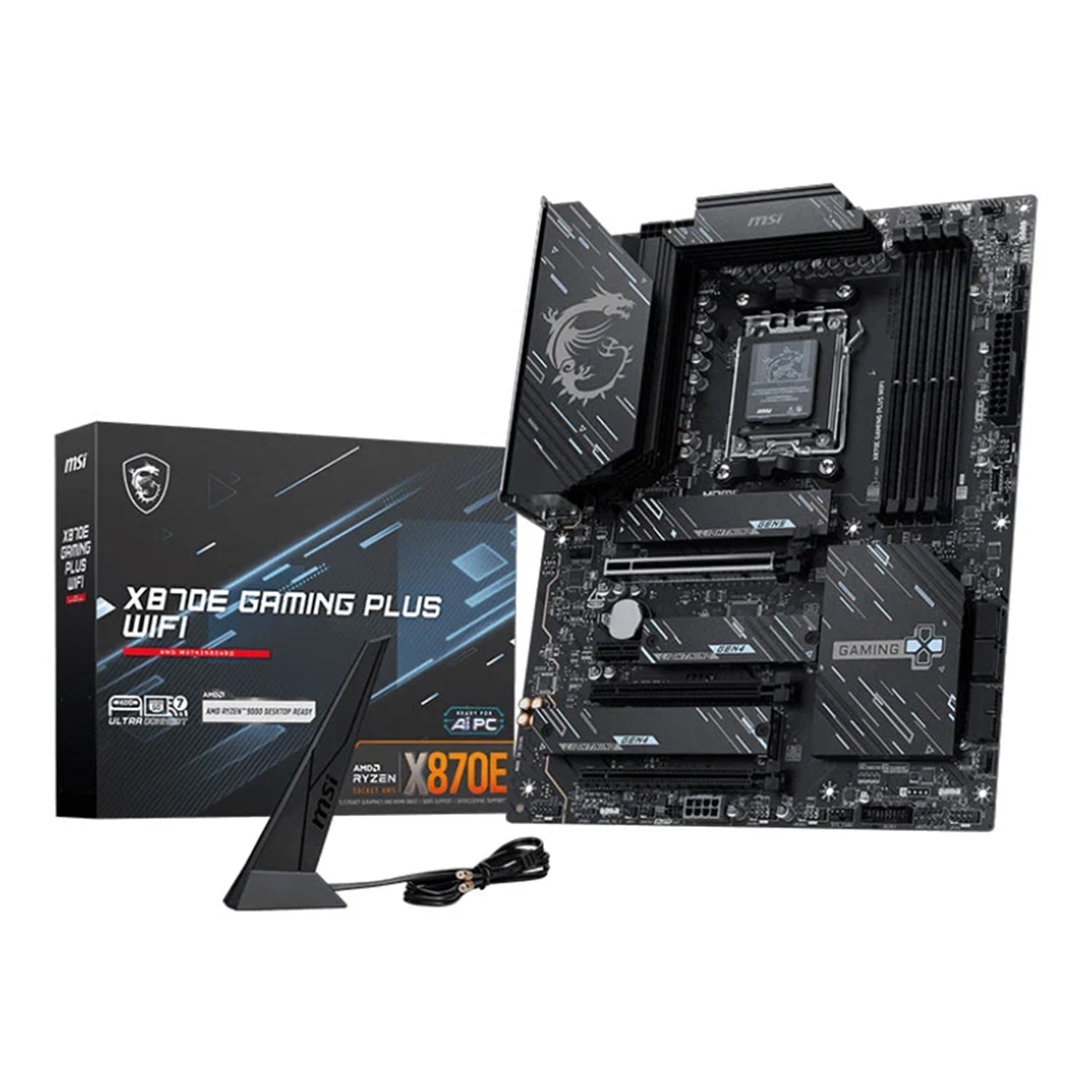

MSI X870E Gaming Plus WiFi ATX Motherboard, AMD AM5, DDR5, PCIe 5.0, WiFi 7, AMD EXPO

MSI Z870E Gaming AMD Motherboard ATX

The MSI X870E Gaming Plus WiFi ATX motherboard is designed for AMD AM5 processors, supporting the latest DDR5 memory and PCIe 5.0 for exceptional performance and future-proofing. Equipped with WiFi 7, it ensures ultra-fast and stable wireless connectivity. This board also features AMD EXPO technology for optimized memory profiles, delivering enhanced gaming and multitasking capabilities. Ideal for enthusiasts seeking a robust platform with advanced connectivity and cutting-edge components.

Specifications

Edition: X870E GAMING PLUS WIFI
Form Factor: ATX
CPU Socket: AM5
Chipset: AMD X870E
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): ECC/Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz): DDR5 - 8200(OC)
Max. Memory Capacity: 256GB (4x64GB)
Audio: Realtek ALC897 7.1 HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: Not Supported
AMD CrossFire Support: Not Supported
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: HDMI 2.1, USB 4.0, USB Type-C (DisplayPort)

Expansion Slots
1 x M.2, 22-60/80, PCIe Gen4x4
1 x M.2, 22-60/80, PCIe Gen5x4
1 x M.2, 22-80/110, PCIe Gen4x4
2 x PCIe 3.0 x1
1 x PCIe 4.0 x4
1 x PCIe 5.0 x16
4 x SATA 6GB/s

SATA Support: SATA3
RAID Support via: SATA3 / M.2
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5

Internal I/O
1 x 24-pin (Power)
1 x 4-pin CPU Fan Connector
6 x 4-pin System Fan Connector
2 x 8-pin (Power)
1 x 8-pin PCIe (Power)
3 x Addressable Gen 2 Header
1 x Chassis Intrusion connector
1 x Front Panel Audio Header
2 x Front Panel Connector
1 x RGB LED connector
1 x System Fan/Water Pump Header
1 x TPM Header

Network Interface Type: Wired 5 Gigabit LAN (100/1000/2500/5000)
Network Chip/Modules: 1 x 802.11be WiFi 7 + BT5.4

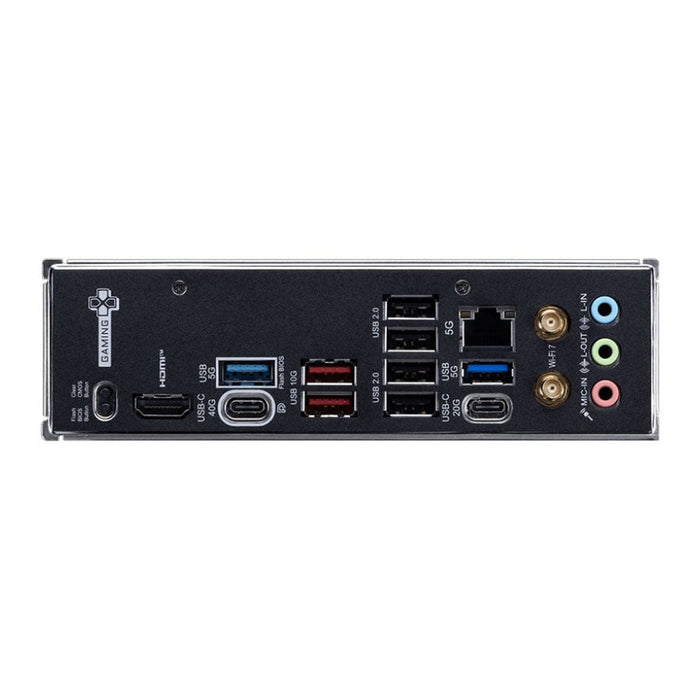

Rear I/O Connectors
1 x BIOS Flashback Button
1 x Clear CMOS Button
1 x HDMI 2.1
1 x Line In
1 x Line Out
1 x Mic-In
1 x RJ-45
4 x USB 2.0
2 x USB 3.1 Gen1 Type-A
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2x2 Type-C
1 x USB 4.0 Type-C
2 x Wi-Fi antenna connector holes

Cooling: Passive Heatsinks
QPI Speed: N/A
Board Dimensions: 243.84 x 304.8 mm mm
