MSI Pro Z790-A MAX WiFi ATX Gaming Motherboard DDR5, Intel 1700, PCIe 5.0

MSI Pro Z790-A MAX ATX Gaming Motherboard

The MSI Pro Z790-A MAX WiFi ATX motherboard is designed for high-performance Intel 1700 processors, supporting the latest DDR5 memory for faster speeds and increased bandwidth. Equipped with PCIe 5.0, it delivers enhanced connectivity and future-proof expansion options. Integrated WiFi ensures stable wireless networking, making it ideal for gaming and professional use. Its robust power design and advanced cooling solutions provide reliable stability under demanding workloads. This motherboard combines cutting-edge features to maximize performance and system responsiveness.

Specifications

Edition: PRO Z790-A MAX WIFI
Form Factor: ATX
CPU Socket: 1700
Chipset: Intel Z790
Memory Type: DDR5
Memory Channel: Dual (2)
Max. Memory Capacity: 192GB
Audio: Realtek ALC4080 7.1 HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: N/A
AMD CrossFire Support: N/A
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: DisplayPort 1.4, HDMI 2.1

Expansion Slots:
3 x M.2, 22-42/60/80, PCIe Gen4x4
1 x M.2, 22-42/60/80/110, PCIe Gen4x4
2 x PCIe 3.0 x1
1 x PCIe 4.0 x4
1 x PCIe 5.0 x16
6 x SATA 6GB/s

SATA Support: SATA3 / M.2
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5

Internal I/O
1 x 24-pin (Power)
2 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Chassis Intrusion connector
1 x CPU Fan Connector
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
2 x Front Panel Connector
1 x RGB Header
6 x System Fan header
1 x Thunderbolt header
1 x TPM 2.0 Header
4 x USB 2.0 Port
2 x USB 3.2 Gen 2 Type-A
1 x USB Type-C

Network Interface Type: 802.11ax Wi-Fi LAN, Wired 2.5 Gigabit LAN
Network Chip/Modules: 1 x 2.5 Gigabit LAN

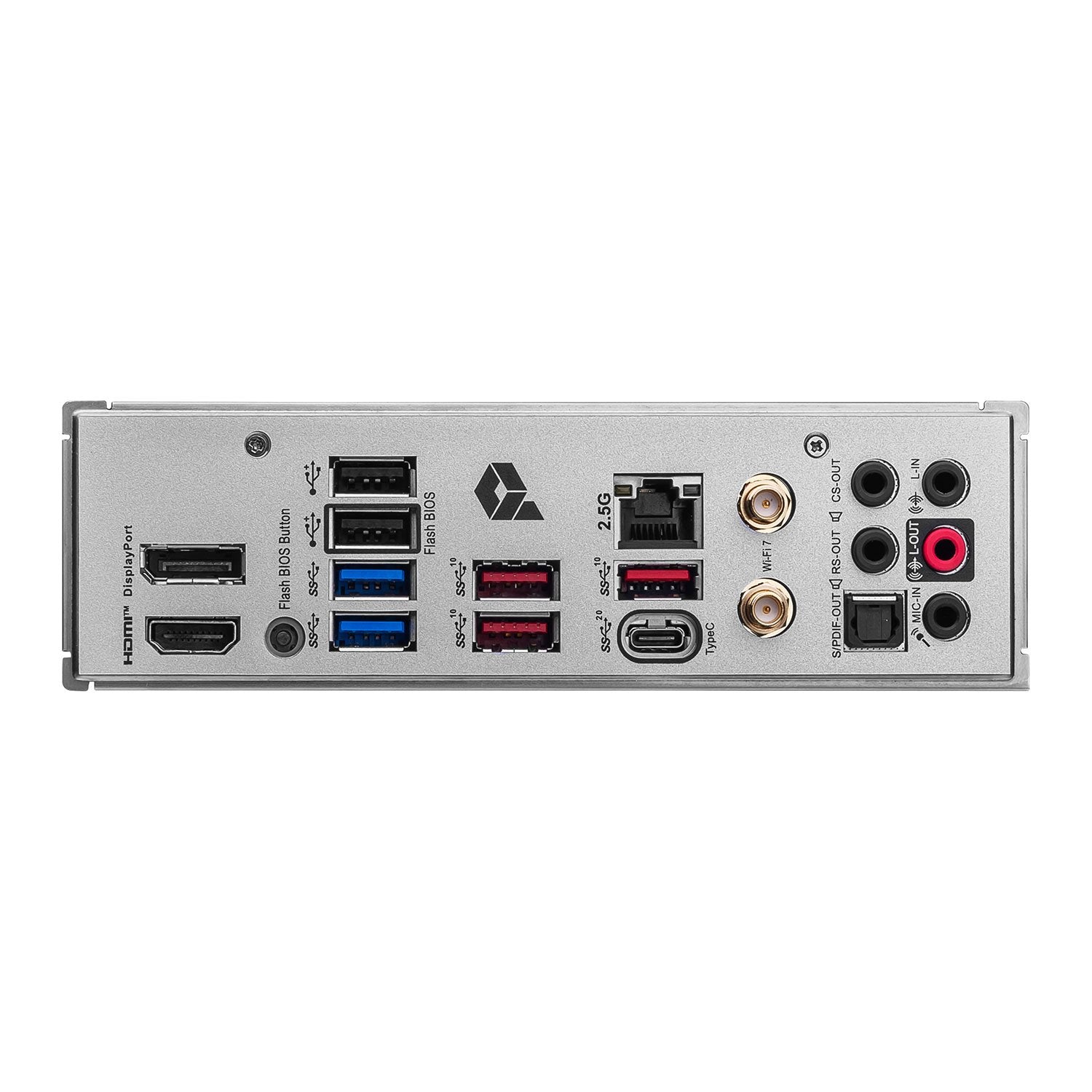

Rear I/O Connectors
1 x 10/100/1000/2500 (LAN)
1 x 5.1 Audio I/O
1 x Central Speaker Out
1 x Clear CMOS Button
1 x DisplayPort 1.4
1 x Flash BIOS Button
1 x HDMI 2.1
1 x S/PDIF-Out (Optical)
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
3 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2x2 Type-C
1 x WiFi 802.11ax 6E / Bluetooth 5.2
2 x WiFi Antenna connectors
