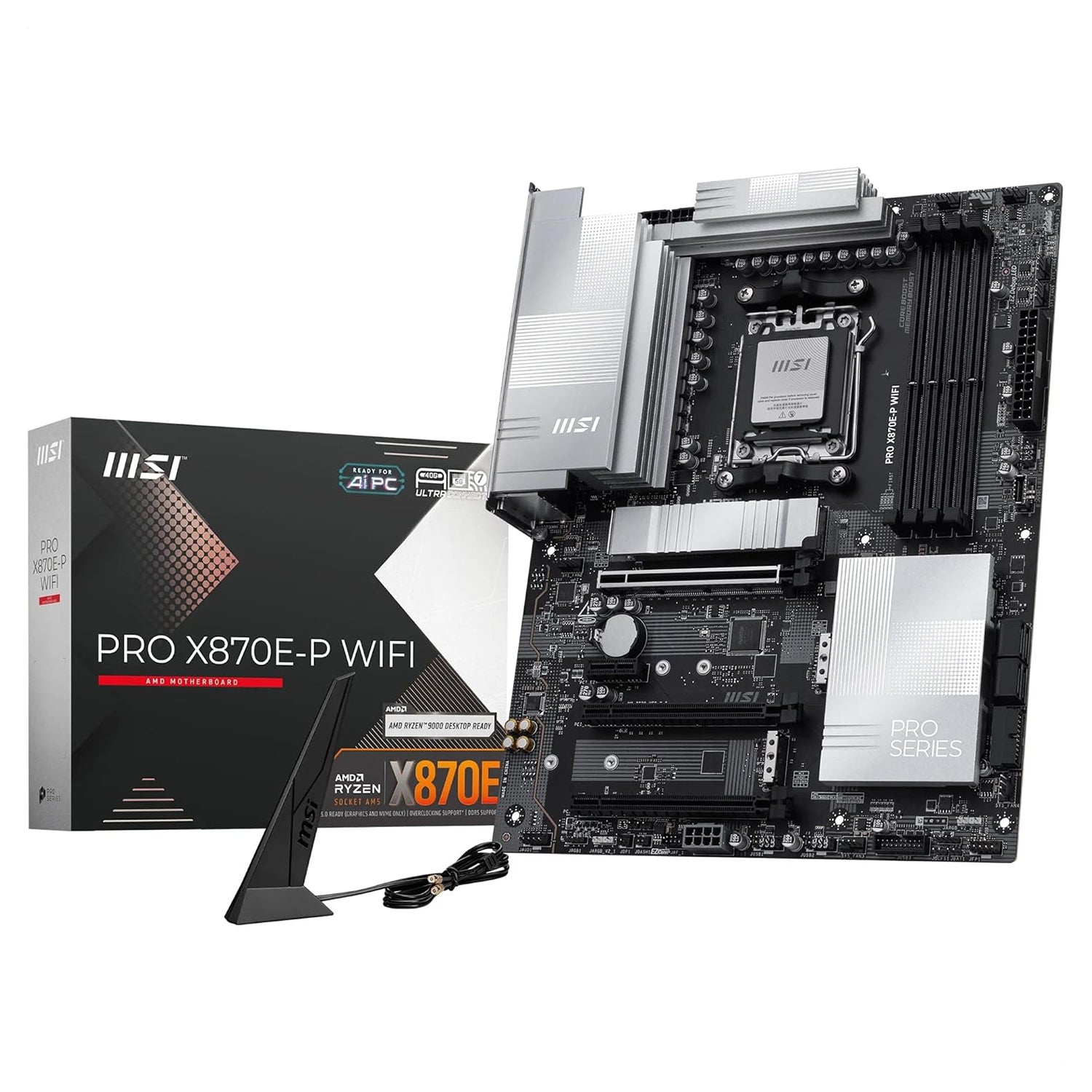

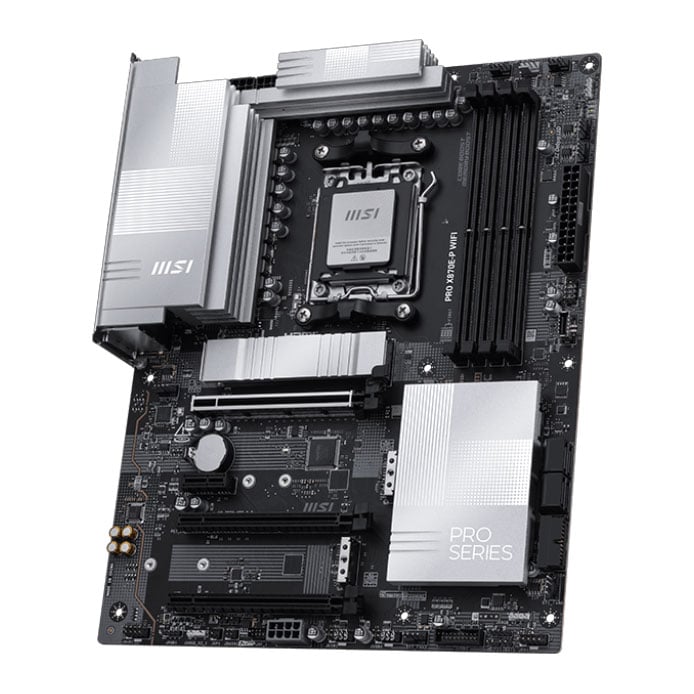

MSI Pro X870E-P WiFi Gaming Motherboard ATX, DDR5, PCIe 5.0, AMD AM5

MSI PRO X870-E WiFi ATX Gaming Motherboard

The MSI Pro X870E-P WiFi Gaming Motherboard offers advanced performance tailored for AMD AM5 processors. Designed in a robust ATX form factor, it supports the latest DDR5 memory and PCIe 5.0, enabling exceptional data transfer speeds and future-proofing your build. Its comprehensive connectivity, including integrated WiFi, ensures seamless online gaming and multitasking. Engineered for stability and speed, this motherboard is ideal for enthusiasts seeking a reliable foundation for high-end gaming and productivity setups.

Specifications

Edition: PRO X870E-P WIFI
Form Factor: ATX
CPU Socket: AM5
Chipset: AMD X870E
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): ECC/Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz): DDR5 - 8200(OC)
Max. Memory Capacity: 256GB (4x64GB)
Audio: Realtek ALC897 7.1 HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: Not Supported
AMD CrossFire Support: Not Supported
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: HDMI 2.1, USB 4.0, USB Type-C (DisplayPort)

Expansion Slots
1 x M.2, 22-60/80, PCIe Gen4x4
1 x M.2, 22-60/80, PCIe Gen5x4
1 x M.2, 22-80/110, PCIe Gen4x4
2 x PCIe 3.0 x1
1 x PCIe 4.0 x4
1 x PCIe 5.0 x16
4 x SATA 6GB/s

SATA Support: SATA3
RAID Support via: SATA3 / M.2
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5

Internal I/O
1 x 24-pin (Power)
1 x 4-pin CPU Fan Connector
6 x 4-pin System Fan Connector
2 x 8-pin (Power)
1 x 8-pin PCIe (Power)
3 x Addressable Gen 2 Header
1 x Chassis Intrusion connector
1 x Front Panel Audio Header
2 x Front Panel Connector
1 x RGB LED connector
1 x System Fan/Water Pump Header
1 x TPM Header

Network Interface Type: Wired 5 Gigabit LAN (100/1000/2500/5000)
Network Chip/Modules: 1 x 802.11be WiFi 7 + BT5.4

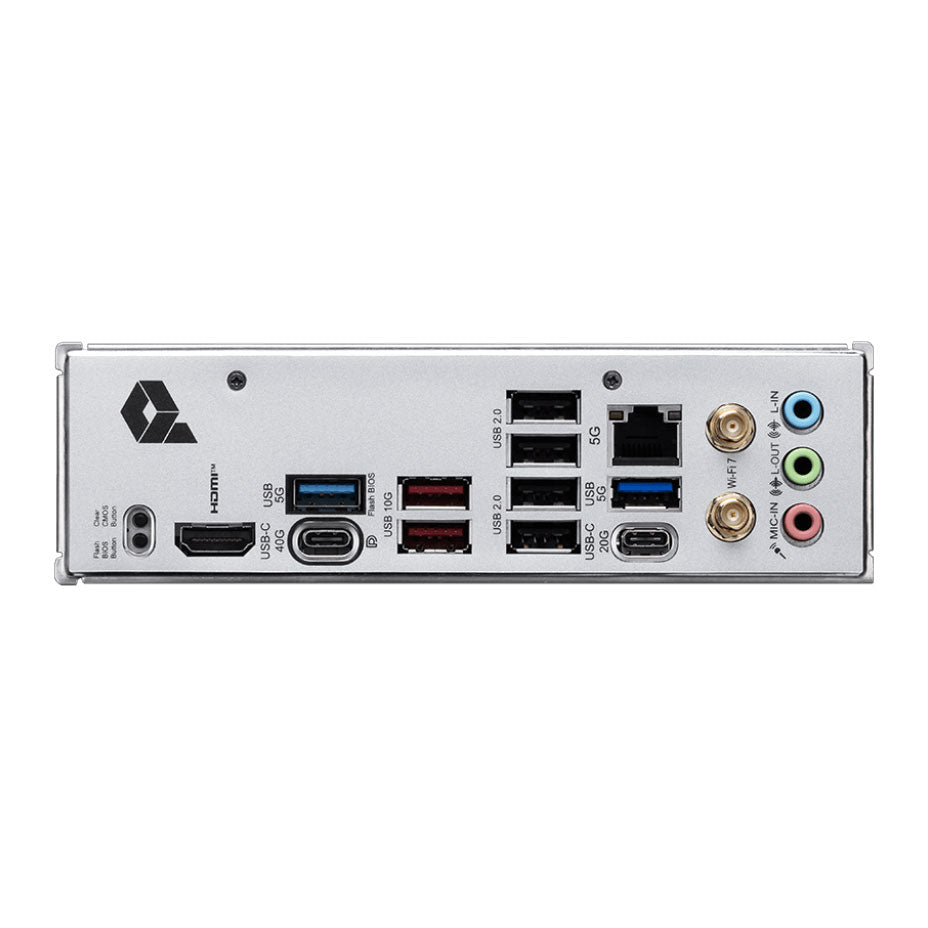

Rear I/O Connectors
1 x BIOS Flashback Button
1 x Clear CMOS Button
1 x HDMI 2.1
1 x Line In
1 x Line Out
1 x Mic-In
1 x RJ-45
4 x USB 2.0
2 x USB 3.2 Gen1 Type-A
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2x2 Type-C
1 x USB 4.0 Type-C
2 x Wi-Fi antenna connector holes

Water Cooled: No
Cooling: Passive Heatsinks
QPI Speed: N/A
Board Dimensions: 243.84 x 304.8 mm
