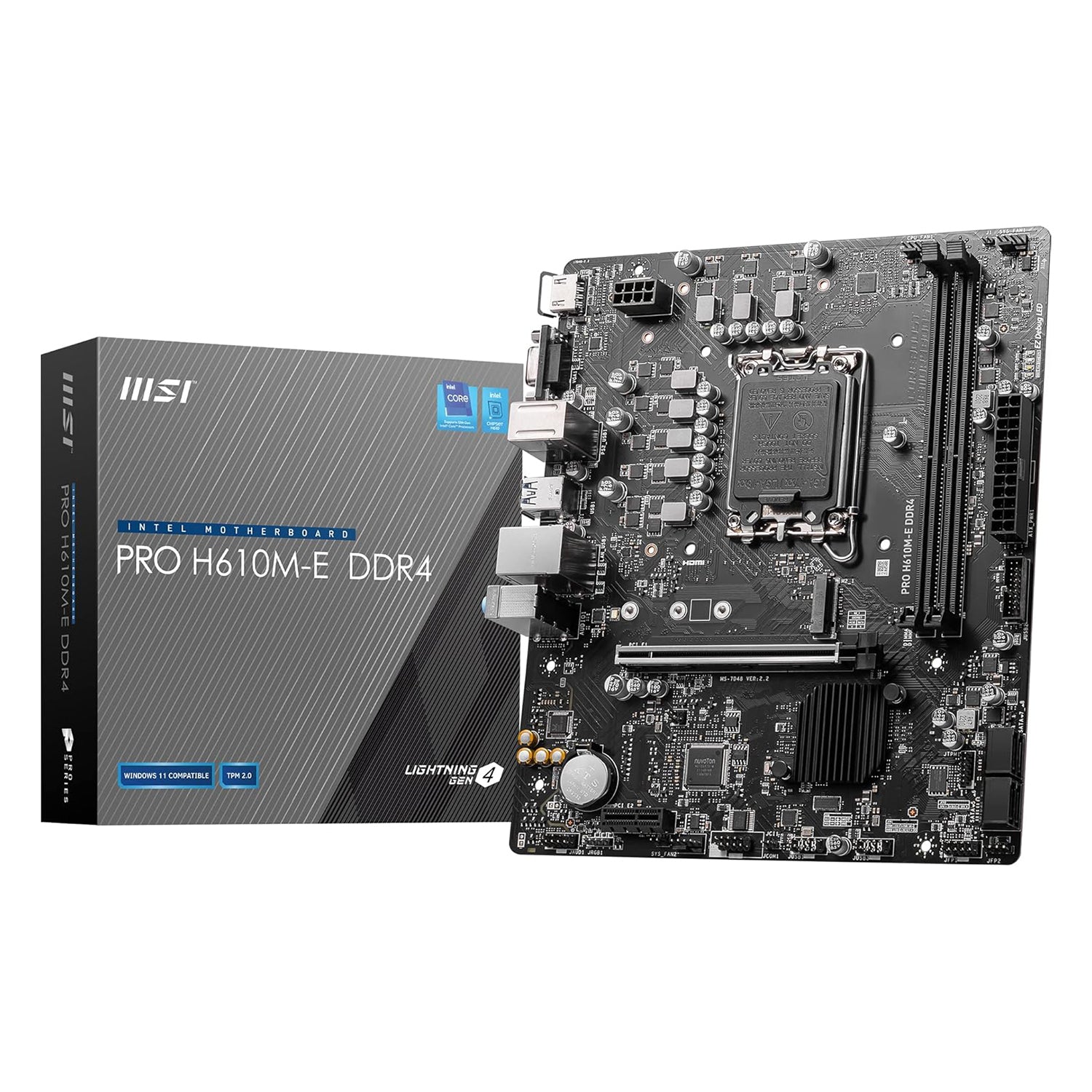

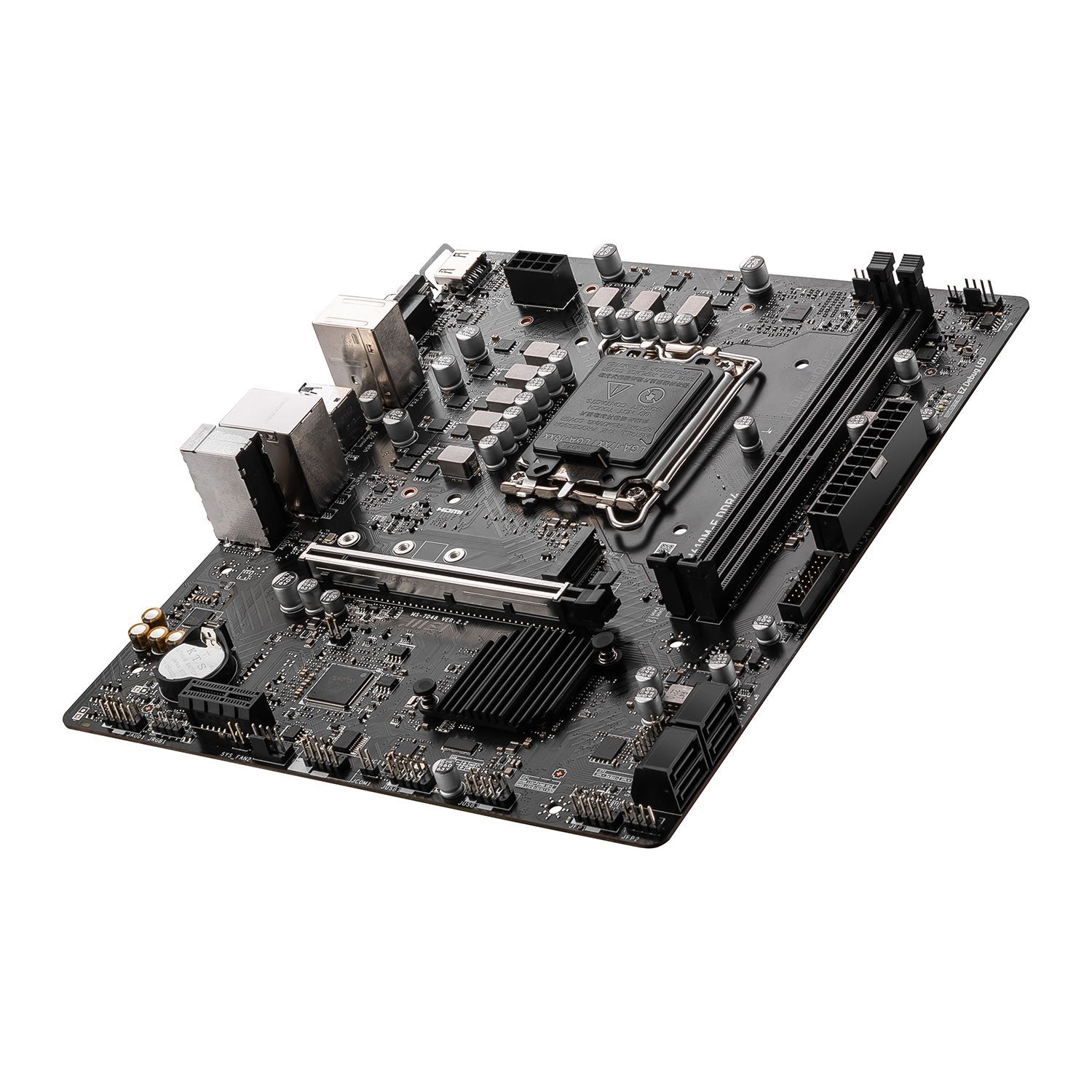

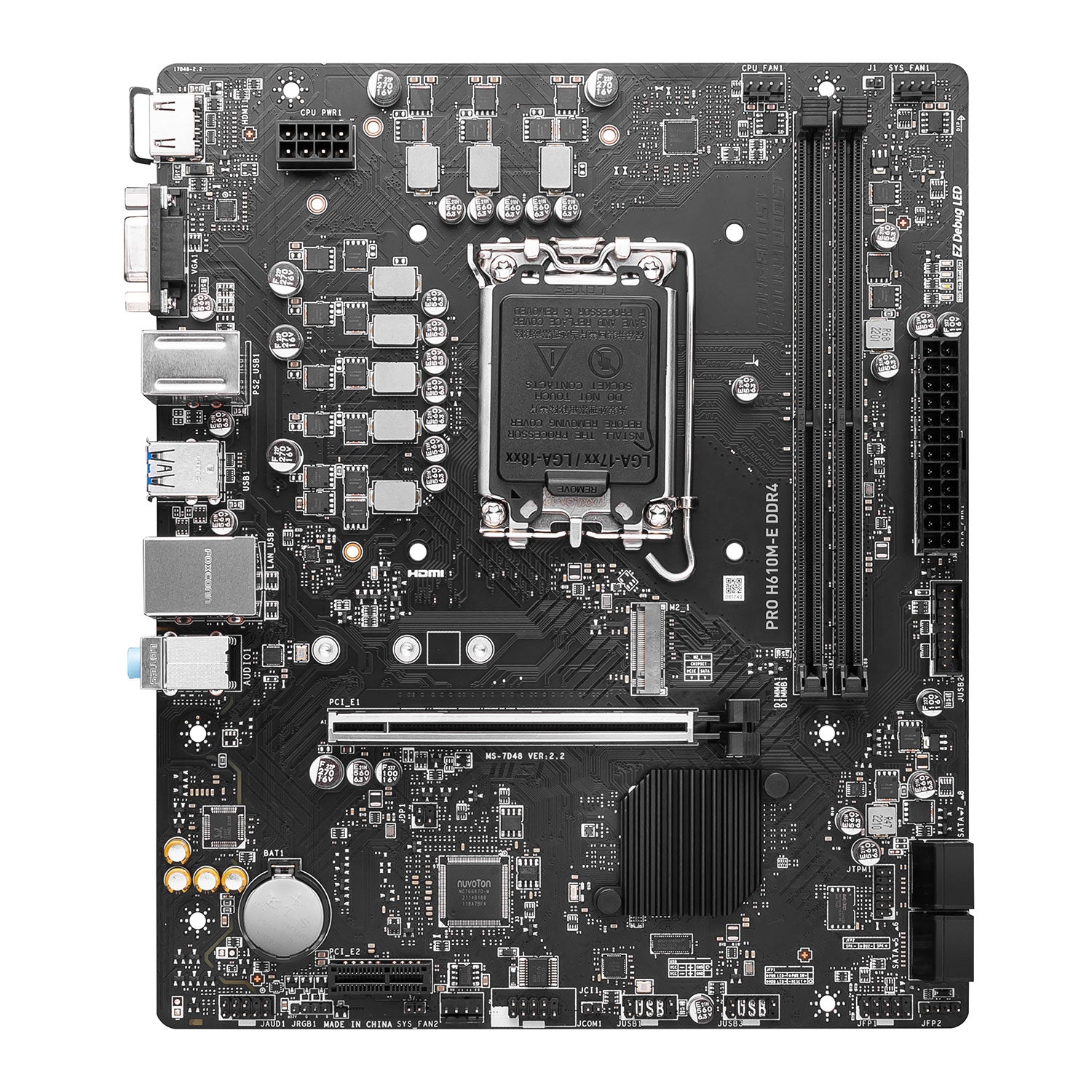

MSI Pro Intel H610M-E DDR4 Micro-ATX Gaming Motherboard, 1700

MSI H610 mATX Gaming Motherboard Intel

MSI PRO Intel H610M-E DDR4 Micro-ATX Motherboard delivers reliable performance for budget-conscious builders. Built on the H610 chipset, it supports 12th and 13th gen Intel processors via the LGA1700 socket. Features PCIe 4.0 support for next-gen graphics cards, DDR4 memory compatibility, and a compact micro-ATX form factor ideal for smaller builds. Includes essential connectivity with multiple USB ports and M.2 slots. A solid foundation for productivity, gaming, and content creation without unnecessary premium features.

Specifications

Edition: PRO H610M-E DDR4
Form Factor: MicroATX
CPU Socket: 1700
Memory Type: DDR4
Memory Channel: Dual (2)
Memory Type (ECC): Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz): DDR4 - 2133, DDR4 - 2666, DDR4 - 3200
Max. Memory Capacity: 64GB (2x32GB)
Audio: Realtek ALC897 7.1 HD Audio
Primary GPU Interface: PCIe 4.0 (x16)
NVIDIA SLI Support: N/A
AMD CrossFire Support: N/A
On-Board Graphics Connectors: D-Sub (VGA), HDMI

Expansion Slots
1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
1 x PCIe 3.0 x1
1 x PCIe 4.0 x16
4 x SATA 6GB/s

SATA Support: N/A

Internal I/O
1 x 24-pin (Power)
1 x 4-pin CPU Fan Connector
2 x 4-pin System Fan Connector
1 x 8-pin (Power)
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
4 x EZ Debug LED
1 x Front Panel Connector
1 x M.2
4 x SATA III - 6Gb/s
1 x Serial (COM) Header
2 x System panel connector
1 x TPM (Trusted Platform Module)
2 x USB 2.0 Header
1 x USB 3.2 Gen1 Header

Network Interface Type: Wired Gigabit LAN (10/100/1000)
Network Chip/Modules: 1 x Realtek RTL8111H (Gigabit LAN)

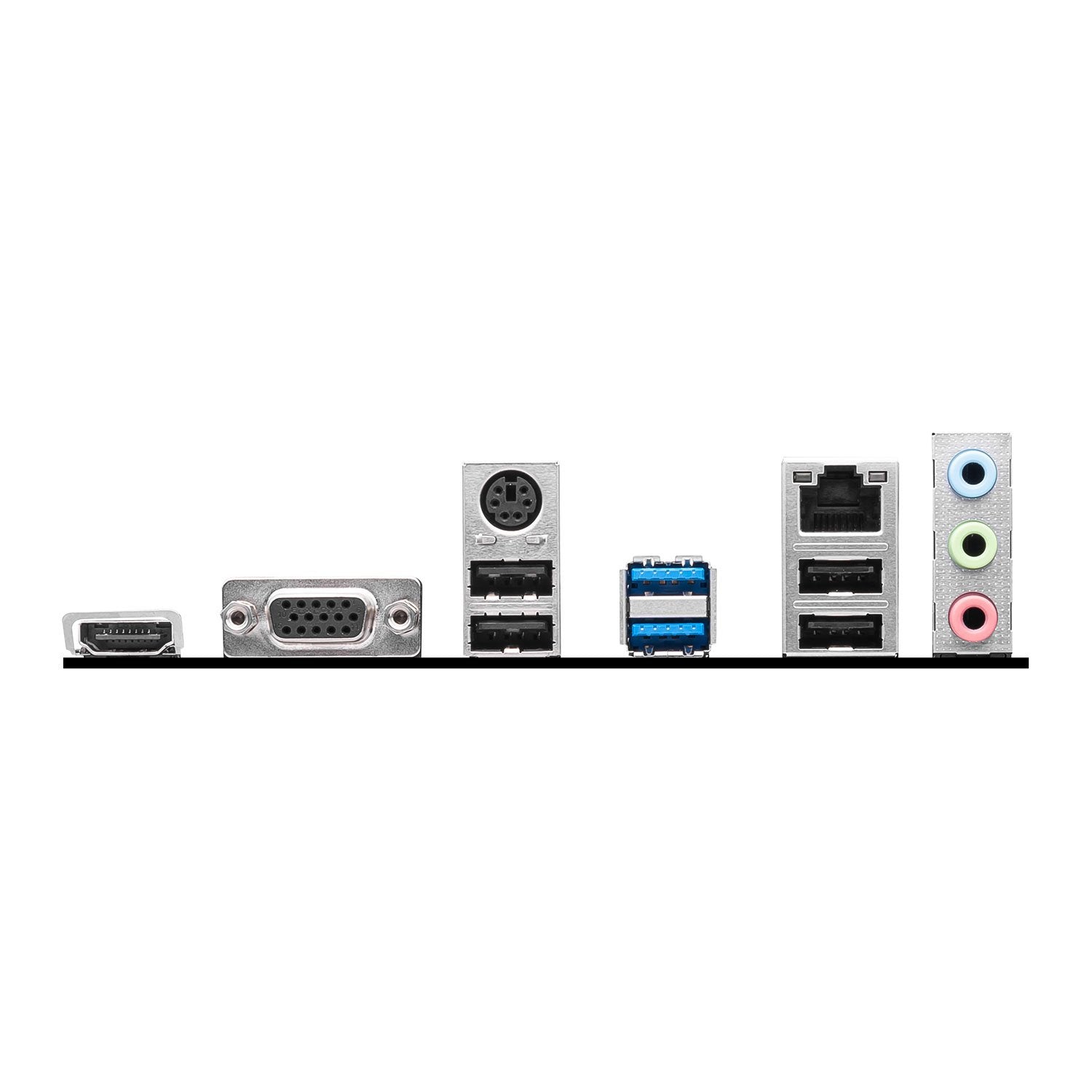

Rear I/O Connectors
1 x 10/100/1000 (LAN)
1 x D-Sub (VGA)
1 x HDMI
1 x Headphone-Out
1 x Line Out
1 x Mic-In
1 x PS/2 Keyboard/Mouse Combo
4 x USB 2.0
2 x USB 3.2 Gen1 Type-A

Cooling: Passive Heatsinks
Board Dimensions: 236 x 200 mm
