MSI Pro H810M‑B Micro‑ATX Motherboard – LGA 1851, DDR5, PCIe 5.0, 2.5Gb LAN

MSI Pro H810M‑B LGA 1851 DDR5 Micro‑ATX

The MSI Pro H810M‑B is a compact and reliable Micro‑ATX motherboard built for Intel’s latest LGA 1851 processors, including Intel Core Ultra Series 2. Featuring DDR5 support up to 6400 MT/s (OC), PCIe 5.0 x16, 2.5Gb LAN, M.2 PCIe 4.0 storage, and essential connectivity, it delivers stable performance for business, office, and everyday PC builds. With EZ Debug LEDs, GPU Quick Release, and a durable VRM heatsink, the Pro H810M‑B is ideal for cost‑effective Intel systems.

Specifications

Type: Micro‑ATX Motherboard
Brand: MSI
Model: Pro H810M‑B
Chipset: Intel H810
CPU Socket: LGA 1851
CPU Support: Intel Core Ultra Processors (Series 2)
Colour: Black
Manufacturer’s Guarantee: Not listed

Memory

RAM Technology: DDR5
RAM Slots: 2 × DDR5 UDIMM
Max Memory: 128GB
Memory Speed: DDR5 4800 MT/s (JEDEC) / up to 6400 MT/s (OC)
Features: Dual‑Channel, Non‑ECC, XMP 3.0

PCIe Slots
1 × PCIe 5.0 x16 (CPU)
2 × PCIe 4.0 x1 (Chipset)

Storage
M.2 Slots:1 × M.2 PCIe 4.0 x4 (2280/2260)
SATA Ports: 4 × SATA 6Gb/s

Networking

LAN: Realtek 8125 2.5Gbps
WiFi: None

Audio

Chipset: Realtek ALC897
Channels: 7.1‑Channel HD Audio

Video Outputs
(Requires Intel CPU with integrated graphics)
HDMI 2.1: 4K @ 60Hz
DisplayPort 1.4: 4K @ 60Hz

USB Connectivity

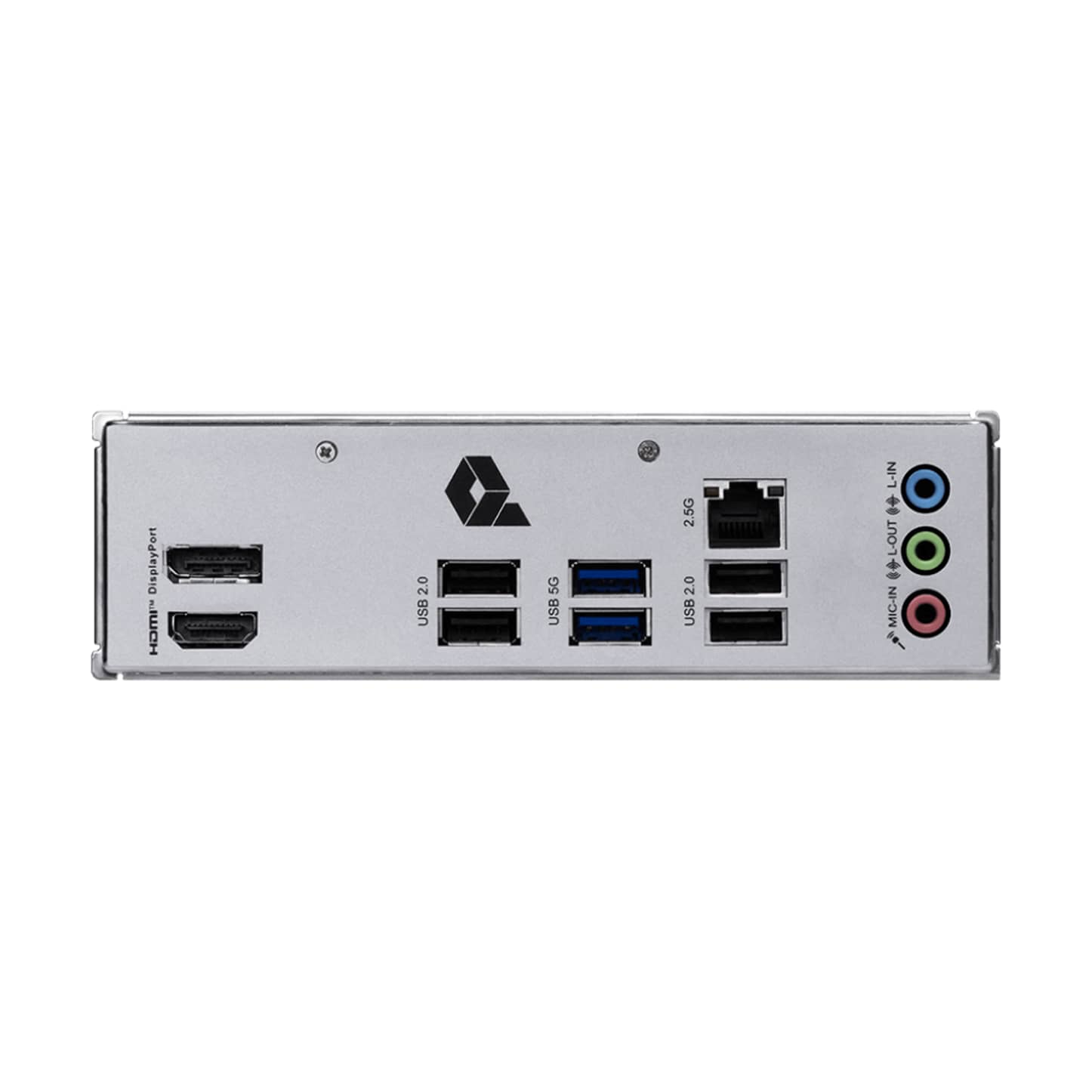

Rear I/O:
USB 2.0
USB 5Gbps Type‑A
2.5Gb LAN
Audio jacks
HDMI
DisplayPort

Internal Headers:
USB 3.0
USB 2.0
RGB & ARGB headers
CPU fan
System fan headers
Front panel audio TPM 2.0 header

Special Features

EZ Debug LED EZ Memory Detection LED M.2 Quick Release GPU Quick Release Built‑in I/O shield VRM heatsinks

Form Factor

Micro‑ATX Dimensions: 220 × 243.84 mm

Most Suitable For

Budget Intel builds Office & productivity PCs Home systems Small form factor setups Reliable everyday use
