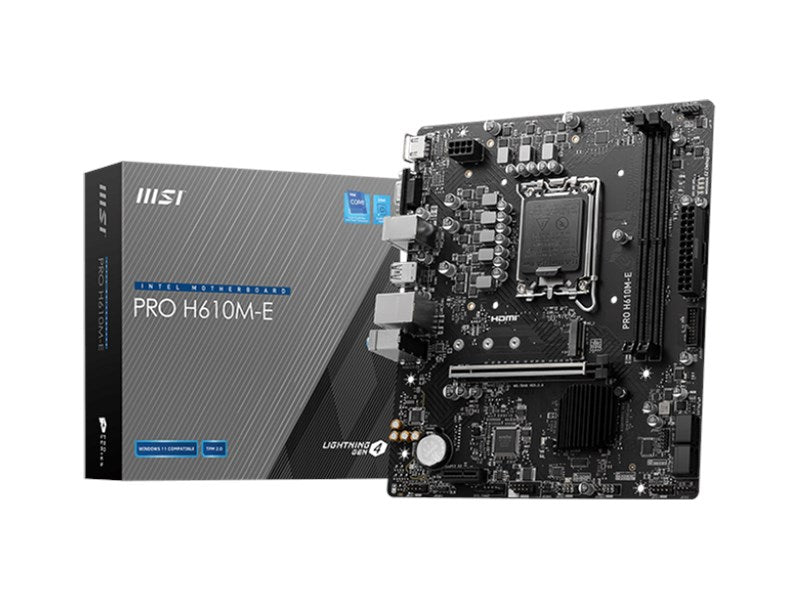

MSI PRO H610M-E (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)

Product Name:

MSI PRO H610M-E (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

PRO H610M-E

EAN:

4711377125147

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel H610

CPU Interface:

Socket 1700

CPU Support:

https://www.msi.com/Motherboard/PRO-H610M-E/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 5600 (O.C.)

Max. Memory Support:

96GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

LAN Speed:

Realtek RTL8111H Gigabit LAN

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.1 Port(s) Type-A Gen 1:

2

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x RGB LED Connector
• 4 x EZ Debug LED

Form Factor:

Micro ATX

Product Width:

200mm

Product Length:

236.16mm

Special Features:

• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
• Lightning Gen4 Solution: The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
• PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
• EZ Debug LED: Easiest way to troubleshoot.
• Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• M.2 Screw / Standoff Set
• SATA Cable
• I/O Shield
