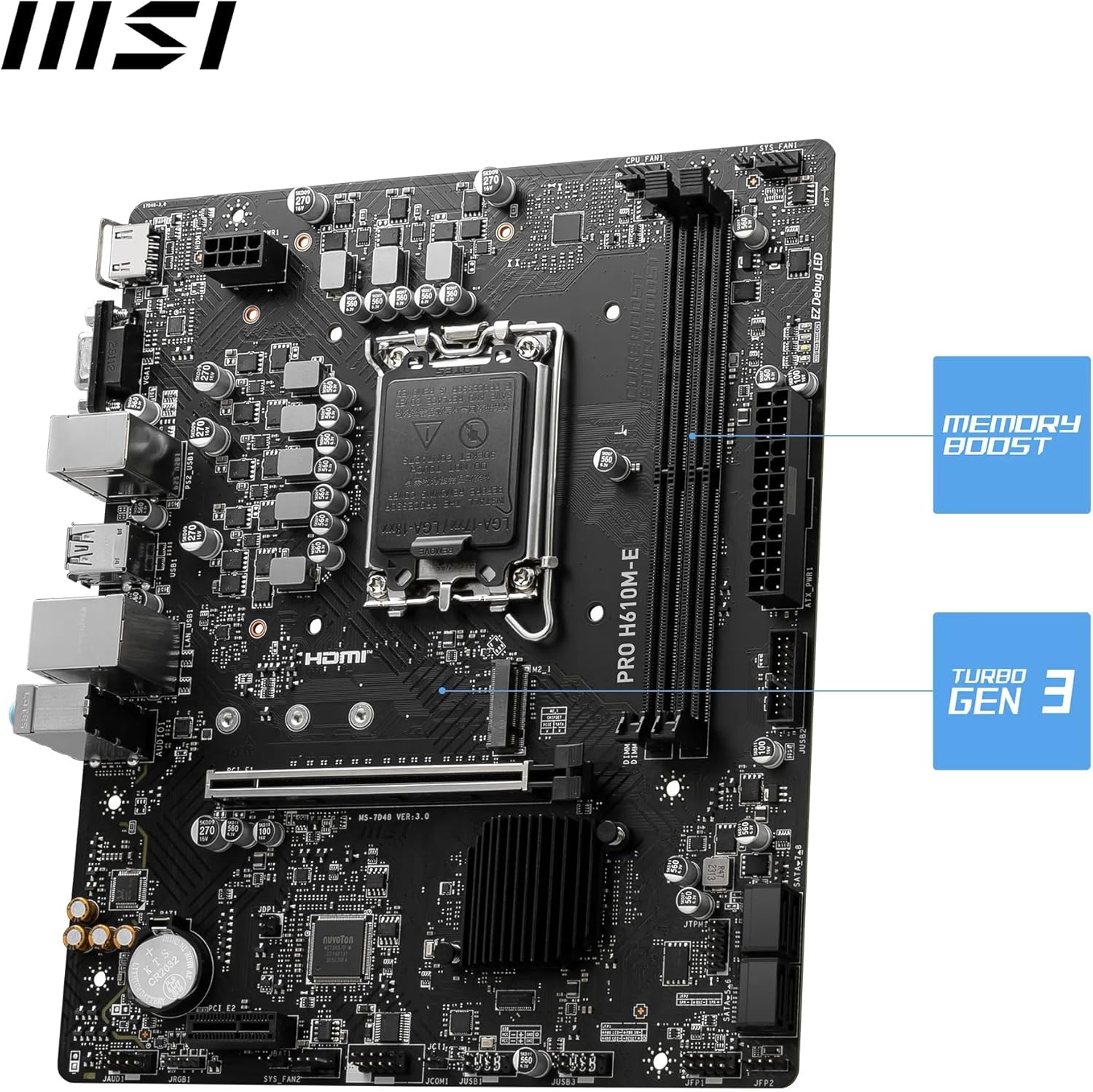

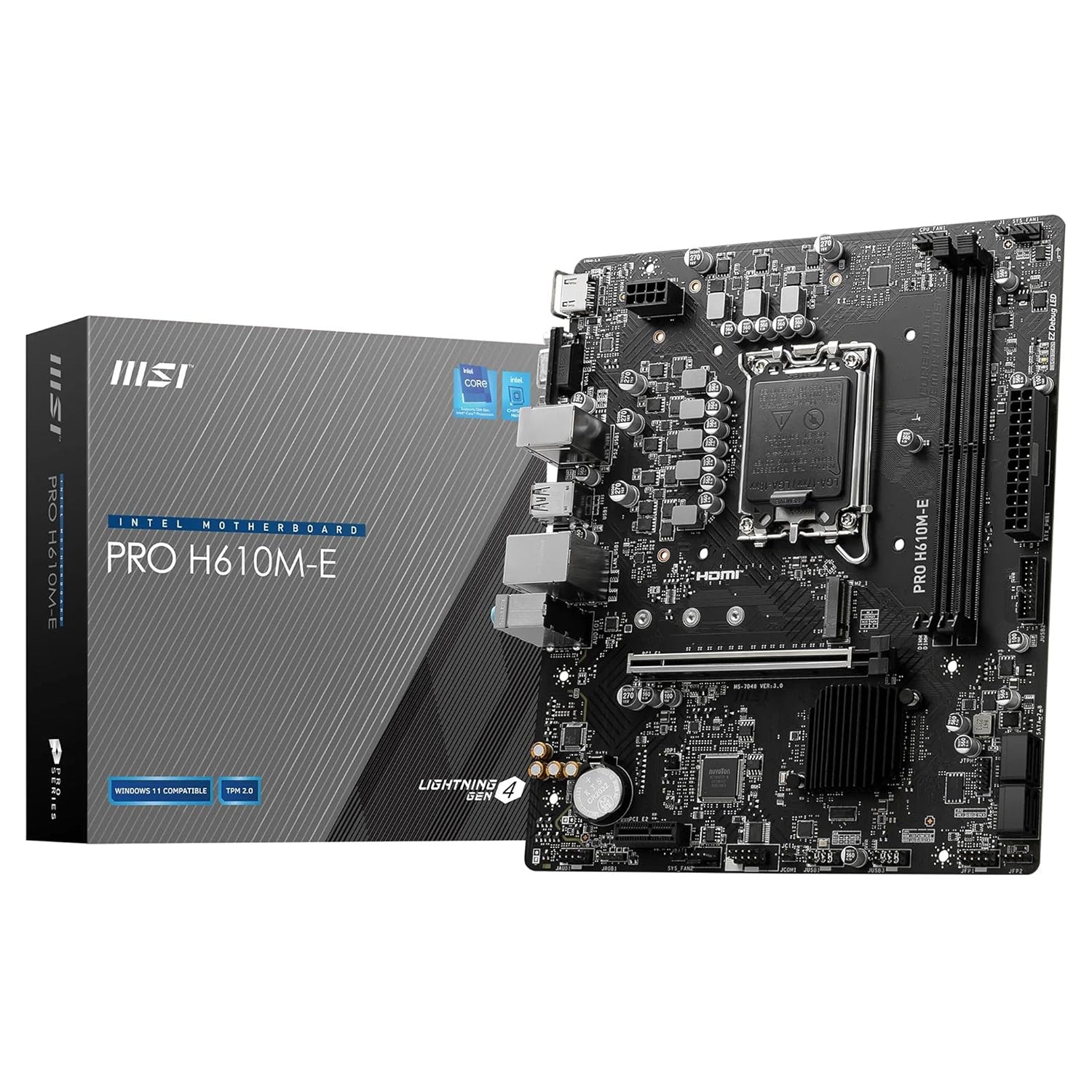

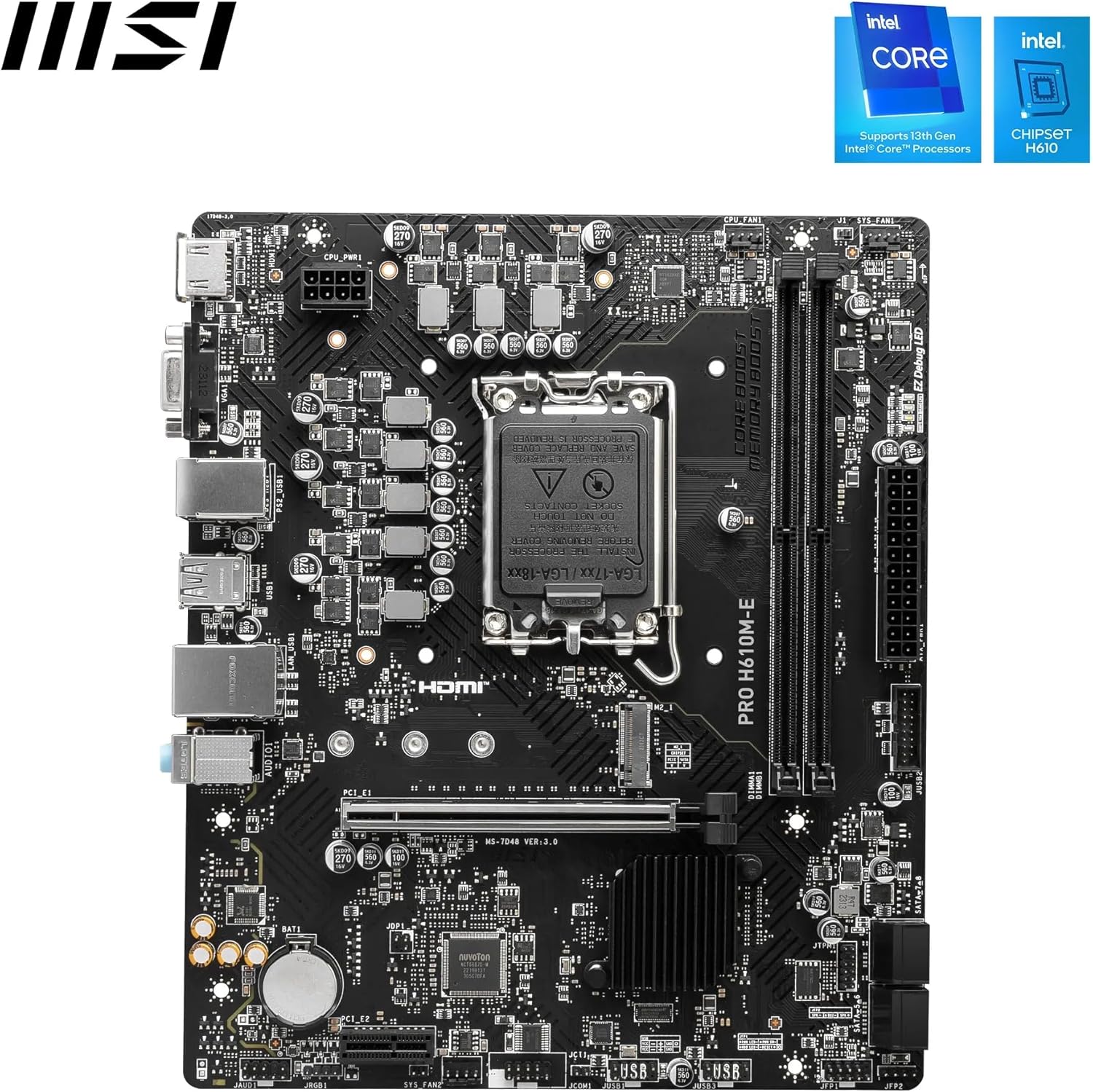

MSI Pro H610M-E Micro ATX Gaming Motherboard, Intel 1700, DDR5, M-ATX

MSI Pro H610M-E Gaming Motherboard M-ATX

The MSI Pro H610M-E Micro ATX motherboard is designed for Intel 1700 socket processors, supporting the latest DDR5 memory for enhanced performance. Its compact Micro ATX form factor offers flexibility for gaming builds without compromising on essential features. Engineered to deliver reliable stability and efficient power delivery, this motherboard is ideal for gamers seeking a solid foundation for their system.

Specifications

CPU Socket: Socket 1700
CPU Brand: Intel
Installed Processors (Max): 0 (1)
Supported Processor Manufacturer: Intel
Supported Processors: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
64-bit Support: Yes
Socket: LGA1700

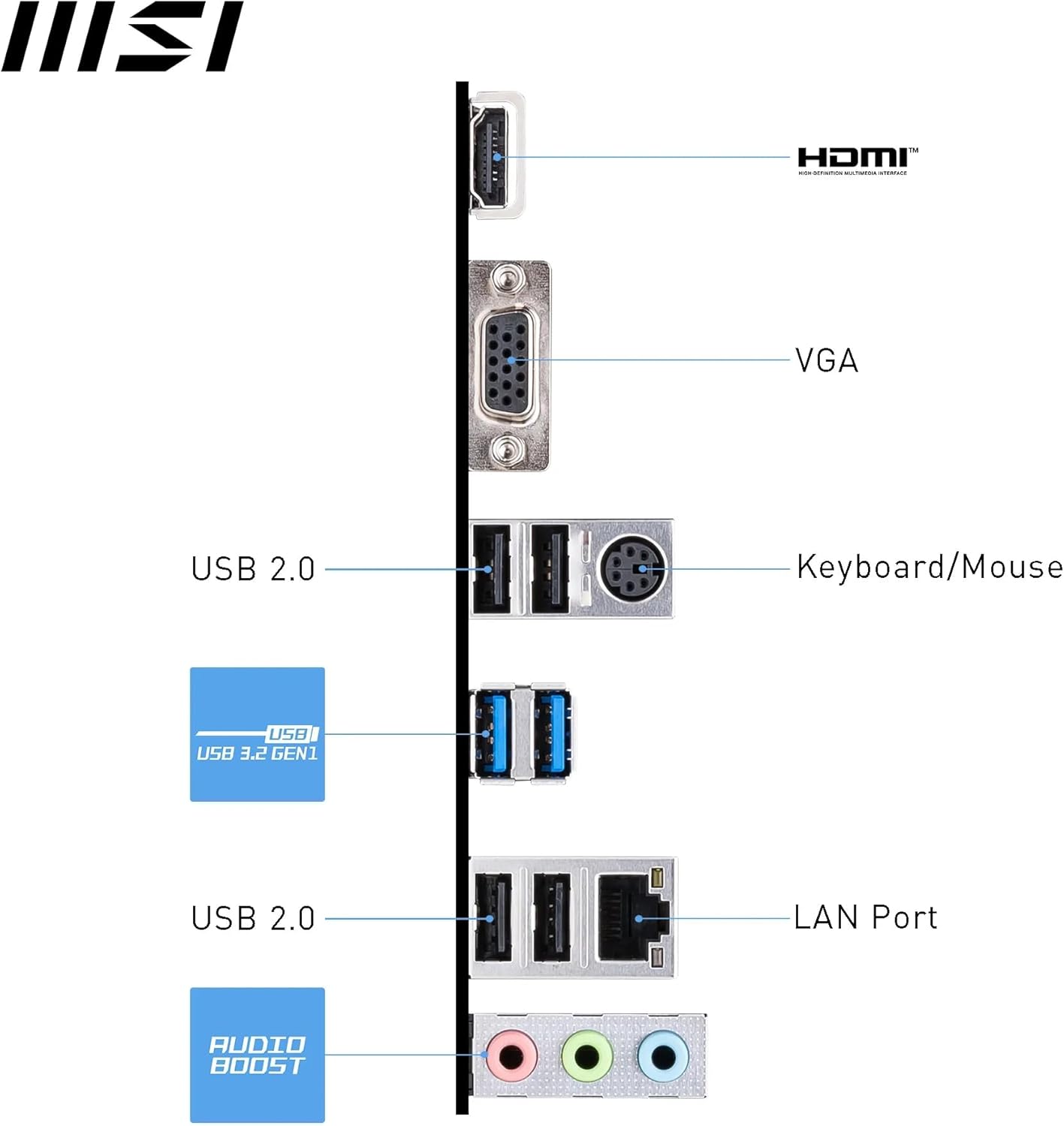

USB Ports: 2 x USB 3.0, 4 x USB 2.0
HDMI Port: 1 x HDMI 1.4
VGA Port: 1 x D-Sub
Keyboard/Mouse Combo Port: 1 x PS/2
RJ-45 Ports: 1 x RJ-45
Audio Line In Ports: 1 x 3.5mm Jack
Audio Line Out Ports: 1 x 3.5mm Jack
Microphone In Port: 1 x 3.5mm Jack
SATA Connectors: 4 x SATA III
USB Connectors: 1 x USB 3.0 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors: 1 x Front Panel, 1 x Front Audio
Cooling Fan Support: 1 x CPU fan header, 2 x System fan headers
Serial Connectors: 1 x COM header
Chassis Intrusion Connector: 1 x Chassis Intrusion header
TPM Header: 1 x TPM header
Power Connector Port: 1 x 24-pin ATX, 1 x 8-pin EPS
Other Connectors: 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen3 or SATA), 1 x 4-pin RGB LED header
Memory Bus Speed: Up to 5600 MT/s
Memory Type: DDR5
Maximum RAM: 96 GB
Memory Slot: 2 x DIMM
Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot, 1 x PCI Express 3.0 x1 slot
