MSI MPG B760I EDGE WIFI Mini‑ITX LGA1700 Motherboard | PCIe 5.0

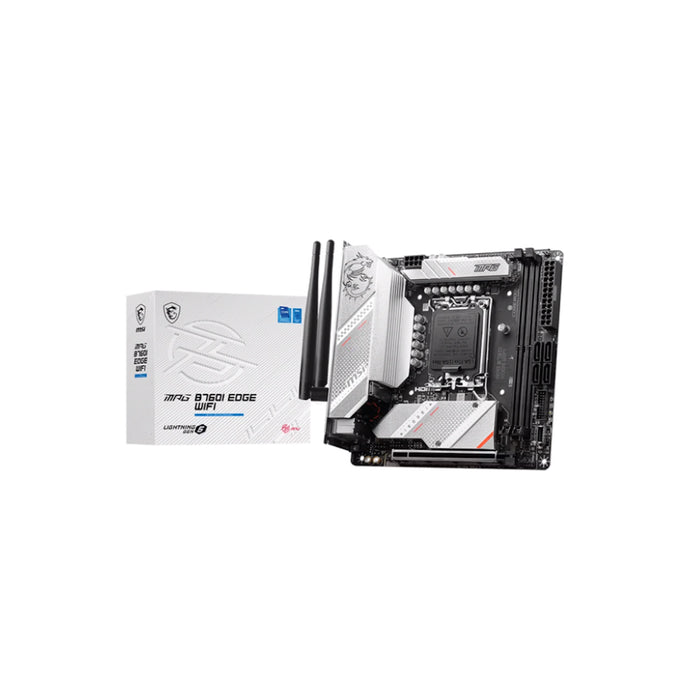

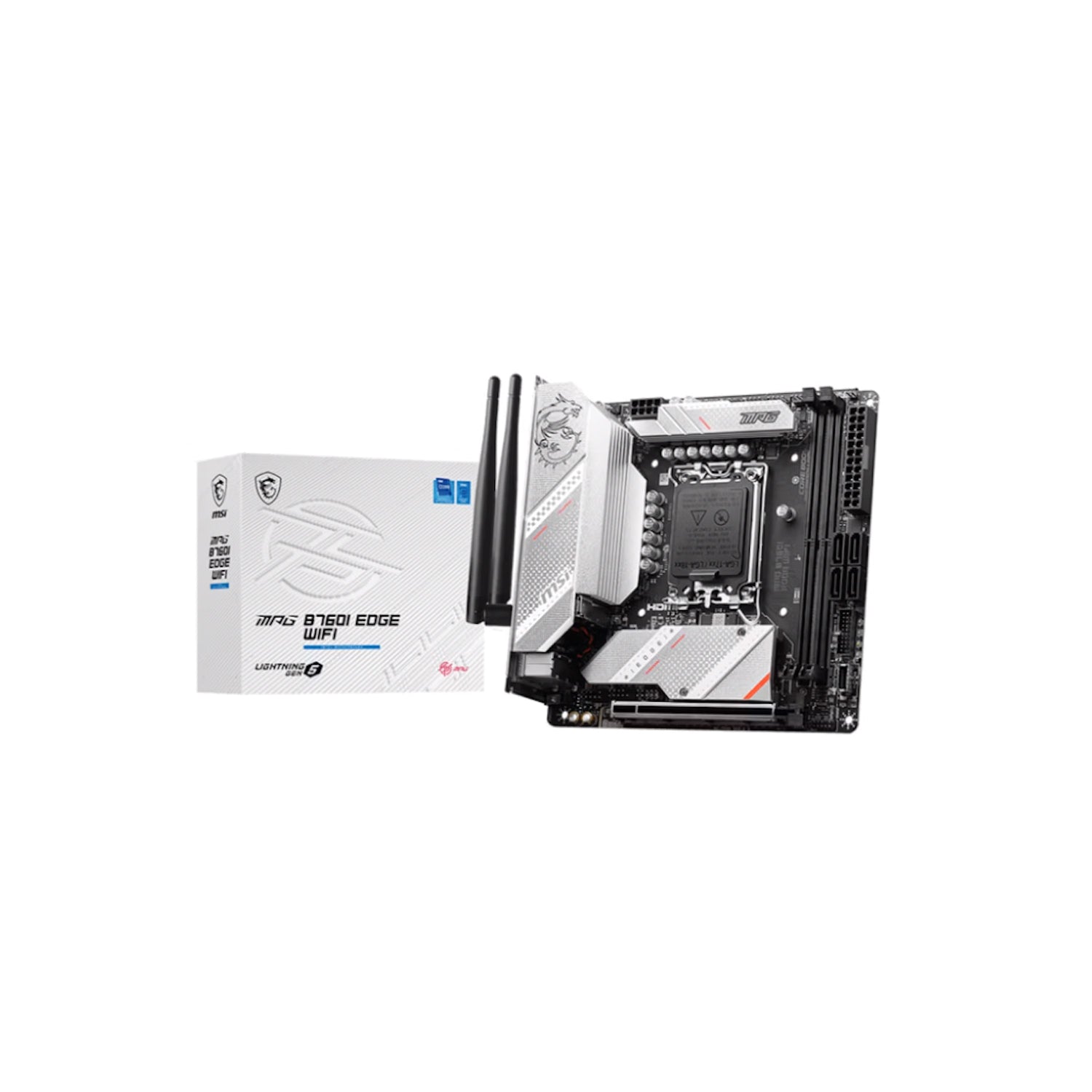

MSI MPG B760I EDGE WIFI Mini‑ITX Motherboard

Build a compact and powerful Intel system with the MSI MPG B760I EDGE WIFI, a Mini‑ITX motherboard engineered for high‑performance gaming, productivity, and modern connectivity. Featuring the Intel B760 chipset, support for 12th, 13th, and 14th Gen Intel Core processors, and DDR5 speeds up to 7200+ MHz (O.C.), this board delivers exceptional capability in a small form factor. With PCIe 5.0 x16, dual PCIe 4.0 M.2 slots, Wi‑Fi 6E, 2.5GbE LAN, and MSI’s premium thermal solutions, it offers a future‑ready platform for compact gaming builds. EZ‑DIY features like EZ Debug LEDs, pre‑installed I/O shield, and M.2 Shield Frozr ensure easy installation and long‑term reliability.

Specifications

Type: Mini‑ITX Motherboard
Brand: MSI
Model: MPG B760I EDGE WIFI
Chipset: Intel B760
CPU Socket: LGA 1700
Supported CPUs: Intel 12th / 13th / 14th Gen Core, Pentium, Celeron
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 × 288‑pin
RAM Speed Support: Up to DDR5 7200+ (O.C.)
Max Memory: 96GB
PCIe Slots: 1 × PCIe 5.0 x16
Storage: 1 × M.2 PCIe 4.0 x4, 1 × M.2 PCIe 4.0 x4 / SATA, 4 × SATA 6Gb/s, RAID 0/1/5/10
LAN: Realtek RTL8125B 2.5GbE LAN
Wireless: Wi‑Fi 6E (2.4 / 5 / 6GHz, up to 2.4Gbps)
Bluetooth: v5.3
Audio: Realtek ALC897 7.1‑Channel HD Audio
Video Outputs: HDMI, DisplayPort (Requires CPU with integrated graphics)

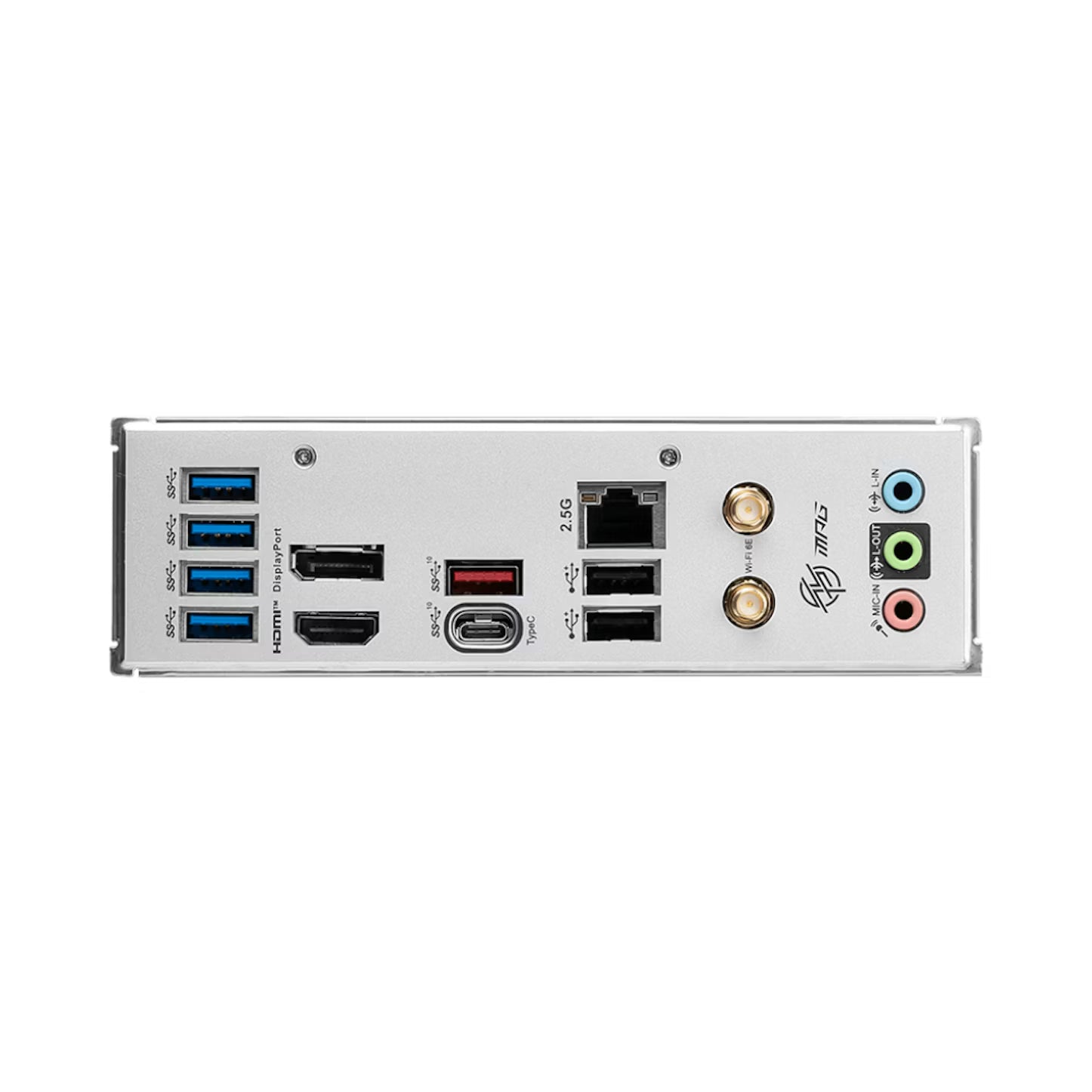

USB Ports (Rear): 2 × USB 2.0, 4 × USB 3.2 Gen1 Type‑A, 1 × USB 3.2 Gen2 Type‑A, 1 × USB 3.2 Gen2 Type‑C
Internal Headers: USB 2.0 × 2, USB 3.2 Gen1 × 2, USB 3.2 Gen2 × 1, ARGB Gen2 header, RGB header, TPM header, Front panel audio, 4 × EZ Debug LEDs
Power Connectors: 24‑pin ATX, 8‑pin ATX
Form Factor: Mini‑ITX (170 × 170 mm)
Most Suitable For: Compact gaming builds, SFF PCs, high‑performance ITX systems
