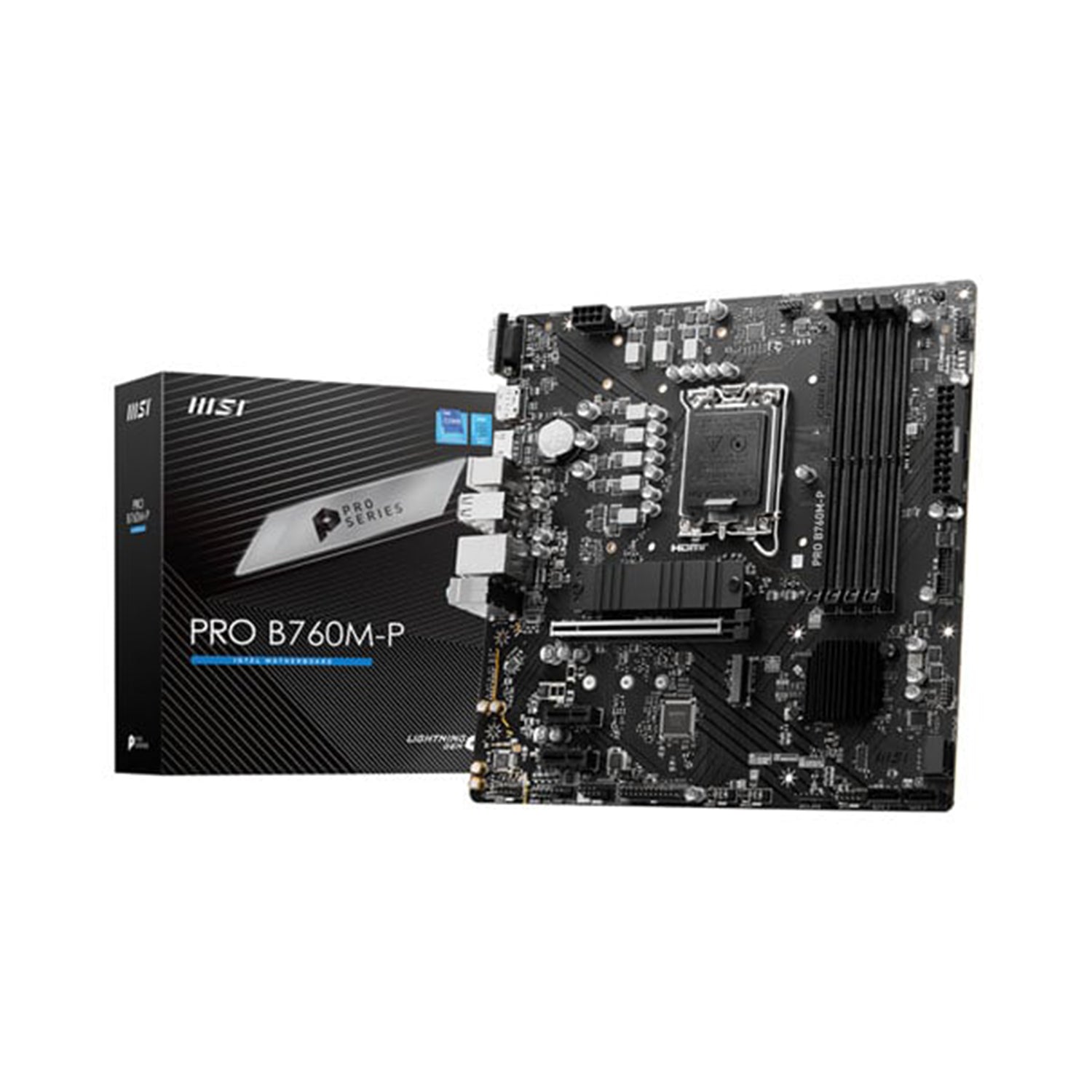

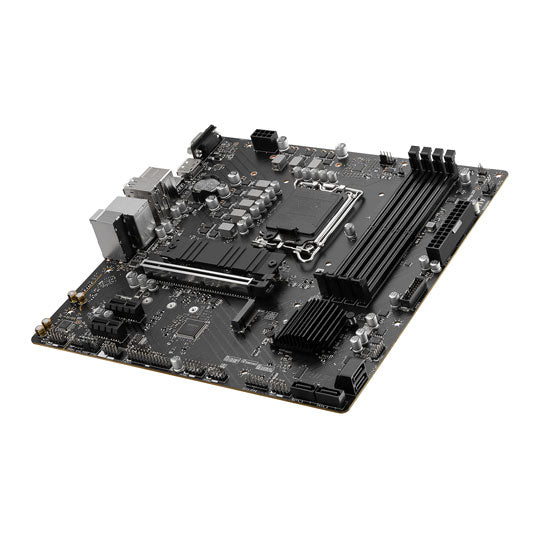

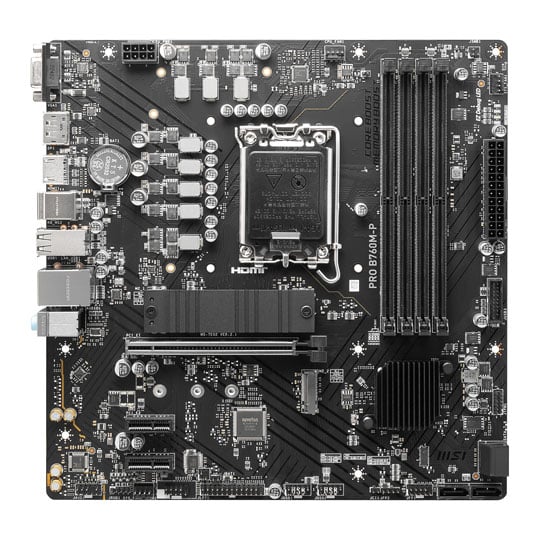

MSI PRO B760M-P Micro-ATX Gaming Motherboard, DDR5, Intel 1700

MSI Pro B760 M-ATX Gaming Motherboard

The MSI Intel PRO B760M-P is a Micro-ATX gaming motherboard designed for Intel 1700 socket processors and equipped with DDR5 memory support. This board offers robust performance and enhanced memory speeds suitable for gaming and professional workloads. Its compact Micro-ATX form factor ensures compatibility with a range of cases while delivering reliable connectivity and expansion options for a streamlined, high-performance PC build.

Specifications

Edition: PRO B760M-P
Form Factor: MicroATX
CPU Socket: 1700
Chipset: Intel B760
Memory Type: DDR5
Memory Channel: Dual (2)

Memory Speed (Mhz)
DDR5 - 4800
DDR5 - 5000
DDR5 - 5200
DDR5 - 5400
DDR5 - 5600
DDR5 - 5800(OC)
DDR5 - 6000(OC)
DDR5 - 6200(OC)
DDR5 - 6400(OC)
DDR5 - 6600(OC)
DDR5 - 6800(OC)

Audio: Realtek ALC897 7.1 HD Audio
Primary GPU Interface: PCIe 4.0 (x16)
On-Board Graphics Connectors: D-Sub (VGA), DisplayPort 1.4, HDMI 1.4

Expansion Slots
1 x M.2, 22-42/60/80, PCIe Gen4x4
1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
2 x PCIe 4.0 x1
1 x PCIe 4.0 x16
4 x SATA 6GB/s

SATA Support: SATA3
Network Interface Type: Wired Gigabit LAN (10/100/1000)
Network Chip/Modules: 1 x Realtek RTL8111H (Gigabit LAN)

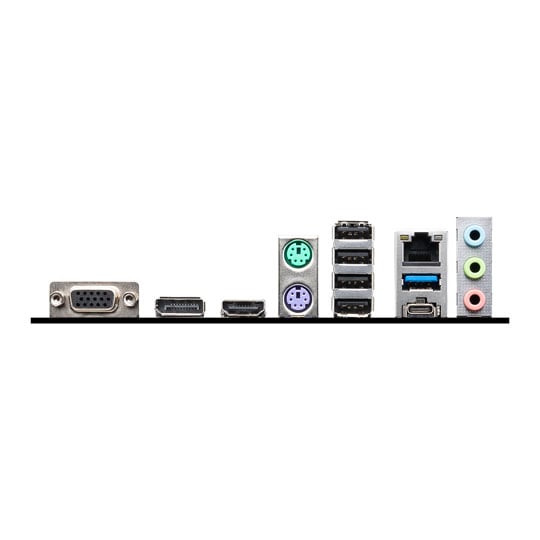

Rear I/O Connectors
1 x D-Sub (VGA)
1 x DisplayPort 1.4
1 x HDMI 1.4
1 x Headphone-Out
1 x Line Out
1 x Mic-In
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x RJ-45
4 x USB 2.0
1 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-C

Cooling: Passive Heatsinks
Board Dimensions: 243.84 x 243.84 mm
