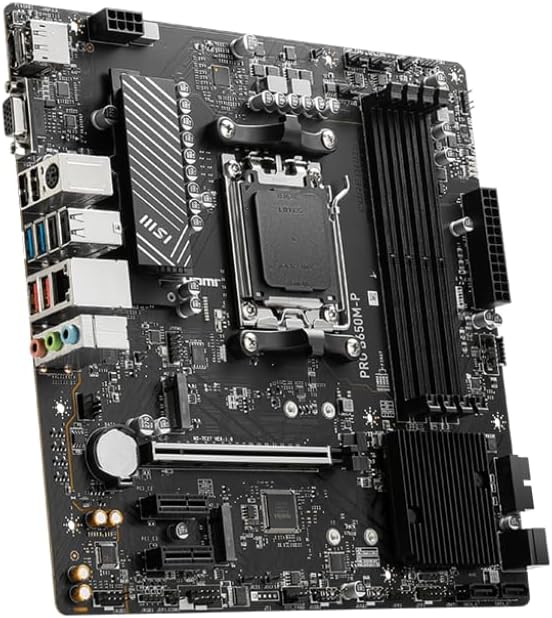

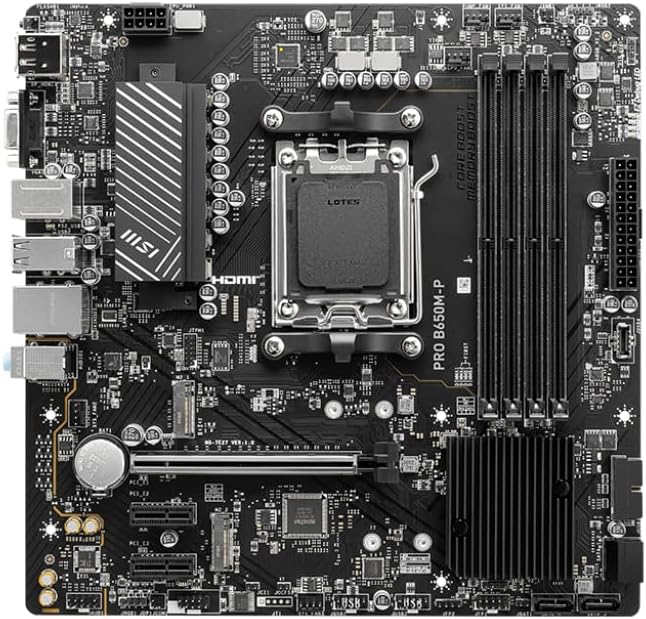

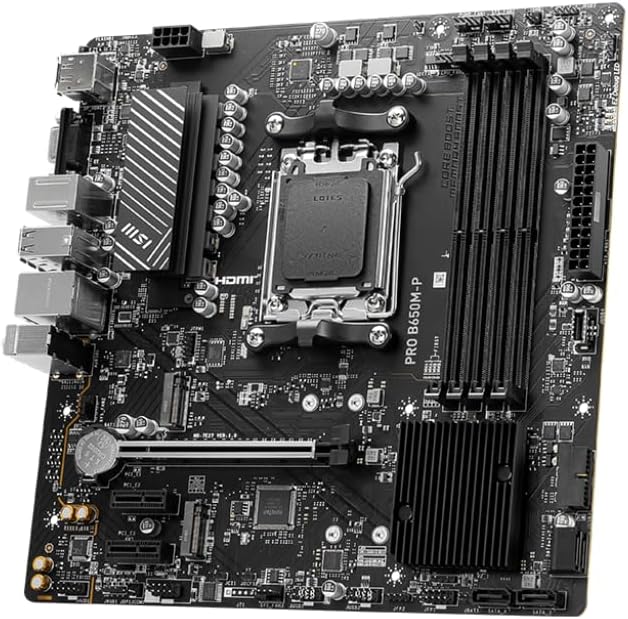

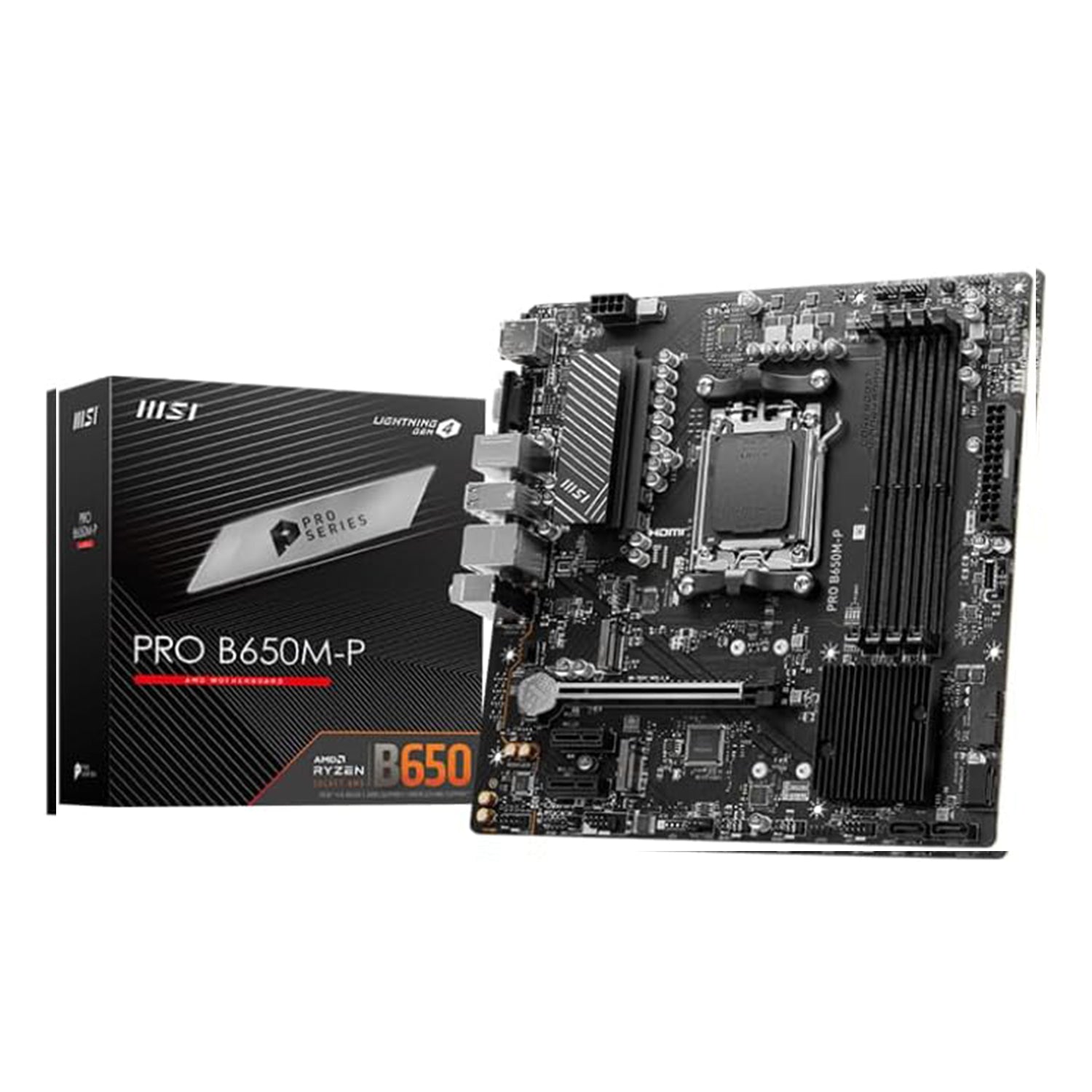

MSI Pro B650M-P Micro ATX Gaming Motherboard for AMD AM5, DDR5

MSI PRO B650M-P AMD Motherboard M-ATX DDR5

The MSI Pro B650M-P Micro ATX motherboard is tailored for AMD AM5 processors, supporting the latest DDR5 memory for superior speed and efficiency. Designed for gaming and professional use, it offers robust power delivery and reliable connectivity in a compact form factor. This board ensures optimal performance and expandability, making it an excellent choice for enthusiasts seeking a versatile and future-proof platform.

Specifications

CPU Socket: Socket AM5
CPU Brand: AMD
Supported Processor Manufacturer: AMD
Supported Processors: AMD Ryzen 8000/ 7000 Series Desktop Processors
64-bit Support: Yes
Socket: AM5

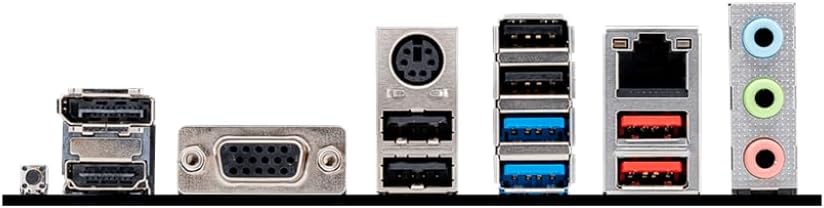

USB Ports: 2 x USB 3.1, 2 x USB 3.0, 4 x USB 2.0
DisplayPorts: 1 x DisplayPort 1.4
HDMI Port: 1 x HDMI 2.1
VGA Port: 1 x D-Sub
Keyboard/Mouse Combo Port: 1 x PS/2
RJ-45 Ports: 1 x RJ-45
Audio Line In Ports: 1 x 3.5 mm Jack
Audio Line Out Ports: 1 x 3.5mm Jack
Microphone In Port: 1 x 3.5 mm Jack
SATA Connectors: 4 x SATA III

USB Connectors
1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)3

Front Panel Connectors
1 x Front Panel
1 x Front Audio

Cooling Fan Support
1 x CPU fan header
1 x Pump fan header
3 x System fan headers

Serial Connectors: 1 x COM header
Chassis Intrusion Connector: 1 x Chassis Intrusion header
TPM Header: 1 x TPM header

Power Connector Port
1 x 24-pin ATX
1 x 8-pin EPS

Other Connectors
2 x M.2 slots, Type 2260/2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory Bus Speed: Up to 7200 MHz
Memory Type: DDR5
Maximum RAM: 192 GB
Memory Slot: 4 x DIMM

Number of PCI Express Slots:
1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x1 slots

Integrated Graphics Supported: Yes
