MSI MPG X870E Edge Ti WiFi ATX Gaming Motherboard, AMD AM5, PCIe5, DDR5

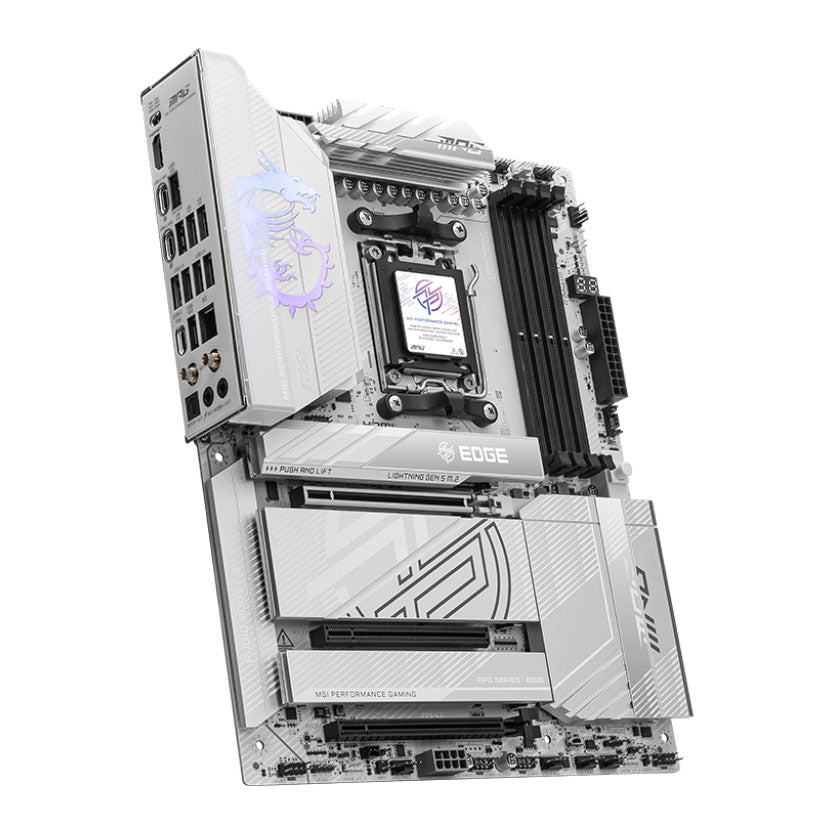

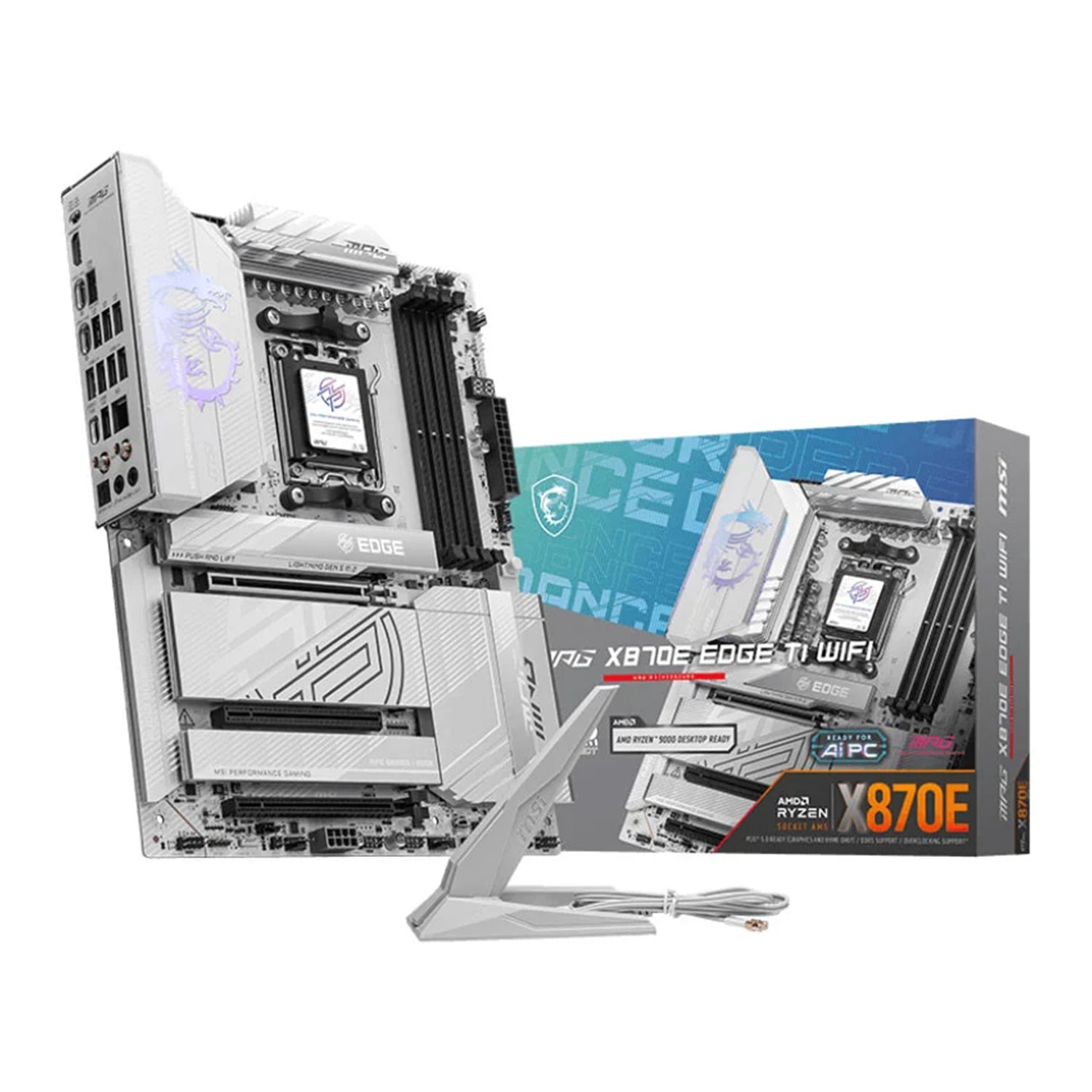

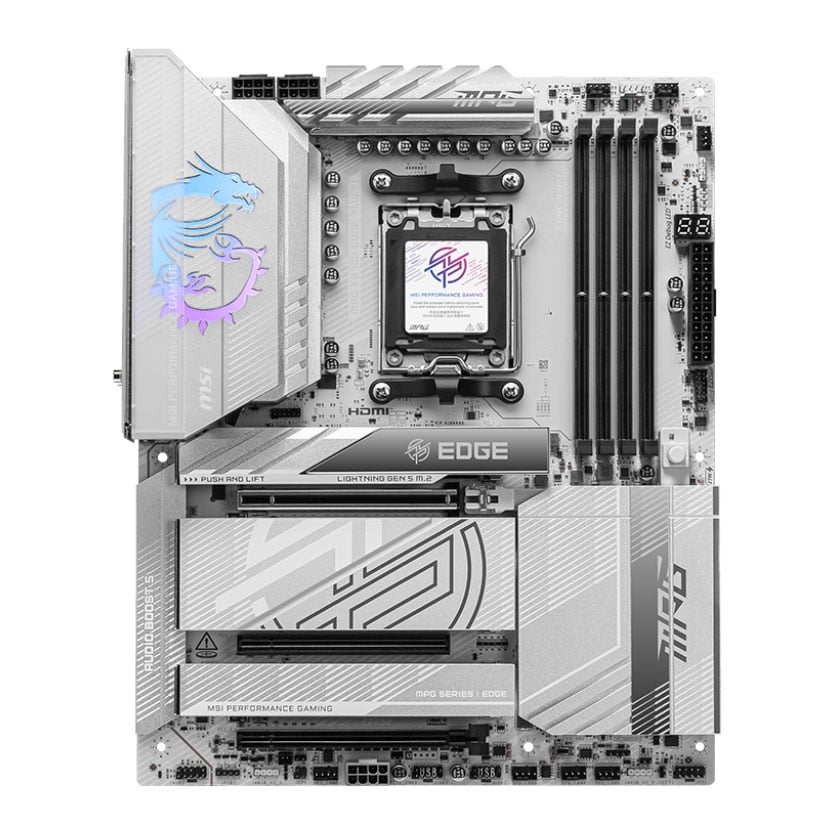

MSI MPG X870E Edge Ti WiFi ATX Motherboard
The MSI MPG X870E Edge Ti WiFi is a high-performance ATX gaming motherboard designed for AMD AM5 processors. It supports the latest DDR5 memory and PCIe 5.0 technology, delivering exceptional speed and responsiveness for demanding gaming and computing tasks. Equipped with advanced connectivity options including WiFi, this motherboard ensures stable and fast network performance. Its robust build and expert-level features make it ideal for gamers seeking cutting-edge hardware to maximize their system’s potential.
Specifications
Edition: MPG X870E EDGE TI WIFI
Form Factor: ATX
CPU Socket: AM5
Chipset: AMD X870E
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz): DDR5 - 8400(OC)
Max. Memory Capacity: 256GB
Audio: 7.1 Channel HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: Not Supported
AMD CrossFire Support: N/A
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: HDMI, USB 4.0
Expansion Slots
2 x M.2, 22-60/80, PCIe Gen4x4
1 x PCIe 3.0 x1
1 x PCIe 4.0 x16
1 x PCIe 5.0 x16
4 x SATA 6GB/s
SATA Support: SATA3
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5
Internal I/O
1 x 24-pin (Power)
1 x 4-pin CPU Fan Connector
2 x 8-pin (Power)
1 x 8-pin PCIe (Power)
3 x Addressable Gen 2 Header
1 x Chassis Intrusion connector
1 x Front Panel Audio Header
2 x Front Panel Connector
1 x RGB LED connector
4 x SATA III - 6Gb/s
6 x System Fan header
1 x System Fan/Water Pump Header
1 x TPM Header
4 x USB 2.0 Port
4 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen2 Type-C Port
Network Interface Type: 802.11be Wi-Fi 7 LAN, Wired 5 Gigabit LAN (100/1000/2500/5000)
Network Chip/Modules: 1 x 802.11be WiFi 7 + BT5.4, 1 x Realtek (5GbE LAN)

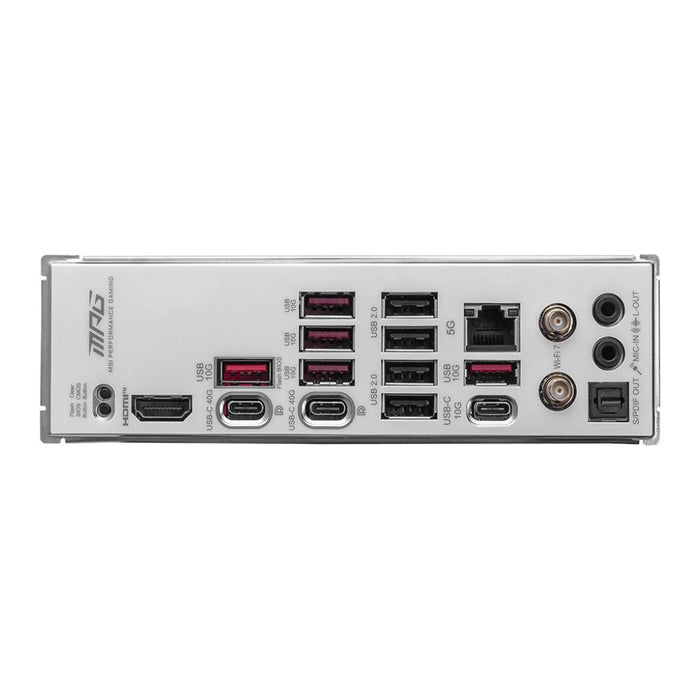

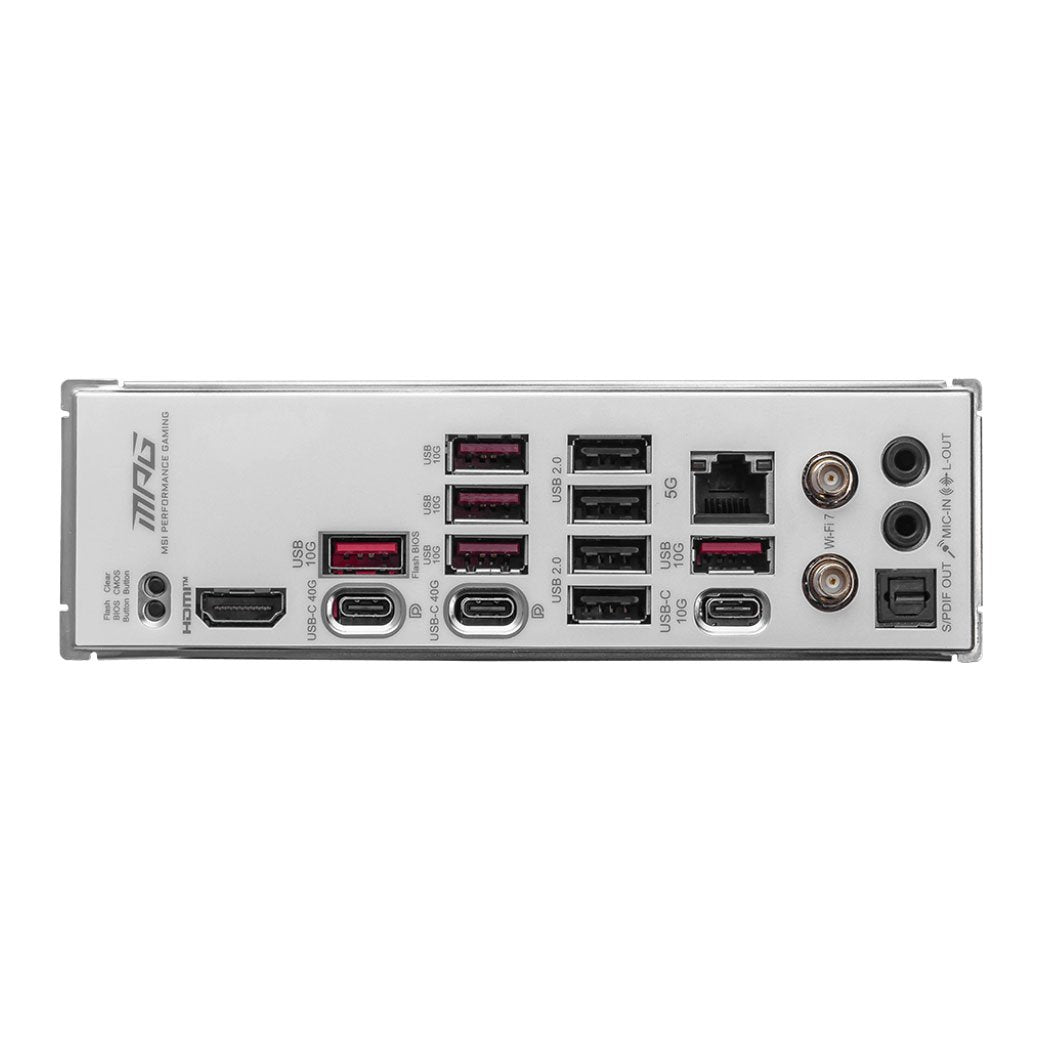

Rear I/O Connectors
1 x Clear CMOS Button
1 x Flash BIOS Button
1 x HDMI
1 x Line Out
1 x Mic-In
1 x RJ-45
1 x S/PDIF (Optical)
4 x USB 2.0
5 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 4.0 Type-C
