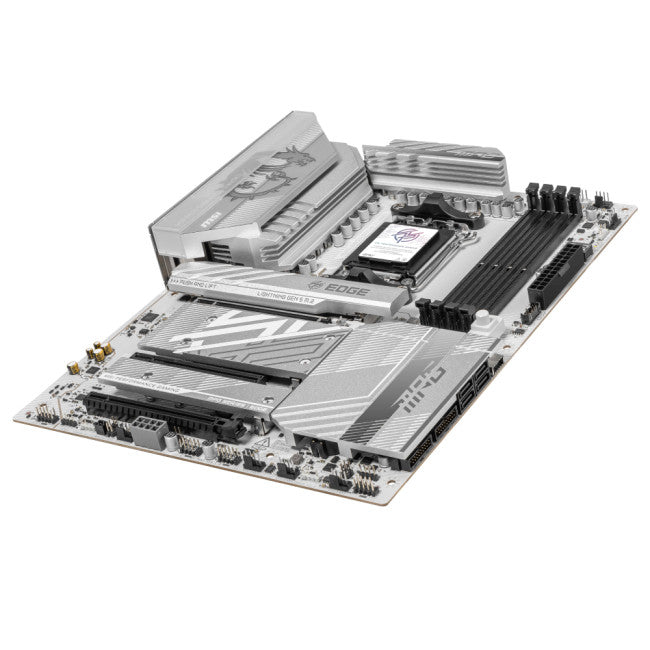

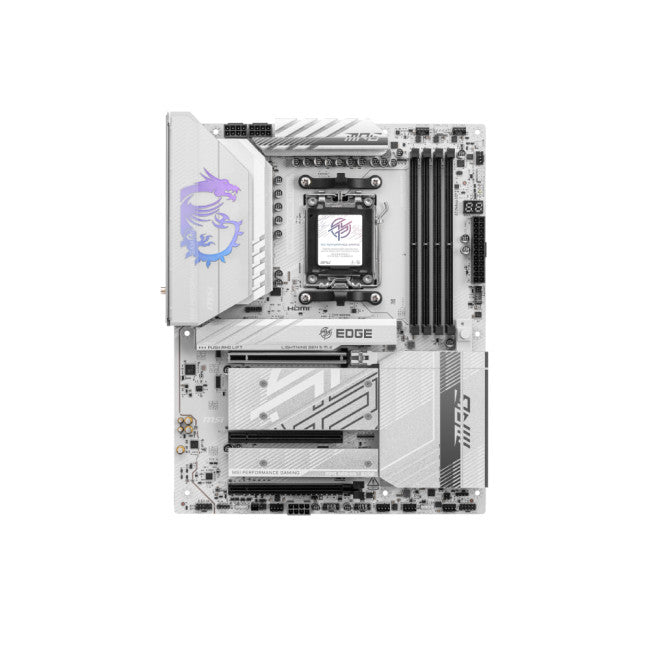

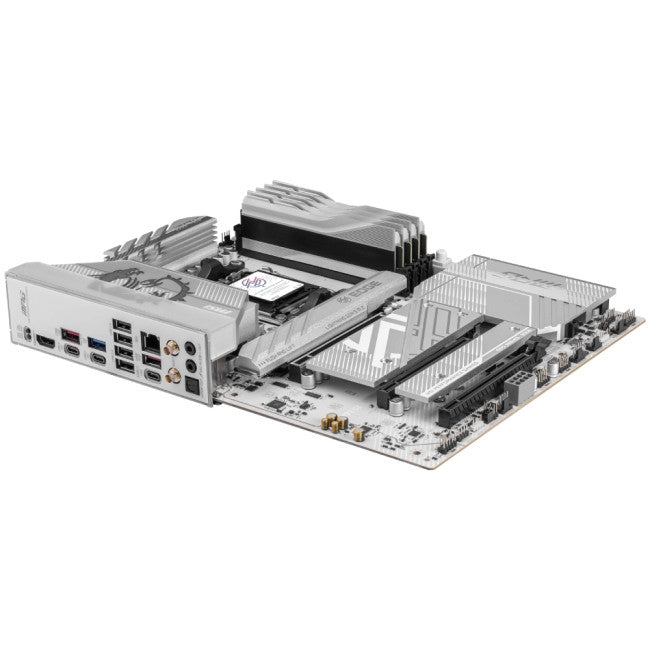

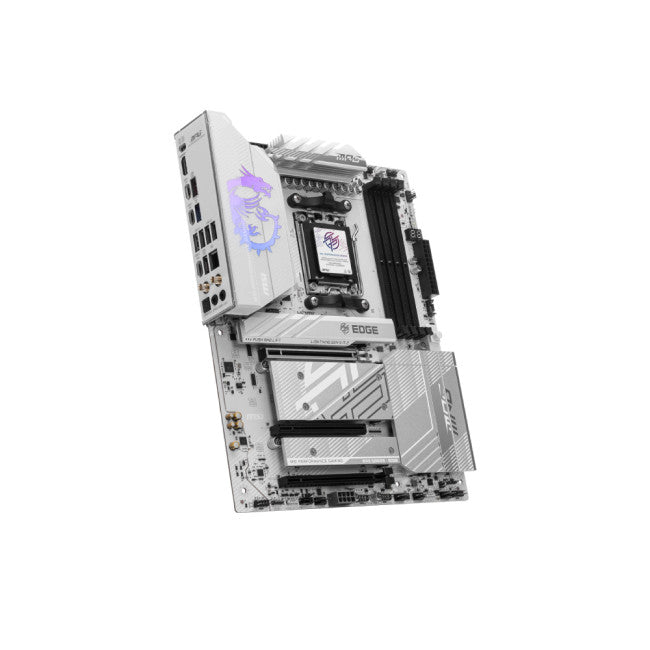

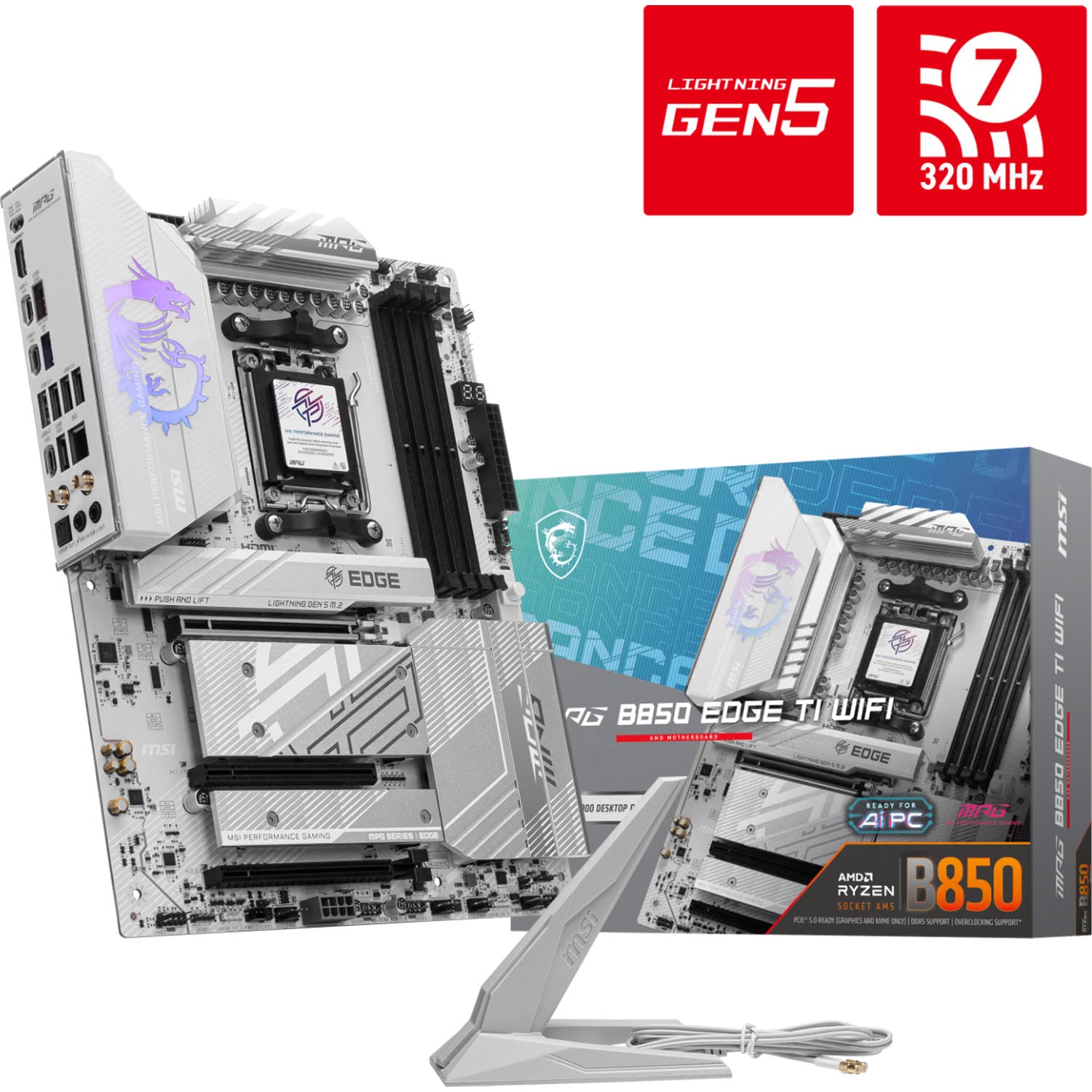

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard – DDR5, PCIe 5.0, Wi‑Fi 7

MSI MPG B850 EDGE TI WIFI AM5 DDR5 ATX Board

A high‑performance AM5 motherboard designed for Ryzen 7000 / 8000 / 9000 processors, featuring PCIe 5.0, Wi‑Fi 7, 5Gb LAN, Lightning Gen 5 M.2, and MSI’s full EZ‑DIY tool‑less system. Ideal for gaming, workstation builds, and high‑speed connectivity requirements.

Specifications

Type: ATX Motherboard
Brand: MSI
Model: MPG B850 EDGE TI WIFI
Chipset: AMD B850
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series
Warranty: 3 Years

Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speeds: Up to DDR5‑8400 (OC)
Max Memory: 256GB

Expansion Slots
1 × PCIe 5.0 x16
1 × PCIe 4.0 x16
1 × PCIe 3.0 x16

Storage
M.2 Slots:
2 × PCIe Gen 5.0 x4
1 × PCIe Gen 4.0 x4
1 × PCIe Gen 4.0 x2
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0 / 1 / 10

Networking
LAN: Realtek 8126 5Gb LAN
Wireless: Wi‑Fi 7 (2.4 / 5 / 6 GHz, 320MHz, up to 5.8Gbps)
Bluetooth: 5.4

Audio
Realtek ALC4080 Codec
7.1‑Channel USB High‑Performance Audio
Up to 32‑bit / 384kHz front‑panel playback
S/PDIF output

Video Outputs
(Requires CPU with integrated graphics)
1 × HDMI

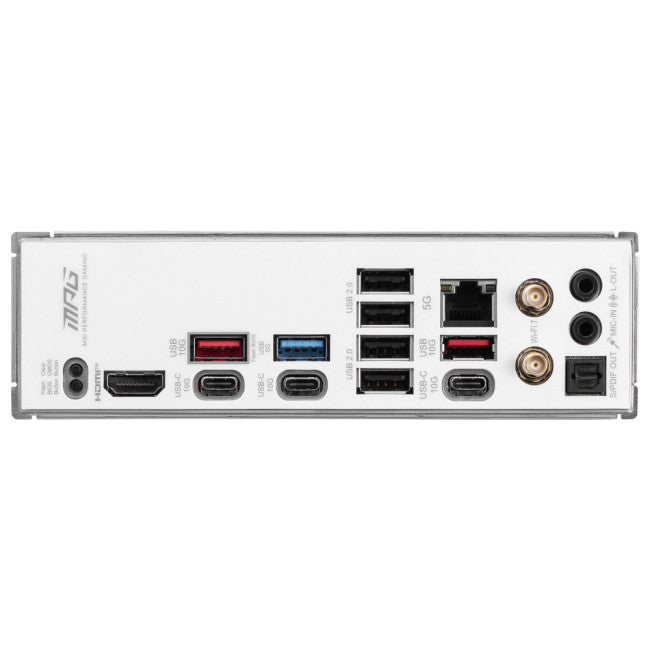

Rear I/O Ports
4 × USB 2.0
1 × USB 5Gbps Type‑A
2 × USB 10Gbps Type‑A
3 × USB 10Gbps Type‑C
1 × HDMI
1 × 5Gb LAN
2 × audio jacks1 × S/PDIF
Clear CMOS b
tton
Flash BIOS button
Wi‑Fi/Bluetooth antenna ports

Internal Headers
4 × USB 2
4 × USB 5Gbps
1 × USB 20Gbps
1 × Front panel audio
1 × TPM
3 × ARGB V2 (JARGB_V2)
1 × RGB (JRGB)
EZ Debug LED
EZ Digit Debug LED
EZ Memory Detection LED
EZ Conn‑header

Power Connectors
24‑pin ATX
2 × 8‑pin CPU power
1 × PCIe power connector

Special Features
14+2+1 Duet Ra
l Power System
Dual 8‑pin CP
power connectors
Core Boost & Me
ory Boost
8‑layer PCB (2oz copper)
Frozr Guard thermal design
M.2 Shield Frozr
EZ PCIe Release
EZ M.2 Shield Frozr II
EZ M.2 Clip II + Remover
EZ Antenna
Lightning Gen 5 M.2
USB 20Gbps
Audio Boost 5

Form Factor: ATX Motherboard
