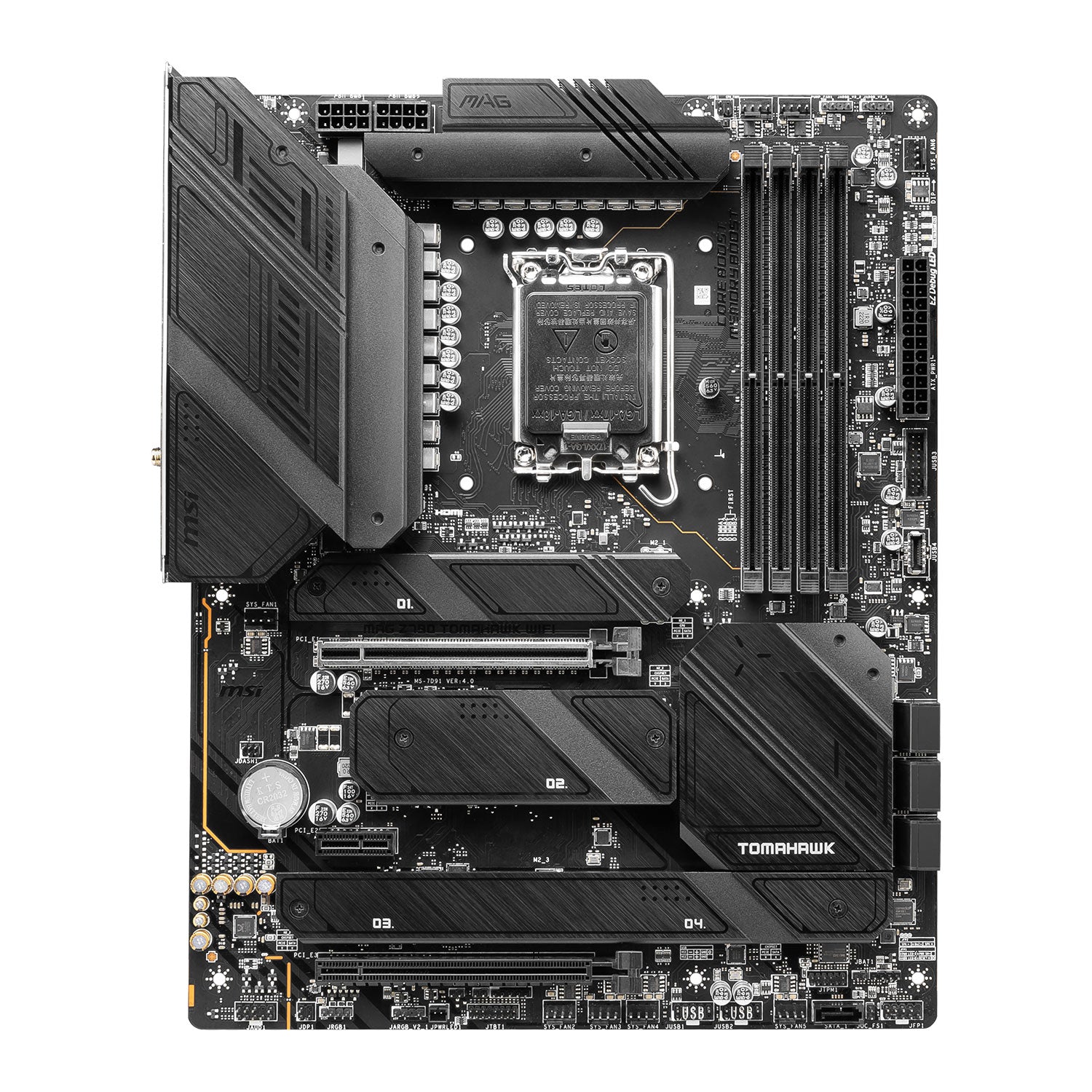

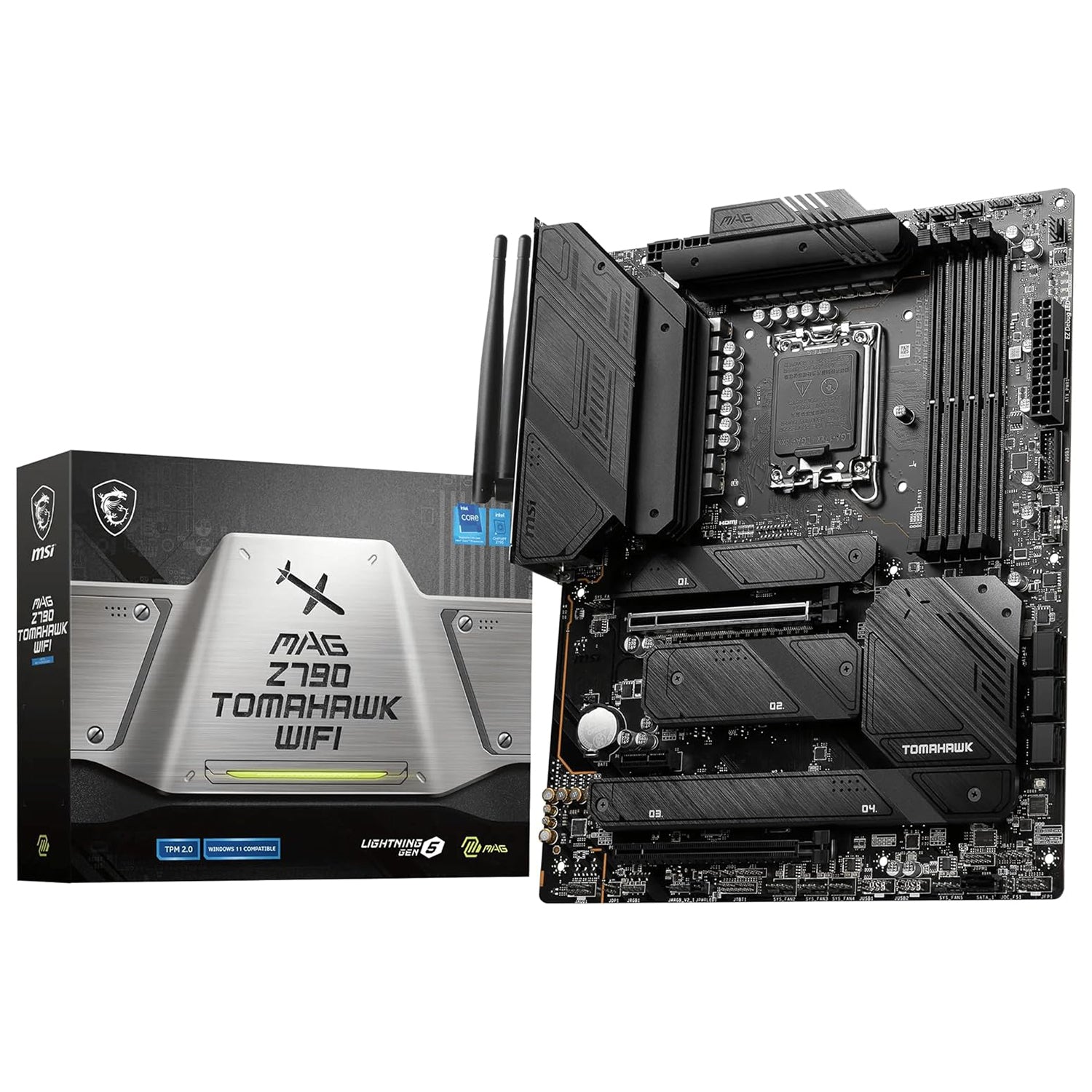

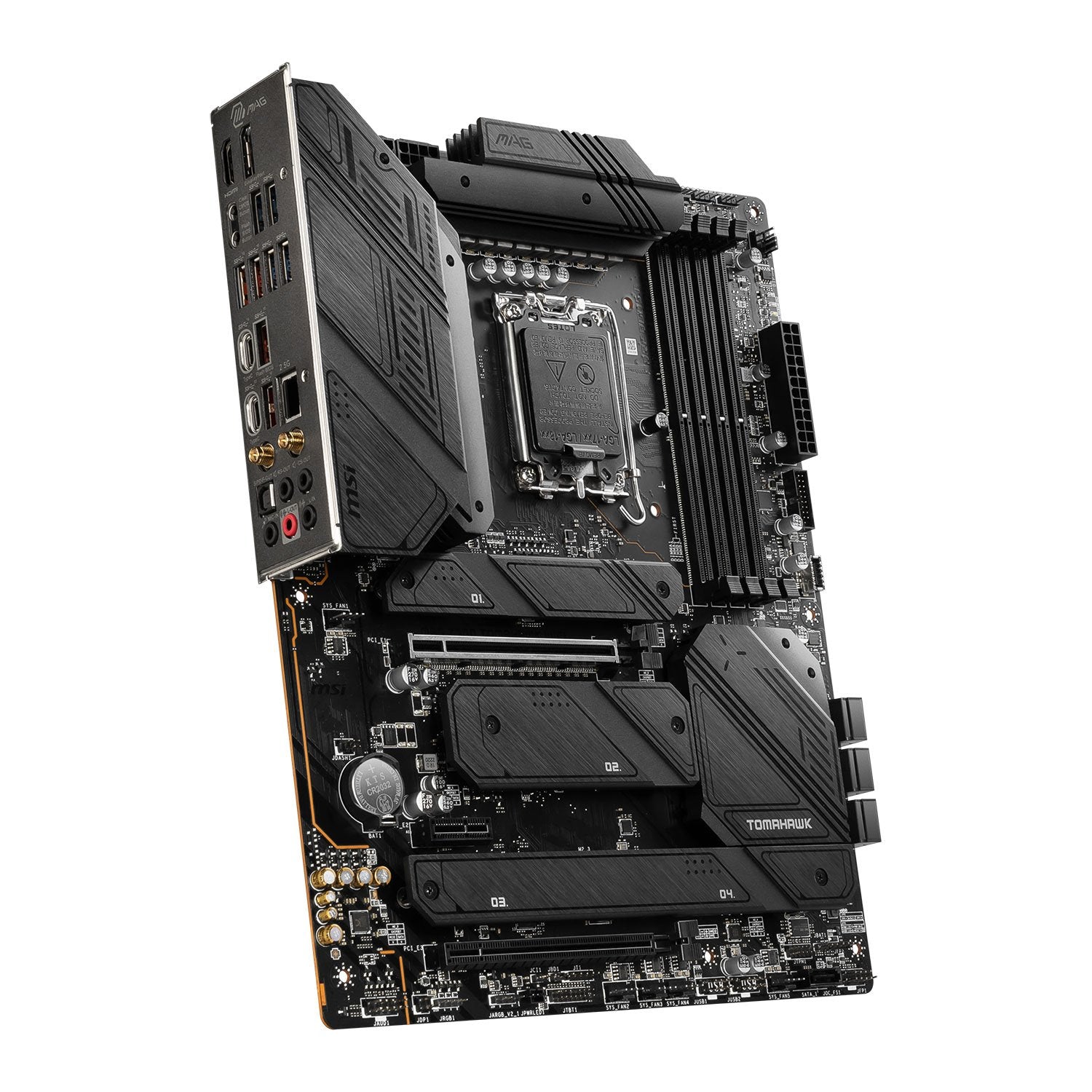

MSI MAG Z790 Tomahawk WiFi Gaming Motherboard ATX, DDR5, Intel 1700, PCIe 5.0

MSI Z790 Tomahawk ATX Motherboard WiFi

The MSI MAG Z790 Tomahawk WiFi is a high-performance ATX motherboard designed for Intel 1700 socket processors, supporting the latest DDR5 memory for superior speed and responsiveness. Equipped with PCIe 5.0, it delivers enhanced bandwidth for next-generation graphics and storage devices. Integrated WiFi ensures reliable connectivity, making it ideal for demanding gaming setups and advanced computing tasks.

Specifications

Edition: MAG Z790 TOMAHAWK WIFI
Form Factor: ATX
CPU Socket: 1700
Chipset: Intel Z790
Memory Type: DDR5
Memory Channel: Dual (2)
Audio: 8-Channel(7.1) HD Audio with Audio Boost
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: N/A
AMD CrossFire Support: N/A
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: DisplayPort 1.4, HDMI 2.1
Expansion Slots: 4 x M.2 PCIe, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16, 1 x PCIe 5.0 x16, 7 x SATA 6GB/s
SATA Support: SATA3
Network Interface Type: 802.11ax Wi-Fi LAN, Wired 2.5 Gigabit LAN

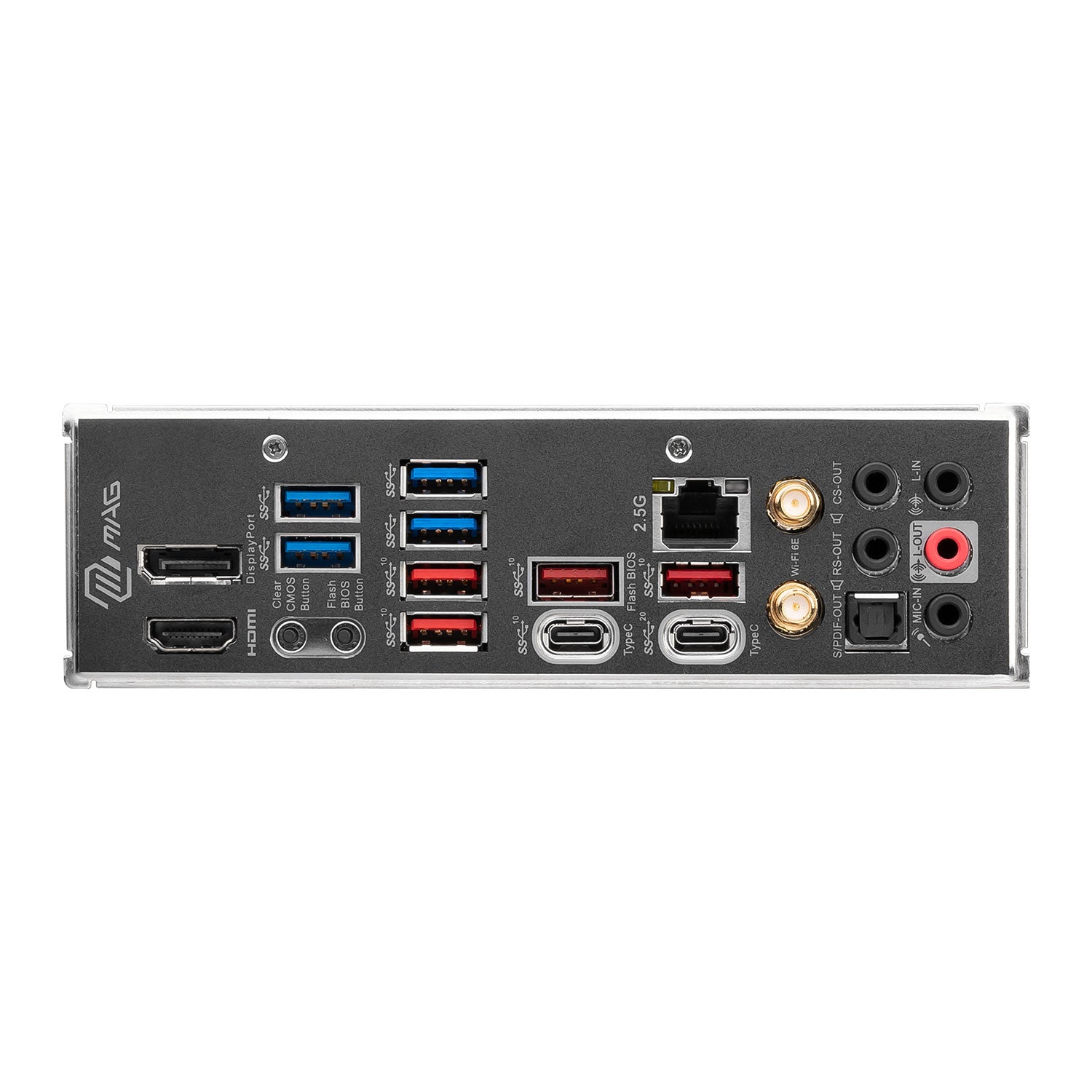

Rear I/O Connectors
1 x Central Speaker Out
1 x Clear CMOS Button
1 x DisplayPort 1.4
1 x Flash BIOS Button
1 x Line In
1 x Line Out
1 x Mic-In
1 x Rear Speaker Out
1 x RJ-45
1 x S/PDIF-Out (Optical)
4 x USB 2.0
6 x USB 3.2 Gen1 Type-A
4 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen2x2 Type-C
1 x WiFi 802.11ax 6E / Bluetooth 5.2
