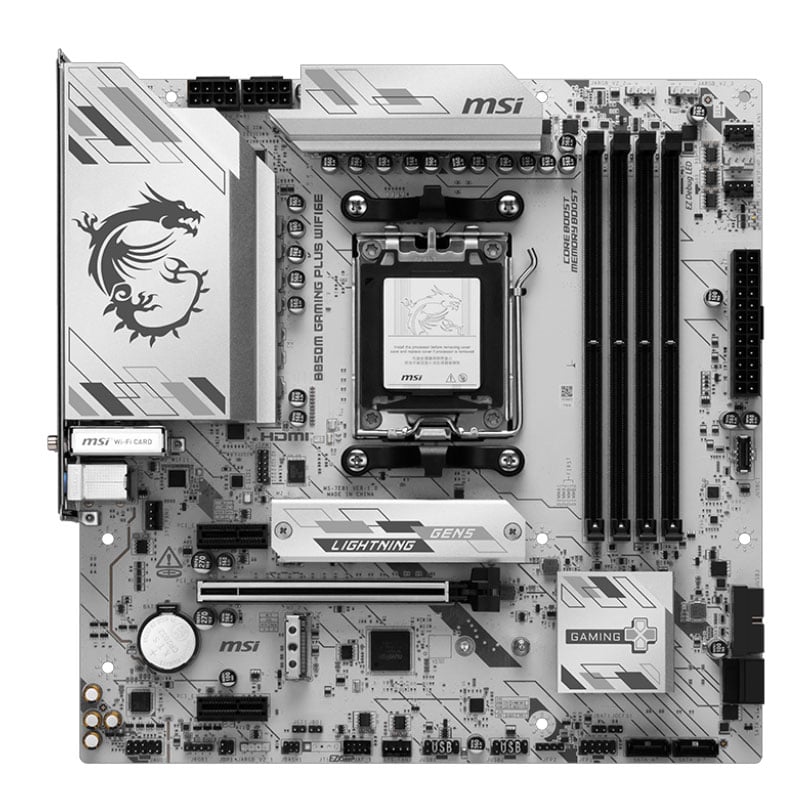

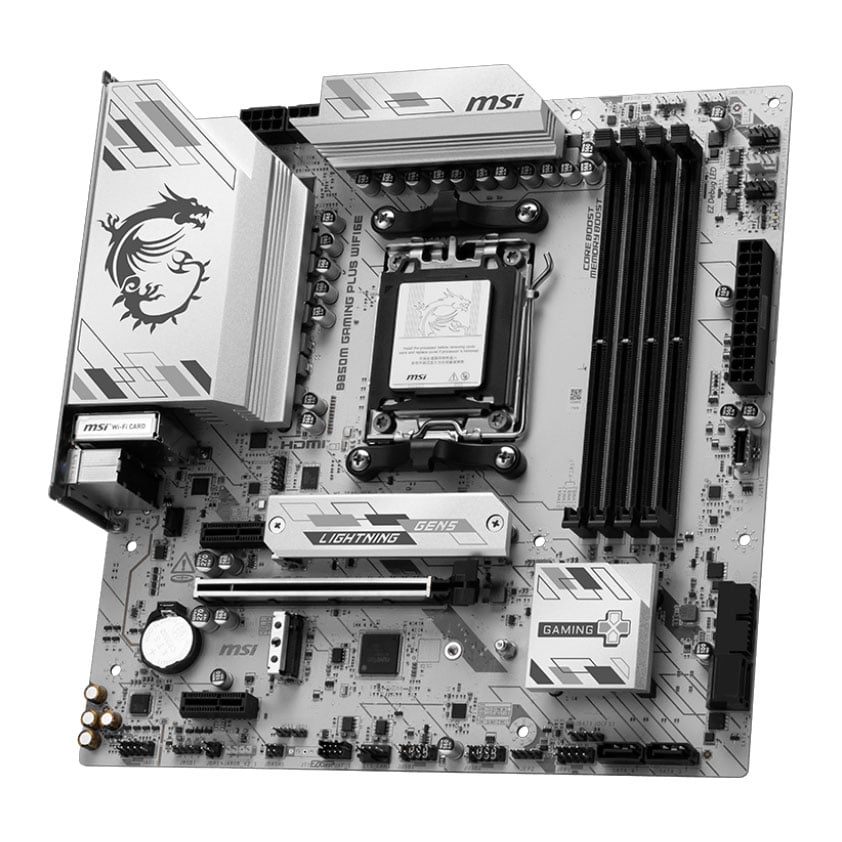

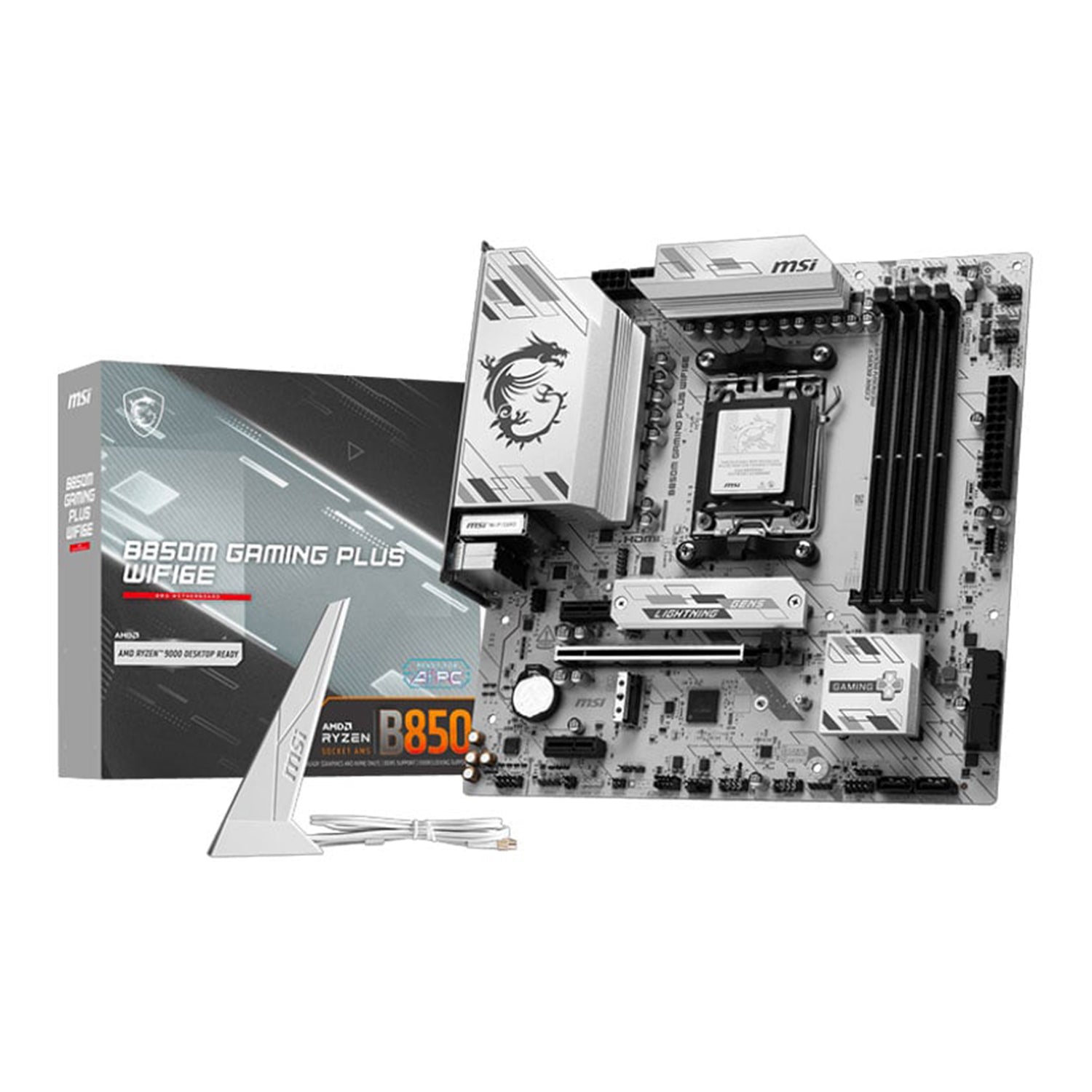

MSI B850M GAMING PLUS WiFi6E AM5 DDR5 PCIe 4.0 Micro ATX Motherboard AMD

MSI B850M Gaming M-ATX Motherboard

The MSI B850M GAMING PLUS WiFi6E delivers high-performance computing on a compact micro ATX form factor. Built for AMD Ryzen 7000 series processors with AM5 socket compatibility, this motherboard supports DDR5 memory for enhanced speed and efficiency. PCIe 4.0 connectivity ensures blazing-fast data transfer for NVMe SSDs and graphics cards. Integrated WiFi 6E provides cutting-edge wireless connectivity with superior bandwidth and reduced latency. Engineered for gaming and content creation, this board combines robust power delivery, comprehensive cooling solutions, and intuitive BIOS controls. An ideal foundation for building a high-end gaming or workstation PC that demands reliability and performance.

Specifications

Edition: B850M GAMING PLUS WIFI6E
Form Factor: MicroATX
CPU Socket: AM5
Chipset: AMD B850
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): ECC/Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz): DDR5 - 8200(OC)
Max. Memory Capacity: 256GB (4x64GB)
Audio: Realtek ALC897 7.1 HD Audio
Primary GPU Interface: PCIe 4.0 (x16)
NVIDIA SLI Support: Not Supported
AMD CrossFire Support: Not Supported
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: DisplayPort 1.4, HDMI 2.1

Expansion Slots
1 x M.2, 22-60/80, PCIe Gen4x4
1 x M.2, 22-60/80, PCIe Gen5x4
2 x PCIe 3.0 x1
1 x PCIe 4.0 x16
4 x SATA 6GB/s

SATA Support: SATA3
RAID Support via: SATA3 / M.2
Storage Mode Support: RAID 0, RAID 1, RAID 10 (SATA only)

Internal I/O
1 x 24-pin (Power)
1 x 4-pin AIO Pump Connector
3 x 4-pin System Fan Connector
2 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Chassis Intrusion connector
1 x Front Panel Audio Header
2 x Front Panel Connector
1 x RGB LED connector
1 x TPM 2.0 Header

Network Interface Type: Wired 2.5 Gigabit LAN

Network Chip/Modules
1 x 802.11ax WiFi 6E + BT5.3
1 x Realtek RTL8125 (2.5G LAN)

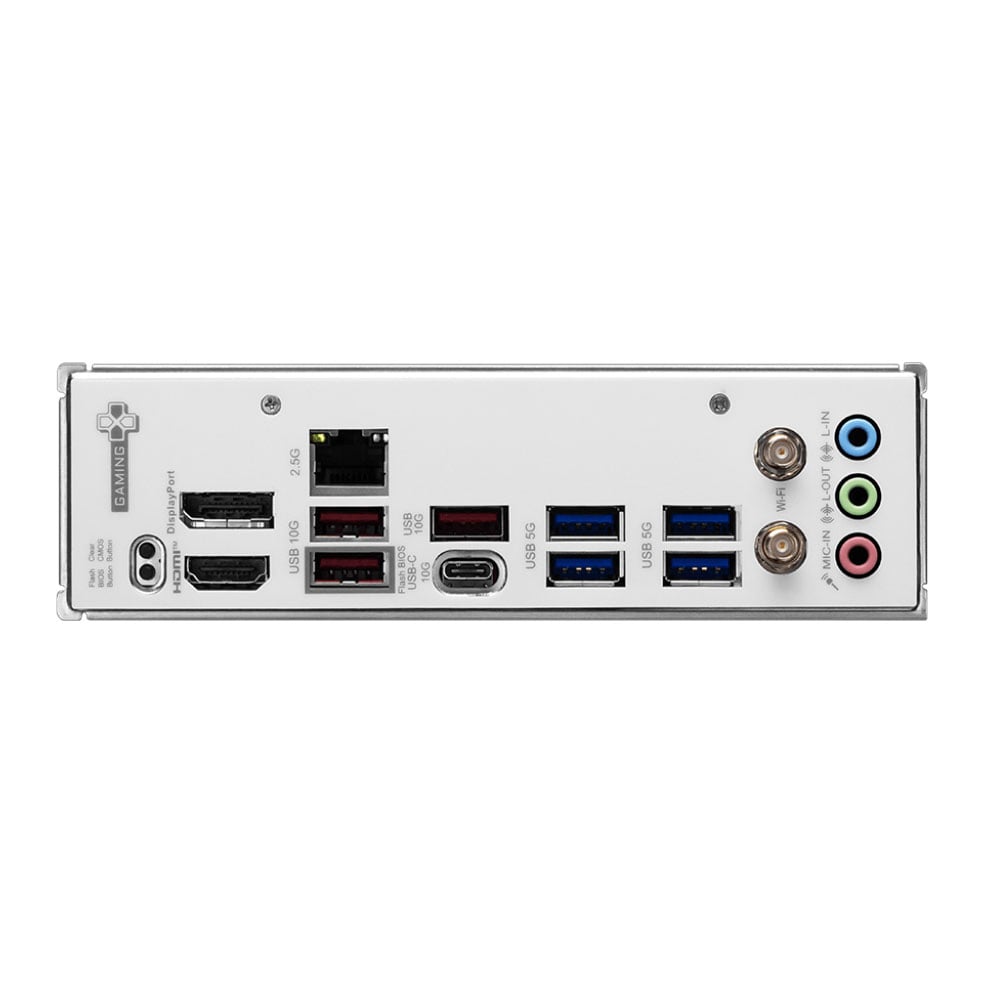

Rear I/O Connectors
1 x BIOS Flashback Button
1 x Clear CMOS Button
1 x DisplayPort 1.4
1 x HDMI 2.1
1 x Headphone-Out
1 x Line In
1 x Mic-In
1 x RJ-45
4 x USB 2.0
3 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C

Cooling: Passive Heatsinks
Board Dimensions: 243.84 x 243.84 mm
