MSI A520M PRO Gaming Motherboard M-ATX, AMD AM4, DDR4

MSI A520M Pro Gaming Motherboard mATX

The MSI A520M PRO micro ATX delivers reliable performance for Ryzen 3000 series builds in a compact mATX form factor. This motherboard features AM4 socket compatibility, DDR4 memory support, and modern connectivity including USB 3.2 Gen 1 Type A, DisplayPort, HDMI, and integrated LAN. The M.2 slot enables fast NVMe storage expansion. Built with MSI's quality engineering, it's an excellent foundation for mid-range gaming or productivity systems seeking stability and value without unnecessary complexity.

Specifications

Chipset: AMD A520

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 4600+ (O.C.)

Max. Memory Support: 64GB

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1

On-Board LAN: 1 x Realtek RTL8111H LAN controller

On-Board Audio: Realtek ALC892 Codec

On-Board Video: Processor with integrated graphics is required

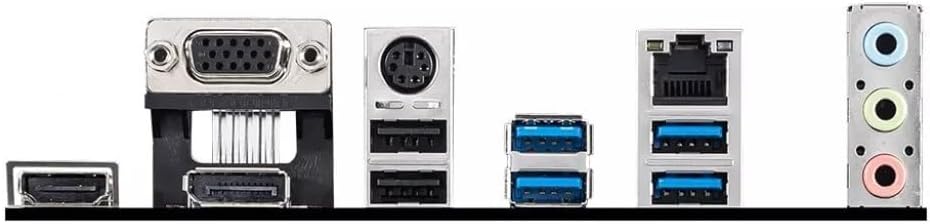

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

TPM Header(s): 1

Internal Other Port(s):
1 x 4-pin RGB LED Connector
1 x 3-pin RAINBOW LED Connector

Form Factor: Micro ATX

Product Width: 210mm

Product Length: 244mm
