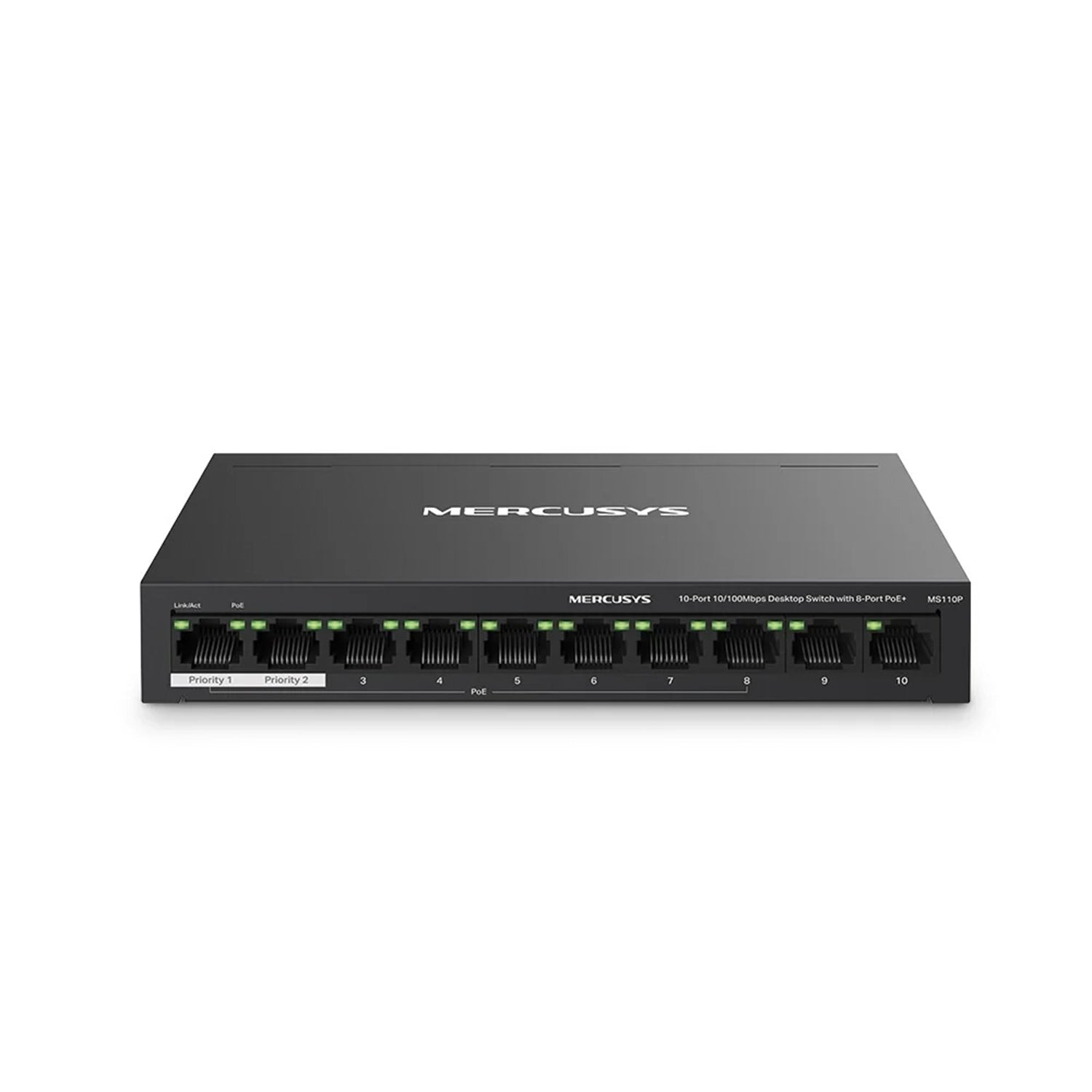

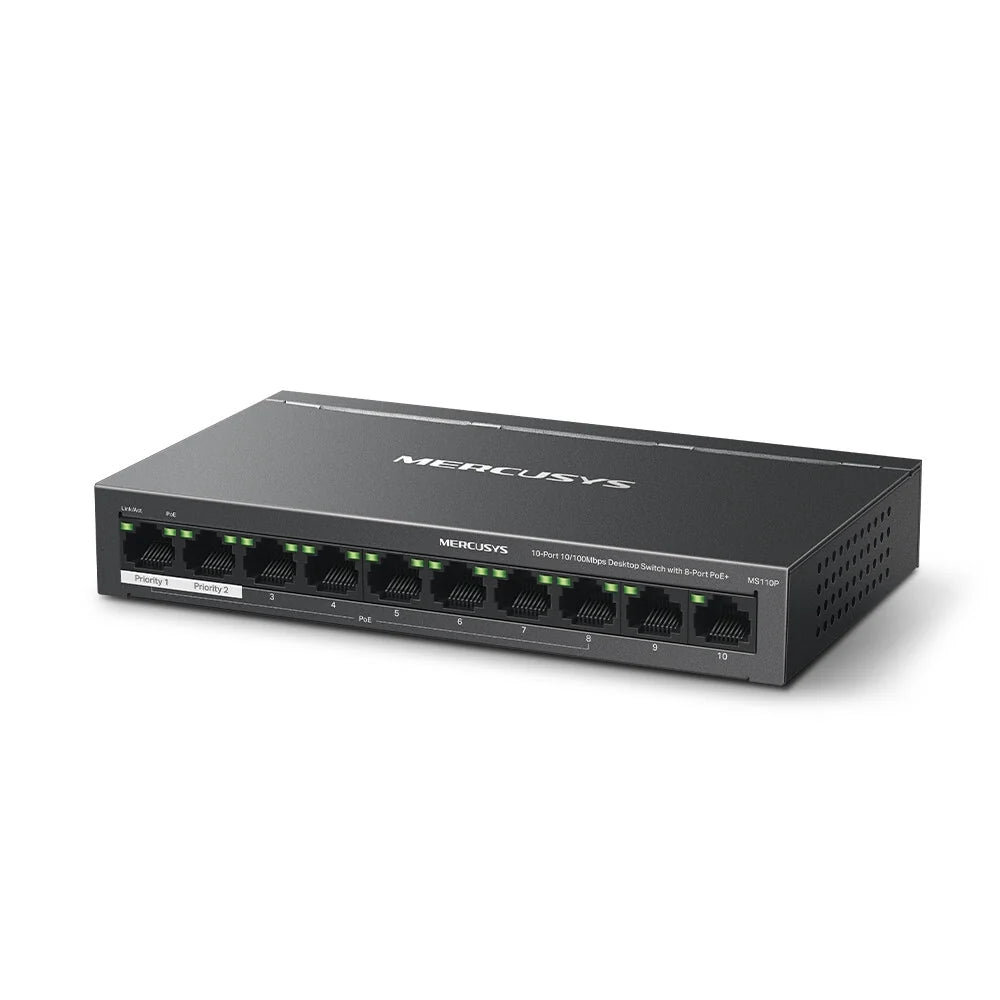

Mercusys MS110P 10‑Port 10/100Mbps Switch with 8‑Port PoE+ and 250m Extend Mode

Mercusys MS110P – 10‑Port 10/100Mbps Desktop

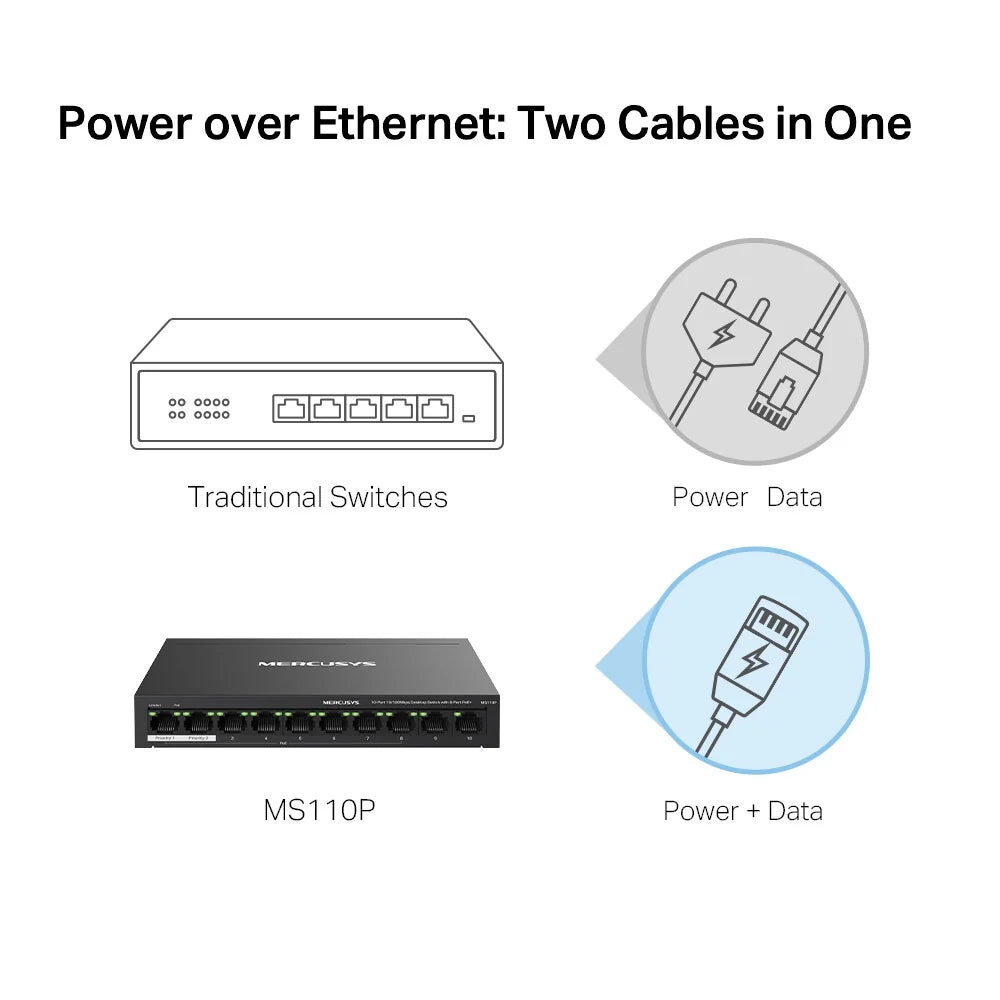

The Mercusys MS110P is a compact 10‑port Fast Ethernet switch designed for CCTV, small business networks, and PoE device deployment. With 8 PoE+ ports, a 65W power budget, long‑range 250m Extend Mode, and silent metal chassis, it’s ideal for powering IP cameras, access points, and VoIP phones without extra adapters.

Specifications

Ports: 10× 10/100Mbps RJ45 (8× PoE+, 2× Uplink)
PoE Standard: IEEE 802.3af/at

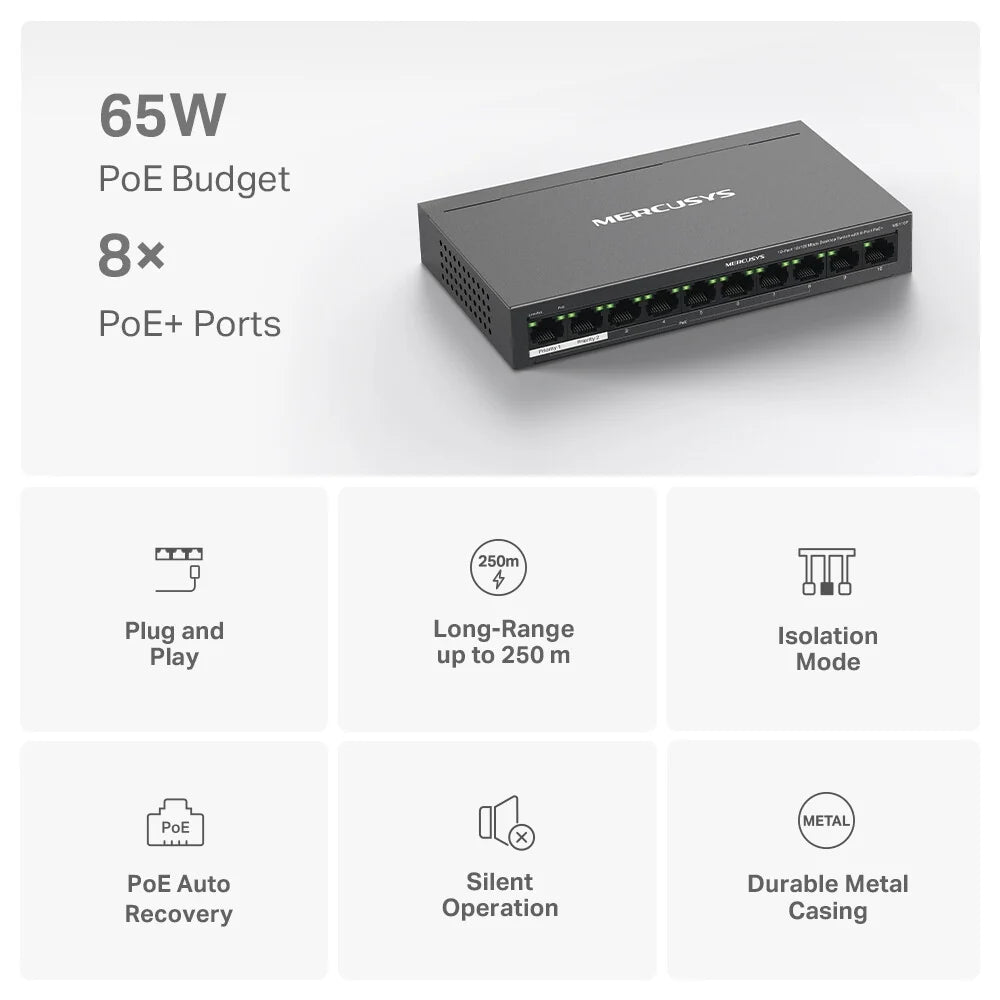

PoE Budget: 65W total
Max PoE per Port: 30W
Extend Mode: Up to 250m PoE transmission
Traffic Isolation: One‑click isolation for ports 1–8
PoE Auto Recovery: Automatic reboot of unresponsive PoE devices
Power Management: Intelligent surge & overload protection
Dimensions: 171 × 98 × 27 mm
Case: Metal, fanless
Installation: Desktop
Warranty: Manufacturer standard

Key Features

8 PoE+ ports for powering cameras, APs, phones
65W PoE budget for multi‑device deployment
Long‑range 250m Extend Mode for wide‑area CCTV
Traffic isolation to prevent snooping & broadcast storms
PoE Auto Recovery for stable surveillance networks
Plug‑and‑play setup with auto‑negotiation
Durable metal chassis with silent cooling

Perfect For
CCTV/IP camera networks
Small business offices
Retail shops
Home labs
Dormitories & shared spaces

Package Contents

Mercusys MS110P Switch
Power cable
Documentation
