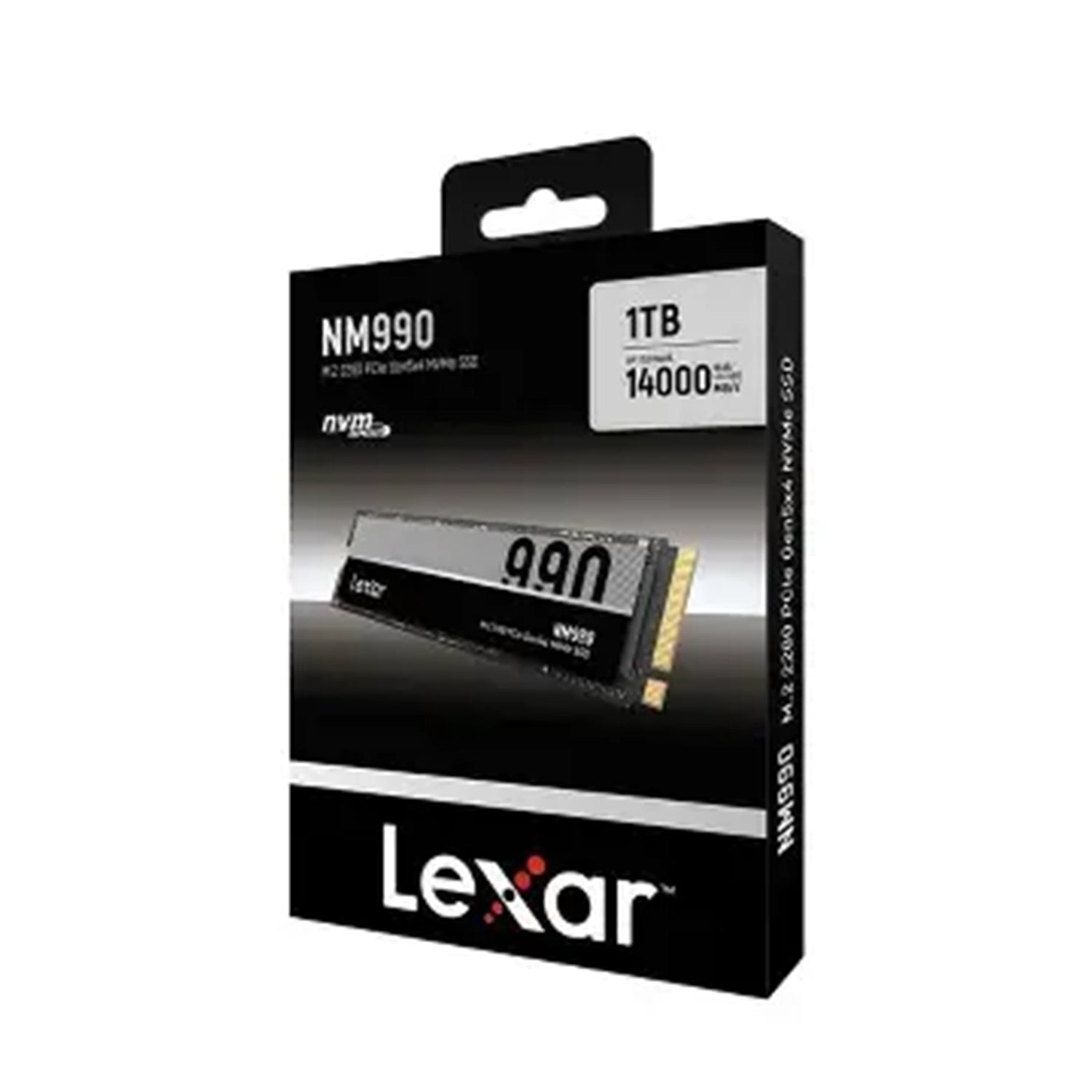

Lexar Nm990 1TB M.2 Pci Express 5.0 Nvme, LNM990X001T-RNNNG

Lexar NM990 1TB M.2 PCIe 5.0 NVMe Solid State Drive

The Lexar NM990 1TB PCIe 5.0 NVMe SSD delivers next‑generation performance with blazing‑fast read speeds up to 10,000 MB/s and write speeds up to 9,500 MB/s. Designed for high‑end gaming, content creation, and professional workloads, it offers exceptional responsiveness, ultra‑low latency, and superior efficiency. Built with advanced 3D TLC NAND and an energy‑optimised controller, the NM990 provides reliable, high‑speed storage in a compact M.2 2280 form factor suitable for modern desktops and laptops that support PCIe Gen5.

Specifications

Capacity: 1TB
Edition: Lexar NM990
Form Factor: M.2 (2280)
Height: 2.45 mm
Interface: PCIe 5.0 x4
Host Controller Interface: NVMe 2.0
Flash Memory Type: 3D TLC NAND
Max. Read: 10,000 MB/s
Max. Write: 9,500 MB/s
DRAM Cache Memory: Yes (Onboard DRAM)
Max. Random Read 4K: 1,600,000 IOPS
Max. Random Write 4K: 1,500,000 IOPS
Special Features
 PCIe Gen5 ultra‑high‑speed performance
 Advanced 3D TLC NAND
 Low‑power, high‑efficiency controller
 S.M.A.R.T & TRIM support
 Dynamic thermal management
 Lexar SSD Dashboard support
 Backward compatible with PCIe Gen4
Endurance & Reliability: Max. Endurance Rating: 700 TBW, MTBF: 1.5 Million Hours, Max. Operating Shock: 1,500 G (0.5 ms)
Connectivity: 1 × M.2 (PCIe 5.0 x4)
OS Support: Windows, Linux
Dimensions: 80 × 22 × 2.45 mm (L × W × H)
Weight: 7 g
