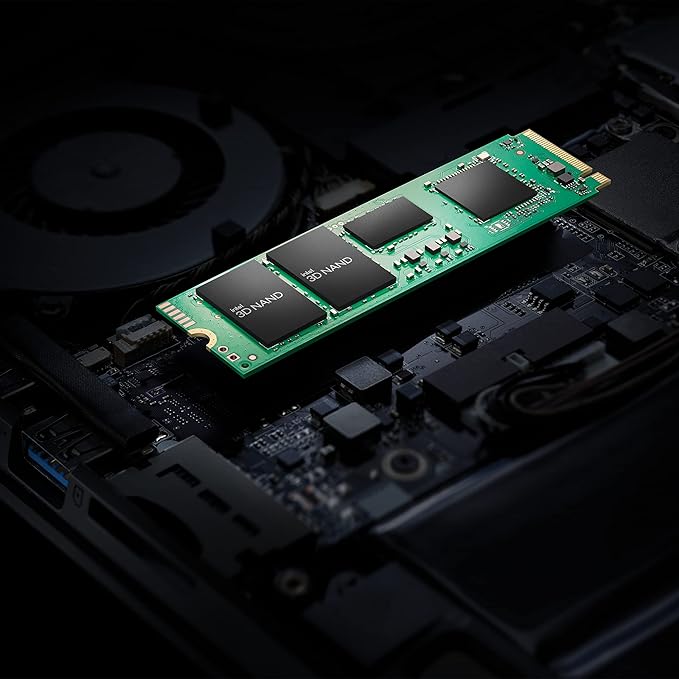

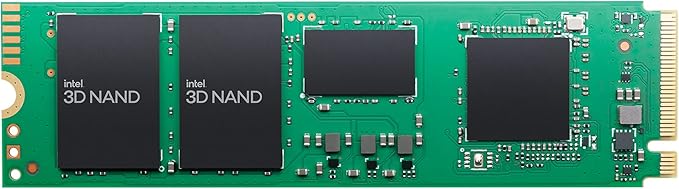

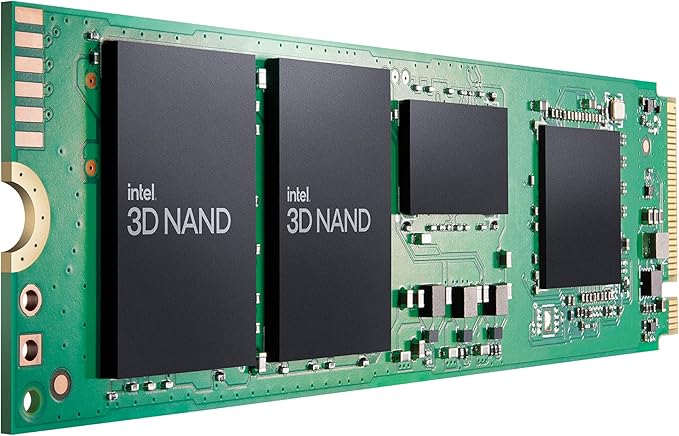

Intel 670p Series M.2 2280 512GB PCIe NVMe 3.0 x4 QLC Internal Solid State Drive (SSD) SSDPEKNU512GZX1

Intel 670p 512GB NVMe M.2 SSD PCIe 3.0

The Intel 670p Series brings high‑efficiency NVMe performance to mainstream systems, combining Intel’s advanced 144‑layer QLC NAND with a DRAM‑equipped controller for responsive everyday computing. With sequential read speeds up to 3500MB/s and write speeds up to 2700MB/s, this 512GB M.2 drive is ideal for general workloads, fast boot times, application loading, and smooth multitasking. The 2280 form factor fits standard M.2 slots, while NVMe protocol ensures low latency and efficient data handling. Designed for reliability and optimized for real‑world use, the 670p is a strong choice for users seeking fast, affordable NVMe storage.

Specifications

Interface: PCIe 3.0 x4 with NVMe
NAND Type: Intel 144‑Layer QLC
Controller: Silicon Motion SM2265
DRAM: Yes

Sequential Read: Up to 3500MB/s
Sequential Write: Up to 2700MB/s

Voltage: DC +3.3V
Operating Temperature: 0°C ~ 70°C
Storage Temperature: -40°C ~ 85°C
Weight: 7g (approx.)
Dimensions: 80.0(L) x 22.0(W) x 2.3(H)mm
Shock Resistance: 1,500G / 0.5ms
Vibration: 80Hz – 2,000Hz / 20G
MTBF: 1,600,000 Hours

Operating System Compatibility:
 Compatible with Intel and AMD platforms and supports the following operating systems.

• Windows 11 / 10 / 8.1 / 8 / 7

• macOS 10.4 or later

• Linux 2.6.33 or later
