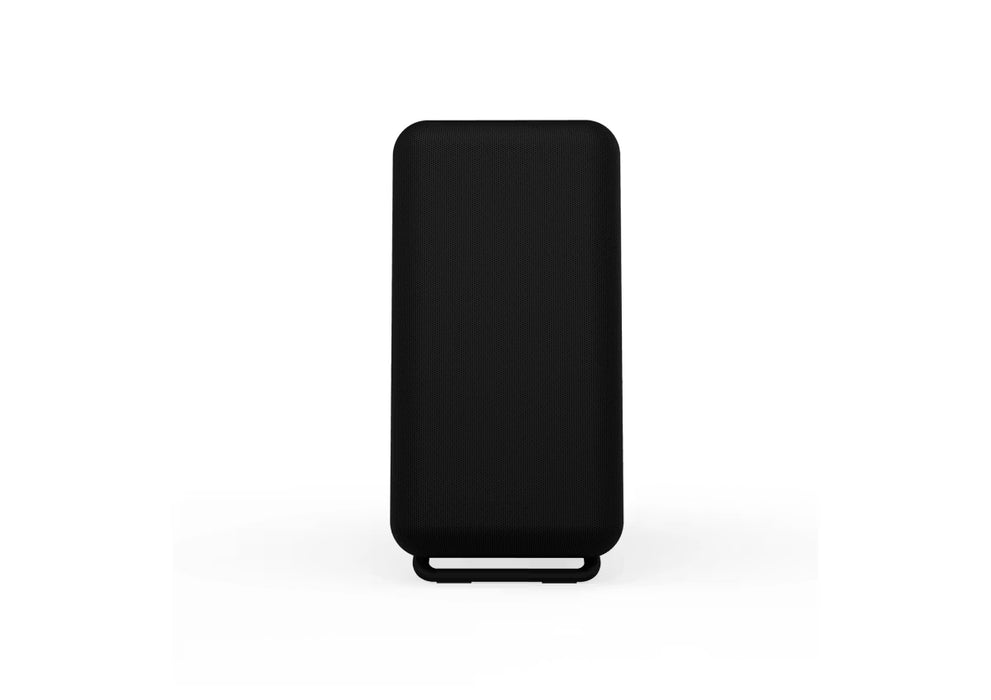

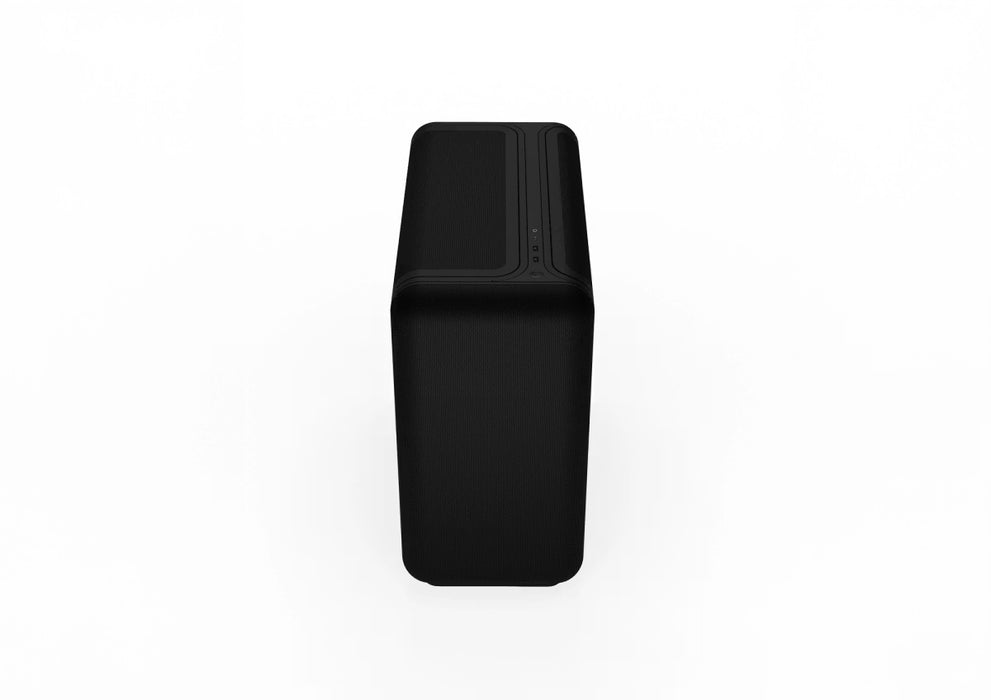

HYTE X50 Air Pitch Black Mid‑Tower Case – E‑ATX / High Airflow
HYTE X50 Air Mid‑Tower Case – Pitch Black
The HYTE X50 Air – Pitch Black is a modern high‑performance ATX mid‑tower case engineered for exceptional airflow, premium aesthetics, and a superior building experience. Featuring a full‑coverage micro‑mesh front panel, patent‑pending louvered blade ventilation, and support for up to 10 fans, the X50 Air delivers outstanding cooling for high‑end gaming systems. With support for E‑ATX motherboards, 430mm GPUs, and 360mm radiators on both the front and side, this chassis is built for enthusiast‑grade hardware. The contoured top‑mounted PSU shroud, tool‑less panels, and refined cable‑routing channels ensure a clean, streamlined build. The Pitch Black finish blends premium steel, ABS, and tempered glass into a cohesive, minimalist design suitable for modern setups.
Specifications
Model / MPN: CS‑HYTE‑X50A‑BB
EAN: 1220000352513
Type: ATX Mid‑Tower PC Case
Form Factor: ATX Mid‑Tower
Volume: 63L
Case Dimensions: 485 mm (H) × 510 mm (L) × 255 mm (W)
Chassis Material(s): 1 mm Thick Steel, ABS
Side Panel: Tempered glass (curved laminated acoustic glass on X50; micro‑mesh on X50 Air)
Motherboard Support: E‑ATX (up to 10.6"), ATX, Micro‑ATX, Mini‑ITX
Power Supply Support: Up to 223 mm (top‑mounted PSU shroud)
GPU Support: Up to 430 mm length, Up to 160 mm height
Cooling Support: Side: 3 × 120 mm
Front: 3 × 120 mm / 3 × 140 mm
Bottom: 3 × 120 mm (up to 32 mm thick)
Rear: 1 × 120 mm
Radiator Support: Side: Up to 360 mm (70 mm thick)
Front: 240 / 280 / 360 mm (up to 105 mm thick)
Rear: 120 mm
Max CPU Cooler Height: 170 mm
Storage Support: • 2 × 2.5" SSD • 1 × 3.5" HDD
Expansion Slots: 7 Horizontal (full‑size)
Front I/O: 1 × USB‑C (USB 3.2 Gen 2×2), 2 × USB‑A (USB 3.2 Gen 1×1), 3.5 mm audio combo jack, Tactile mechanical power switch with LED
Dust Filters: Bottom (magnetic), Feet, Internal mesh airflow design
Special Features:
Full‑coverage micro‑mesh front panel for maximum airflow
Patent‑pending louvred blade ventilation for reduced exhaust impedance
Cold‑floor GPU cooling with direct airflow from bottom fans
Contoured top‑mounted PSU shroud for improved thermodynamics
Tool‑less front and side panels
Modular multi‑stage radiator bracket
Clean cable‑routing channels with Velcro straps
Hidden front I/O cable routing
Premium curved design with zero visible tooling marks
Colour / Finish: Pitch Black
Warranty: 4 Years
