Heracles 750W 80+ Bronze ATX Gaming Power Supply – XTY850D‑750W

Heracles 750W 80+ Bronze ATX Gaming PSU – XTY850D‑750W

The Heracles 750W 80+ Bronze is a dependable gaming‑grade power supply designed for budget and mid‑range PC builds. Delivering 80+ Bronze efficiency, a silent 120mm cooling fan, and a stable single +12V rail, it provides consistent and reliable power for modern GPUs and gaming systems. With multiple PCIe connectors, strong voltage regulation, and essential protection features, the Heracles 750W is ideal for gamers looking for a cost‑effective and trustworthy PSU solution.

Specifications

Form Factor: ATX
Series: Heracles Gaming Series
Wattage: 750 W
Modular: Non‑Modular
Certification: 80+ Bronze
Compatibility: Standard ATX Systems (Active PFC)

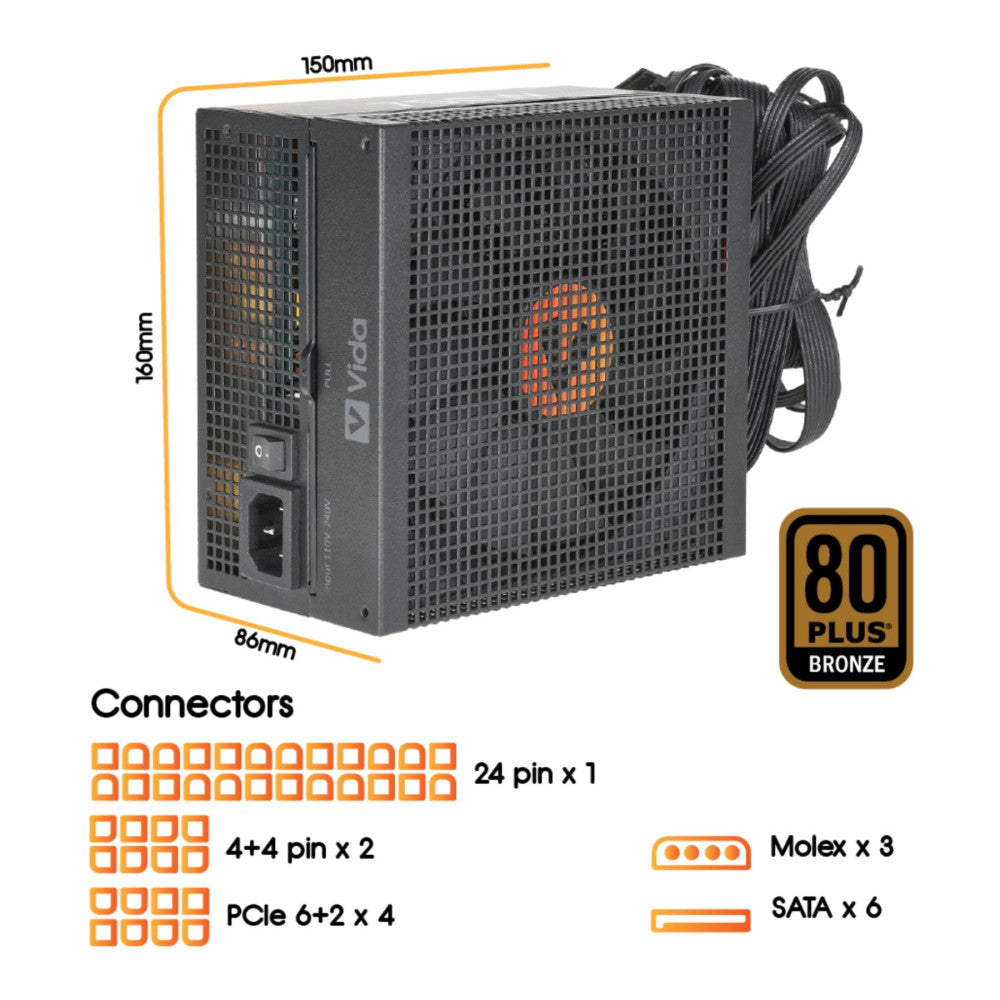

Connectors

1 × ATX Motherboard (20+4‑pin)
1 × 4+4‑pin ATX/EPS (CPU)
2 × PCI‑e 6+2‑pin (GPU)
6 × SATA 3 × Peripheral (Molex)

Rail Design
Single +12V Rail
+12V Output: ~62A (typical for 750W Bronze units)
AC Input: 200–240 VAC
Fan Type: 120mm Cooling Fan
Fan Bearing: Sleeve / Hydraulic Bearing (varies by batch)
Zero RPM Mode: No
Noise: Low‑noise operation under typical loads

Certification
80+ Bronze
Improved efficiency for reduced heat and stable power delivery

Efficiency (Typical)
20% load: ~82%
50% load: ~85%
100% load: ~82%

Protection
Over Temperature Protection (OTP)
Over Current Protection (OCP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Voltage Protection (OVP)
 Under Voltage Protection (UVP)

Package Contents
Heracles 750W Bronze Power Supply
Pre‑attached DC Cable Set
UK Power Cord
Mounting Screws
User Documentation
Dimensions (L×W×H): 140 × 150 × 86 mm
Gross Weight: ~1.7 kg
