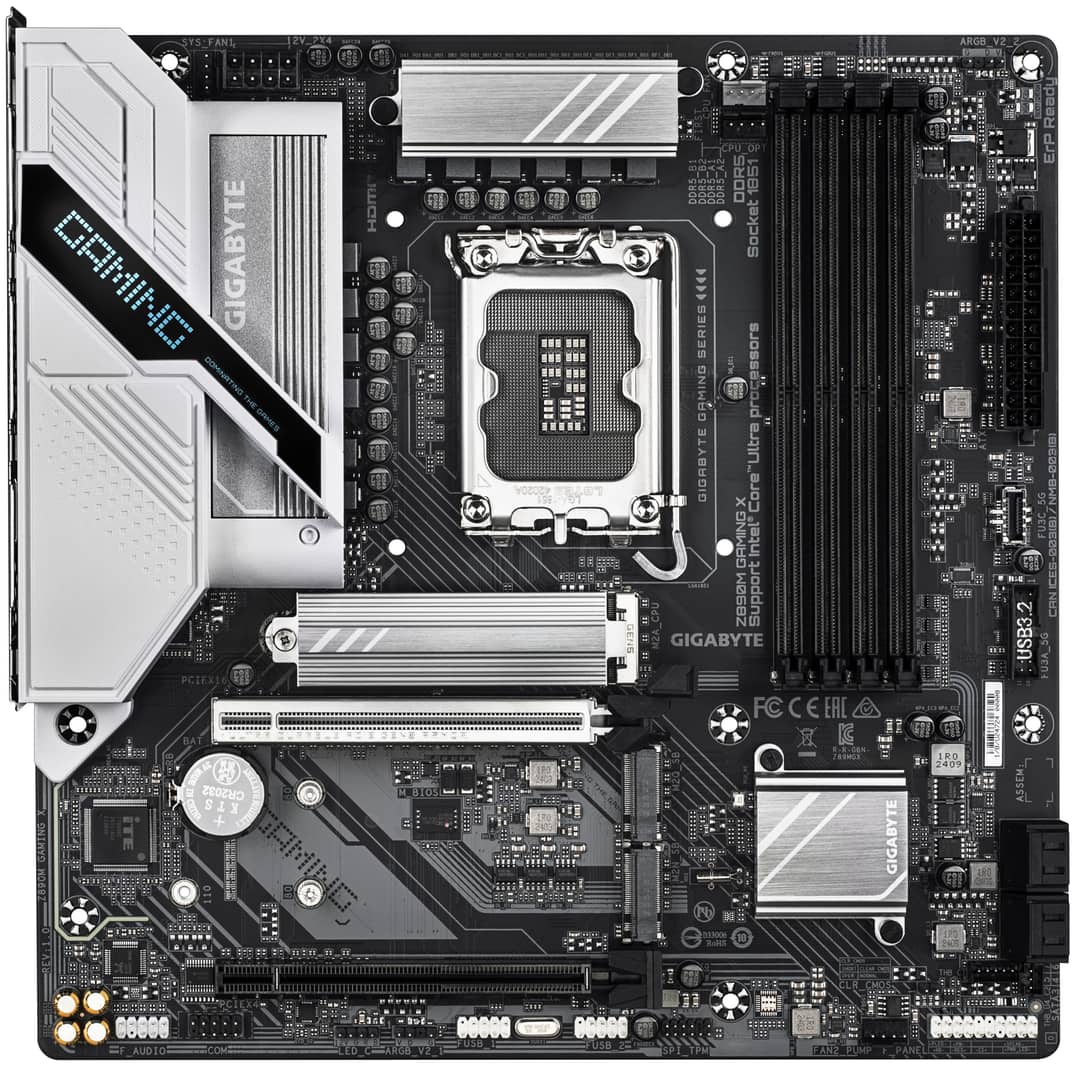

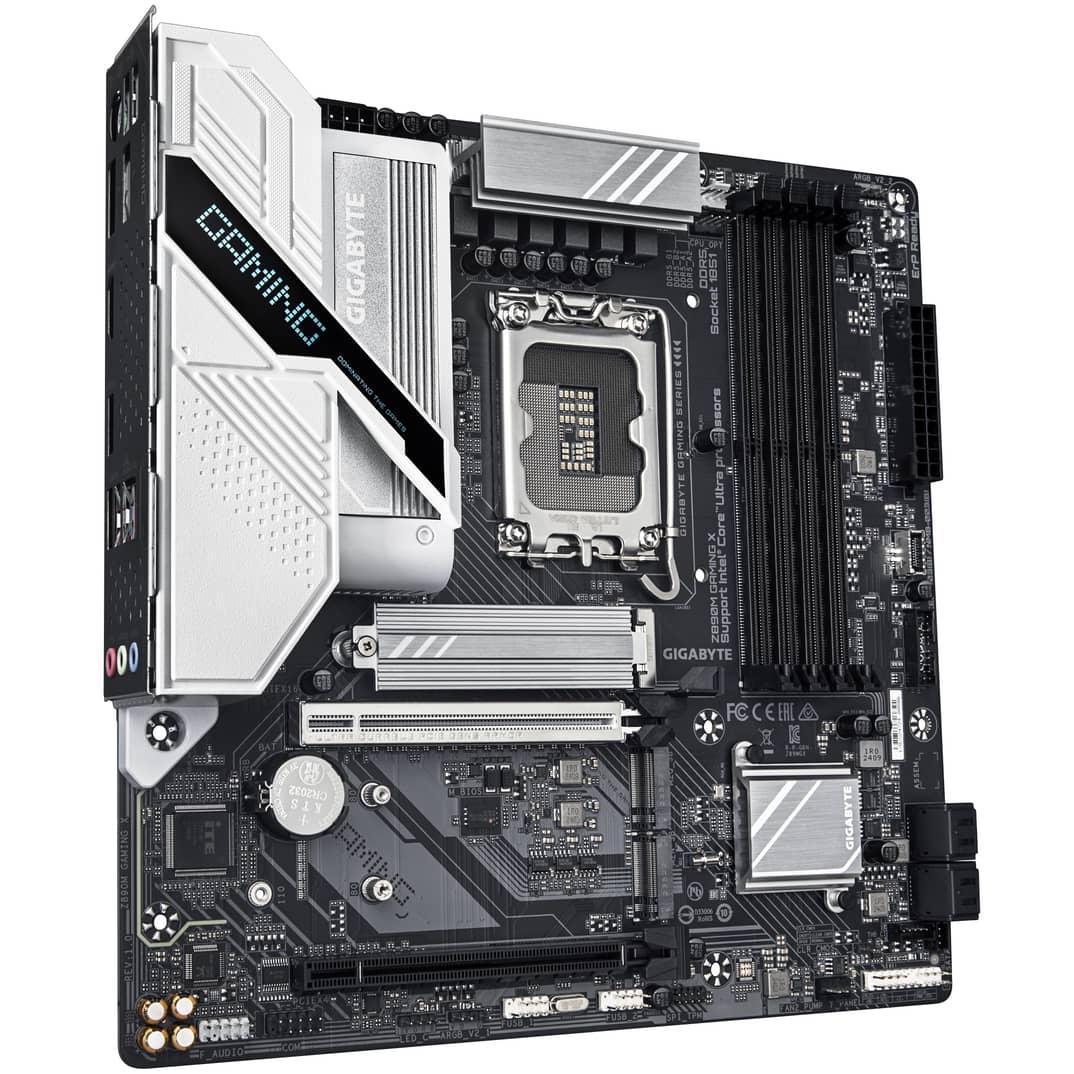

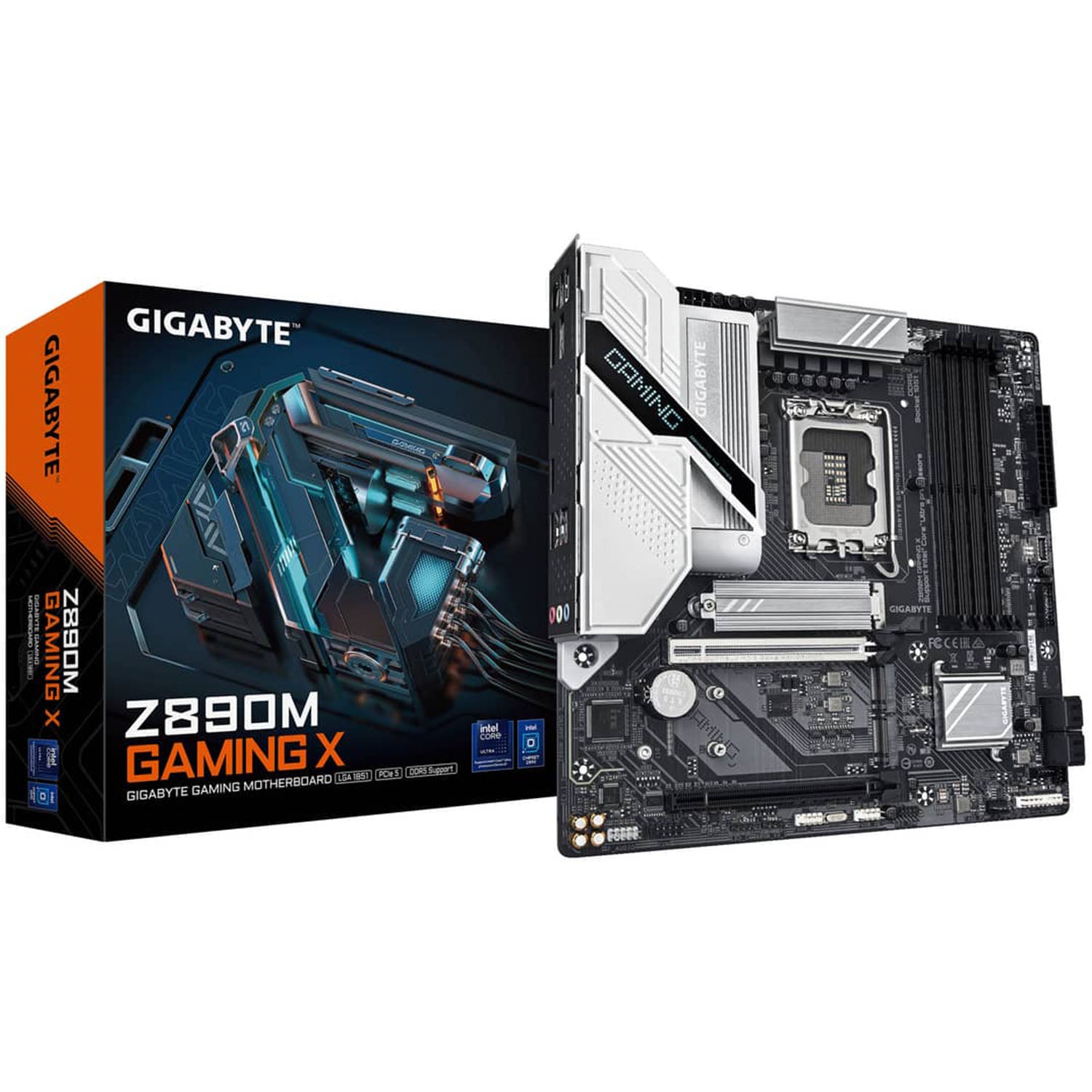

GIGABYTE Z890M GAMING X – LGA1851 Micro ATX Motherboard, DDR5, PCIe 5.0, 2.5Gb LAN
GIGABYTE 1851 Z890M GAMING X (Socket 1851) DDR5
Build a next‑generation Intel system with the GIGABYTE Z890M GAMING X, a compact Micro ATX motherboard designed for Intel Core Ultra Series 2 processors. Powered by the Intel Z890 Express chipset, it delivers cutting‑edge performance with DDR5 up to 8800MT/s (O.C), PCIe 5.0 GPU support, PCIe Gen5 + Gen4 M.2 slots, 2.5GbE LAN, and advanced VRM cooling. GIGABYTE technologies such as D5 Bionic Corsa memory enhancements, AORUS AI Snatch auto‑overclocking, EZ‑Latch quick‑release PCIe/M.2, Q‑Flash Plus, and VRM Thermal Armor ensure easy installation, excellent stability, and long‑term durability — all wrapped in a compact Micro ATX layout ideal for modern LGA1851 builds.
Specifications
Type: Micro ATX Motherboard
Brand: GIGABYTE
Model: Z890M GAMING X
Chipset: Intel Z890 Express
CPU Socket: LGA1851
Supported CPUs: Intel Core Ultra processors (Series 2)
Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 8800 (O.C)
Max Memory: 256GB
PCIe Slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16
M.2 Slots: 1 × PCIe Gen5 x4, 2 × PCIe Gen4 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/5/10
Networking
LAN: Realtek 2.5GbE LAN
Wireless: None
Bluetooth: None
Audio
Codec: Realtek HD Audio
Channels: 2/4/5.1/7.1‑Channel HD Audio
Video Outputs
(Requires Intel CPU with integrated graphics)
1 × HDMI
2 × DisplayPort
Special Features
Digital 8+1+2 Phase VRM
D5 Bionic Corsa Memory Performance
AORUS AI Snatch Auto‑Overclocking
AI PerfDrive BIOS presets
EZ‑Latch PCIe & M.2 quick‑release
VRM Thermal Armor Advanced
M.2 Thermal Guard
Q‑Flash Plus
Friendly UI BIOS (multi‑theme, AIO fan control, auto scan)
Ultra‑Fast Storage (PCIe 5.0 M.2)
New Power Monitor in HWinfo

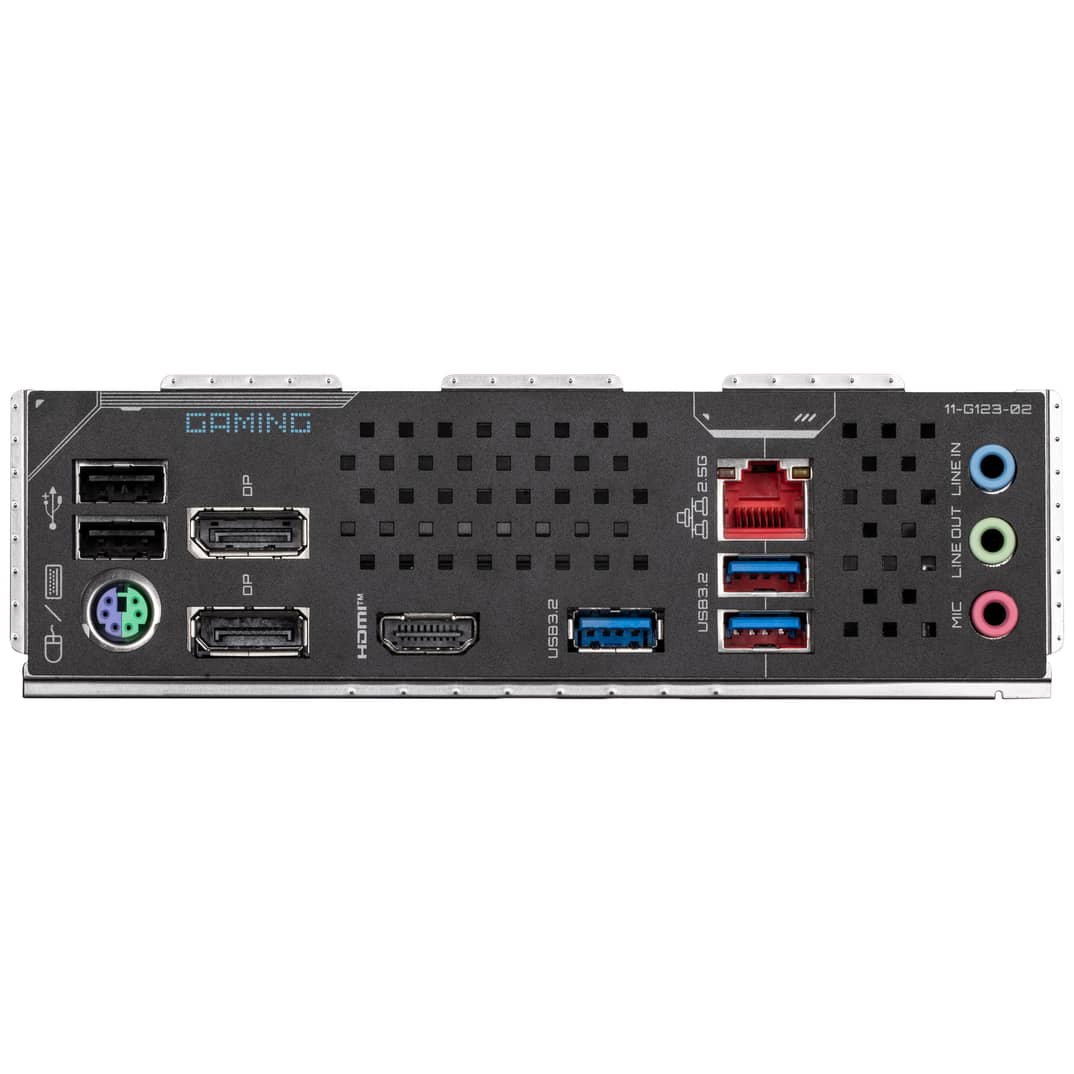

USB Connectivity Rear I/O
2 × USB 2.0
3 × USB 3.2 Gen1 Type‑A
1 × HDMI
2 × DisplayPort
2.5GbE LAN
3 × audio jacks
Internal Headers
24‑pin AT
1 × 8‑pin CPU power
2 × USB 2.0 headers
2 × USB 3.2 Gen1 headers
2 × Thunderbolt AIC headers
COM header
Front panel audio
TPM header
2 × ARGB Gen2 headers
1 × RGB header
Form Factor: Micro ATX (244 × 244 mm)
