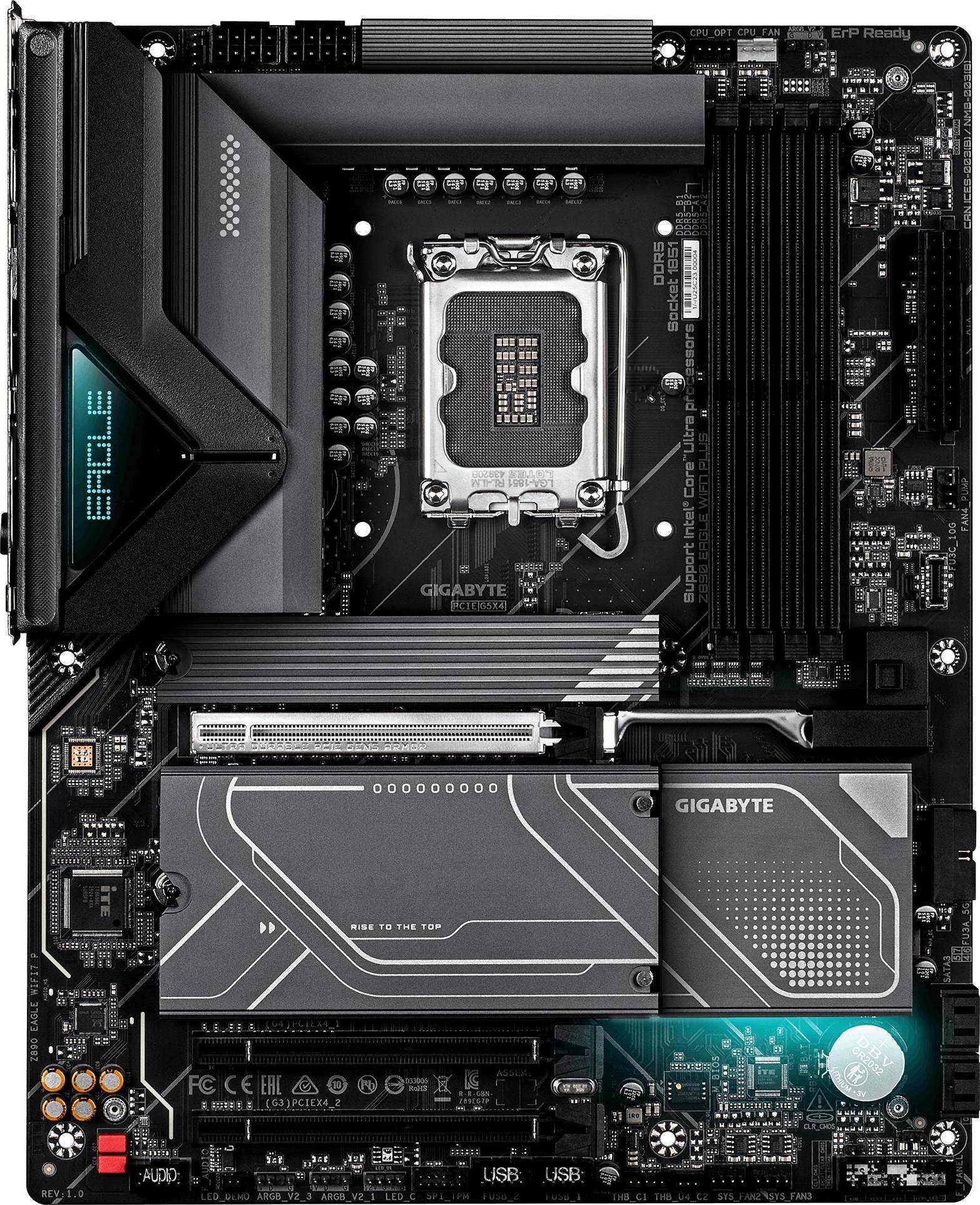

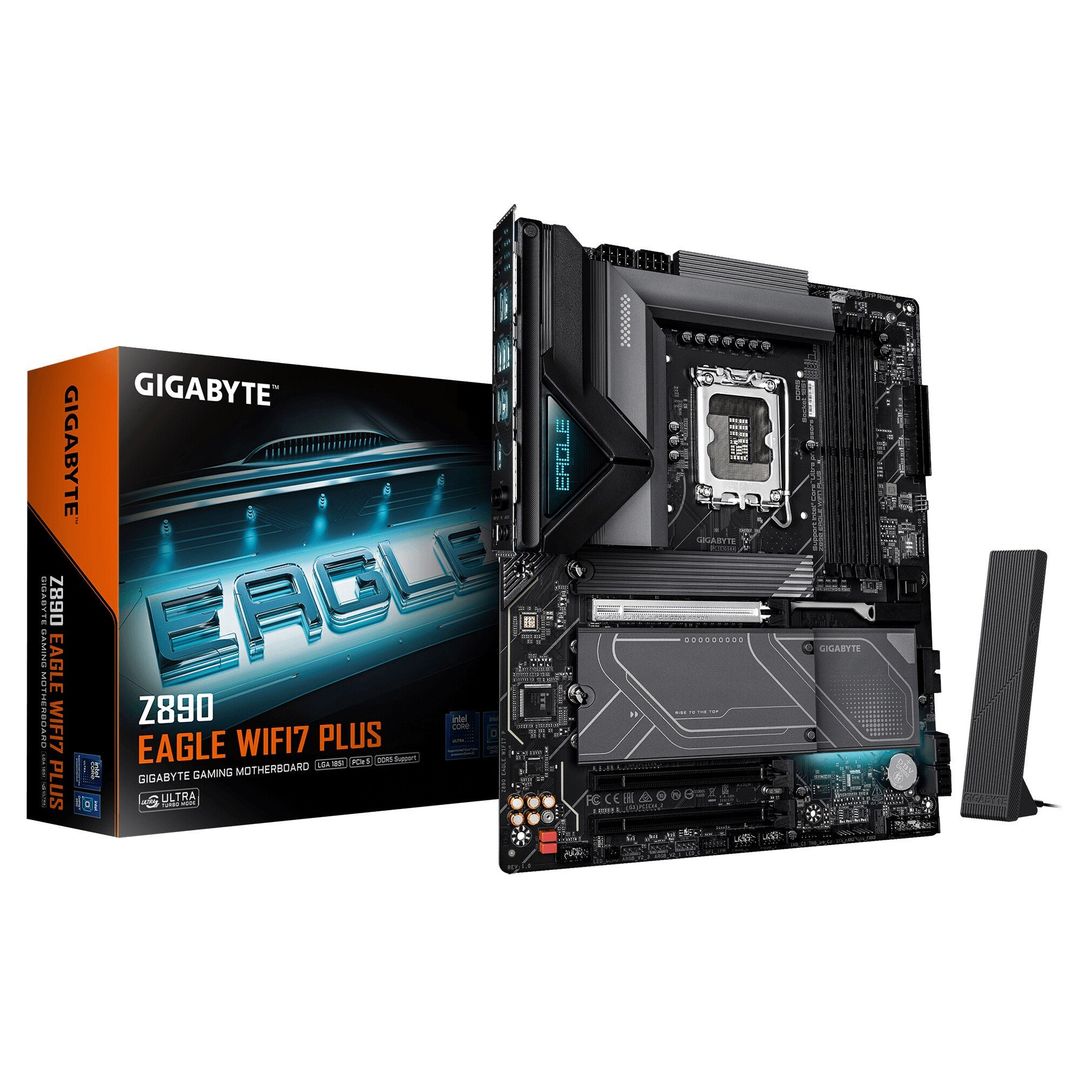

GIGABYTE Z890 EAGLE WIFI7 PLUS – LGA1851 ATX Motherboard, DDR5, PCIe 5.0, USB4, Wi‑Fi 7
GIGABYTE 1851 Z890 EAGLE WIFI7 PLUS (Socket 1851)
Build a next‑generation Intel system with the GIGABYTE Z890 EAGLE WIFI7 PLUS, a high‑performance ATX motherboard designed for Intel Core Ultra Series 2 processors. Powered by the Intel Z890 Express chipset, it delivers leading‑edge features including PCIe 5.0 GPU support, DDR5 up to 9466+ MT/s (O.C), PCIe Gen5 + Gen4 M.2 slots, USB4 Type‑C, Wi‑Fi 7, 2.5GbE LAN, and advanced VRM cooling. GIGABYTE technologies such as Ultra Turbo Mode, EZ‑Latch Plus, EZ‑Latch Click, D5 Bionic Corsa memory enhancements, Q‑Flash Plus, and Smart Fan ensure easy installation, excellent stability, and long‑term durability — all wrapped in a clean ATX design ideal for high‑end LGA1851 builds.
Specifications
Type: ATX Motherboard
Brand: GIGABYTE
Model: Z890 EAGLE WIFI7 PLUS
Chipset: Intel Z890 Express
CPU Socket: LGA1851
Supported CPUs: Intel Core Ultra processors (Series 2)
Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 9466+ (O.C.)
Max Memory: 256GB
PCIe Slots
1 × PCIe 5.0 x16
2 × PCIe 4.0 x16
M.2 Slots
1 × PCIe Gen5 x4
1 × PCIe Gen4 x4
SATA Ports
4 × SATA 6Gb/s
RAID Support: RAID 0/1/5/10
Networking
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 7 (2.4/5/6GHz)
Bluetooth: 5.4
Audio
Codec: Realtek ALC1220
Channels: 7.1‑Channel HD Audio
S/PDIF: Yes
Video Outputs
(Requires Intel CPU with integrated graphics)
1 × DisplayPort
Special Features
Ultra Turbo Mode
Digital Twin 14+1+2 Phase VRM
D5 Bionic Corsa Memory Performance
AI PerfDrive BIOS presets
EZ‑Latch Plus (PCIe & M.2)
EZ‑Latch Click (screwless M.2 heatsinks)
Wi‑Fi EZ‑Plug
VRM Thermal Armor Advanced
M.2 Thermal Guard
USB4 Type‑C with DP‑Alt
Q‑Flash Plus
High‑Res Audio with WIMA capacitors
USB Connectivity Rear I/O
4 × USB 2.0
3 × USB 3.2 Gen1 Type‑A
2 × USB 3.2 Gen2 Type‑A
1 × USB4 Type‑C
DisplayPort
2.5GbE LAN
Wi‑Fi antenna connectors
2 × audio jacks
1 × S/PDIF
Power button
Reset button
Q‑Flash Plus button
Clear CMOS button
Internal Headers
24‑pin ATX
2 × 8‑pin CPU power
4 × USB 2.0 headers
1 × USB 3.2 Gen1 header
1 × USB 3.2 Gen2 header
Front panel audio
3 × ARGB Gen2 headers
1 × RGB header
Multiple fan headers
TPM header
Form Factor: ATX (305 × 244 mm)
Package Contents
Motherboard
Manual
Quick Installation Guide
2 × SATA cables
I/O Shield
Most Suitable For
High‑performance Intel LGA1851 gaming PCs
Intel Core Ultra Series 2 builds
PCIe 5.0 GPU + Gen5 NVMe setups
Wi‑Fi 7 + 2.5Gb LAN connectivity
ATX mid‑tower and full‑tower systems
Enthusiast and future‑ready Intel builds
