GIGABYTE Z890 D PLUS – LGA1851 ATX Motherboard, DDR5, PCIe 5.0, 2.5Gb LAN
GIGABYTE 1851 Z890 D PLUS (Socket 1851) DDR5
Build a next‑generation Intel system with the GIGABYTE Z890 D PLUS, a feature‑rich ATX motherboard designed for Intel Core Ultra Series 2 processors. Powered by the Intel Z890 Express chipset, it delivers cutting‑edge performance with DDR5 up to 9466+ MT/s (O.C), PCIe 5.0 GPU support, PCIe Gen5 + Gen4 M.2 slots, 2.5GbE LAN, and advanced thermal design. GIGABYTE technologies such as Ultra Turbo Mode, EZ‑Latch Plus, D5 Bionic Corsa memory enhancements, Q‑Flash Plus, and VRM Thermal Armor ensure easy installation, excellent stability, and long‑term durability — all wrapped in a clean ATX layout ideal for modern LGA1851 builds.
Specifications
Type: ATX Motherboard
Brand: GIGABYTE
Model: Z890 D PLUS
Chipset: Intel Z890 Express
CPU Socket: LGA1851
Supported CPUs: Intel Core Ultra processors (Series 2)
Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 9466+ (O.C)
Max Memory: 256GB
PCIe Slots: 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x16
M.2 Slots: 1 × PCIe Gen5 x4,1 × PCIe Gen4 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/5/10
Networking
LAN: Realtek 2.5GbE LAN
Wireless: None
Bluetooth: None
Audio
Codec: Realtek HD Audio
Channels: 2/4/5.1‑channel HD Audio
Video Outputs
(Requires Intel CPU with integrated graphics)
1 × DisplayPort
Special Features
Ultra Turbo Mode
Digital Twin 12+1+2 Phase VRM
D5 Bionic Corsa Memory Performance
EZ‑Latch Plus (PCIe quick‑release)
EZ‑Latch Click (screwless M.2 heatsinks)
VRM Thermal Armor Advanced
M.2 Thermal Guard
Q‑Flash Plus
Friendly UI BIOS (multi‑theme, AIO fan control, auto scan)
Power Monitor in HWinfo
Ultra‑Fast Storage (PCIe 5.0 M.2)

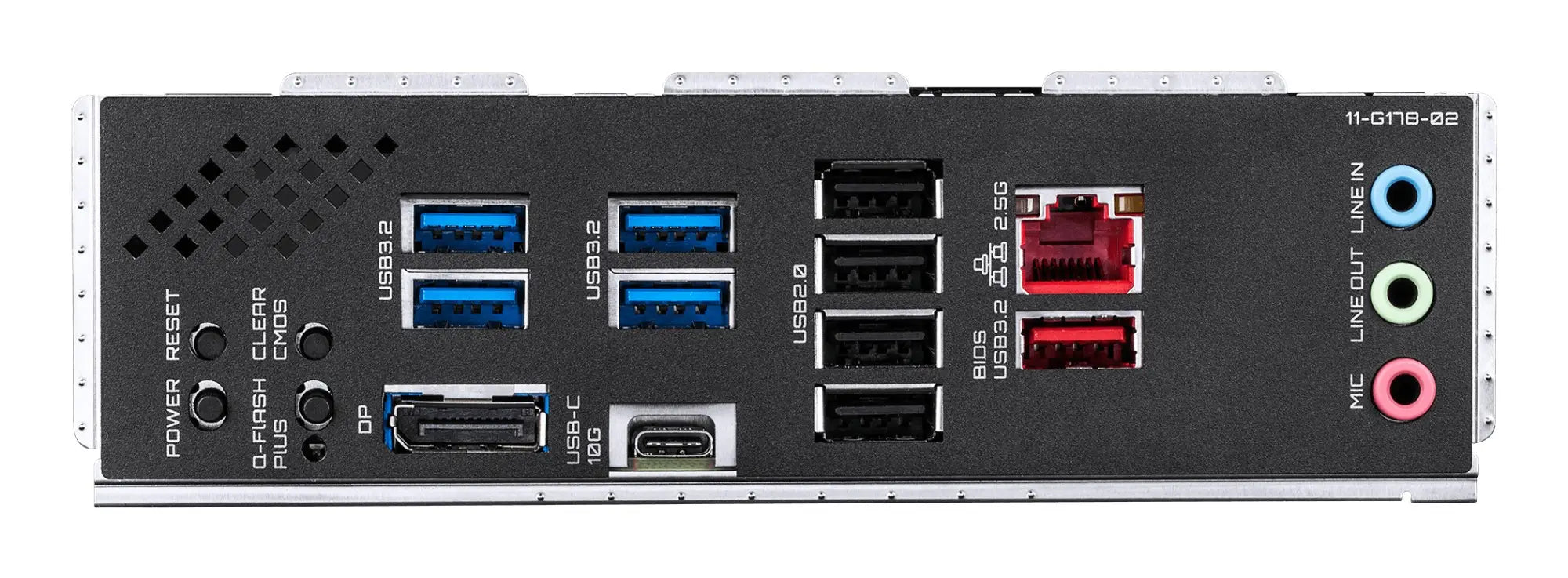

USB Connectivity Rear I/O
4 × USB 2.0
4 × USB 3.2 Gen1 Type‑A
2 × USB 3.2 Gen2 Type‑
1 × DisplayPort
2.5GbE LAN
3 × audio jacks
Reset button
Power button
Clear CMOS button
Q‑Flash Plus button
Internal Headers
24‑pin ATX
2 × 8‑pin CPU power
2 × USB 2.0 headers
1 × USB 3.1 Gen1 header
1 × USB 3.2 Gen1 header
2 × Thunderbolt AIC headers
COM header
Front panel audio
TPM header
3 × ARGB Gen2 headers
1 × RGB header
Form Factor: ATX (305 × 244 mm)
