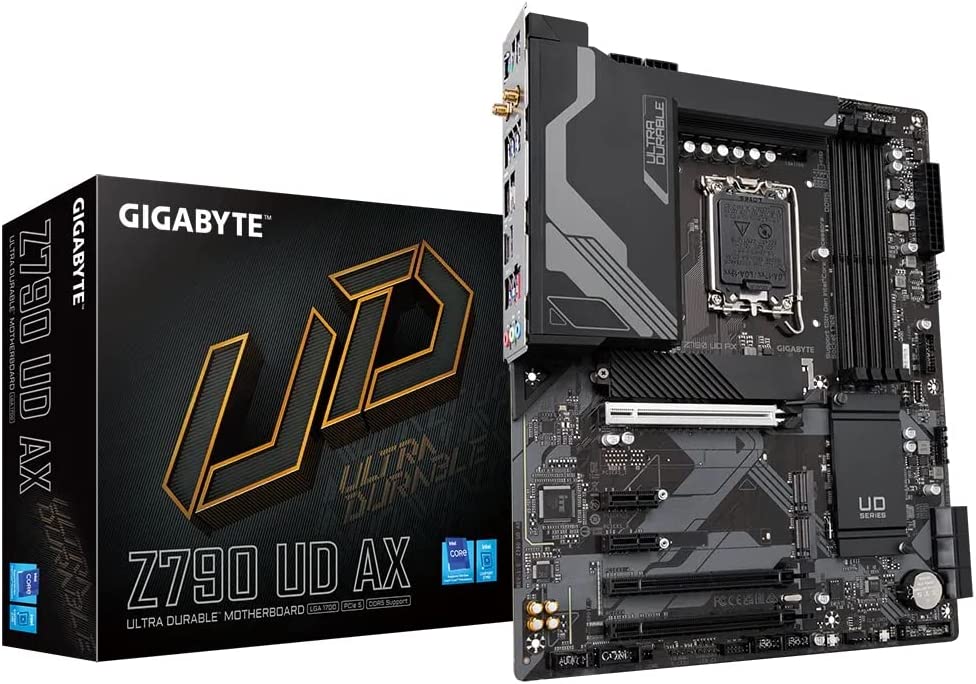

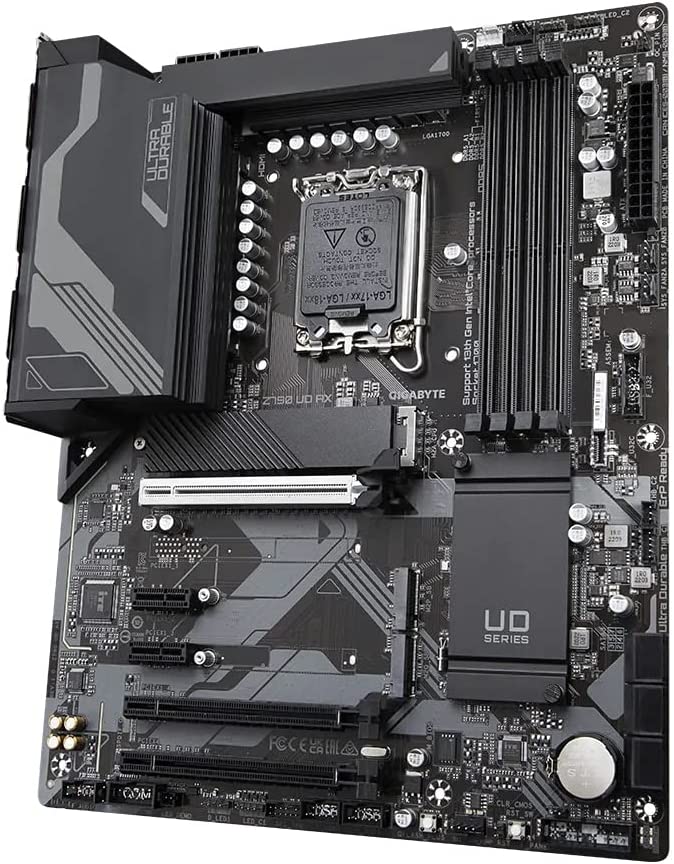

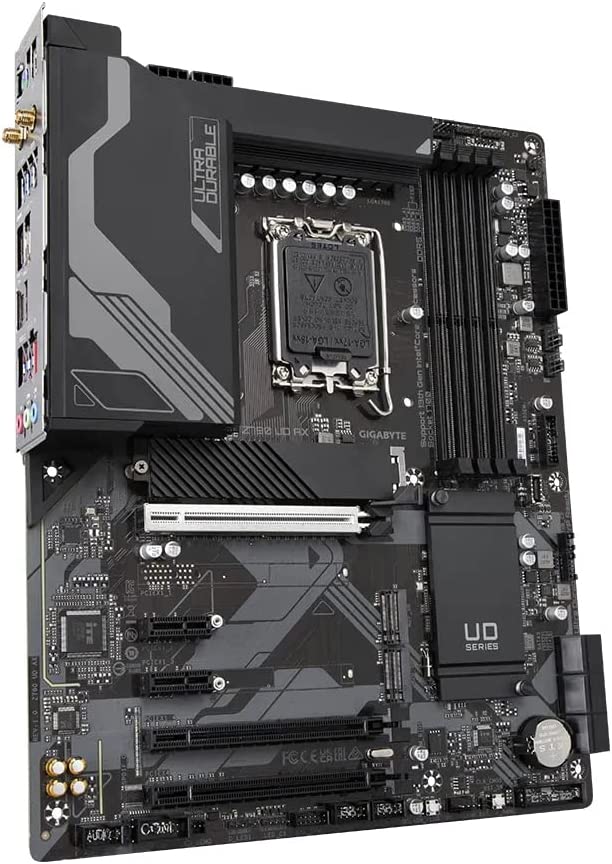

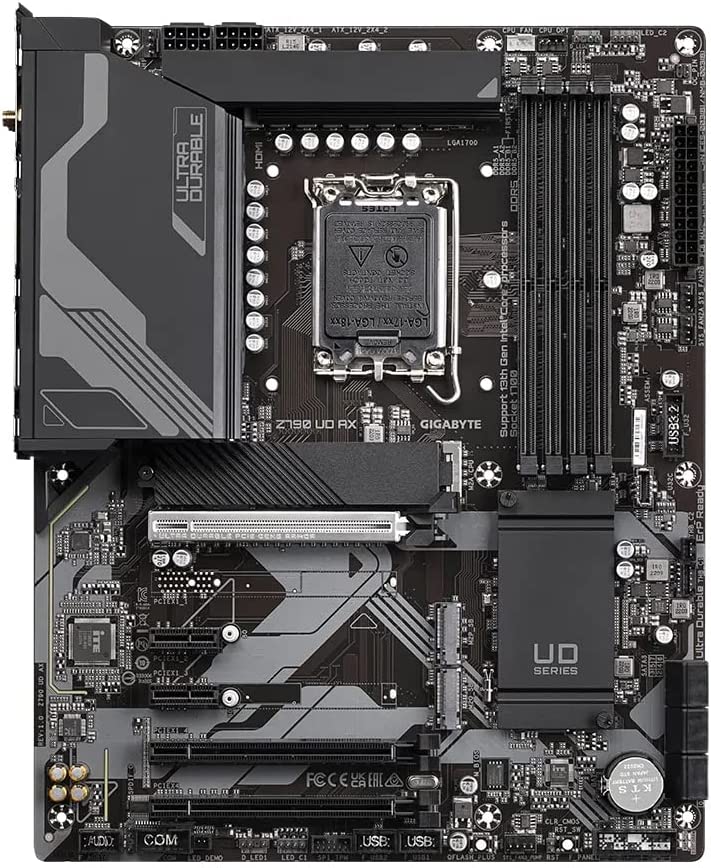

Gigabyte Z790 UD AX Motherboard Intel LGA 1700 DDR5 PCIe 5.0 ATX Motherboard Wifi
Gigabyte Z790 UD AX Motherboard Intel LGA 1700 DDR5 PCIe 5.0 ATX Motherboard Wifi offers the latest 13th Gen Intel processor support and ultra-fast PCIe 5.0 speeds, ensuring top-of-the-line performance. Featuring LGA 1700 and DDR5 memory, this motherboard provides maximum power and stability to meet your gaming and computing needs.
Specifications
Edition: Z790 UD AX
Form Factor: ATX
CPU Socket: 1700
Chipset: Intel Z790
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): ECC/Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz)
DDR5 - 4400(OC)
DDR5 - 4800
DDR5 - 5200
DDR5 - 5600(OC)
DDR5 - 6000(OC)
DDR5 - 6200(OC)
DDR5 - 6400(OC)
DDR5 - 6600(OC)
DDR5 - 6800(OC)
DDR5 - 7000(OC)
DDR5 - 7200(OC)
Max. Memory Capacity: 128GB
Audio: 7.1 Channel HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: N/A
AMD CrossFire Support: N/A
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: DisplayPort, HDMI
Expansion Slots
2 x M.2, 22-80, PCIe Gen4x4
1 x M.2, 22-80/110, PCIe Gen4x4
1 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x1 Bandwidth)
1 x PCIe 4.0 x16 (x4 Bandwidth)
1 x PCIe 5.0 x16
6 x SATA 6GB/s
SATA Support: SATA3
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5
Internal I/O
1 x 24-pin (Power)
1 x 4-pin CPU Fan Connector
2 x 8-pin (Power)
2 x Addressable Digital RGB Header
1 x Clear CMOS Button
1 x Clear CMOS jumper
1 x Front Panel Audio Header
1 x Front Panel Connector
3 x M.2 Connector
1 x Noise Detection Header
1 x Q-Flash Plus Button
1 x Reset Button
2 x RGB LED connector
1 x S/PDIF-Out Header
6 x SATA III - 6Gb/s
3 x System Fan header
1 x System Fan/Water Pump Header
2 x Thunderbolt AIC Connector
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.2 Gen 1
1 x USB 3.2 Gen1 Header
1 x Water Cooling fan header
Network Interface Type
802.11ax Wi-Fi 6E LAN
Wired 2.5 Gigabit LAN
Network Chip/Modules
1 x 802.11ax WiFi 6E + BT5.2
1 x Realtek (2.5GbE LAN)

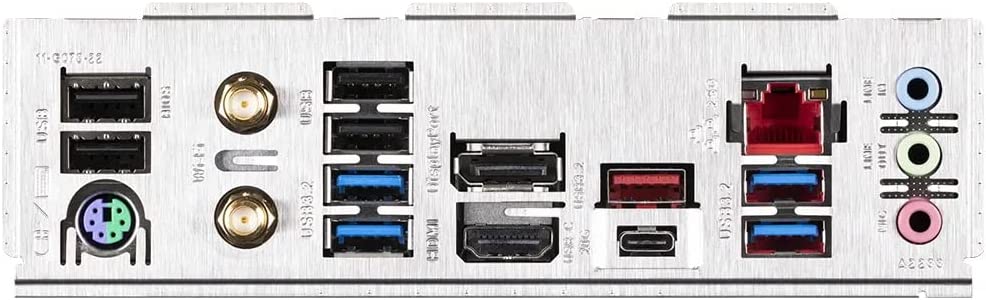

Rear I/O Connectors
1 x 10/100/1000/2500 (LAN)
1 x Clear CMOS Button
1 x DisplayPort
1 x HDMI 2.0
1 x Line In
1 x Line Out
1 x Mic-In
1 x Q-Flash Plus Button
1 x S/PDIF-Out (Optical)
2 x SMA antenna connectors (2T2R)
4 x USB 2.0
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2x2 Type-C
