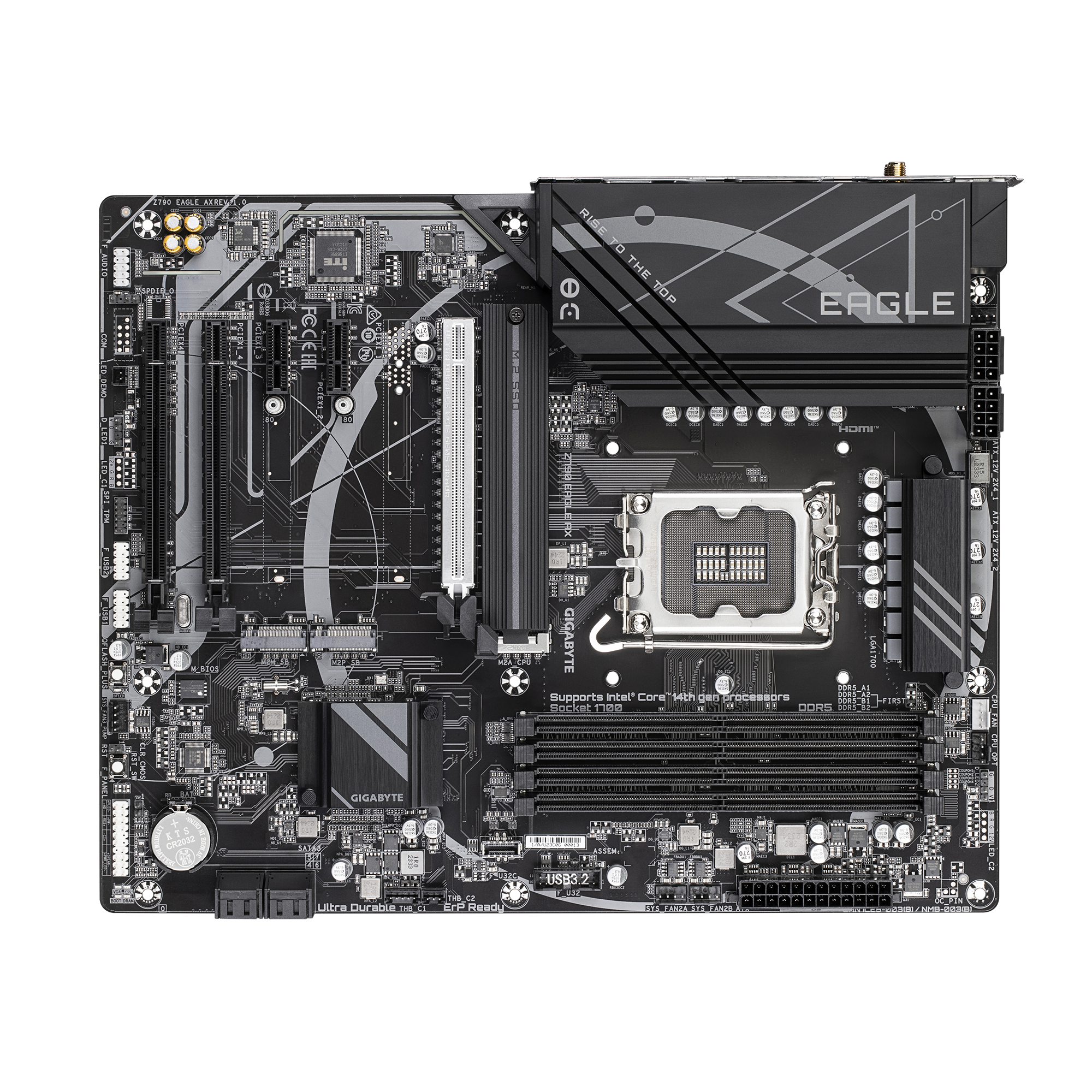

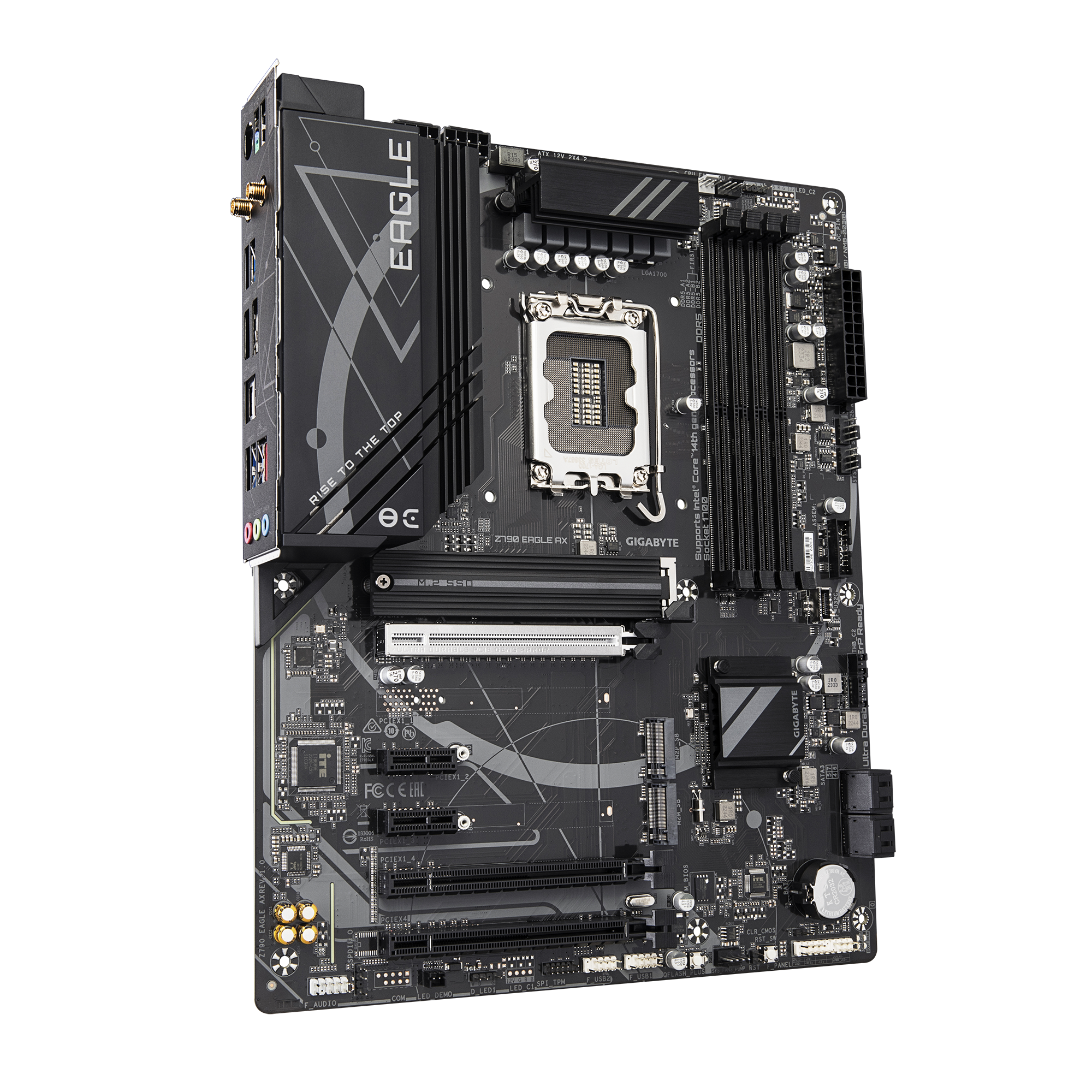

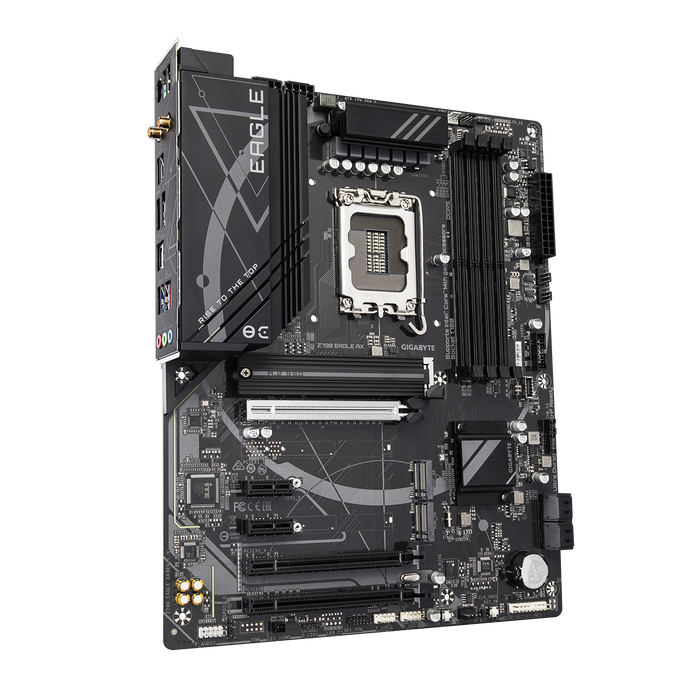

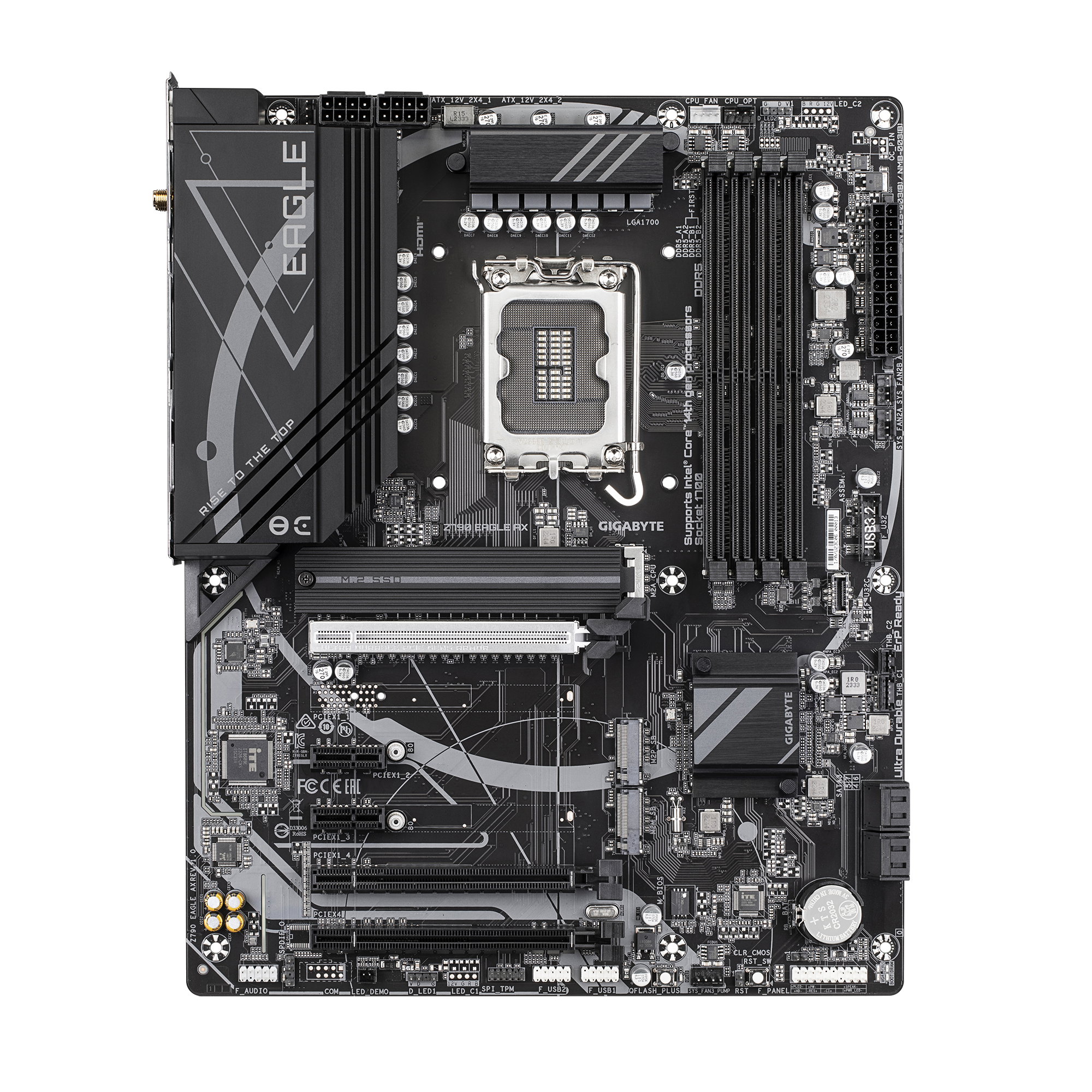

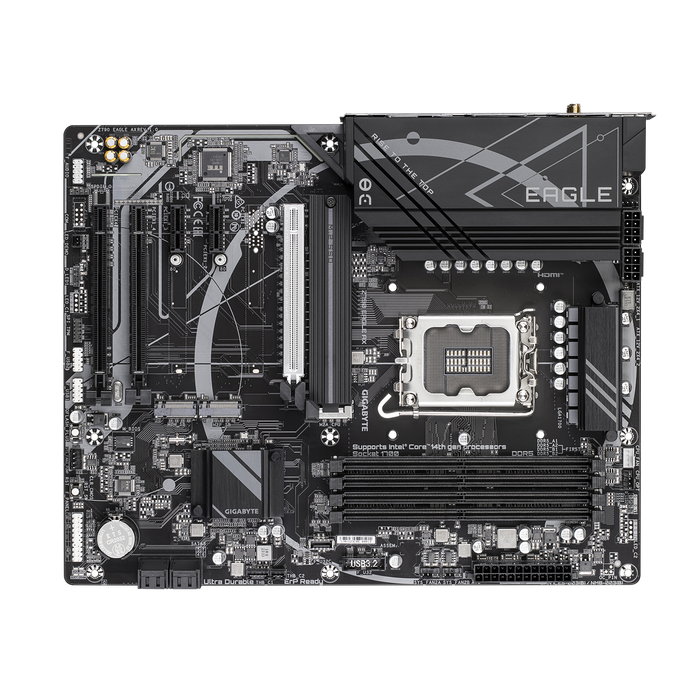

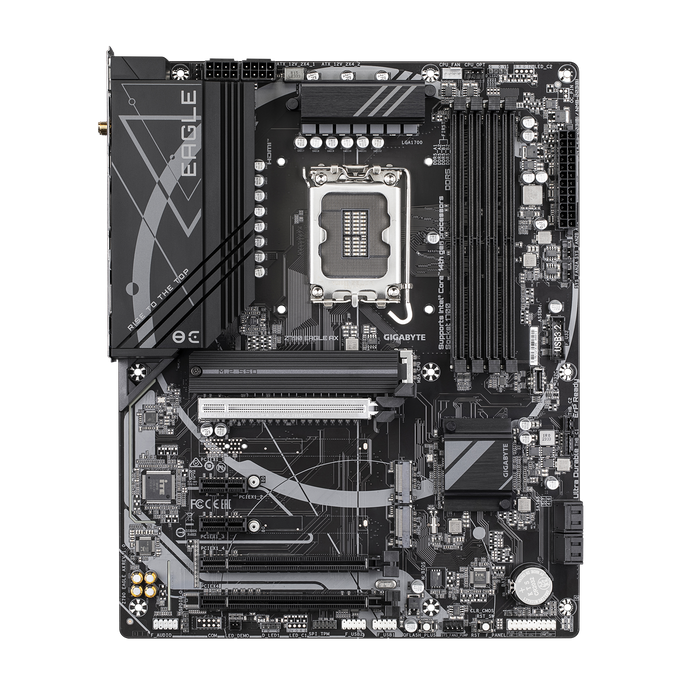

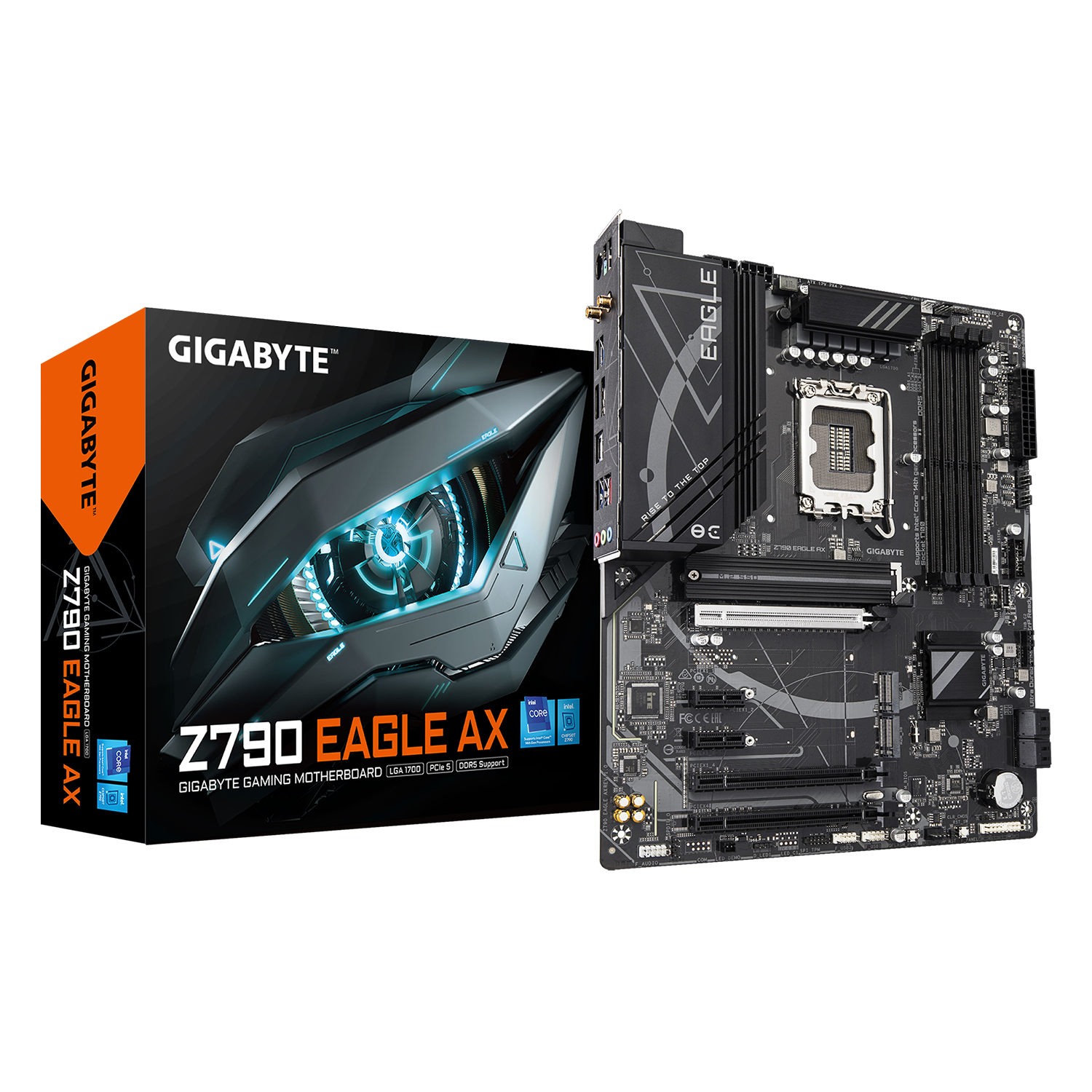

GIGABYTE Z790 EAGLE AX ATX Motherboard

Build a high‑performance Intel system with the Gigabyte Z790 EAGLE AX, an ATX motherboard engineered for gaming, productivity, and next‑generation connectivity. Powered by the Intel Z790 chipset, it supports 12th, 13th, and 14th Gen Intel Core processors, delivering excellent capability for demanding workloads. With PCIe 5.0 x16, PCIe 4.0 M.2 slots, DDR5 up to 7600MHz (O.C.), Wi‑Fi 6 AX, 2.5GbE LAN, and USB 3.2 Gen2, this board provides a strong, future‑ready platform for modern PC builds. Gigabyte’s EZ‑Latch tool‑less design, advanced VRM cooling, and Q‑Flash Plus ensure easy installation, clean cable management, and long‑term stability.

Specifications

Type: ATX Motherboard
Brand: Gigabyte
Model: Z790 EAGLE AX
Chipset: Intel Z790
CPU Socket: LGA 1700
Supported CPUs: Intel 12th / 13th / 14th Gen Core Series
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 7600 (O.C.)
Max Memory: 192GB
PCIe Slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 3.0 x1
Storage: 3 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6 AX
Bluetooth: v5.3
Audio: Realtek HD Audio, 2/4/5.1/7.1‑channel
Video Outputs: HDMI, DisplayPort (Requires CPU with integrated graphics)

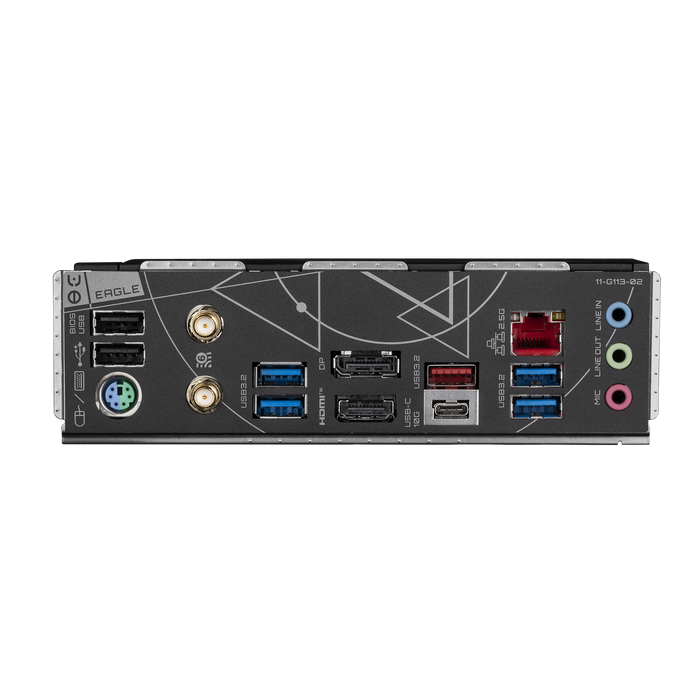

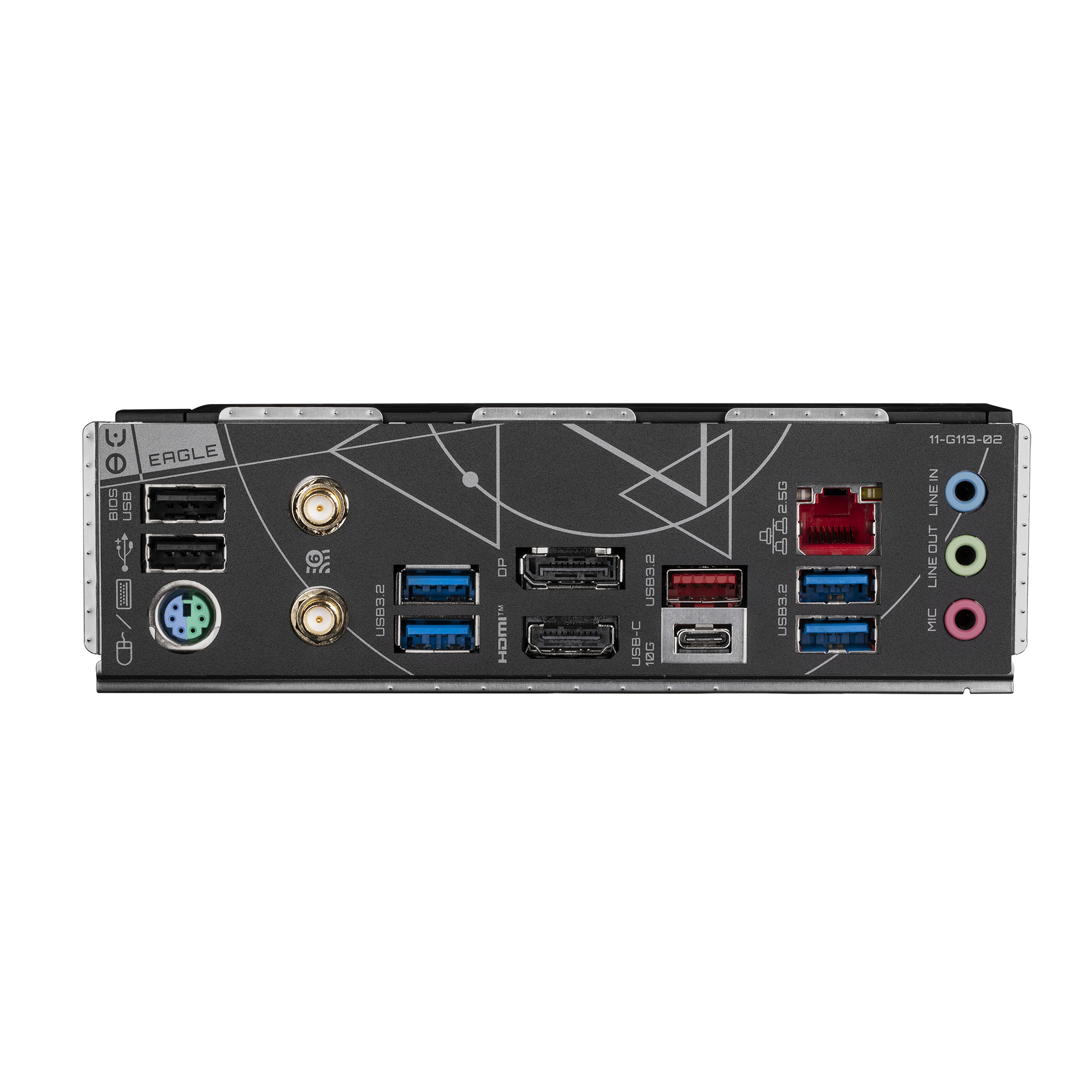

USB Ports (Rear):  4 × USB 2.0, 4 × USB 3.2 Gen1 Type‑A, 1 × USB 3.2 Gen2 Type‑A, 1 × USB 3.2 Gen2 Type‑C
Internal Headers: USB 2.0 × 2, USB 3.2 Gen1 × 1, USB 3.2 Gen2 × 1, ARGB & RGB headers,TPM header, Front panel audio
Power Connectors: 24‑pin ATX, 8‑pin ATX, 4‑pin ATX
Form Factor: ATX (305 × 244 mm)
Most Suitable For: Gaming, productivity, high‑performance Intel builds
