GIGABYTE X870E EAGLE X3D WIFI7 – AM5 ATX Motherboard, DDR5, PCIe 5.0, USB4, Wi‑Fi 7

GIGABYTE AM5 X870E EAGLE X3D WIFI7

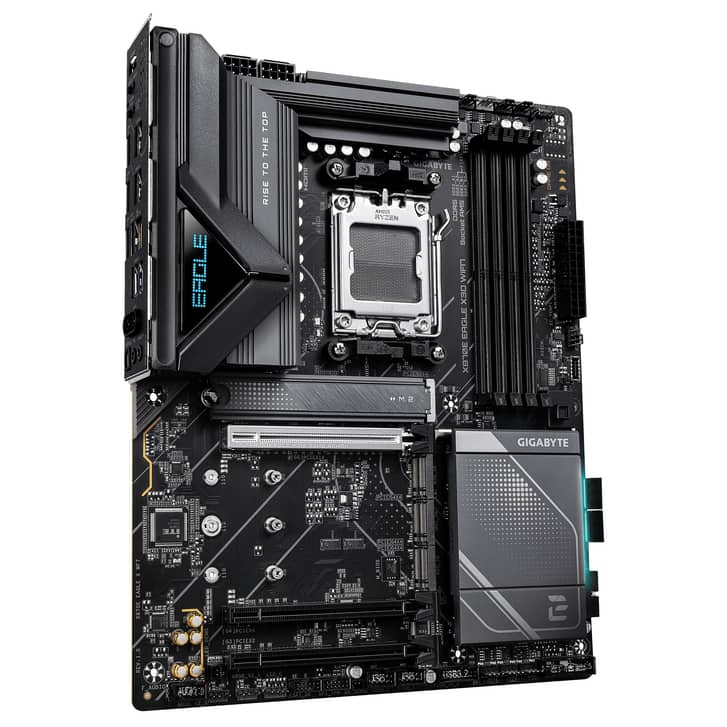

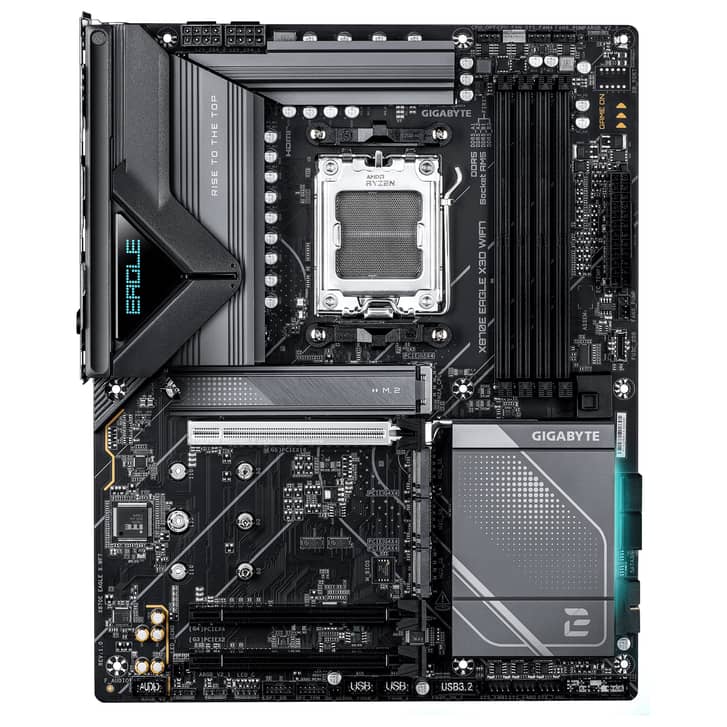

Build a next‑generation AM5 system with the GIGABYTE X870E EAGLE X3D WIFI7, a high‑performance ATX motherboard designed for modern gaming, productivity, and Ryzen 7000 / 8000 / 9000 Series builds. Powered by the AMD X870E chipset, it delivers cutting‑edge features including PCIe 5.0 GPU support, PCIe Gen5 + Gen4 M.2 slots, DDR5 up to 9000MT/s (O.C), USB4 Type‑C, Wi‑Fi 7, 5GbE LAN, and advanced thermal design. GIGABYTE technologies such as X3D Turbo Mode 2.0, EZ‑Latch Plus, M.2 EZ‑Flex, Smart Fan, and Q‑Flash Plus ensure easy installation, excellent cooling, and long‑term durability — all wrapped in a clean, modern ATX layout ideal for high‑end AM5 builds.

Specifications

Type: ATX Motherboard
Brand: GIGABYTE
Model: X870E EAGLE X3D WIFI7
Chipset: AMD X870E
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series

Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 9000 (O.C)
Max Memory: 256GB

PCIe Slots
1 × PCIe 5.0 x16
1 × PCIe 4.0 x16
1 × PCIe 3.0 x16
M.2 Slots
1 × PCIe Gen5 x4
3 × PCIe Gen4 x4

SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/5/10
Networking
LAN: Realtek 5GbE LAN
Wireless: Qualcomm Wi‑Fi 7 (2.4 / 5 / 6 GHz)
Bluetooth: 5.4

Audio
Codec: Realtek ALC1220
Channels: 7.1‑Channel HD Audio
S/PDIF: Yes

Video Outputs
(Requires Ryzen CPU with integrated graphics)
1 × HDMI

Special Features
X3D Turbo Mode 2.0
DDR5 OC up to 9000MT/s
M.2 EZ‑Flex (patented design)
PCIe EZ‑Latch Plus
EZ‑Latch Click (screwless heatsinks)
Wi‑Fi EZ‑Plug
VRM Thermal Armor Advanced
M.2 Thermal Guard Ext
Dual USB4 Type‑C with DP‑Alt
Q‑Flash Plus
Noise detection header
Temperature sensor headers

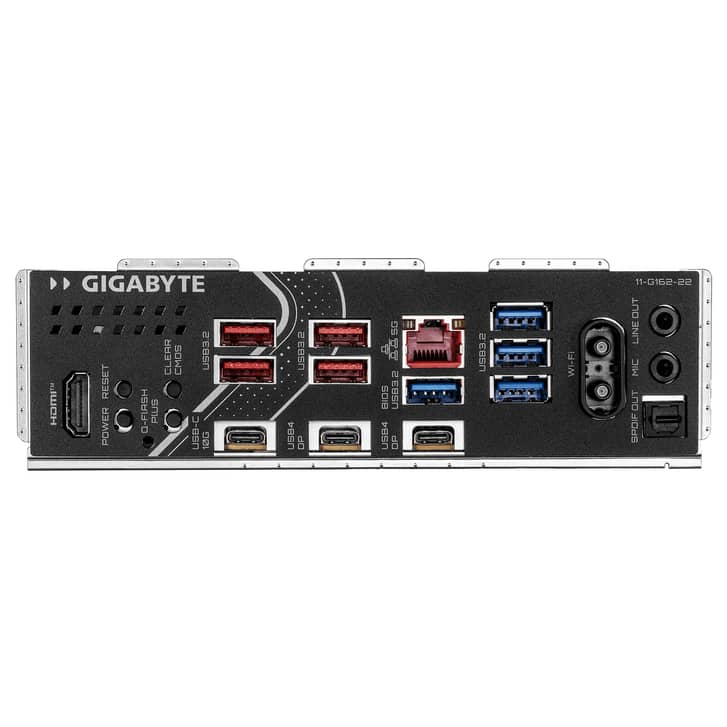

USB Connectivity Rear I/O
4 × USB 3.2 Gen2 Type‑A
1 × USB 3.2 Gen2 Type‑C
2 × USB4 Type‑C
HDMI
5GbE LAN
Wi‑Fi antenna connectors
2 × audio jacks1 × S/PDIF
Reset button
Power button
Clear CMOS button
Q‑Flash Plus button

Internal Headers
24‑pin ATX
2 × 8‑pin CPU power
2 × USB 2.0 headers
2 × USB 3.2 Gen1 headers
1 × USB 3.2 Gen2x2 Type‑C header
3 × ARGB Gen2 headers
1 × RGB header
Front panel audio
TPM header
2 × temperature sensor headers
Noise detection header
Multiple fan headers
Front panel connectors

Power Connectors
24‑pin ATX
Dual 8‑pin CPU power

Form Factor: ATX (305 × 244 mm)

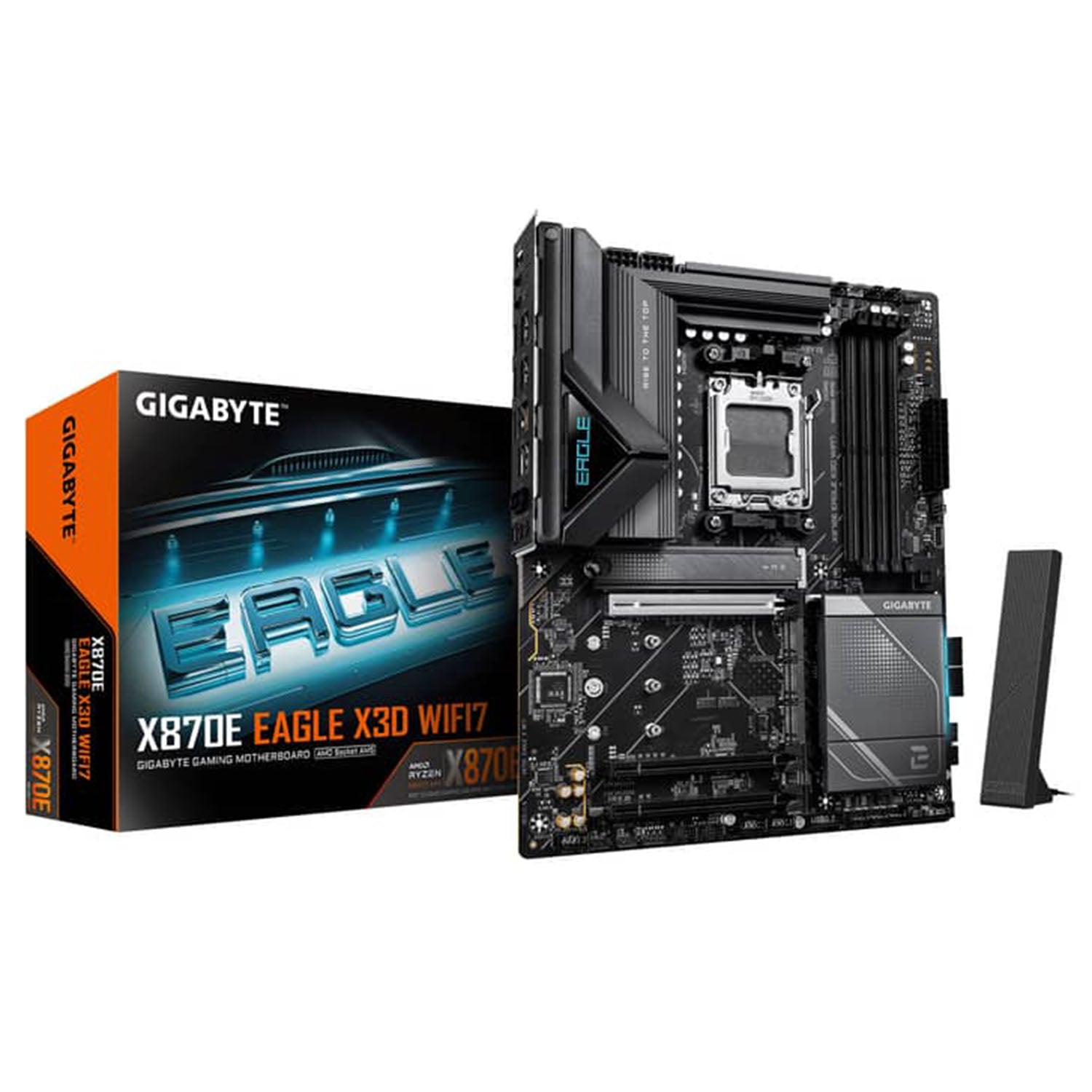

Package Contents
X870E EAGLE X3D WIFI7 motherboard
Manual
Quick Installation Guide
Wi‑Fi antenna
2 × SATA cables
G‑Connector
M.2 screws

Most Suitable For
High‑performance AM5 gaming PCs
Ryzen 7000 / 8000 / 9000 Series builds
PCIe 5.0 GPU + Gen5 NVMe setups
Wi‑Fi 7 + 5Gb LAN connectivity
ATX mid‑tower and full‑tower systems
