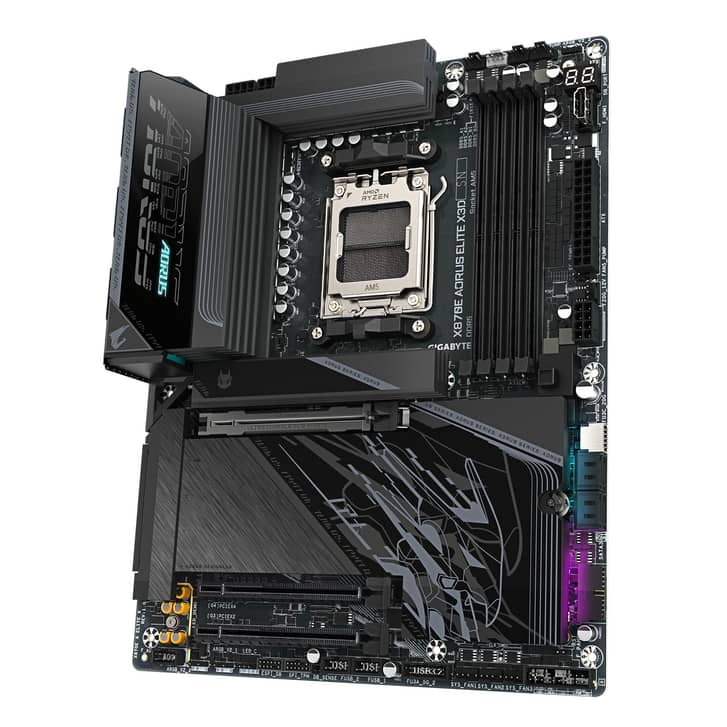

Gigabyte X870E AORUS ELITE X3D (Socket AM5)
Build a next‑generation AM5 system with the Gigabyte X870E AORUS ELITE X3D, a high‑performance ATX motherboard engineered for Ryzen 7000 / 8000 / 9000 Series processors. Powered by the AMD X870E chipset, it delivers cutting‑edge connectivity including PCIe 5.0 GPU support, PCIe 5.0 + PCIe 4.0 M.2 slots, DDR5 up to 9000MHz (O.C), USB4 Type‑C, Wi‑Fi 7, and 5GbE LAN. With advanced thermal design, robust power delivery, Q‑Flash Plus, RGB support, and extensive internal headers, this board offers exceptional stability, speed, and reliability for modern gaming and productivity builds. Perfect for high‑end AM5 systems requiring top‑tier performance and future‑ready features.
Specifications
Type: ATX Motherboard
Brand: Gigabyte
Model: X870E AORUS ELITE X3D
Chipset: AMD X870E
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series
Memory
RAM Technology: DDR5
RAM Slots: 4 × DIMM
RAM Speed Support: DDR5 9000(O.C) – 4800 MT/s
Max Memory: 256GB
Features: Dual‑channel, AMD EXPO & XMP compatible
Expansion & Storage
PCIe Slots:
1 × PCIe 5.0 x16 (CPU dependent)
1 × PCIe 4.0 x4
1 × PCIe 3.0 x2
M.2 Slots:
2 × PCIe 5.0/4.0 (CPU dependent)
2 × PCIe 4.0 x4/x2
SATA Ports: 4 × SATA 6Gb/s
RAID Support:
NVMe RAID 0/1/5/10 (RAID 5 only on Ryzen 9000)
SATA RAID 0/1/10
Networking
LAN: Realtek 5GbE LAN
Wireless: Wi‑Fi 7 (Qualcomm QCNCM865)
Bluetooth: 5.4
Audio
Audio Codec: Realtek ALC1220
Channels: 2/4/5.1/7.1 HD Audio
Extras: S/PDIF Out, DSD audio support
Video Outputs
(Requires Ryzen CPU with integrated graphics)
2 × USB4 Type‑C (DP 1.4, HDR)
1 × HDMI 2.1
1 × Front HDMI 1.4
Special Features
USB4 Type‑C (2× rear)
Q‑Flash & Q‑Flash Plus
Smart Backup
Advanced VRM cooling
RGB & ARGB headers
Noise detection header
Temperature sensor headers
GIGABYTE Control Center (GCC)

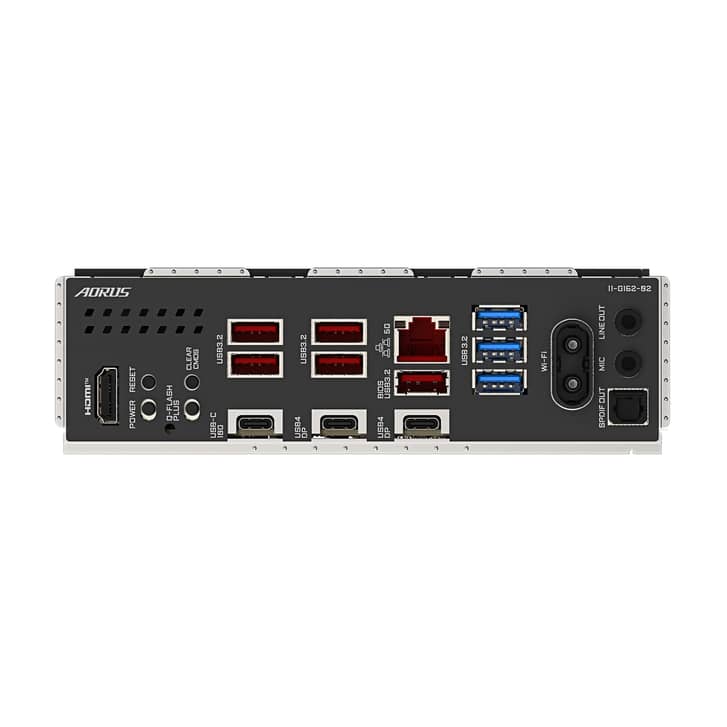

USB Connectivity Rear I/O
2 × USB4 Type‑C
5 × USB 3.2 Gen2 Type‑A
1 × USB Type‑C 3.2 Gen2
3 × USB 3.2 Gen1
HDMI
RJ‑45 (5GbE LAN)
Wi‑Fi antenna connectors
Audio jacks
Optical S/PDIF
Power / Reset / Clear CMOS buttons
Q‑Flash Plus button
Internal Headers
24‑pin ATX
2 × 8‑pin CPU power
PCIe power header
CPU/system/pump fan headers
3 × ARGB headers
1 × RGB header
4 × M.2 sockets
4 × SATA ports
USB Type‑C 3.2 Gen2x2 header
USB 3.2 Gen1 headers
USB 2.0 headers
TPM header
Front panel connectors
Clear CMOS jumper
Reset jumper
Temperature sensor headers
Noise detection header
Form Factor: ATX (30.5 × 24.4 cm)

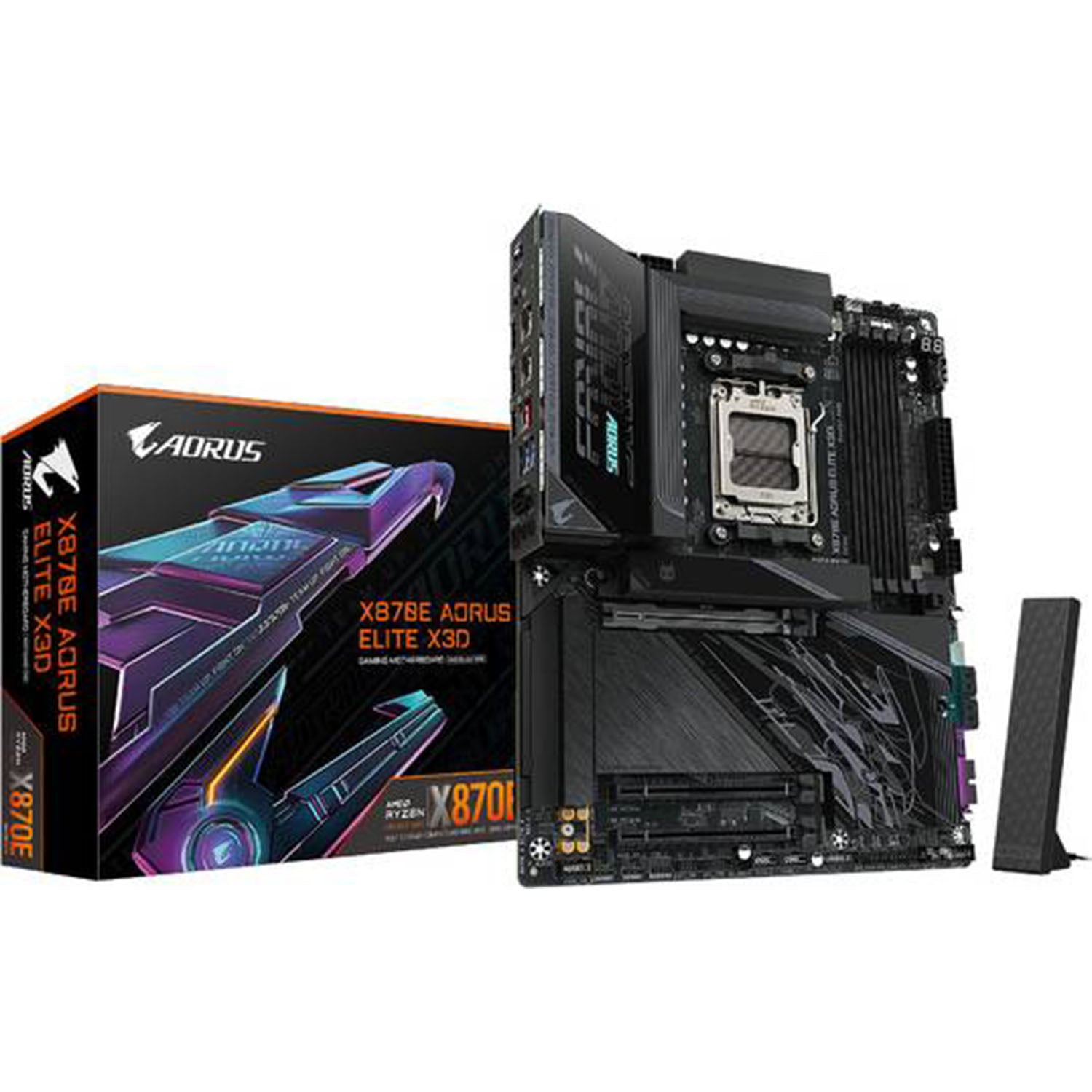

Package Contents
Motherboard
Wi‑Fi 7 antennas
SATA cables
M.2 screws
Documentation
