Gigabyte X870E AORUS ELITE WIFI7 ICE – AM5 ATX Motherboard, DDR5, PCIe 5.0, USB4, Wi‑Fi 7
Gigabyte X870E AORUS ELITE WIFI7 ICE (Socket AM5)
Build a next‑generation AM5 system with the Gigabyte X870E AORUS ELITE WIFI7 ICE, a high‑performance ATX motherboard designed for modern gaming, productivity, and Ryzen 7000 / 8000 / 9000 Series builds. Powered by the AMD X870E chipset, it delivers cutting‑edge features including PCIe 5.0 GPU support, PCIe Gen5 + Gen4 M.2 slots, DDR5 up to 8200MT/s (O.C), USB4 Type‑C, Wi‑Fi 7, 2.5GbE LAN, and advanced thermal design. GIGABYTE technologies such as EZ‑Latch Plus, M.2 EZ‑Flex, Smart Fan, Q‑Flash Plus, and robust VRM cooling ensure easy installation, excellent stability, and long‑term durability — all wrapped in a clean ICE‑white ATX design ideal for high‑end AM5 builds.
Specifications
Type: ATX Motherboard
Brand: Gigabyte
Model: X870E AORUS ELITE WIFI7 ICE
Chipset: AMD X870E
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series
Memory
RAM Technology: DDR5
RAM Slots: 4 × DIMM
RAM Speed Support: DDR5 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6666(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
Max Memory: 256GB
Channel Architecture: Dual Channel
Memory Support: AMD EXPO & XMP
PCIe Slots:
1 × PCIe 5.0 x16 (Ryzen 9000/7000)
1 × PCIe 4.0 x4
1 × PCIe 3.0 x4
M.2 Slots
CPU M.2:
1 × PCIe 5.0/4.0 x4/x2 (25110/22110/2280)
2 × PCIe 5.0 x4/x2 (22110/2280) (Unavailable on Ryzen 8000)
Chipset M.2:
1 × PCIe 4.0 x4/x2 (22110/2280)
SATA Ports:
4 × SATA 6Gb/s
RAID: RAID 0/1/5/10
Networking
LAN: Realtek 2.5GbE LAN
Wireless: Realtek Wi‑Fi 7 (2.4/5/6GHz)
Bluetooth: 5.4
Audio
Codec: Realtek ALC1220
Channels: 2/4/5.1/7.1 HD Audio
Extras: DSD audio, S/PDIF Out
Video Outputs
(Requires Ryzen CPU with integrated graphics)
1 × HDMI 2.1
1 × Front HDMI 1.4
2 × USB4 Type‑C (DP 1.4, HDR)
Special Features
EZ‑Latch Plus (PCIe)
M.2 EZ‑Flex
USB4 Type‑C (2× rear)
Smart Fan 6
Q‑Flash & Q‑Flash Plus
VRM Thermal Armor
ARGB & RGB headers
Temperature sensor headers
Noise detection header
Quad‑display support

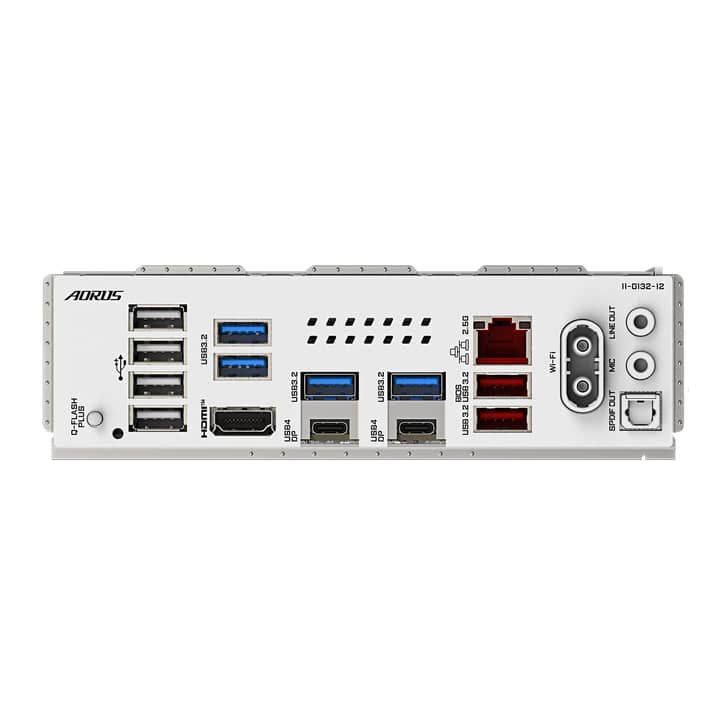

USB Connectivity Rear I/O
4 × USB 2.0
4 × USB 3.2 Gen1
2 × USB 3.2 Gen2 Type‑A
2 × USB4 Type‑C
HDMI
2.5GbE LAN
Wi‑Fi antenna connectors
2 × audio jacks
Optical S/PDIF
Q‑Flash Plus button
Internal Headers:
24‑pin ATX
2 × 8‑pin CPU power
1 × USB‑C 3.2 Gen2x2
2 × USB 3.2 Gen1
2 × USB 2.0
3 × ARGB Gen2
1 × RGB
4 × M.2 sockets
4 × SATA
CPU/system/pump fan headers
TPM header
Front panel connectors
Clear CMOS
Reset
Temperature sensors
Noise detection header
Form Factor: ATX (30.5 × 24.4 cm)
Package Contents
Motherboard
Wi‑Fi 7 antennas
2 × SATA cables
M.2 screws
G‑Connector
Documentation
Most Suitable For
High‑performance
AM5 gaming PCs
Ryzen 7000 / 8000 / 9000 Series builds
PCIe 5.0 GPU + Gen5 NVMe setups
Wi‑Fi 7 + 2.5Gb LAN connectivity
White‑themed ICE builds
ATX mid‑tower and full‑tower systems
