Gigabyte X870E AERO X3D WOOD ATX AM5 Motherboard – PCIe 5.0, DDR5, Wi‑Fi 7
GigabyteX870E AERO X3D WOOD DDR5 ATX Board
Build a premium AM5 system with the Gigabyte X870E AERO X3D WOOD, an ATX motherboard crafted for creators, high‑end gaming, and professional workloads. Powered by the flagship AMD X870E chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers cutting‑edge DDR5 performance with PCIe 5.0 expansion, Wi‑Fi 7, dual 5GbE LAN, and four ultra‑fast M.2 slots. Designed with a unique real‑wood aesthetic, the AERO X3D WOOD blends luxury styling with workstation‑grade performance. Gigabyte’s advanced VRM cooling, EZ‑Latch mechanisms, Q‑Flash Plus, and creator‑focused connectivity ensure stability, efficiency, and long‑term reliability for demanding AM5 builds.
Specifications
Type: ATX Motherboard
Brand: Gigabyte
Model: X870E AERO X3D WOOD
Chipset: AMD X870E
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series (with integrated graphics for display output)
RAM Type: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5‑9000+ (O.C.)
Max Memory: 192GB
PCIe Slots: 1 × PCIe 5.0 x16 (GPU slot), 1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4
M.2 Slots: 4 × M.2 (PCIe 5.0 + PCIe 4.0 mix depending on CPU/chipset lanes)
LAN: Dual 5GbE Ethernet
Wireless: Wi‑Fi 7
Bluetooth: 5.x
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/10
Audio Codec: High‑Definition Audio
Channels: 7.1‑Channel HD Audio
Video Outputs: 1 × HDMI (Requires Ryzen CPU with integrated Radeon Graphics)

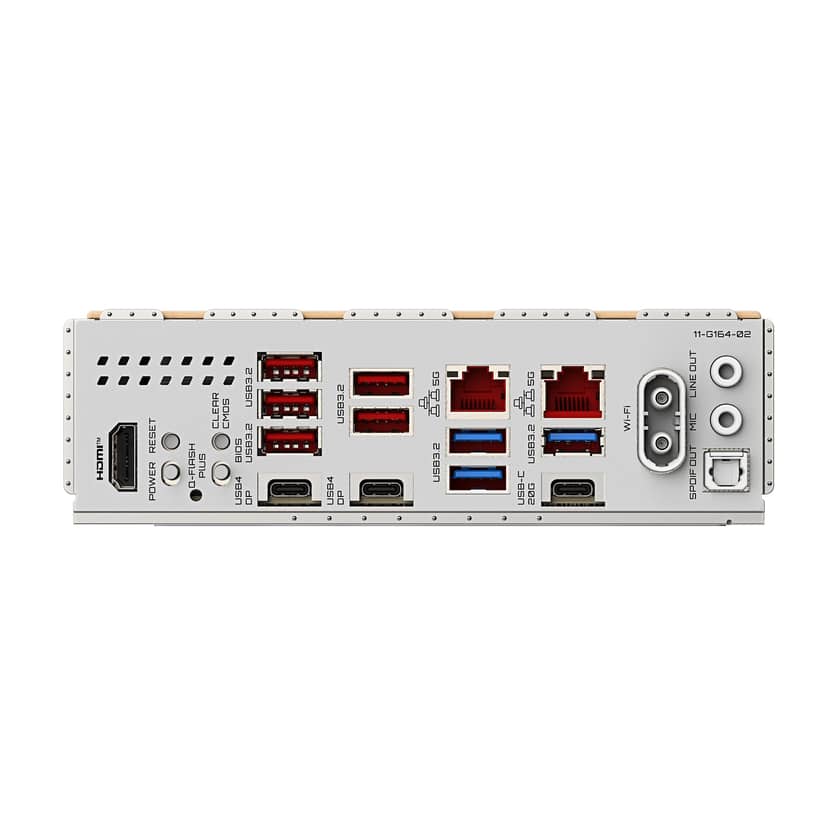

USB Connectivity Rear I/O:
USB4 Type‑C,
USB‑C (USB 3.2 Gen2),
USB‑A (USB 3.2 Gen2),
USB‑A (USB 3.2 Gen1),
USB‑A (USB 2.0),
HDMI,
Dual 5GbE LAN,
Wi‑Fi antenna connectors,
Audio jacks
Internal Headers:
USB 3.2 Gen2x2 front‑panel Type‑C header,
USB 3.2 Gen1 headers,
USB 2.0 headers, RGB & ARGB headers,
Front panel connectors,
TPM header,
Multiple fan headers,
Q‑Flash Plus button
Power Connectors:
24‑pin ATX,
8‑pin CPU power + 8‑pin CPU power
Form Factor: ATX (305 × 244 mm)
Most Suitable For
High‑end AM5 creator PCs
Ryzen 7000 / 8000 / 9000 Series builds
PCIe 5.0 GPU + Gen5 NVMe storage setups
Professional content creation & workstation use
Wi‑Fi 7 + dual 5GbE networking
Premium wood‑aesthetic builds
