Gigabyte X870 EAGLE WIFI7 ATX AM5 Motherboard | PCIe 5.0, Wi‑Fi 7

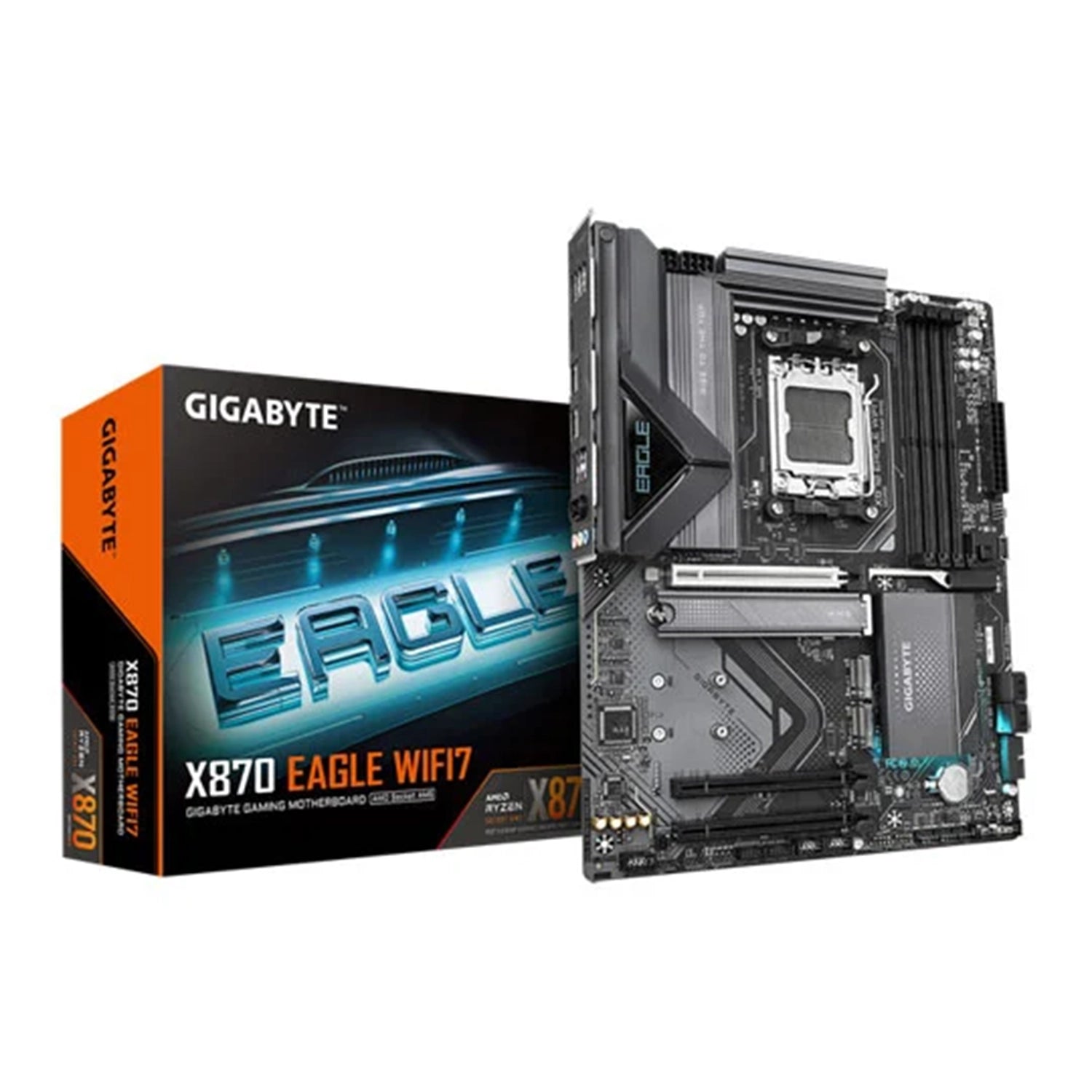

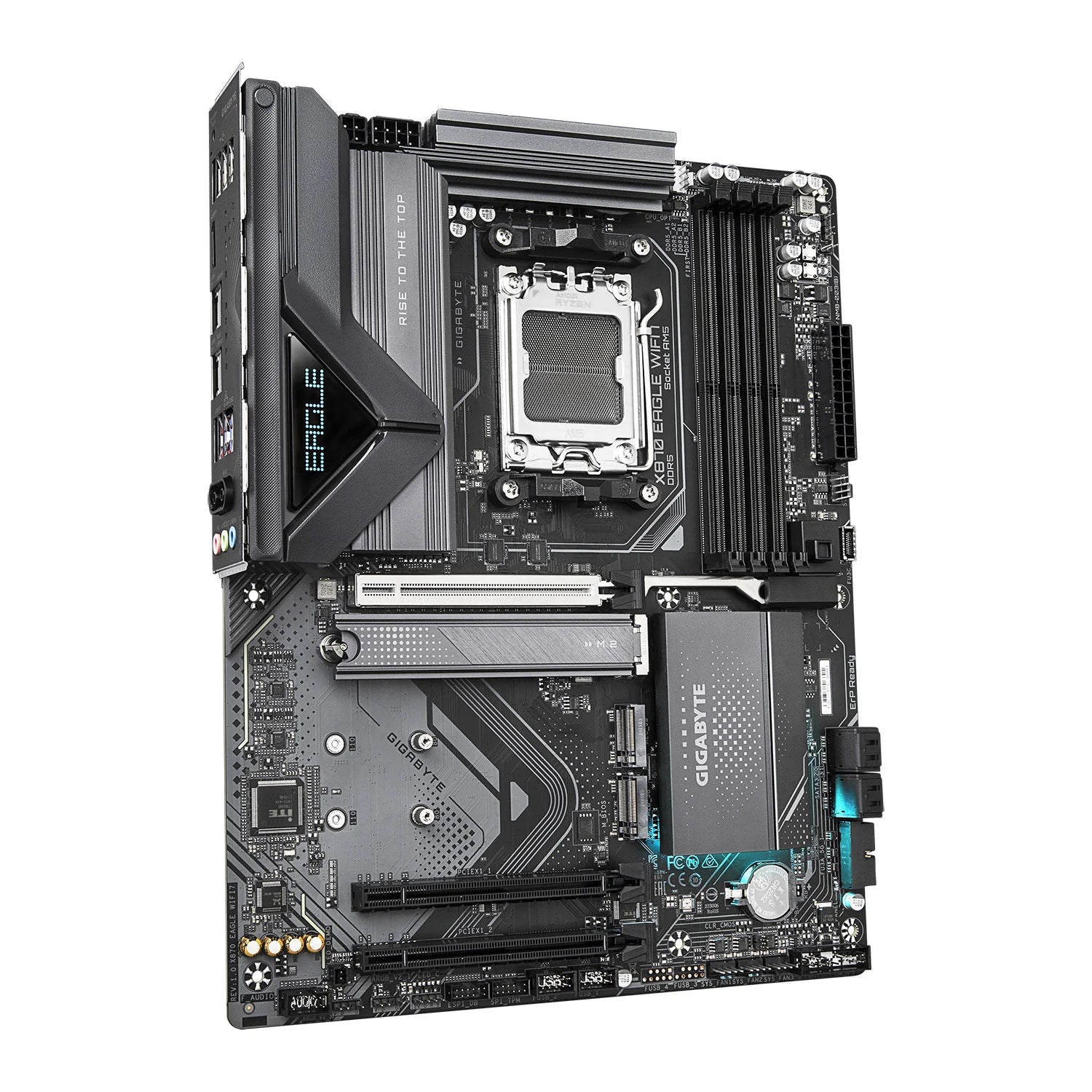

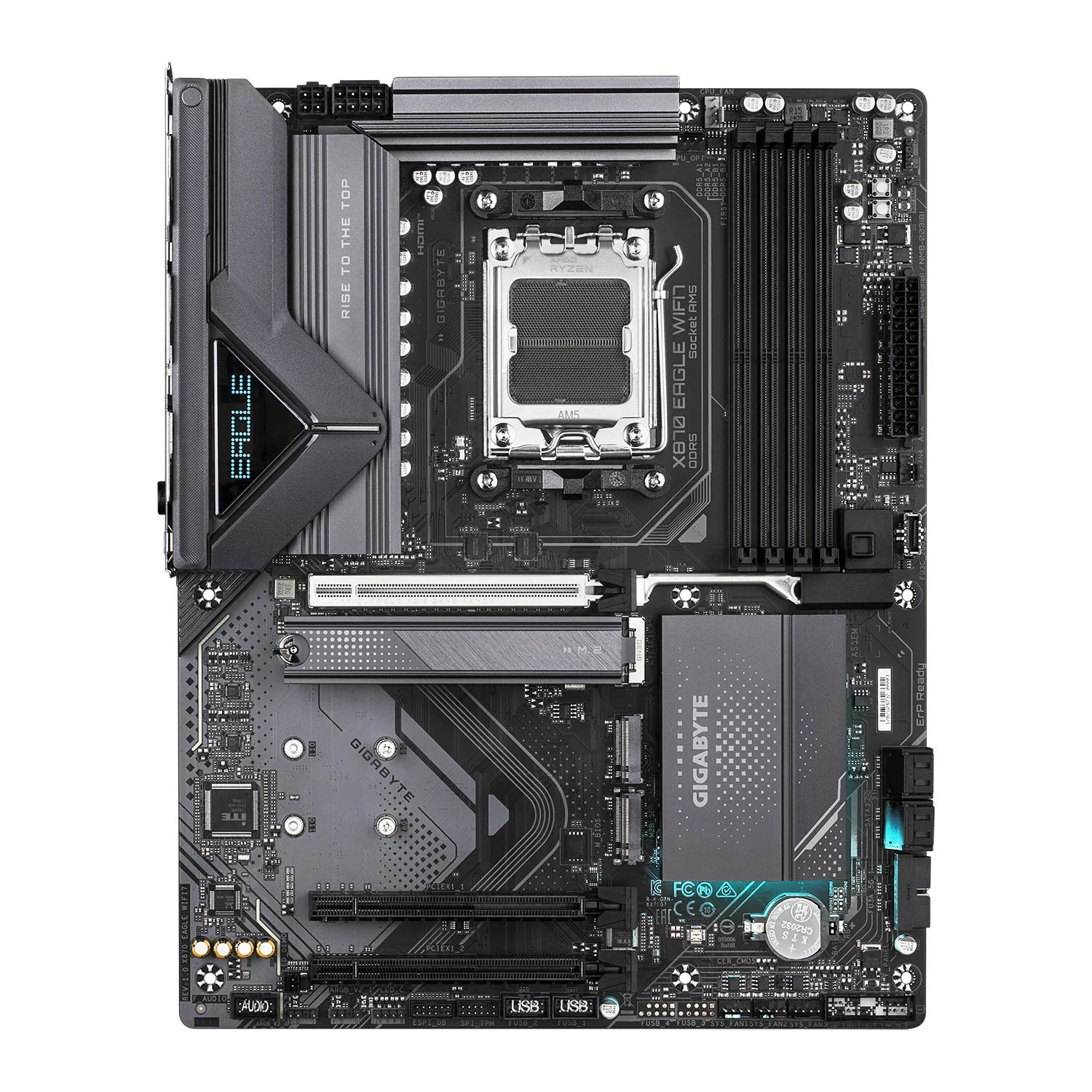

GIGABYTE X870 EAGLE WIFI7 ATX Motherboard

Build a next‑generation AMD system with the Gigabyte X870 EAGLE WIFI7, an ATX motherboard designed for high‑performance gaming, productivity, and modern connectivity. Powered by the AMD X870 chipset, it supports AM5 Ryzen 7000, 8000, and 9000 Series processors, delivering exceptional capability for enthusiasts and creators. With PCIe 5.0 x16, PCIe 5.0/4.0 M.2 slots, DDR5 up to 8000MHz (O.C.), Wi‑Fi 7, 2.5GbE LAN, and USB4 Type‑C, this board provides a future‑ready platform for demanding builds. Gigabyte’s EZ‑Latch tool‑less design, advanced VRM cooling, and Q‑Flash Plus ensure easy installation, clean cable management, and long‑term stability.

Specifications

Type: ATX Motherboard
Brand: Gigabyte
Model: X870 EAGLE WIFI7
Chipset: AMD X870
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 8000 (O.C.)
Max Memory: 256GB
PCIe Slots: 1 × PCIe 5.0 x16, 2 × PCIe 3.0 x16
Storage: 1 × M.2 PCIe 5.0 x4, 2 × M.2 PCIe 4.0 x4, 4 × SATA 6Gb/s, RAID 0/1/5/10 support
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 7 (2.4/5/6GHz)
Bluetooth: v5.4
Audio: Realtek HD Audio, 2/4/5.1/7.1‑channel
Video Outputs: HDMI (requires CPU with integrated graphics)

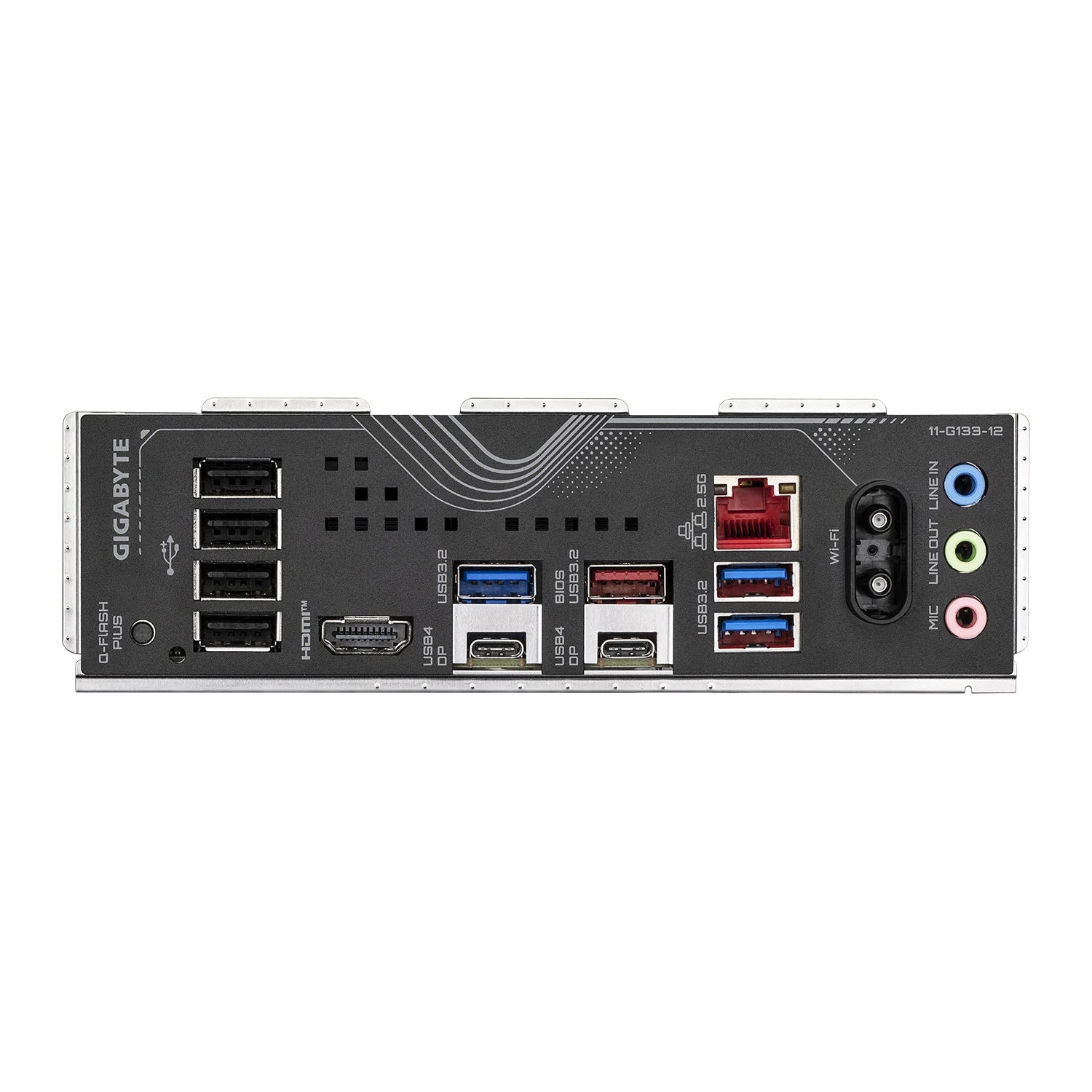

USB Ports (Rear): 4 × USB 2.0, 3 × USB 3.2 Gen1 Type‑A, 1 × USB 3.2 Gen2 Type‑A, 2 × USB4 Type‑C
Internal Headers: USB 2.0 × 2, USB 3.2 Gen1 × 1, USB 3.2 Gen2x2 × 1, 3 × ARGB Gen2 headers, 1 × RGB header, TPM header, Front panel audio, Noise detection header
Internal Buttons: Power, Reset, Q‑Flash Plus
Power Connectors: 24‑pin ATX, 8‑pin ATX, 4‑pin ATX
Form Factor: ATX (305 × 244 mm)
Most Suitable For: High‑end gaming, workstation builds, enthusiast‑grade performance
