GIGABYTE X870 AORUS STEALTH ATX Motherboard

Build a next‑generation AMD system with the Gigabyte X870 AORUS STEALTH, an ATX motherboard engineered for high‑end gaming, extreme performance, and modern connectivity. Featuring the AMD X870 chipset, support for AM5 Ryzen 7000 / 8000 / 9000 Series processors, and DDR5 speeds up to 8200MHz (O.C.), this board delivers exceptional capability for enthusiasts and creators. With PCIe 5.0 x16, PCIe 5.0/4.0 M.2 slots, Wi‑Fi 7, 5GbE LAN, USB4 Type‑C, and ALC1220 audio, it offers a premium, future‑proof platform for high‑performance builds. Gigabyte’s EZ‑Latch tool‑less design, advanced VRM cooling, M.2 Thermal Guard, and Stealth cable‑management layout ensure clean aesthetics, easy installation, and long‑term stability.

Specifications

Type: ATX Motherboard
Brand: Gigabyte
Model: X870 AORUS STEALTH
Chipset: AMD X870
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 8200 (O.C.)
Max Memory: 256GB
PCIe Slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16
Storage:  4 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4), 2 × SATA 6Gb/s ports
LAN: Realtek 5GbE LAN
Wireless: Wi‑Fi 7 (802.11a/b/g/n/ac/ax/be)
Bluetooth: v5.4
Audio: Realtek ALC1220 HD Audio
S/PDIF: Yes
Video Outputs: HDMI (requires CPU with integrated graphics)

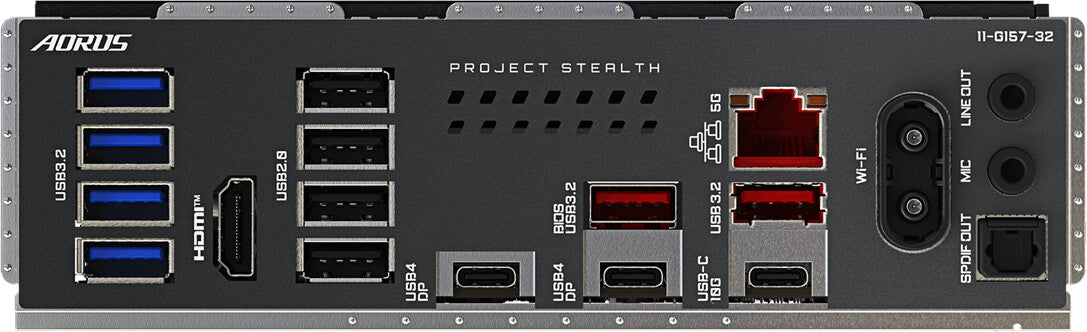

USB Ports (Rear): 4 × USB 2.0, 4 × USB 3.2 Gen1 Type‑A, 2 × USB 3.2 Gen2 Type‑A, 1 × USB 3.2 Gen2 Type‑C, 2 × USB4 Type‑C
Internal Headers:  USB 2.0 headers × 2, USB 3.2 Gen1 header × 1, USB 3.2 Gen2x2 header × 1, 3 × ARGB Gen2 headers, 1 × RGB header, TPM header, Noise detection header, Temperature sensor headers
Internal Buttons: Power, Reset, Q‑Flash Plus
Power Connectors: 24‑pin ATX, 8‑pin ATX, 4‑pin ATX
Form Factor: ATX (305 × 244 mm)
Most Suitable For: High‑end gaming, workstation builds, enthusiast‑grade performance
