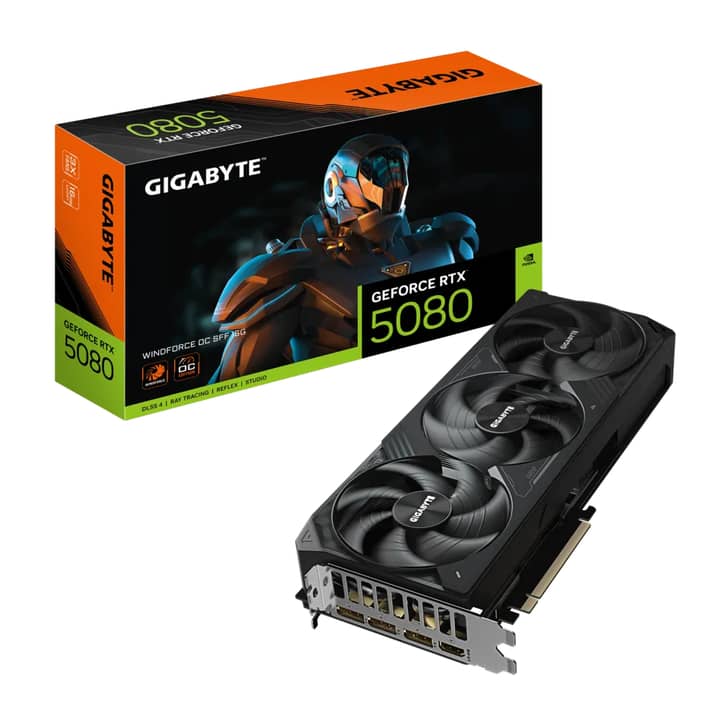

Gigabyte RTX 5080 Windforce OC SFF 16GB GDDR7 – PCIe 5.0 GPU
Gigabyte RTX 5080 Windforce OC 16GB GDDR7 GPU
The Gigabyte GeForce RTX 5080 Windforce OC SFF delivers exceptional next‑generation performance in a compact, small‑form‑factor design. Featuring 16GB of ultra‑fast GDDR7 memory, a factory‑overclocked boost clock, and NVIDIA’s advanced Blackwell architecture, this graphics card is built for high‑FPS 4K gaming, ray tracing, and AI‑accelerated workloads.
The WINDFORCE cooling system — equipped with triple fans, a vapour chamber, and composite heat pipes — ensures excellent thermal efficiency even under heavy gaming loads. With PCIe 5.0 support, DisplayPort 2.1 connectivity, and a reinforced metal backplate, the RTX 5080 Windforce OC SFF combines power, cooling, and durability in a compact footprint. Ideal for high‑end SFF builds, creators, and gamers seeking top‑tier performance.
Specifications
Chipset: GeForce RTX 5080
Edition: Gigabyte RTX 5080 Windforce OC SFF 16GB
Microarchitecture: Blackwell
Cores: 10,752 CUDA Cores
Boost Clock: 2670 MHz
AI TOPS: 1,320+ (Blackwell AI acceleration)
Memory Size: 16GB
Memory Type: GDDR7
Memory Bandwidth: 960 GB/sec
Memory Bus: 256 Bit
Cooling Solution: WINDFORCE Triple Fan
Included/Fitted Backplate: Yes (Metal Backplate)
Interface: PCIe 5.0 (x16)
Connectivity: 3 × DisplayPort 2.1, 1 × HDMI 2.1
GeForce VR Ready: Yes
Microsoft DirectX Support: 12 API
HDCP Ready: Yes
Max. Concurrent Displays: 4 Displays
Maximum Digital Resolution: 7680 × 4320 (8K UHD)
Real‑Time Ray Tracing: Yes
NVIDIA RT Cores: 84 (4th Gen)
NVIDIA Tensor Cores: 336 (5th Gen)
Graphics Card Power Connectors: 1 × 16‑pin 12VHPWR
