Gigabyte H810M GAMING WIFI6 LGA1851 Micro‑ATX Motherboard – DDR5, Wi‑Fi 6, PCIe 4.0
GIGABYTE 1851 H810M GAMING WIFI6 M‑ATX
A compact and affordable LGA1851 Micro‑ATX motherboard built for Intel Core Ultra (Series 2) processors. Despite being an entry‑tier H810 chipset board, it delivers modern essentials: DDR5, PCIe 4.0, Wi‑Fi 6, 2.5GbE LAN, M.2 PCIe 4.0, and GIGABYTE’s EZ‑Latch conveniences. Ideal for budget gaming or office builds where reliability, connectivity, and small‑form‑factor compatibility matter.
Specifications
Type: Micro ATX Motherboard
Brand: GIGABYTE
Model: H810M GAMING WIFI6
Chipset: Intel H810 Express
CPU Socket: LGA 1851
Supported CPUs: Intel Core Ultra processors (Series 2)
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 × 288‑pin
RAM Speeds: Up to DDR5‑6400
Max Memory: 128GB
PCIe Slots: 1 × PCIe 4.0 x16 1 × PCIe 3.0 x1
M.2 Slots: 1 × PCIe 4.0 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/5/10
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6 (2.4/5 GHz)
Bluetooth: 5.3
Audio Codec: Realtek High Definition Audio
Channels: 2/4/5.1/7.1‑Channel
Video Outputs: 1 × HDMI, 1 × DisplayPort (Requires CPU with integrated graphics)

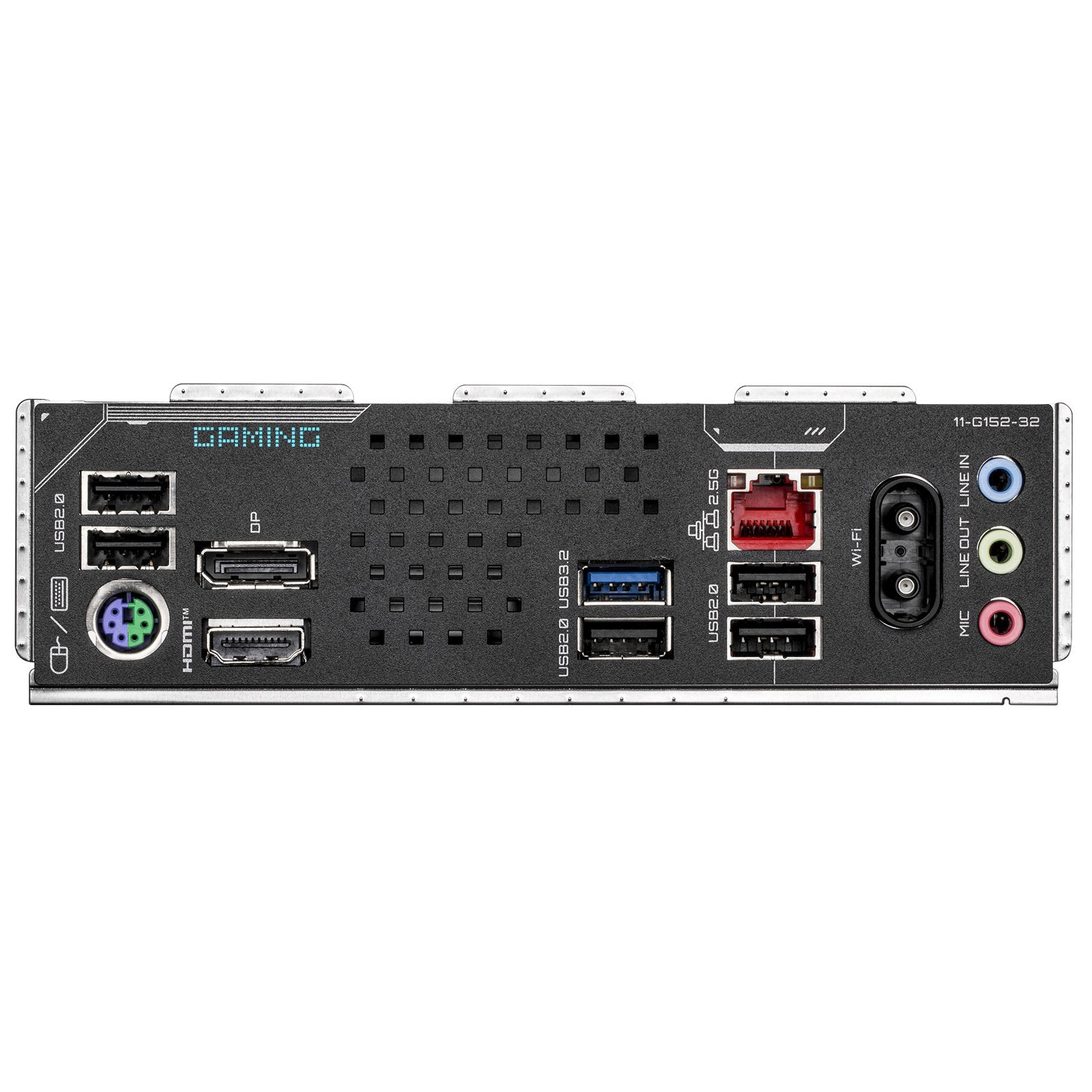

Rear I/O:
1 × PS/2 combo
5 × USB 2.0
1 × USB 3.2 Gen1 Type‑A
HDMI
DisplayPort
2.5GbE LAN
3 × audio jacks
Internal Headers:
2 × USB 2.0 headers
2 × USB 3.2 Gen1 headers
1 × COM header
1 × TPM header
1 × S/PDIF Out header
2 × ARGB Gen2 headers
Front panel connectors
Power Connectors:
24‑pin ATX
8‑pin CPU power
Form Factor: Micro ATX (215 × 244 mm)
