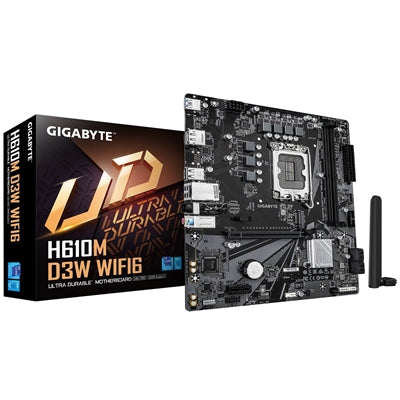

Gigabyte H610M D3W WIFI6 (Rev. 1.1) Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, WiFi 6, 1x DisplayPort / 1x HDMI Port

Gigabyte H610M D3W WIFI6 (Rev. 1.1) Intel Motherboard Micro‑ATX DDR5

The Gigabyte H610M D3W WIFI6 Micro ATX motherboard is built for Intel LGA 1700 processors, supporting fast DDR5 memory for improved responsiveness and efficiency. Designed for home, office, and entry‑level gaming systems, it delivers stable performance, modern connectivity, and integrated WiFi 6 in a compact form factor. With support for high‑speed storage, multiple display outputs, and reliable networking, it provides a strong and future‑ready foundation for everyday computing.

Specifications

CPU Socket: LGA 1700
CPU Brand: Intel
Supported Processor Manufacturer: Intel
Supported Processors: Intel 12th & 13th Gen Core / Pentium / Celeron 64‑bit Support: Yes
Socket: LGA 1700

USB Ports (Rear I/O)

• USB 3.2 Gen1 ports
• USB 2.0 ports

Display Outputs

• 1 × DisplayPort
• 1 × HDMI

Networking

• 1 × RJ‑45 GbE LAN
• WiFi 6 (Integrated)

Audio Ports

• 3 × 3.5 mm audio jacks (Line In / Line Out / Mic In)

Storage

• 1 × M.2 slot (NVMe SSD support)
• SATA III ports (model‑standard)

Internal USB Headers

• USB‑C header (model‑dependent)
• USB 3.2 Gen1 header
• USB 2.0 headers

Front Panel Connectors

• 1 × Front Panel

• 1 × Front Audio

Cooling Fan Support

• 1 × CPU Fan Header
• 1 × System Fan Header

Security & Expansion Headers

• 1 × TPM Header
• 1 × COM Header
• 1 × Chassis Intrusion Header

Power Connectors

• 1 × 24‑pin ATX • 1 × 8‑pin EPS

Memory

Memory Bus Speed: DDR5 (up to manufacturer‑supported speeds)
Memory Type: DDR5
Maximum RAM: 64 GB
Memory Slots: 2 × DIMM

PCI Express Slots

• 1 × PCI Express 4.0 x16 slot • 2 × PCI Express 3.0 x1 slots

Integrated Graphics Supported: Yes (via compatible Intel CPUs)
