Gigabyte B860 GAMING X WIFI6E LGA1851 ATX Motherboard – DDR5, PCIe 5.0, Wi‑Fi 6E

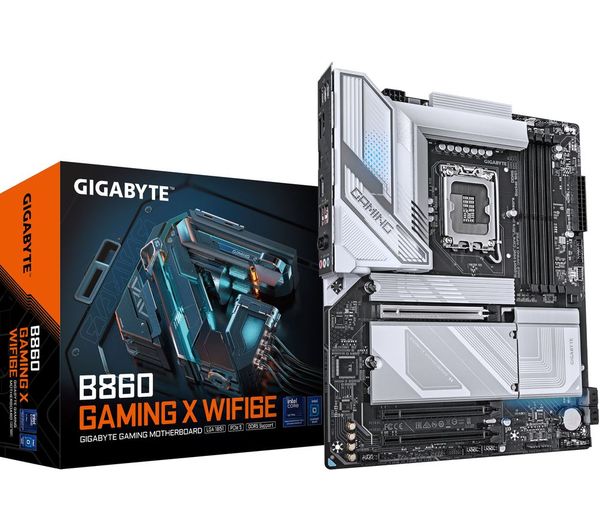

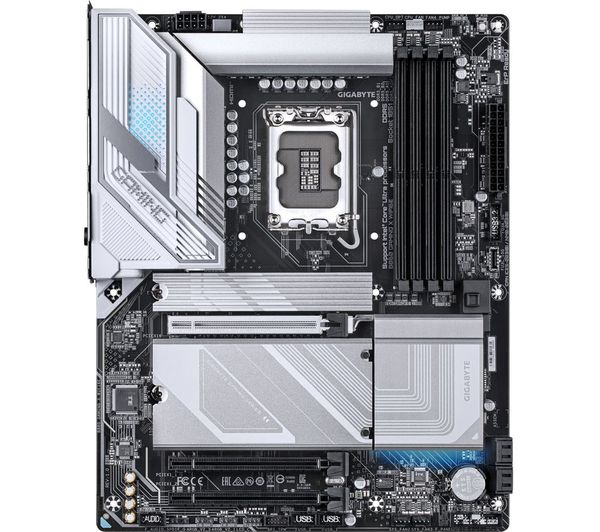

GIGABYTE B860 GAMING X WIFI6E ATX Motherboard
Build a powerful and modern Intel 1851 system with the GIGABYTE B860 GAMING X WIFI6E, a next‑generation ATX motherboard designed for gaming, productivity, and high‑performance desktop builds. Powered by the Intel B860 Express chipset, it supports the latest Intel Core Ultra processors and delivers ultra‑fast DDR5 performance up to DDR5‑9066 (O.C.). With PCIe 5.0 x16, triple M.2 slots (Gen5), 2.5GbE LAN, Wi‑Fi 6E, USB4 Type‑C, and advanced thermal design, this board provides exceptional speed, stability, and reliability. GIGABYTE features such as Twin Hybrid 12+1+2 VRM, EZ‑Latch Plus, M.2 Thermal Guard, and Q‑Flash Plus ensure easy installation, excellent cooling, and long‑term durability — all wrapped in a clean ATX layout ideal for modern gaming builds.
Specifications
Type: ATX Motherboard
Brand: GIGABYTE
Model: B860 GAMING X WIFI6E
Chipset: Intel B860 Express
CPU Socket: LGA 1851
Supported CPUs: Intel Core Ultra processors
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speeds: Up to DDR5‑9066 (O.C.)
Max Memory: 256GB
PCIe Slots: 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x16
M.2 Slots: 1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/5/10
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6E (2.4/5/6 GHz)
Bluetooth: 5.3
Audio Codec: Realtek High Definition Audio
Channels: 2/4/5.1/7.1‑Channel High Definition Audio
Video Outputs: 1 × HDMI, 1 × DisplayPort (Requires CPU with integrated graphics)
Special Features:
Twin Hybrid 12+1+2 VRM
D5 Bionic Corsa memory architecture
AI Perfdrive BIOS profiles
WIFI EZ‑Plug quick antenna installation
EZ‑Latch Plus PCIe & M.2 quick‑release design
EZ‑Latch Click screwless M.2 heatsinks
Power Monitor support in HWinfo
VRM Thermal Armor Advanced
M.2 Thermal Guard Ext
USB4 Type‑C with DP‑Alt
Q‑Flash Plus

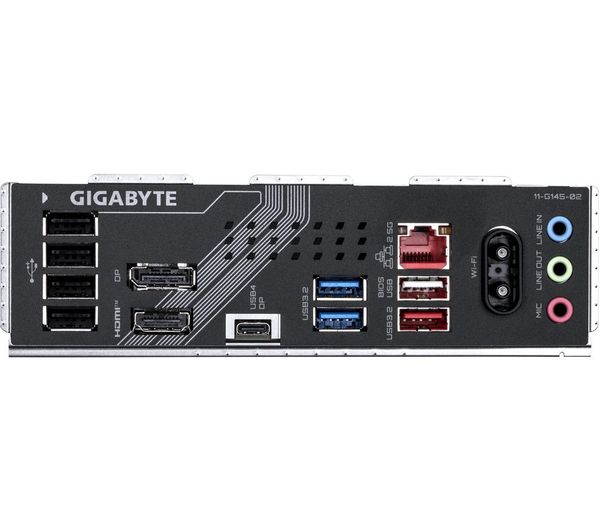

USB Connectivity Rear I/O:
5 × USB 2.0
2 × USB 3.2 Gen1 Type‑A
1 × USB 3.2 Gen2 Type‑A
1 × USB4 Type‑C
HDMI
DisplayPort
2.5GbE LAN
2 × antenna connectors
3 × audio jacks
Internal Headers:
2 × USB 2.0 headers
1 × USB 3.2 Gen1 header
1 × USB 3.2 Gen2 header
3 × ARGB Gen2 headers
1 × RGB header
TPM header
S/PDIF Out header
Front panel connectors
Multiple fan headers
Power Connectors:
24‑pin ATX
8‑pin CPU power
Form Factor: Standard ATX (305 × 244 mm)
Package Contents:
Motherboard
Manual
Quick Installation Guide
1 × Antenna
2 × SATA cables
M.2 rubber pads
Most Suitable For
High‑performance Intel 1851 gaming PCs
Intel Core Ultra builds
PCIe 5.0 GPU + Gen5 NVMe setups
Wi‑Fi 6E + 2.5Gb LAN connectivity
ATX gaming and productivity systems
