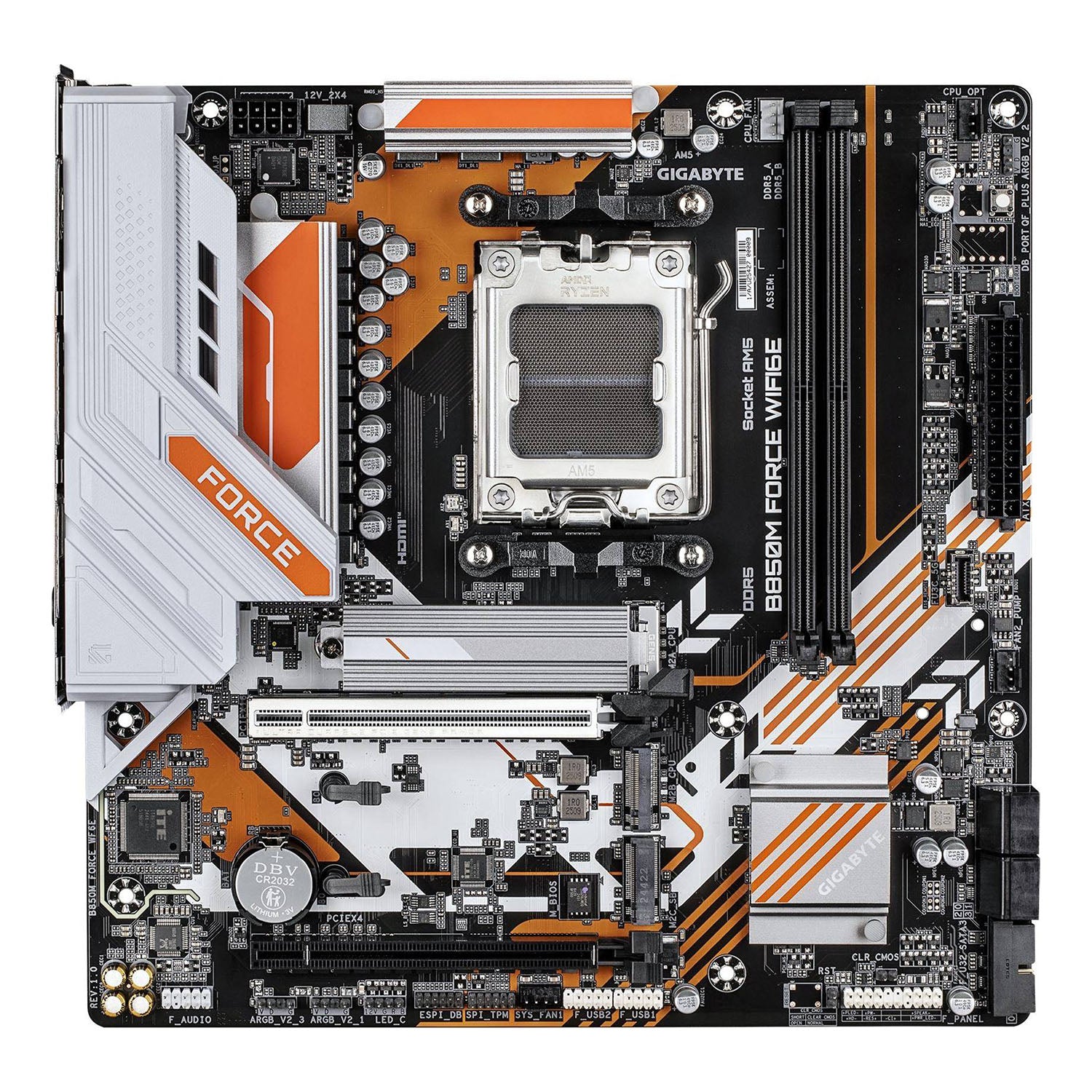

GIGABYTE B850M FORCE WIFI6E – AM5 Micro ATX Motherboard, DDR5, PCIe 5.0, Wi‑Fi 6E
GIGABYTE AM5 B850M FORCE WIFI6E DDR5
Build a compact and powerful AM5 system with the GIGABYTE B850M FORCE WIFI6E, a feature‑rich Micro ATX motherboard designed for Ryzen 7000 / 8000 / 9000 Series processors. Powered by the AMD B850 chipset, it delivers next‑generation performance with DDR5 up to 9600MT/s (O.C), PCIe 5.0 GPU support, triple M.2 slots including PCIe 5.0, Wi‑Fi 6E, 2.5GbE LAN, and robust VRM cooling. GIGABYTE technologies such as X3D Turbo Mode, EZ‑Latch quick‑release PCIe/M.2, Wi‑Fi EZ‑Plug, Q‑Flash Plus, and a friendly multi‑theme BIOS ensure easy installation, excellent stability, and long‑term durability — ideal for modern compact AM5 gaming and productivity builds.
Specifications
Type: Micro ATX Motherboard
Brand: GIGABYTE
Model: B850M FORCE WIFI6E
Chipset: AMD B850
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series
Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 × 288‑pin
RAM Speed Support: Up to DDR5 9600 (O.C)
Max Memory: 128GB
PCIe Slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16
M.2 Slots: 1 × PCIe Gen5 x4, 2 × PCIe Gen4 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0 / 1 / 5 / 10
Networking
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6E (2.4 / 5 / 6 GHz)
Bluetooth: 5.3
Audio
Codec: Realtek Audio CODEC
Channels: 2 / 4 / 5.1 / 7.1‑Channel HD Audio
Video Outputs
(Requires Ryzen CPU with integrated graphics)
1 × HDMI
1 × DisplayPort
Special Features
X3D Turbo Mode for enhanced gaming performance
Digital 8+2+2 Phase VRM
EZ‑Latch PCIe quick‑releae
EZ‑Latch Click screwless M.2 heatsinks
Wi‑Fi EZ‑Plug quick antenna installation
Ultra‑Fast Storage: 3 × M.2 including PCIe 5.0
Friendly UI BIOS: multi‑theme, AIO fan control, auto scan
Q‑Flash Plus
Extended connectivity: DP, HDMI
USB Connectivity Rear I/O
2 × USB 2.0
1 × USB 3.2 Gen1 Type‑A
1 × USB 3.2 Gen1 Type‑C
HDMI
DisplayPort
2.5GbE LAN
Wi‑Fi antenna connectors
3 × audio jacks
Internal Headers
24‑pin ATX
1 × 8‑pin CPU power
2 × USB 2.0 headers
1 × USB 3.2 Gen1 header
Front panel audio
TPM header
3 × ARGB Gen2 headers
1 × RGB header
Q‑Flash Plus button
Form Factor: Micro ATX (244 × 244 mm)
