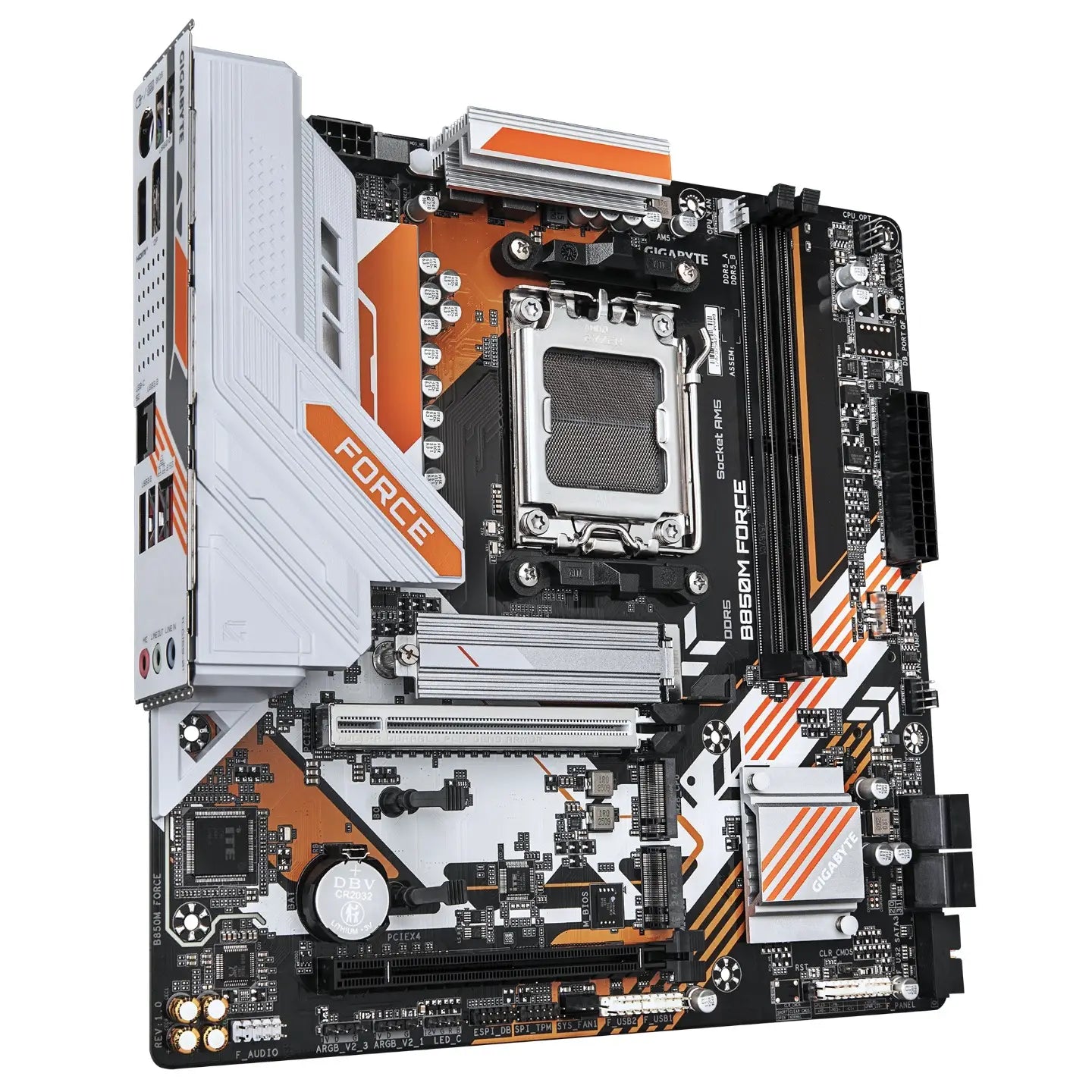

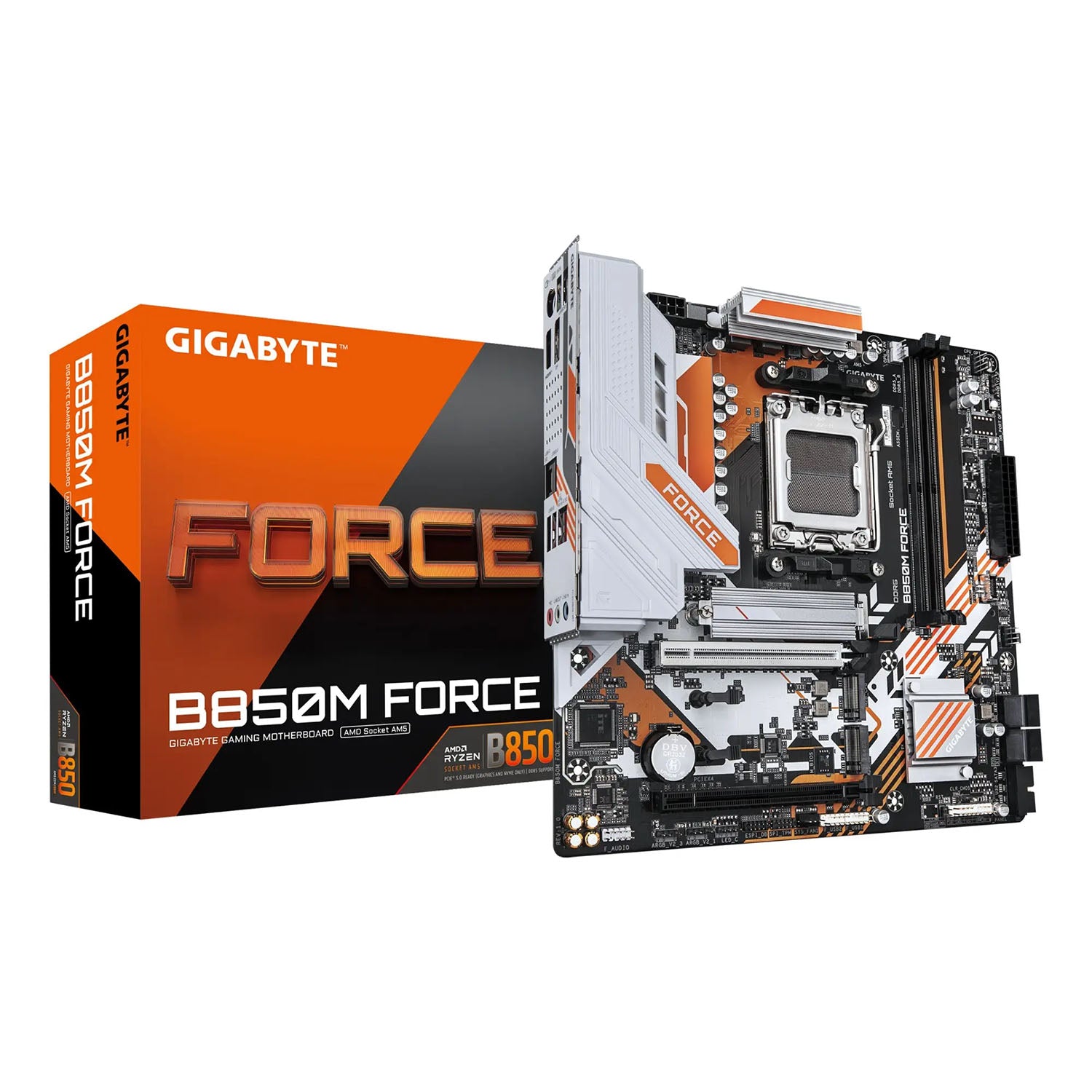

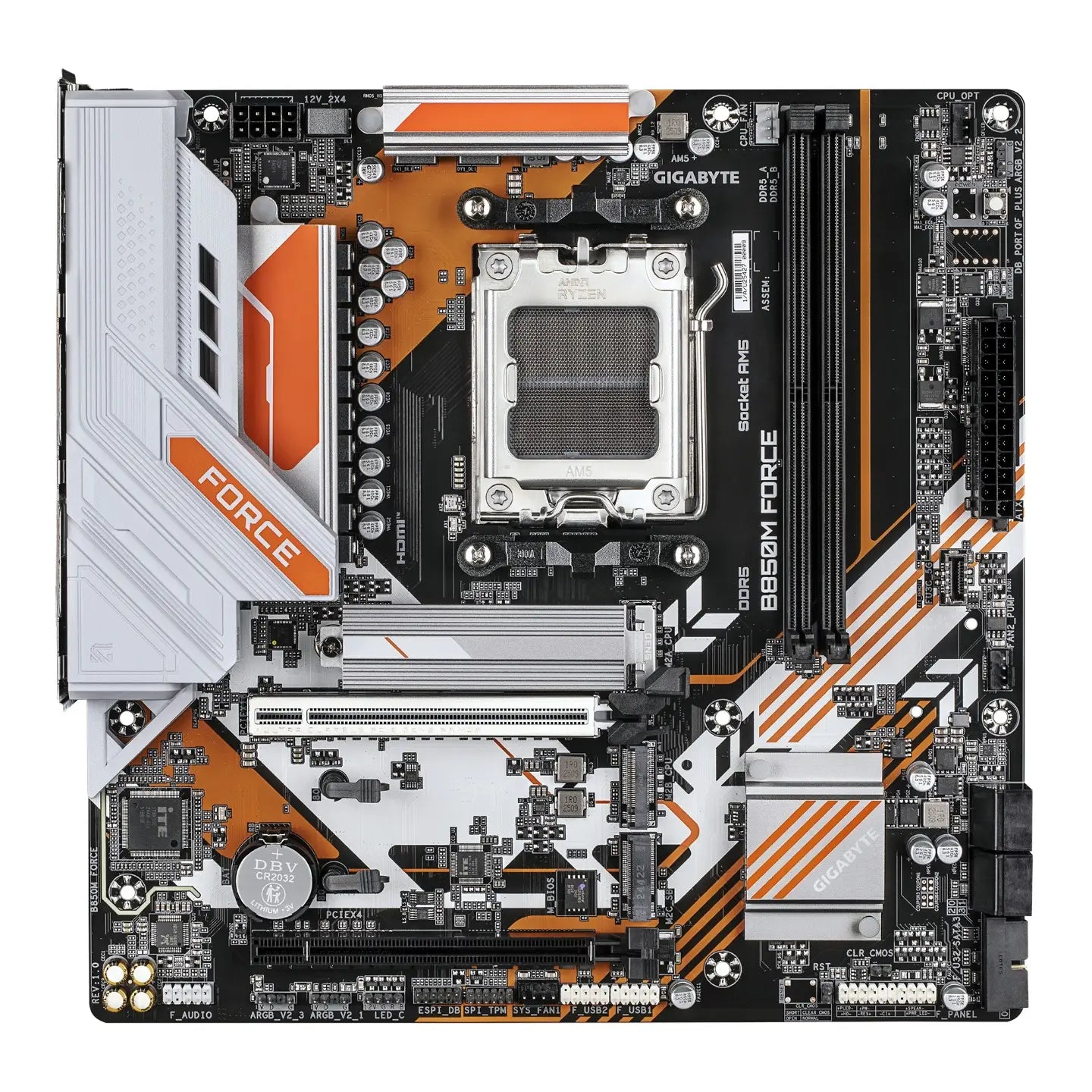

GIGABYTE AM5 B850M FORCE M‑ATX (Socket AM5) DDR5 Micro ATX Motherboard

Build a compact and powerful AM5 system with the GIGABYTE B850M FORCE, a feature‑rich Micro ATX motherboard designed for Ryzen 7000 / 8000 / 9000 Series processors. Powered by the AMD B850 chipset, it delivers next‑generation performance with DDR5 up to 9600MT/s (O.C), PCIe 5.0 GPU support, triple M.2 slots including PCIe 5.0, 2.5GbE LAN, and robust VRM cooling. GIGABYTE technologies such as X3D Turbo Mode, EZ‑Latch quick‑release PCIe/M.2, Friendly UI BIOS, Q‑Flash Plus, and VRM Thermal Armor ensure easy installation, excellent stability, and long‑term durability — ideal for modern compact AM5 gaming and productivity builds.

Specifications

Type: Micro ATX Motherboard Brand: GIGABYTE Model: B850M FORCE Chipset: AMD B850 CPU Socket: AM5 Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series

Memory

RAM Technology: DDR5 (Dual Channel) RAM Slots: 4 × 288‑pin RAM Speed Support: Up to DDR5 9600 (O.C) Max Memory: 128GB

PCIe Slots

• 1 × PCIe 5.0 x16

• 1 × PCIe 4.0 x16

M.2 Slots

• 1 × PCIe Gen5 x4

• 2 × PCIe Gen4 x4

SATA Ports

4 × SATA 6Gb/s

RAID Support

RAID 0 / 1 / 5 / 10

Networking

LAN: Realtek 2.5GbE LAN Wireless: None listed on this model page Bluetooth: None listed

Audio

Codec: Realtek Audio CODEC Channels: 2 / 4 / 5.1 / 7.1‑Channel HD Audio

Video Outputs

(Requires Ryzen CPU with integrated graphics)

• 1 × HDMI

• 1 × DisplayPort

Special Features

• X3D Turbo Mode for enhanced gaming performance

• Digital 8+2+2 Phase VRM solution

• EZ‑Latch PCIe quick‑release

• EZ‑Latch Click screwless M.2 heatsinks

• Friendly UI BIOS: multi‑theme, AIO fan control, Q‑Flash Auto Scan

• Ultra‑Fast Storage: 3 × M.2 including PCIe 5.0 x4

• Fast Networking: 2.5GbE LAN

• Extended Connectivity: DP, HDMI

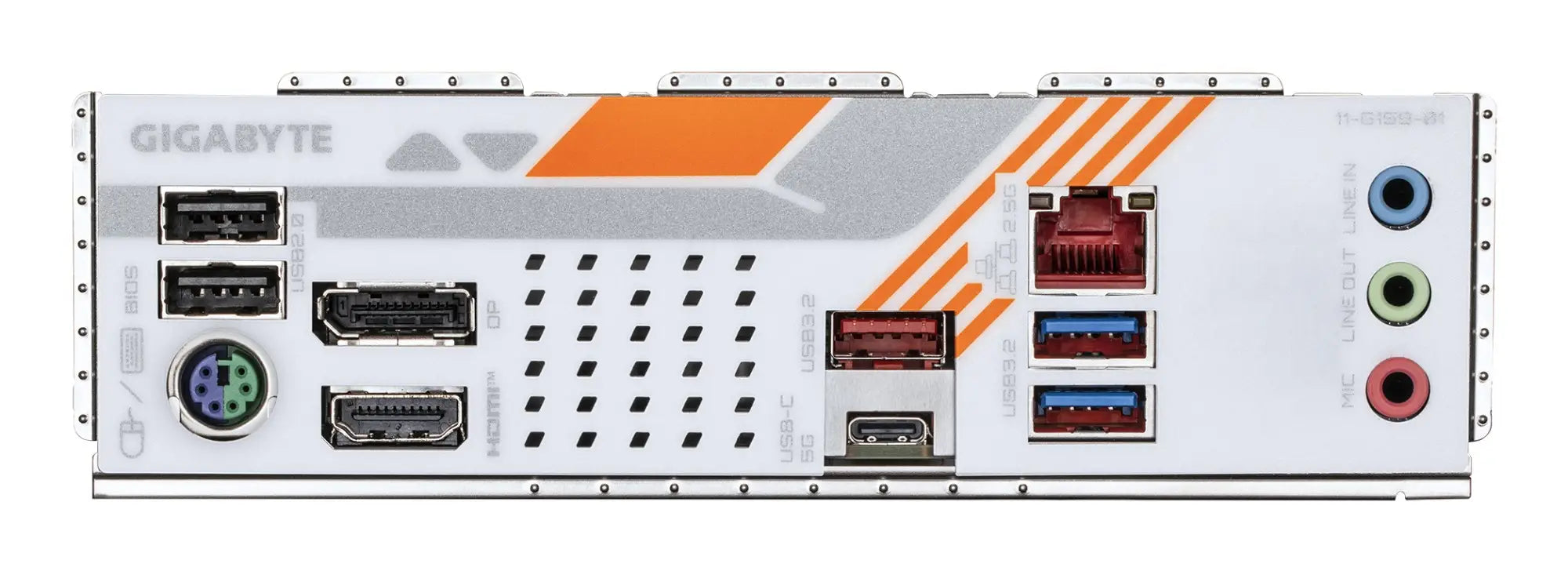

USB Connectivity Rear I/O

• 2 × USB 2.0

• 2 × USB 3.2 Gen1 Type‑A

• 1 × USB 3.2 Gen1 Type‑C

• 2 × USB 3.2 Gen2 Type‑A

• HDMI

• DisplayPort

• 2.5GbE LAN

• 3 × audio jacks

Internal Headers

• 24‑pin ATX

• 1 × 8‑pin CPU power

• 2 × USB 2.0 headers

• 1 × USB 3.2 Gen1 header

• Front panel audio

• TPM header

• 3 × ARGB Gen2 headers

• 1 × RGB header

• Q‑Flash Plus button

Form Factor

Micro ATX (244 × 244 mm)
