Gigabyte B850M AORUS ELITE WIFI6E ICE Micro‑ATX AM5 Motherboard – PCIe 5.0, DDR5

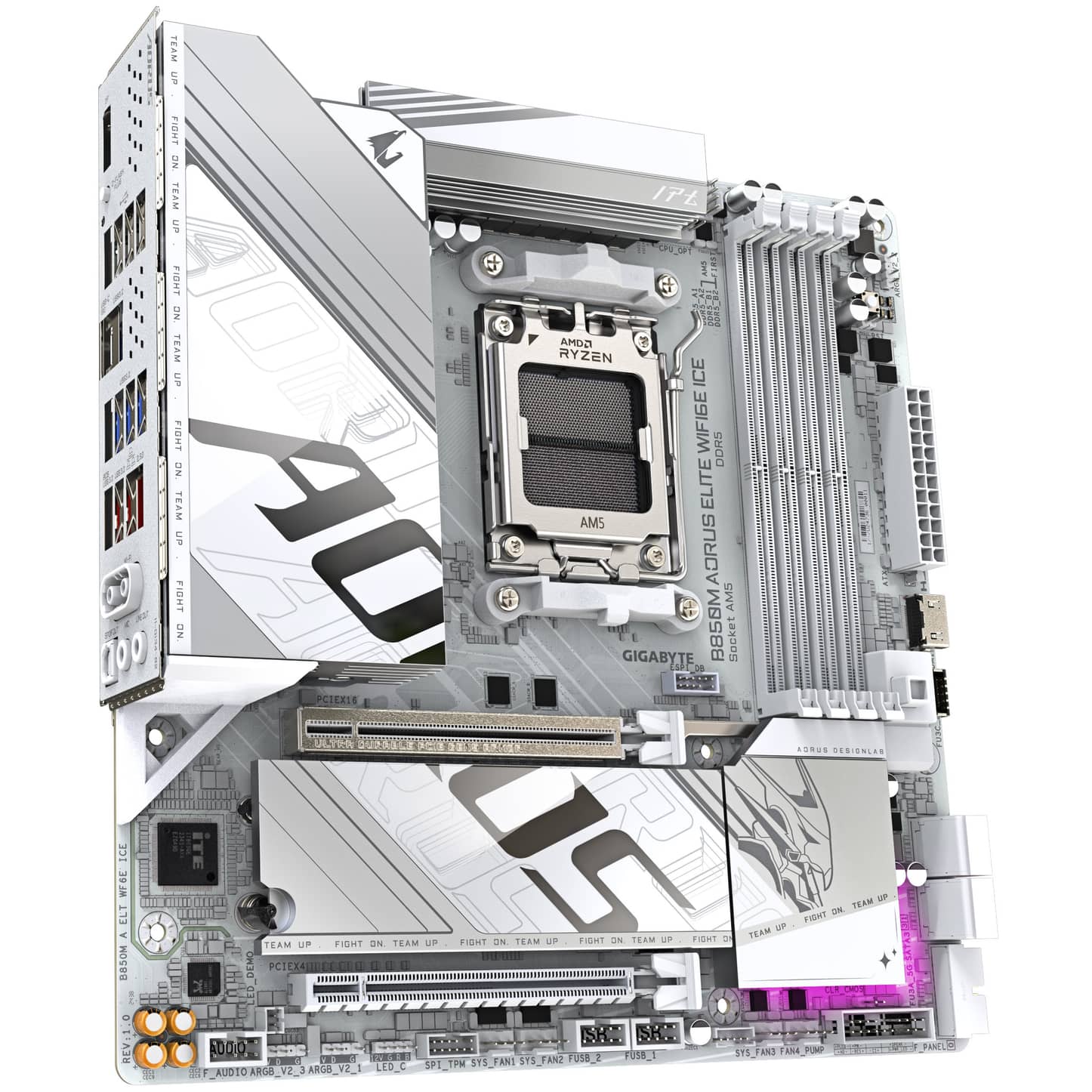

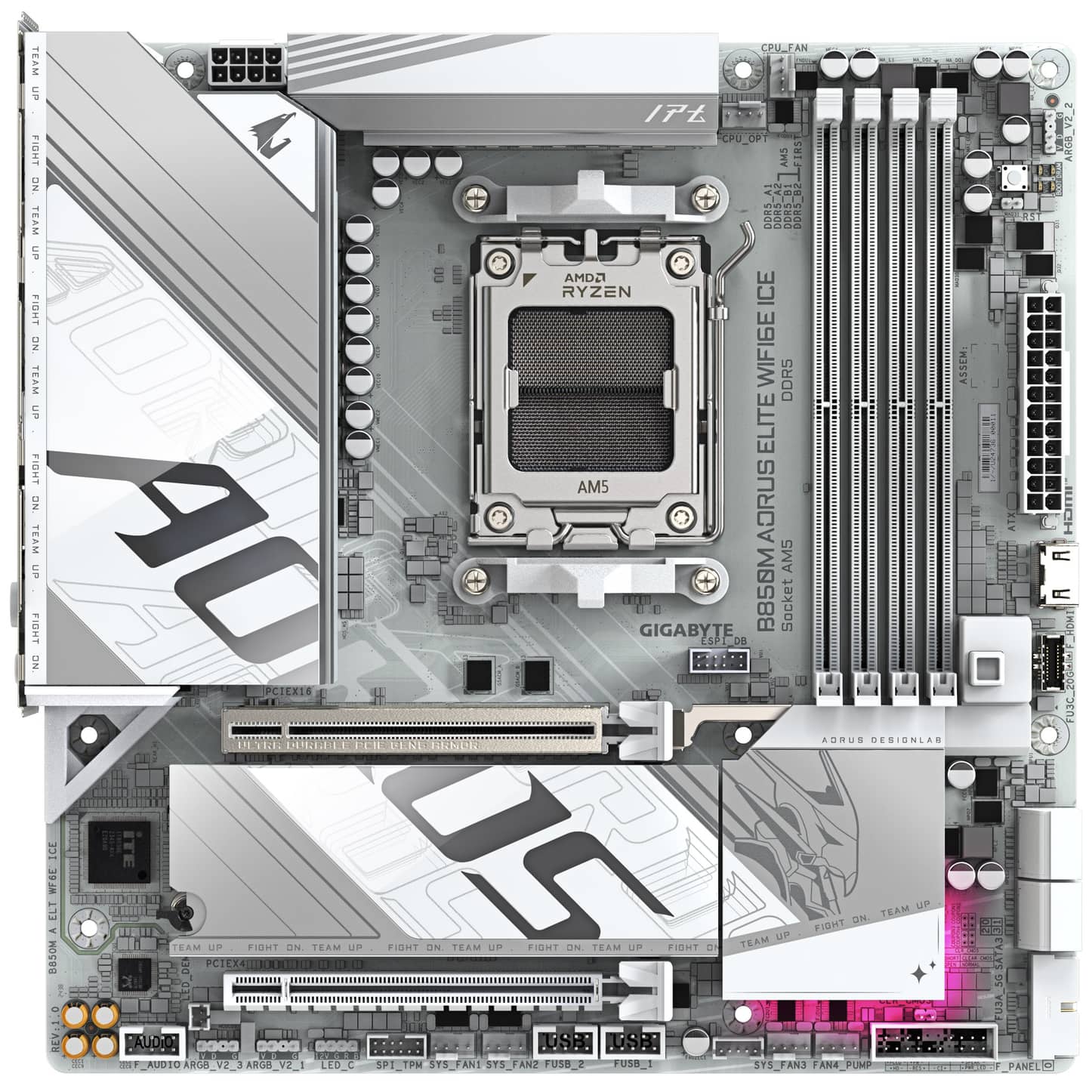

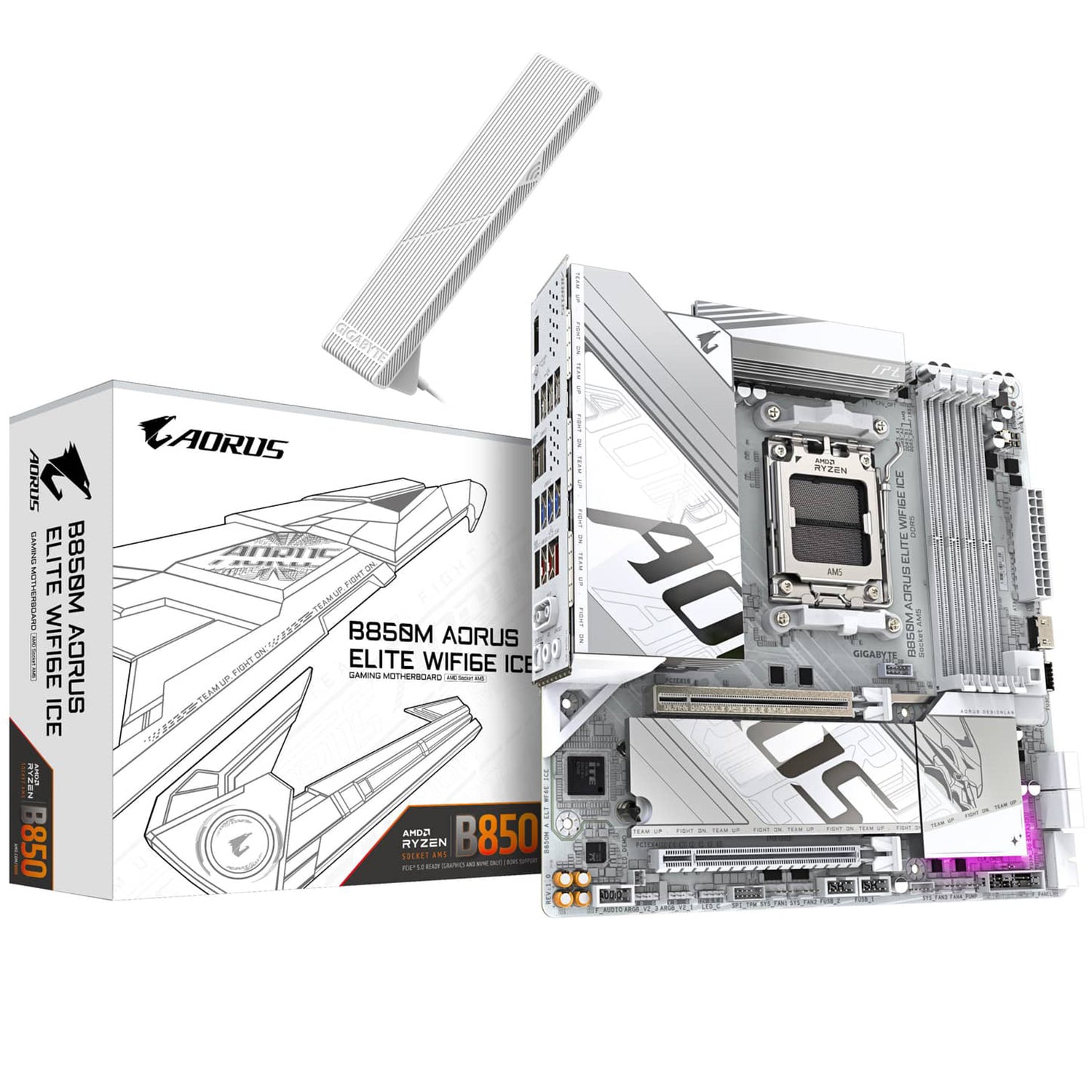

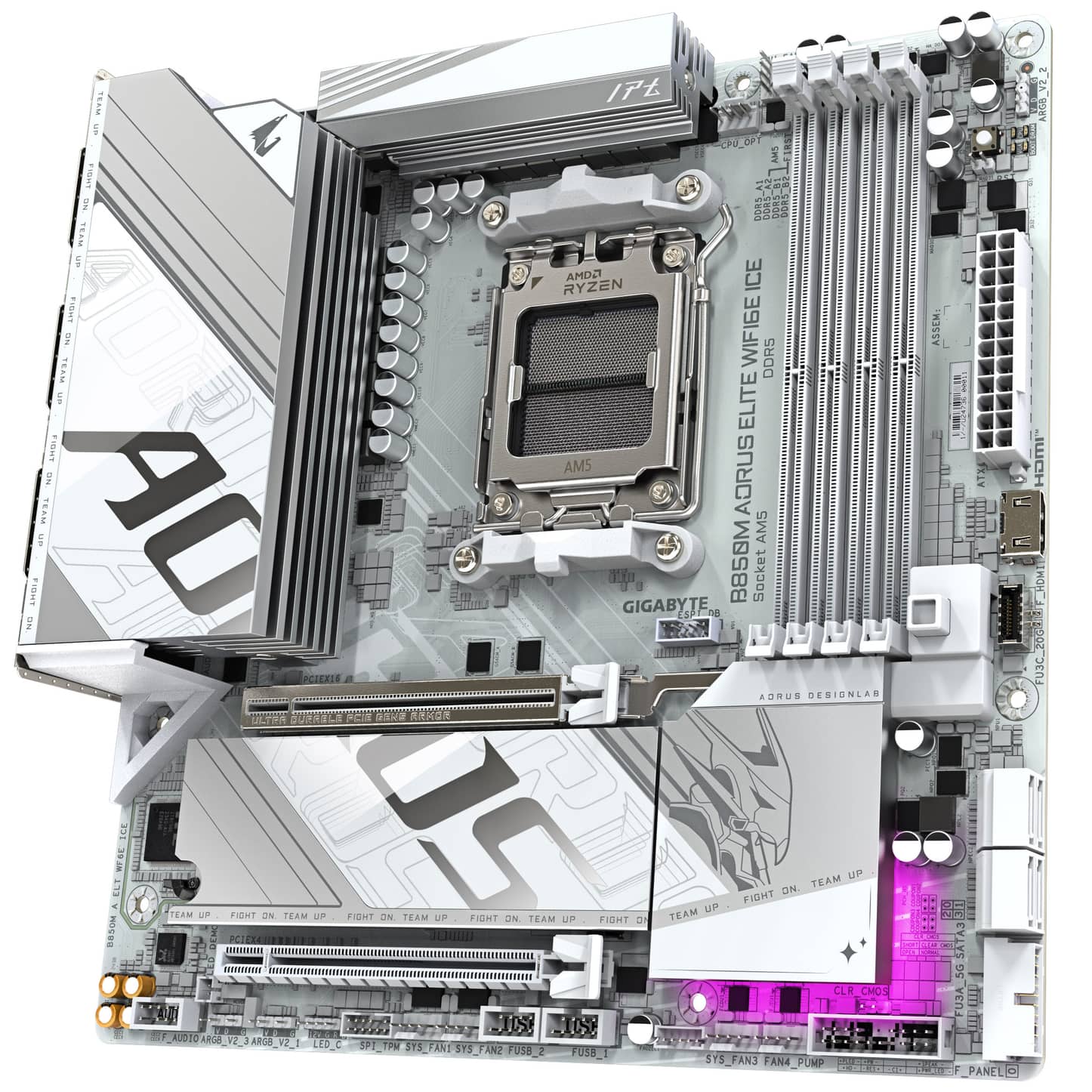

Gigabyte B850M AORUS ELITE WIFI6E ICE
Build a powerful and modern AM5 system with the Gigabyte B850M AORUS ELITE WIFI6E ICE, a premium Micro‑ATX motherboard designed for gaming, productivity, and high‑performance desktop builds. Powered by the AMD B850 chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers ultra‑fast DDR5 performance up to 8200MHz (O.C.). With PCIe 5.0 x16 GPU support, dual M.2 slots, 2.5GbE LAN, Wi‑Fi 6E, USB‑C connectivity, and a striking ICE‑white aesthetic, this board provides next‑generation speed, stability, and style for compact AM5 builds. Gigabyte features such as EZ‑Latch, reinforced PCIe slot, advanced VRM cooling, and Q‑Flash Plus ensure easy installation, excellent thermals, and long‑term durability.
Specifications
Type: Micro‑ATX Motherboard
Brand: Gigabyte
Model: B850M AORUS ELITE WIFI6E ICE
Chipset: AMD B850 CPU
Socket: AM5 Supported
CPUs: Ryzen 7000 / 8000 / 9000 Series (with integrated graphics for display output)
RAM Type: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5‑8200 (O.C.)
Max Memory: 192GB
PCIe Slots:
1 × PCIe 5.0 x16 (GPU slot),
1 × PCIe 4.0 x4,
1 × PCIe 3.0 x1
M.2 Slots:
1 × PCIe 5.0 x4 (CPU) – NVMe SSD,
1 × PCIe 4.0 x4 (Chipset) – NVMe
SSD SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/10
LAN: Realtek 2.5Gb Ethernet

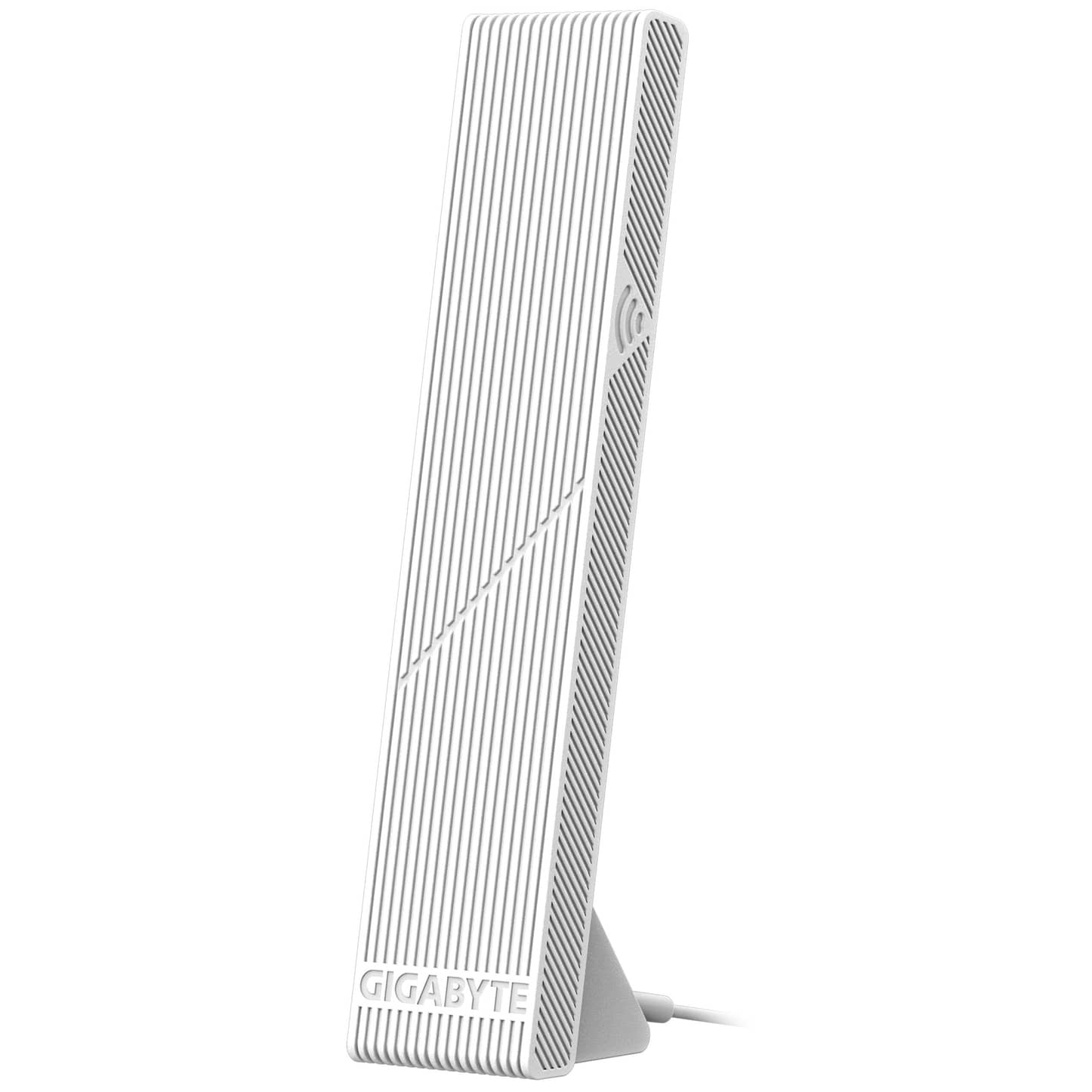

Wireless: Wi‑Fi 6E
Bluetooth: 5.x
Audio Codec: Realtek HD
Audio Channels: 7.1‑Channel High Definition Audio Video
Outputs: 1 × HDMI, 1 × DisplayPort (Requires Ryzen CPU with integrated Radeon Graphics)

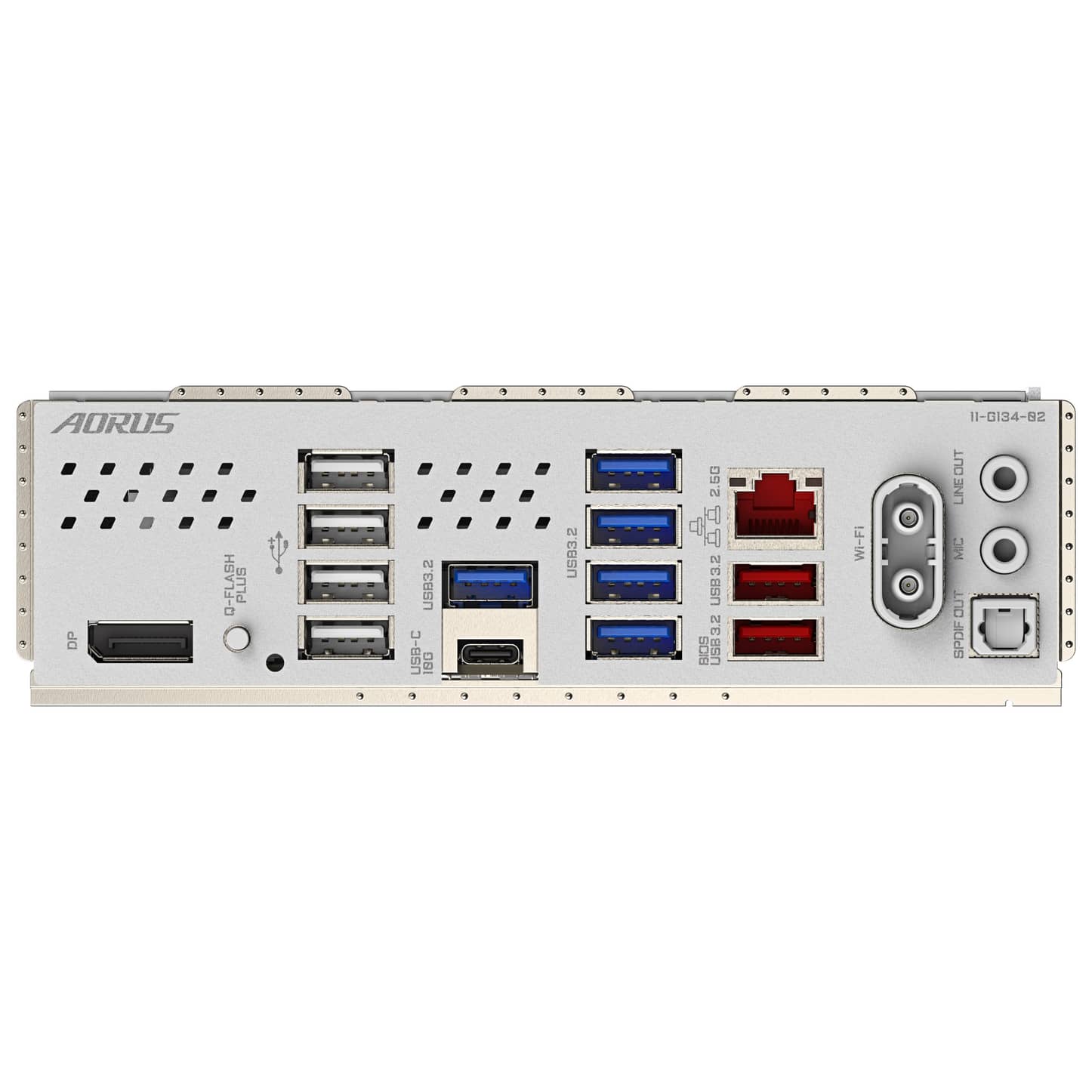

USB Connectivity Rear I/O:
USB‑C (USB 3.2 Gen2),
USB‑A (USB 3.2 Gen2),
USB‑A (USB 3.2 Gen1),
USB‑A (USB 2.0),
HDMI,
DisplayPort,
2.5Gb LAN,
Wi‑Fi antenna connectors,
Audio jacks
Internal Headers:
USB 3.2 Gen1 header,
USB 2.0 headers,
RGB & ARGB headers,
Front panel connectors,
TPM header,
Multiple fan headers,
Q‑Flash Plus button
Power Connectors:
24‑pin ATX,
8‑pin CPU power
Form Factor: Micro‑ATX (244 × 244 mm)
Most Suitable For
High‑performance AM5 gaming PCs
Ryzen 7000 / 8000 / 9000 Series builds
Compact Micro‑ATX systems
PCIe 5.0 GPU + Gen5 NVMe setups
Wi‑Fi 6E + 2.5Gb LAN connectivity
White‑themed or ICE‑aesthetic builds
