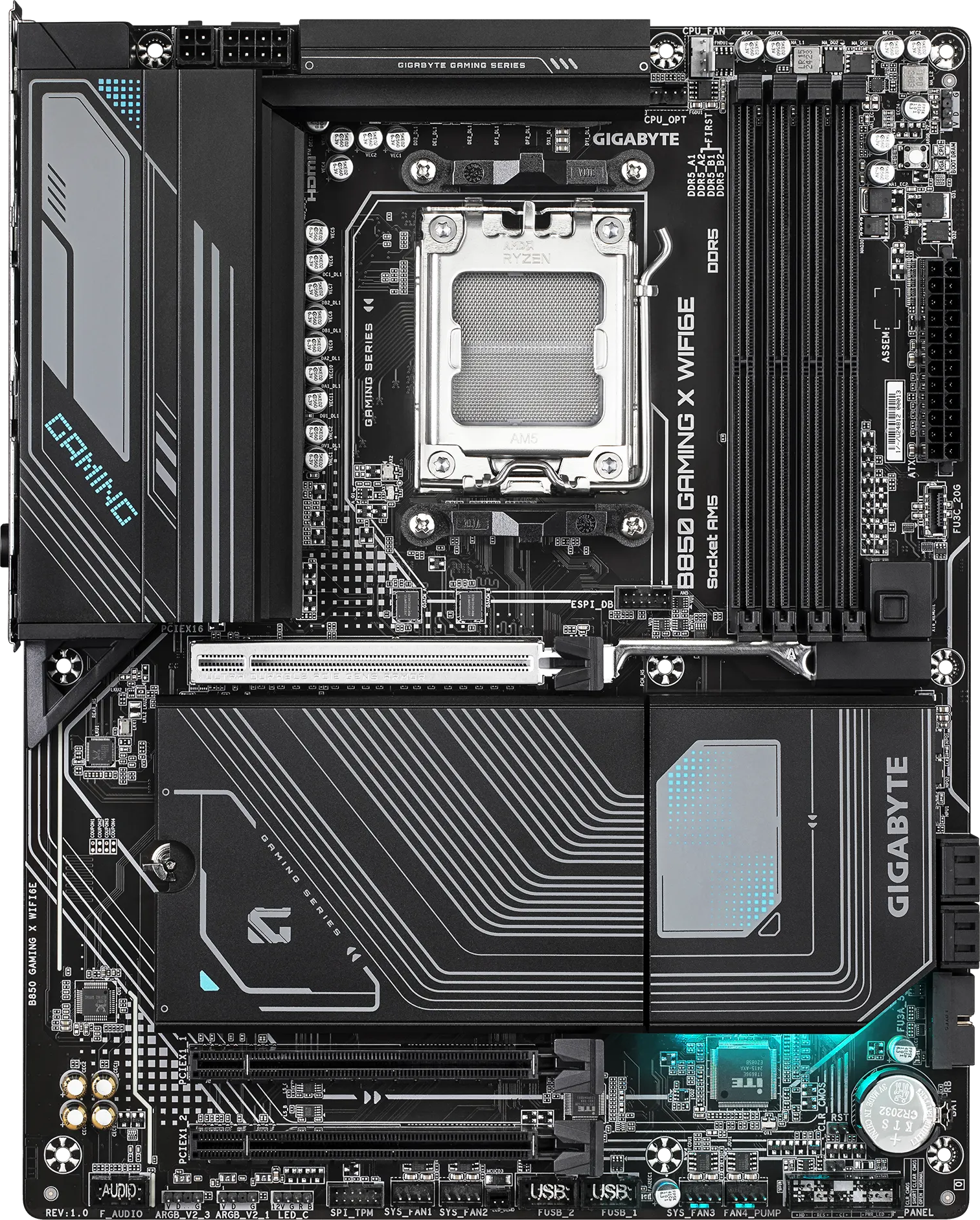

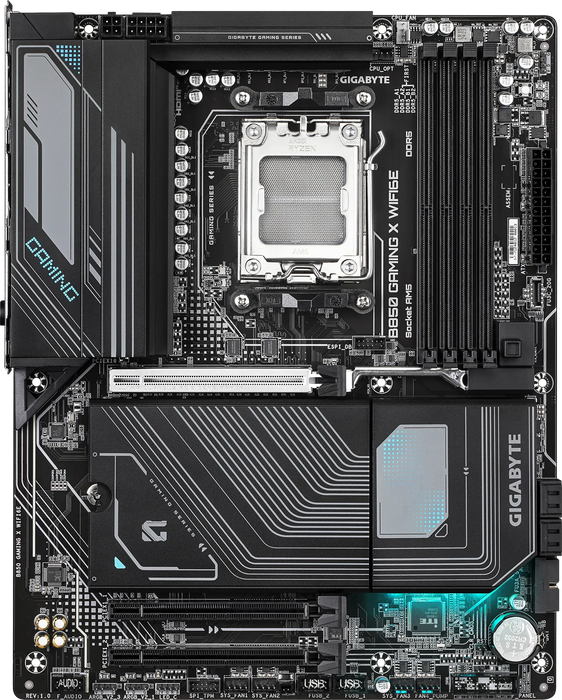

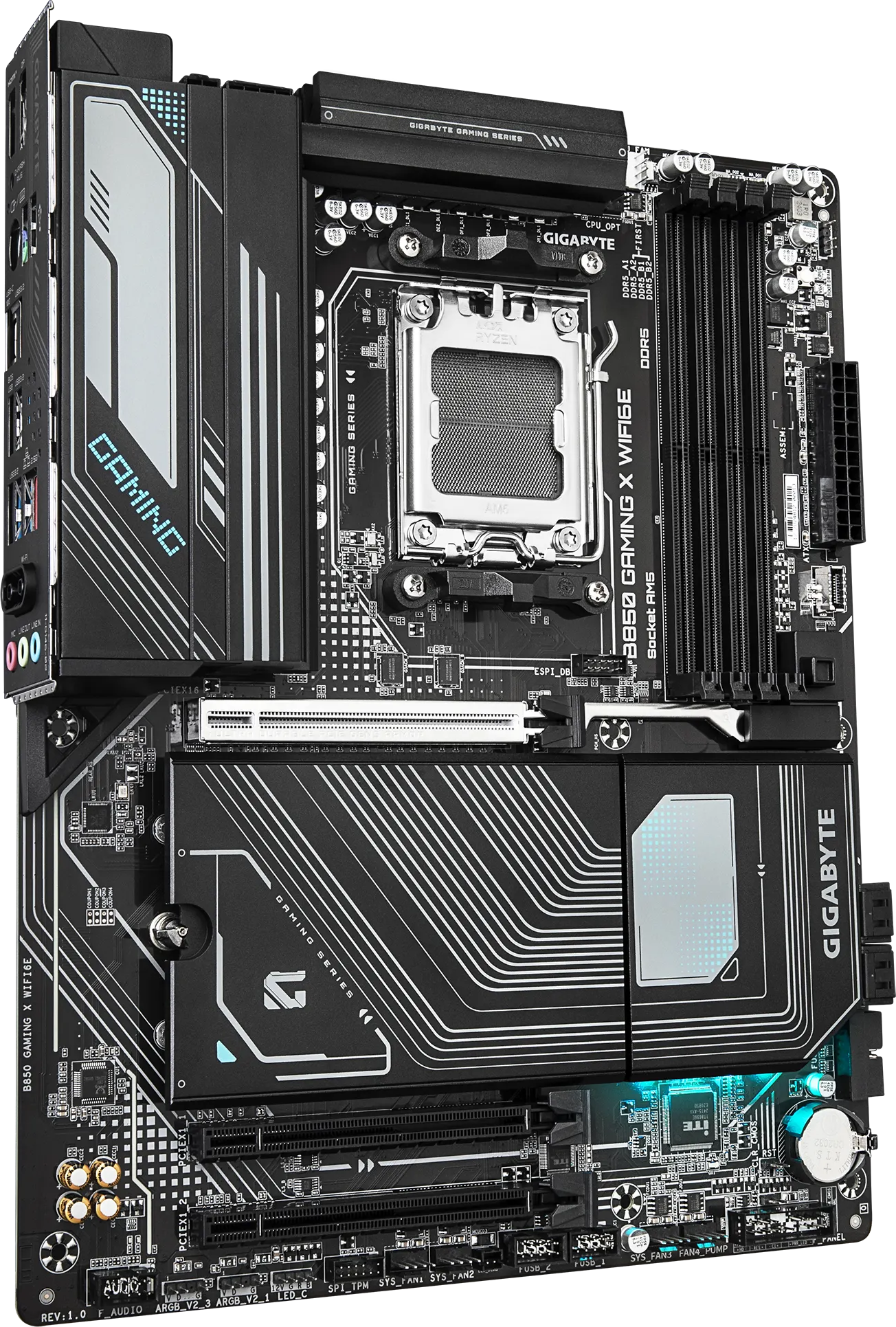

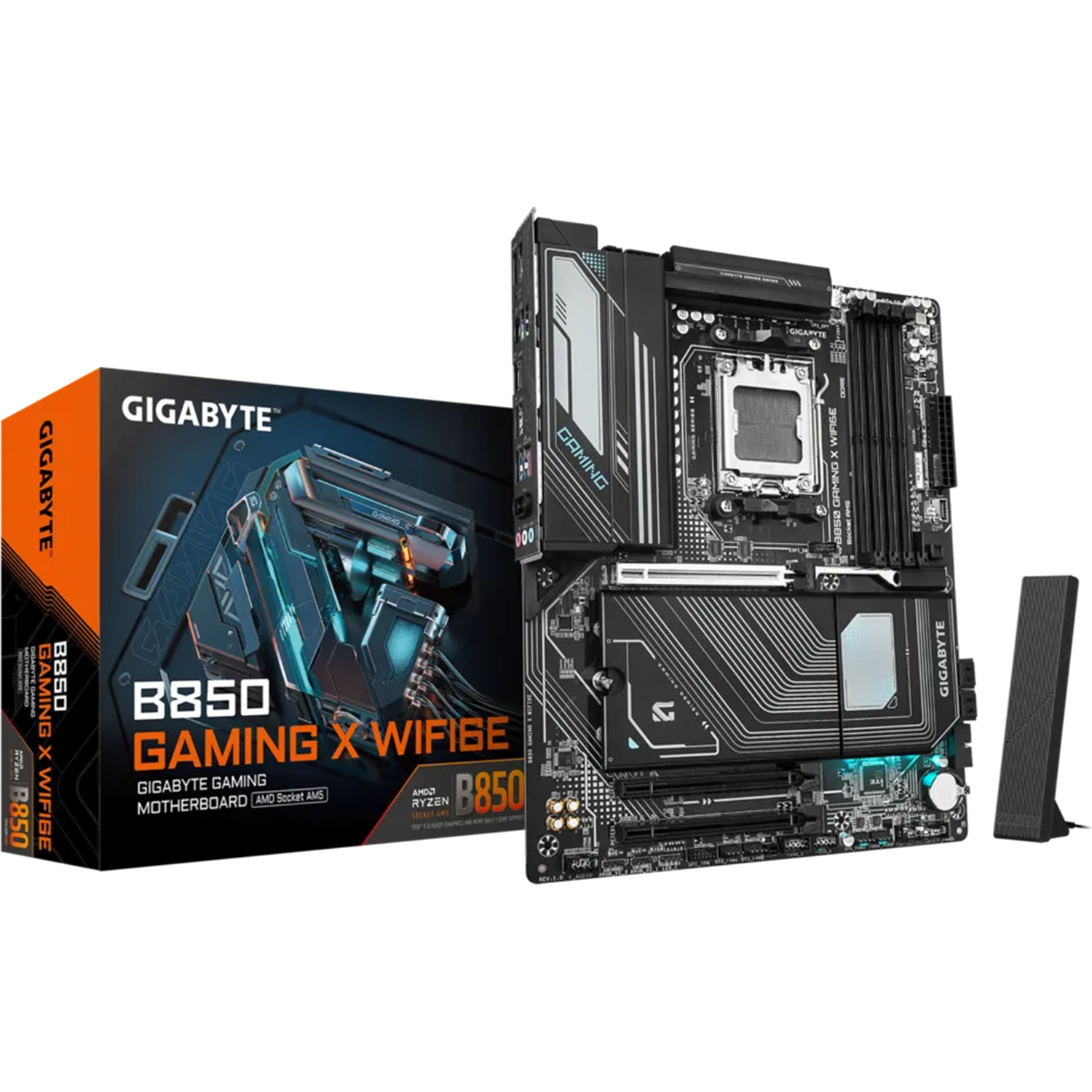

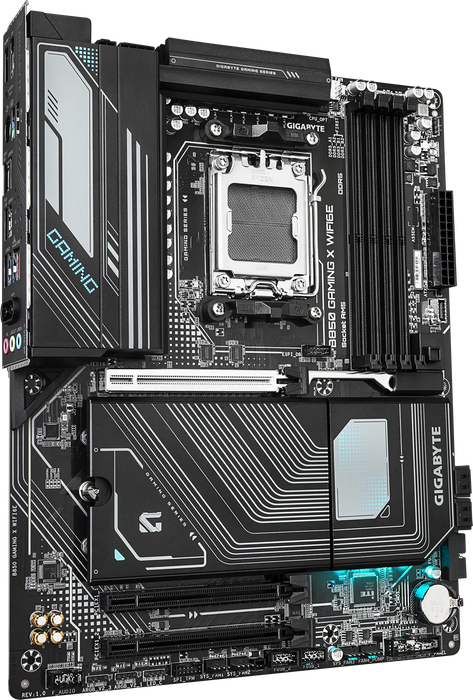

Gigabyte B850 GAMING X WIFI6E – AM5 ATX Motherboard, DDR5, PCIe 5.0, Wi‑Fi 6E

Gigabyte B850 GAMING X WIFI6E (Socket AM5) DDR5

Build a powerful AM5 system with the Gigabyte B850 GAMING X WIFI6E, a feature‑rich ATX motherboard designed for Ryzen 7000 / 8000 / 9000 Series processors. Powered by the AMD B850 chipset, it delivers next‑generation performance with DDR5 up to 8200MT/s (O.C), PCIe Gen5 GPU support, triple M.2 slots including PCIe 5.0, Wi‑Fi 6E, 2.5GbE LAN, and robust VRM cooling. GIGABYTE technologies such as EZ‑Latch Plus, fully covered MOSFET heatsinks, Q‑Flash Plus, and Smart Fan ensure easy installation, excellent stability, and long‑term reliability — ideal for modern AM5 gaming and productivity builds.

Specifications

Type: ATX Motherboard
Brand: Gigabyte
Model: B850 GAMING X WIFI6E
Chipset: AMD B850
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series

Memory

RAM Technology: DDR5
RAM Slots: 4 × DIMM
Max Memory: 256GB
Max Memory Speed (Standard): 4400 MT/s
Max Memory Speed (OC): 8200 MT/s
Profiles: AMD EXPO, Intel XMP

PCIe Slots: 1 × PCIe 5.0 x16 (mechanical), 2 × PCIe 3.0 x1 (mechanical)
M.2 Slots: 1 × PCIe 5.0 x4 (EZ‑Latch Plus), 2 × PCIe 4.0 x4
SATA Ports: 4 × SATA 6Gb/s

Networking
LAN: 2.5GbE LAN
Wireless: Wi‑Fi 6E (Realtek RTL8852CE)
Bluetooth: 5.3

Audio
Codec: Realtek HD Audio
Channels: 7.1‑Channel HD Audio

Video Outputs
(Requires Ryzen CPU with integrated graphics)
1 × HDMI
1 × DisplayPort

Special Features
Twin 12+2+2 Phase Digital VRM with DrMOS
PCIe UD Slot & EZ‑Latch Plus
M.2 EZ‑Latch Plus
Fully covered MOSFET heatsinks
Wi‑Fi EZ‑Plug
Q‑Flash Plus
RGB & ARGB headers
Smart Fan cooling

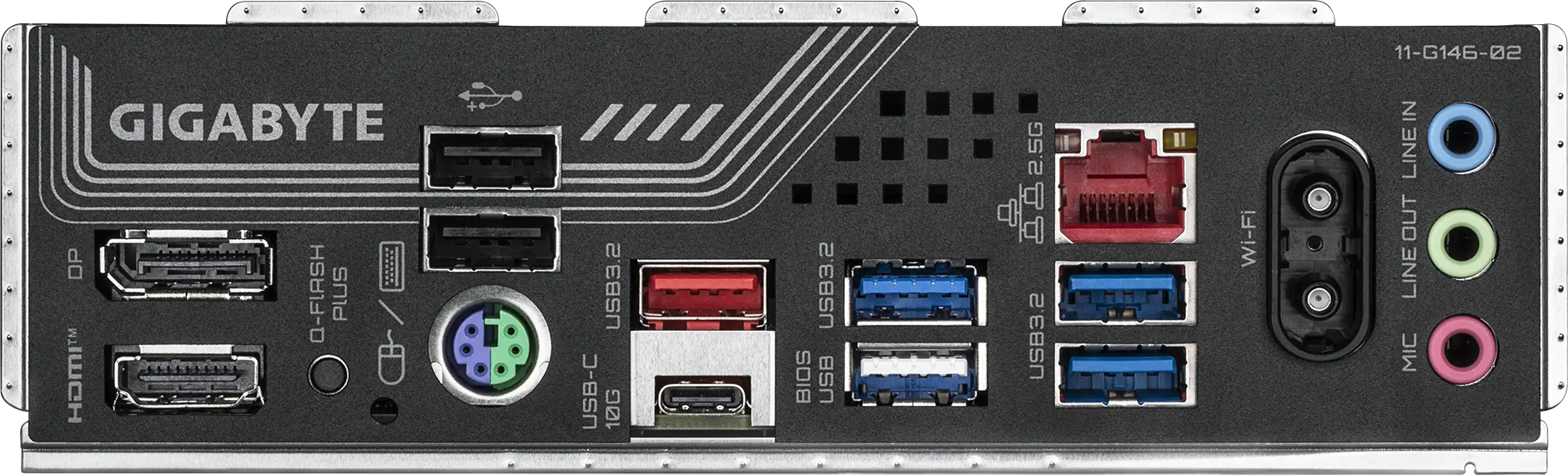

USB Connectivity Rear I/O
1 × USB‑C 10Gbps
1 × USB‑A 10Gbps
3 × USB‑A 5Gbps
2 × USB 2.0
HDMI
DisplayPort2.5GbE LAN
Wi‑Fi antenna connectors
Audio jacks

Internal Headers
24‑pin ATX
1 × 4‑pin + 1 × 8‑pin CPU power
1 × USB‑C 10Gbps
1 × USB 3.0
2 × USB 2.0
1 × RGB
3 × ARGB
Front panel audio
TPM header
6 × fan connectors

Form Factor: ATX
