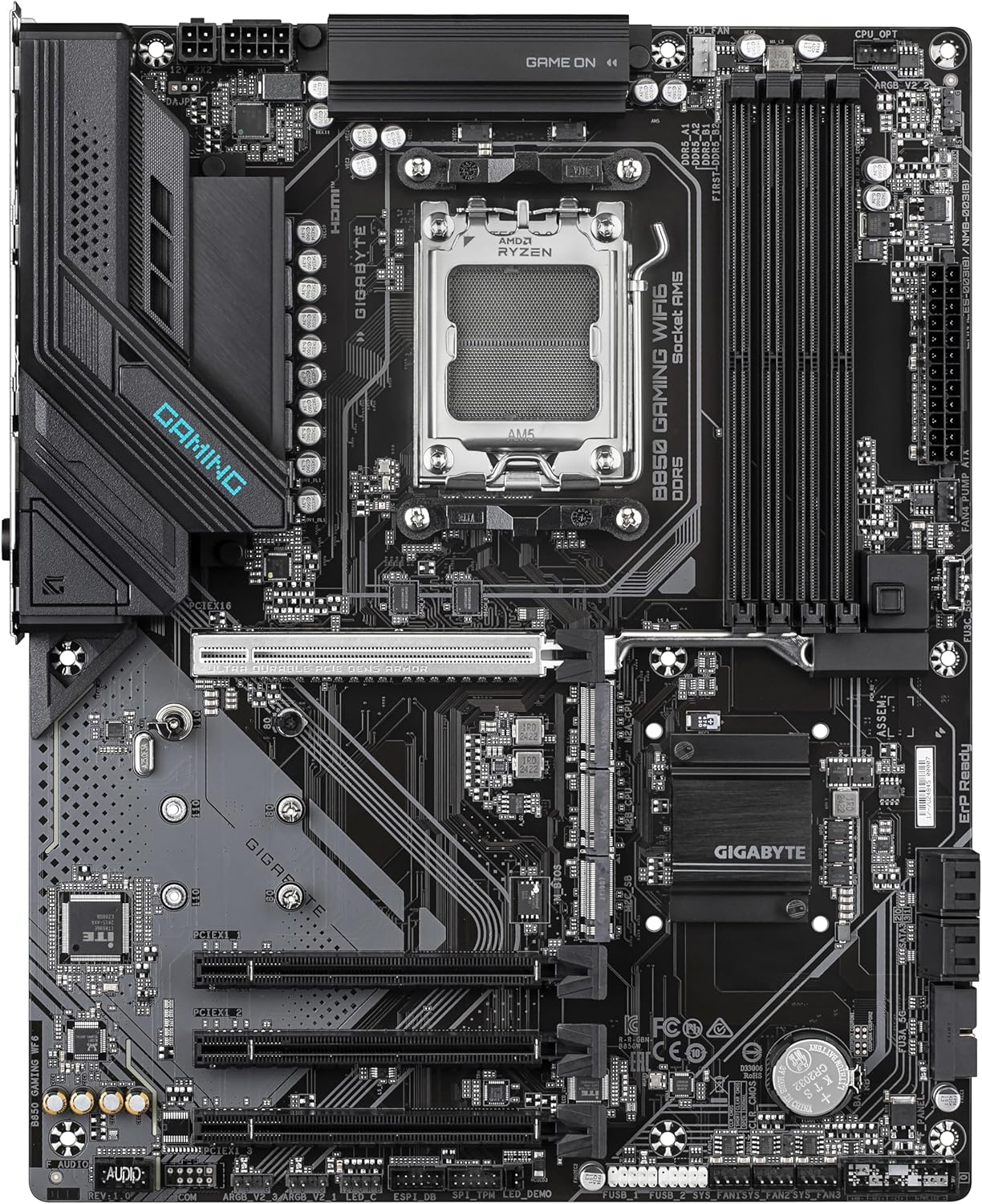

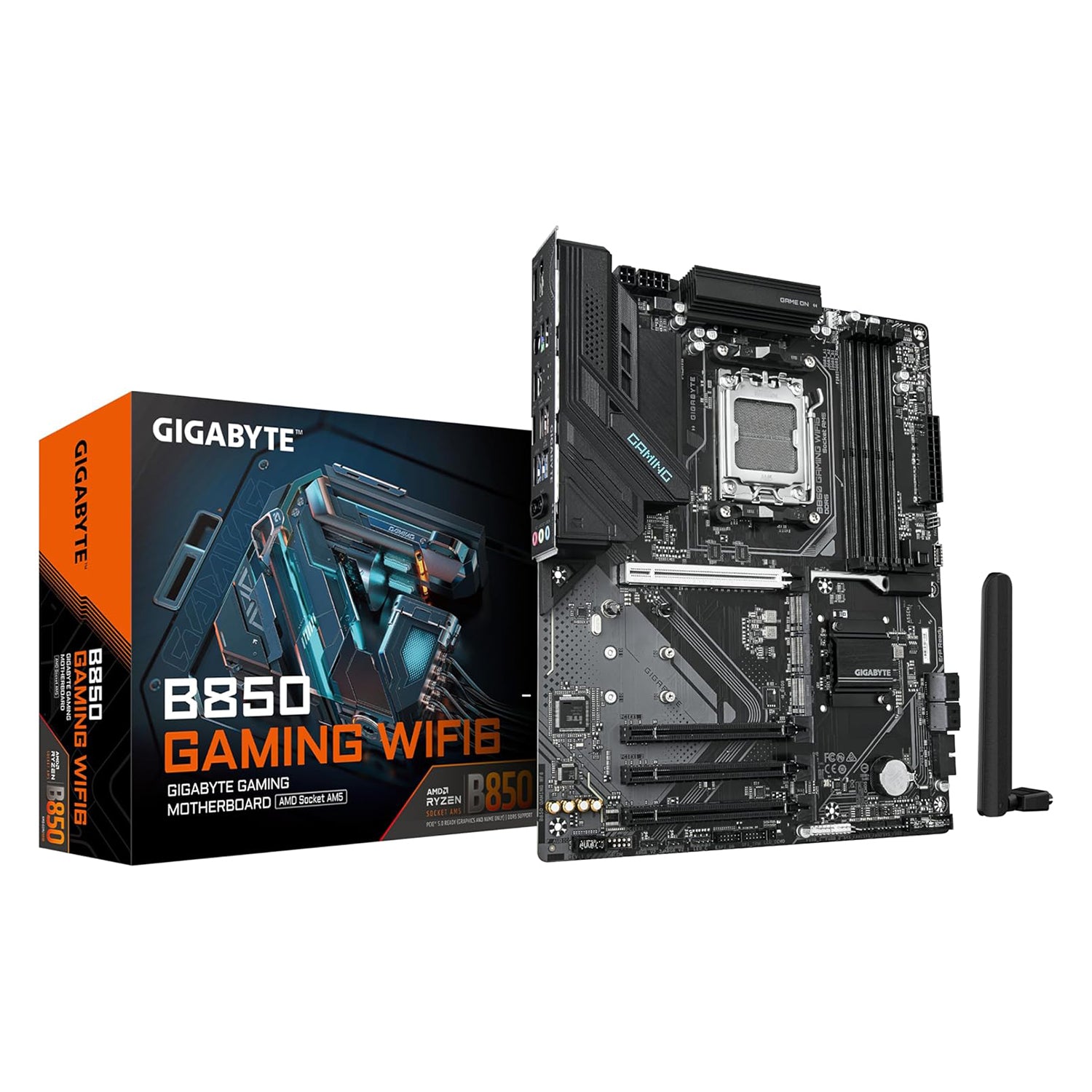

Gigabyte B850 Gaming WiFi6 ATX Motherboard AMD AM5, DDR5, PCIe 5.0
Gigabyte B850 Gaming Motherboard ATX
The Gigabyte B850 Gaming WiFi6 ATX motherboard is designed for AMD AM5 processors, offering the latest DDR5 memory support and PCIe 5.0 connectivity. This board ensures high-speed wireless networking with integrated WiFi 6, ideal for demanding gaming setups. Its robust ATX form factor provides comprehensive expansion options, delivering reliable performance and future-proofing for advanced gaming and productivity needs.
Specifications
Edition: GIGABYTE B850 GAMING Wi-Fi 6
Form Factor: ATX
CPU Socket: AM5
Chipset: AMD B850
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): Non-ECC
Memory Speed (Mhz): DDR5 - 8200(OC)
Max. Memory Capacity: 256GB
Audio: 7.1 Channel HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: N/A
AMD CrossFire Support: N/A
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: DisplayPort 1.4, HDMI 2.1
Expansion Slots
1 x M.2, 22-80/110, PCIe Gen4x2
1 x M.2, 22-80/110, PCIe Gen4x4
1 x M.2, 22-80/110, PCIe Gen5x4
3 x PCIe 3.0 x16 (x1 Bandwidth)
1 x PCIe 5.0 x16
4 x SATA 6GB/s
SATA Support: SATA3
RAID Support via: Yes
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5
Internal I/O
1 x 24-pin (Power)
1 x 4-pin (Power)
1 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Clear CMOS jumper
1 x CPU Fan Connector
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x Front Panel Connector
1 x Reset Button
1 x RGB (RGBW) LED Strip Header
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen1 Type-C Front Panel Header
Network Interface Type
802.11ax Wi-Fi LAN
Wired Gigabit LAN (10/100/1000)
Network Chip/Modules: 1 x 802.11ax WiFi + BT5.3

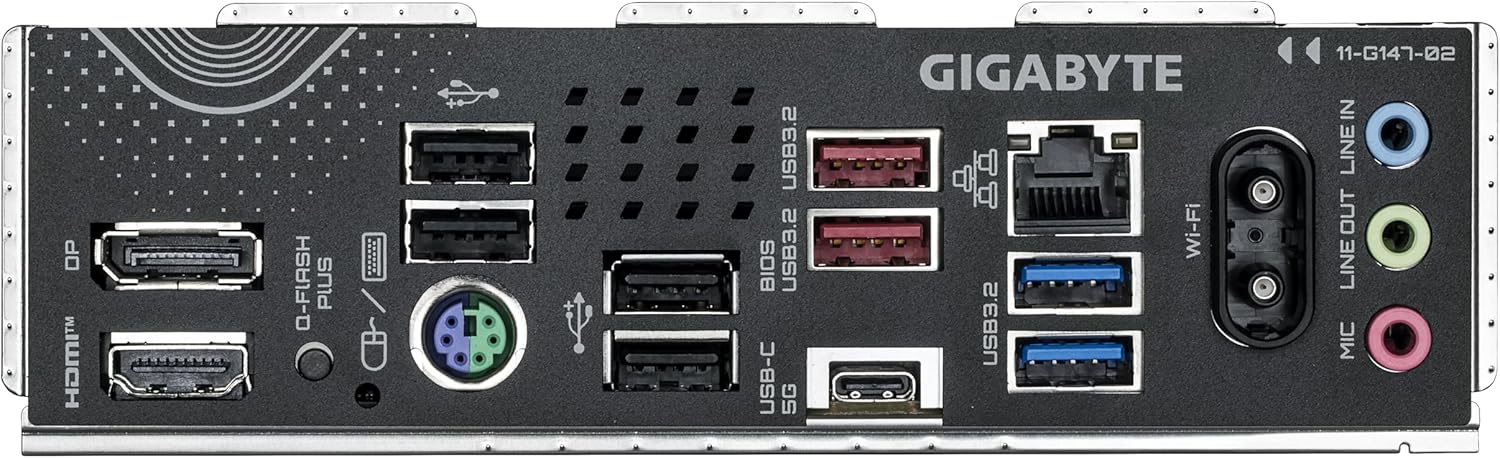

Rear I/O Connectors
2 x Antenna Ports
3 x Audio I/O
1 x PS/2 Keyboard/Mouse Combo
1 x Q-Flash Plus Button
1 x RJ-45
4 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen2 Type-A
Water Cooled: No
Cooling: Passive Heatsinks
QPI Speed: N/A
Board Dimensions: 305 x 244 mm
